Dongfeng Commercial Vehicle Tianjin KR 230 hp 4X2(6 wheels) Interchangeable Container Garbage Truck (Saiwo Brand)
EXW
Export quote
Saiwo Dongfeng Commercial Vehicle Chassis garbage
Main model photos
26 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin KR 230 hp 4X2(6 wheels) Interchangeable Container Garbage Truck (Saiwo Brand) | 4x2 / 230hp / China VI | ||

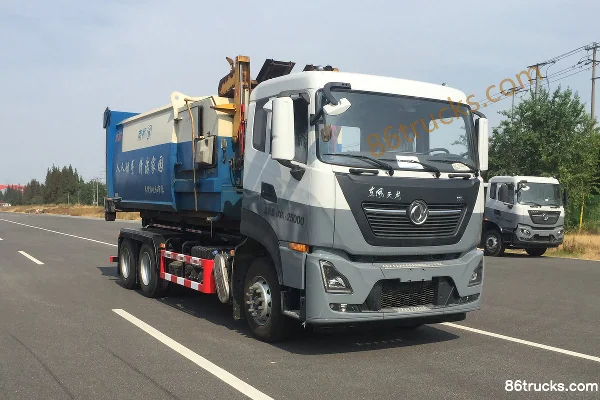

| Dongfeng Commercial Vehicle Tianjin KL 290hp 6X4(10 wheels) Hook Lift Garbage Truck (Saiwo) | 6x4 / 290hp / China VI | ||

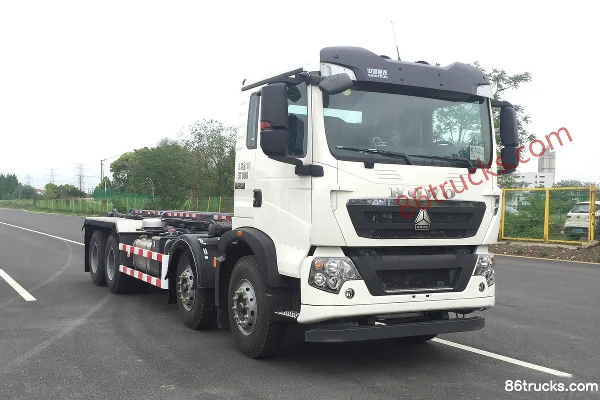

| Sinotruk HOWO T5G 340hp 8X4(12 wheels) Hook Lift Garbage Truck (Saiwo) | 8x4 / 340hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin KR 230hp 4X2(6 wheels) Compressed Refuse Truck (Saiwo) | 4x2 / 230hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin KR 190hp 4X2(6 wheels) Compressed Refuse Truck (Saiwo) | 4x2 / 190hp / China VI |
Dongfeng Commercial Vehicle Tianjin KL 290hp 6X4(10 wheels) Hook Lift Garbage Truck (Saiwo)
EXW
Export quote
Sinotruk HOWO T5G 340hp 8X4(12 wheels) Hook Lift Garbage Truck (Saiwo)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin KR 230hp 4X2(6 wheels) Compressed Refuse Truck (Saiwo)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin KR 190hp 4X2(6 wheels) Compressed Refuse Truck (Saiwo)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.27×2.5×3.04 / 8.48×2.53×3.14 / 8.525×2.55×3.14 / 8.43×2.525×2.95 / 7.63×2.5×2.885m
Type: Interchangeable body garbage truck / Compression-type garbage truck
Drive type: 4X2 / 6X4 / 8X4
Front/rear track width: 1876/1820 / 2010/1860/1860 / 2015/2015/1830/1830mm
Wheelbase: 3800 / 4350+1350 / 1800+3050+1350mm
Rated mass: 9.855 / 14.005 / 18.37 / 8.565 / 3.705ton
GVWR: 18 / 25 / 31 / 12.49ton
Front/rear suspension: 1.4/1.37 / 1.48/1.3 / 1.43/0.895 / 1.43/2.5 / 1.4/2.43m
Energy Type: Diesel
Engine parameters
Engine Model: DongfengD6.7NS6B230 / DongfengD6.7NS6B290 / SinotrukMC07.34-60 / DongfengD4.5NS6B190
Displacement: 6.7 / 6.87 / 4.5L
Emission standard: China VI
Max output power: 169 / 213 / 248 / 140kW
Max hp: 230 / 290 / 340 / 190Horsepower
Rated speed: 2300 / 2200rpm
Body Parameters
Vehicle certification code: SAV5180ZXXE6 / SAV5250ZXXE6 / SAV5310ZXXE6 / SAV5180ZYSE6
Body Brand: Saiwo brand
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle / SinotrukHOWO
Chassis Series: Tianjin KR / Tianjin KL / HOWO T5G
Chassis Model: DFH1180EX8 / DFH1250D4 / ZZ1317N326GF1 / DFH1120E1
Leaf spring count: 8/10+8 / 3/10 / 3/3/10 / 7/9+6
Transmission Parameters
Number of gears: 6 / 9 / 10Gear
Transmission Model: DongfengDT0690 / Fast Gear 9-speed / 10-speed transmission / Dongfeng 6-speed
Tire
Tire Size: 10.00R20 18PR,275/80R22.5 18PR / 295/80R22.5 18PR,11.00R20 18PR / 255/70R22.5 16PR
Number of tires: 6 / 10 / 12pcs
FAQ
What kind of truck is Saiwo Saiwo Dongfeng Commercial Vehicle Chassis garbage truck?
Saiwo Saiwo Dongfeng Commercial Vehicle Chassis is an export-oriented garbage truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Saiwo Dongfeng Commercial Vehicle Chassis garbage cover?
Saiwo Dongfeng Commercial Vehicle Chassis garbage mainly covers: Drive: 4x2 / 6x4 / 8x4; Horsepower: 190 hp / 230 hp / 290 hp / 340 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Saiwo Dongfeng Commercial Vehicle Chassis garbage?
For Saiwo Dongfeng Commercial Vehicle Chassis garbage: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Saiwo Dongfeng Commercial Vehicle Chassis garbage include?
Saiwo Dongfeng Commercial Vehicle Chassis garbage currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Saiwo Dongfeng Commercial Vehicle Chassis garbage?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
