ZOOMLION Dongfeng chassis water sprinkler truck

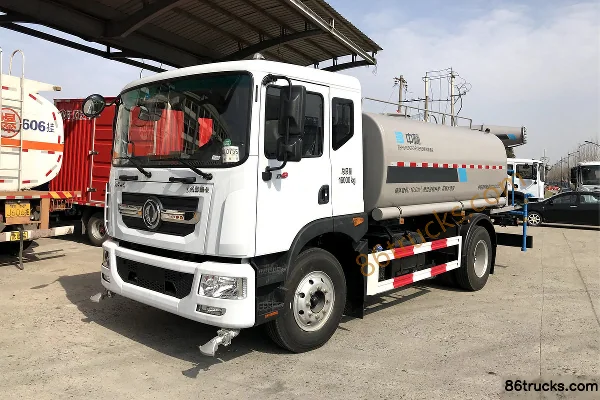

Main model photos

17 photos

Models

On sale

Model	Drive / HP / Emission	EXW	Export quote
Dongfeng Duolika D7 150 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)	4x2 / 150hp / China VI
Dongfeng Duolika D9 200 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)	4x2 / 200hp / China VI
Dongfeng Duolika D9 230 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)	4x2 / 230hp / China VI
Dongfeng Duolika D9 210 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)	4x2 / 210hp / China VI

Dongfeng Duolika D7 150 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)

4x2 150hp China VI

EXW

Export quote

Model details

Dongfeng Duolika D9 200 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)

4x2 200hp China VI

EXW

Export quote

Model details

Dongfeng Duolika D9 230 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)

4x2 230hp China VI

EXW

Export quote

Model details

Dongfeng Duolika D9 210 hp 4X2(6 wheels) Green Sprinkler Truck (Zhonglian Brand)

4x2 210hp China VI

EXW

Export quote

Model details

Series Specs

Basic Info

Cab dimensions: 7.325×2.165×2.695 / 7.62×2.42×2.835 / 7.7×2.5×2.93 / 8.79×2.476×2.922m

Truck Type: landscaping sprinkler truck

Drive type: 4X2

Wheelbase: 3800 / 3950 / 4500mm

Vehicle origin: Changsha, Hunan

Front track width: 1745 / 1862 / 1949mm

rear track: 1630 / 1806 / 1865mm

Curb Weight: 5.06 / 6.78 / 7.28ton

Rated payload: 6.74 / 9.225 / 9.925 / 10.525ton

Max. speed: 103 / 105km/h

Front/rear suspension: 1.26/2.41 / 1.3/2.45 / 1.38/2.91m

Energy Type: Diesel

Body Parameters

Tank Dimensions (L×W×H): 1.9×1.25×4 / 2.4×1.42×4 / 2.39×1.415×4.97m

Vehicle certification code: ZBH5120GPSEQE6B / ZBH5160GPSEQE6B / ZBH5180GPSEQE6B

Body Brand: ZOOMLION

Engine parameters

Engine Model: Yunnei PowerD25TCIF1 / YuchaiYCS04200-68 / DongfengB6.2NS6B230 / DongfengB6.2NS6B210

Number of cylinders: 4 / 6cylinder

Displacement: 2.5 / 4.16 / 6.2L

Emission standard: China VI

Max output power: 110 / 147 / 169 / 154kW

Max hp: 150 / 200 / 230 / 210Horsepower

Rated speed: 3000 / 2300rpm

Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / High-pressure common rail + EGR + DOC + DPF + SCR + ASC

Cargo box parameters

Box volume: 7.4 / 10 / 11.63m³

Chassis Specs

Chassis Brand: Dongfeng

Chassis Series: Dolika D7 / Dolika D9

Chassis Model: EQ1125SJ8CDC / EQ1165LJ9CDE / EQ1185LJ9CDE

Leaf spring count: 8/10+7

Transmission Parameters

Number of gears: 6 / 8Gear

Transmission Model: WLYWLY6G40 / Fast Gear8JS95 / DongfengDT0690

Tire

Tire Size: 8.25R20 / 10.00R20 18PR

Number of tires: 6pcs

FAQ

What kind of truck is ZOOMLION ZOOMLION Dongfeng chassis water sprinkler truck?

ZOOMLION ZOOMLION Dongfeng chassis is an export-oriented water sprinkler truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What spec range does ZOOMLION Dongfeng chassis water sprinkler truck cover?

ZOOMLION Dongfeng chassis water sprinkler truck mainly covers: Drive: 4x2; Horsepower: 150 hp / 200 hp / 210 hp / 230 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in ZOOMLION Dongfeng chassis water sprinkler truck?

For ZOOMLION Dongfeng chassis water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is water sprinkler truck typically used for?

water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does ZOOMLION Dongfeng chassis water sprinkler truck include?

ZOOMLION Dongfeng chassis water sprinkler truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for ZOOMLION Dongfeng chassis water sprinkler truck?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
