Chengliwei Dongfeng chassis Explosives Transport

Main model photos

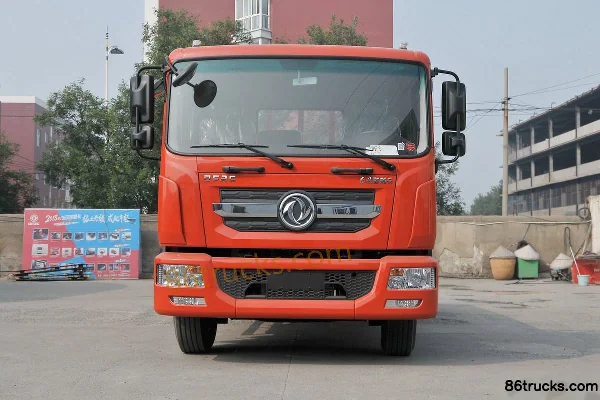

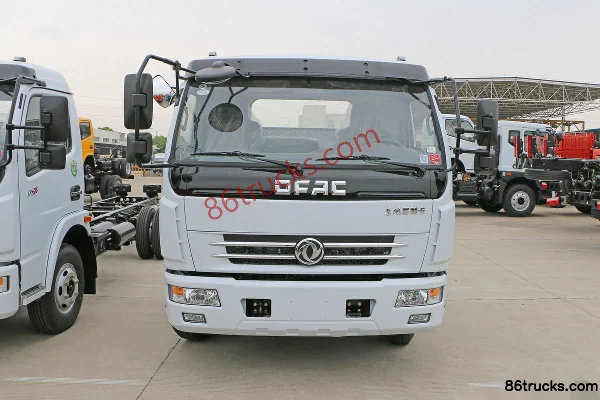

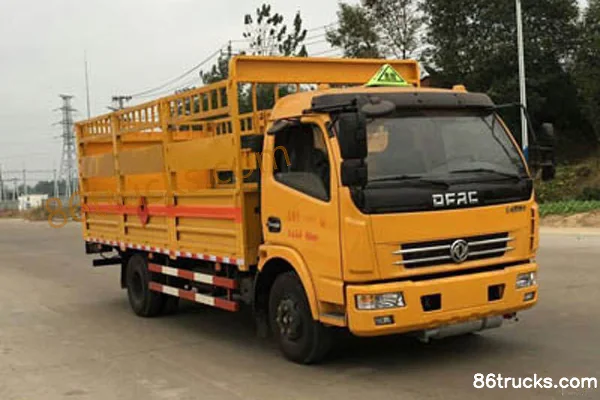

Dongfeng Duolika D9 180 hp 4X2(6 wheels) 6.1m Explosives Transport Truck (Chengliwei Brand) Exterior Dongfeng Duolika D7 156 hp 4X2(6 wheels) 5.15m Explosive Transport Truck Exterior Dongfeng Duolika D7 156hp 4X2(6 wheels) 5.1m gas cylinder transport truck (Chengliwei brand) Exterior

510 photos

Models

On sale

Inventory

Model Drive / HP / Emission EXW Export quote
Dongfeng Duolika 109 hp 4X2(6 wheels) Explosive Transport Truck (Chengliwei Brand) 4x2 / 109hp / China III / Euro III

Series Specs

Basic Info
Cab dimensions: 5.995×2.13×2.95 / 8.59×2.5×3.35 / 7.2×2.45×3.22 / 5.995×2.15×2.8 / 5.995×2.135×2.9 / 5.995×2.11×2.9 / 5.995×2.095×2.9 / 7.2×2.33×2.75m
Type: Miscellaneous dangerous goods van truck / Flammable liquid van truck / Flammable gas van truck / Oxidizing Substance Van Truck / corrosive goods van truck / Toxic and infectious substances box truck / Explosives Transport Truck / Gas cylinder transport truck
Drive type: 4X2
Wheelbase: 3308 / 4700 / 3800 / 3300mm
Front/rear track width: Front: 1525mm; Rear: 1498 / Front: 1936mm; Rear: 1865 / Front: 1903mm; Rear: 1640 / Front: 1503mm; Rear: 1494 / Front: 1903,1770mm; Rear: 1640 / Front: 1503,1485,1441mm; Rear: 1494,1458 / Front track: 1586mm; Rear track: 1530mm
Rated mass: 3.83 / 0.965 / 1.005 / 9.95 / 6.4 / 3.365 / 0.865 / 1.02 / 0.985 / 1.445 / 6.69 / 1.8ton
Front track width: 1586mm
rear track: 1530mm
GVWR: 7.36 / 4.495 / 17 / 11.495 / 4.99ton
Max. speed: 80 / 90km/h
Front/rear suspension: 1.055/1.632 / 1.23/2.66 / 1.13/2.27 / 1.04/1.647 / 1.115/1.58m
Energy Type: Diesel
Body Parameters
Other special notes: Cargo compartment top sealed, non-openable. Explosive items transported: blasting explosives, electric detonators, etc. Dangerous goods class: 1.1B, 1.1D; optional cab as per chassis. This vehicle uses only YC4F115-30 and CY4102-C3D engines. Protection material: Q235 carbon steel. Connection: left/right sides and rear lower protection welded. Rear protection section (mm): 120×40×5, ground clearance (mm): 400. ABS manufacturer: Dongfeng Electronic Technology Co., Ltd. Automotive Brake System Division, ABS model: 36BG13-30010.
rear guard section size: 100×50 / 120×40×5mm
Transport medium: copper waste, nickel waste, lead waste, chromium waste, waste batteries / copper waste, nickel waste, lead waste, chromium waste, waste batteries, waste mineral oil / Adhesive, coating, solution, kerosene, engine oil, benzene, methanol, ethanol, acetone, toluene, xylene, paint / LPG, CNG, acetylene, ethane, propane, butane, isobutane, butylene, methane, propylene, cyclobutane, propadiene, methyl ethyl ether, lighters or lighter refills (containing flammable gas), hydrogen / Oxidizing substances: hydrogen peroxide, perchloric acid, ammonium nitrate fertilizer [with combustibles ≤0.4%]; organic peroxides: DCP, di-(4-tert-butylcyclohexyl) peroxydicarbonate / Ammonia solution (ammonia water), formaldehyde solution, rust-removing phosphating solution (rust-removing phosphating agent), battery, battery fluid, creosote oil / Black powder, compressed black powder, electric (non-electric) detonators, blasting explosives, detonating cord, igniting fuse / Black powder, compressed black powder, electric detonators, blasting explosives, igniting fuse, nitroamine explosives / Black Powder, Blasting Explosive, Compressed Black Powder / Black powder, compressed black powder, electric (non-electric) detonators, blasting explosives, detonating cord, igniting fuse. Fireworks and firecrackers / xylene, benzene, toluene, acetaldehyde, turpentine, n-propanol, propionaldehyde, rosin oil, dibutyl ether, n-propyl acetate, methanol, ethanol, coating solution, formaldehyde solution, printing ink / Adhesives, coatings, solutions, paints, kerosene, engine oil, benzene, methanol, ethanol, acetone, toluene, xylene / Flammable gases: LPG, CNG, acetylene, methane, ethane, propane, butane, propylene, butylene, dimethyl ether, hydrogen sulfide, lighters or lighter refills (containing flammable gas), compressed hydrogen / LPG, crude gas, CNG, acetylene, methane, ethane, propane, butane, propylene, butylene, dimethyl ether, hydrogen sulfide, lighters or lighter refills (containing flammable gas), compressed hydrogen / Arsenic, phenol, dimethylaniline, vanadium pentoxide, aniline, o-toluidine, acrolein, methyl chloride (ether), barium chloride (copper, potassium, sodium), pesticides / Black powder, blasting explosives, compressed black powder, electric detonators, igniting fuse / Black powder, explosive, electric detonator, blasting explosive, fireworks, etc. / Flammable gases (Class 2.1) in individually packaged containers (bottles): liquefied petroleum gas, compressed methane or compressed natural gas with high methane content, acetylene, ethane, butane, propylene, butylene, dimethyl ether, compressed oxygen; for transporting non-flammable, non-toxic gases (Class 2.2) in individually packaged containers (bottles): carbon dioxide, compressed oxygen (nitrogen, air, helium, argon, neon). / Blasting explosives, electric detonators, etc.
Vehicle certification code: CLW5073XZW6 / CLW5040XZWE6 / CLW5040XRYE6 / CLW5073XRQ6 / CLW5040XYW6 / CLW5040XFWE6 / CLW5040XDGE6 / CLW5070XQYE6 / CLW5040XQYE6 / CLW5170XQY5 / CLW5114XZWE5 / CLW5114XRYE5 / CLW5114XRQE5 / CLW5114XFWE5 / CLW5114XQYE5 / CLW5074XZW5 / CLW5046XZWE5 / CLW5075XRY5 / CLW5046XRYE5 / CLW5076XRQ5 / CLW5040XRQD5 / CLW5073XFW5 / CLW5046XFWE5 / CLW5040XDGE5 / CLW5071XQY5 / CLW5042XQY5 / CLW5110TQPD5 / CLW5051XQY3
Body Brand: Chengliwei
Engine parameters
Engine Brand: Chaochai / Dongfeng / Yuchai
Engine Model: ChaochaiCY4BK461 / DongfengISB180 50 / ChaochaiCY4SK251 / YuchaiYC4S150-50 / ChaochaiCY4BK551 / DongfengD28D11-5DA / YuchaiYC4FA115-50 / ChaochaiCY4102-C3D
Number of cylinders: 4 / 6cylinder
Displacement: 3.707 / 5.9 / 3.856 / 3.767 / 2.771 / 2.982L
Emission standard: China VI / China V / China III / Euro III
Max output power: 95 / 132 / 115 / 110 / 75 / 85 / 80kW
Max hp: 129 / 180 / 156 / 150 / 102 / 115 / 109Horsepower
Max torque: 350 / 700 / 500 / 280 / 270 / 300N·m
Max torque speed: 1600 / 1200-1700 / 1200-2200 / 1300-1800 / 1000-2400 / 1800-2400 / 1600-2400 / 1400-1800rpm
Rated speed: 2600 / 2500 / 2800 / 3000 / 3200rpm
Cargo box parameters
Cargo box dimensions: 4.1×2×1.95 / 4.1×2×1.85 / 6.1×2.35×1.95 / 5.15×2.3×2 / 4.12×2×1.78 / 4.1×2×1.8 / 4.1×1.96×1.8 / 5.1×2.11×0.6 / 4.15×1.96×1.8m
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dolika D6 / Dolika D9 / Dolika D7
Chassis Model: EQ1075SJ3CDFWXP / EQ1045SJ3CDFWXP / EQ1181LJ9BDEWXP / EQ1110SJ8BDCWXP / EQ1070SJ3BDFWXP / EQ1041SJ3BDFWXP / EQ1051TJ35D3
rear axle description: 3.5T / 10T / 5.5T / 6.8T
Leaf spring count: 6/6+5,3/3+3,2/3+2 / 8/- / 8/10+7 / 6/6+5 / 8/9+5
Transmission Parameters
Number of gears: 5 / 8 / 6Gear
Transmission Model: WLYWLY5TS40 / Fast Gear8JS85E / WLYWLY6TS55 / Fast Gear8JS75C / WLYWLY6A115 / 5-speed gearbox / 6-speed transmission / 1701010-E31531
Tire
Tire Size: 7.00R16 10PR / 10.00R20 / 245/70R19.5 / 8.25R20 14PR / 8.25R20 14PR,245/70R 19.5 / 7.00-16,7.00R16 / 7.00-16 8PR,7.00R16 8PR / 7.00R16
Number of tires: 6pcs

FAQ

What kind of truck is Chengliwei Chengliwei Dongfeng chassis Explosives Transport Truck?

Chengliwei Chengliwei Dongfeng chassis is an export-oriented Explosives Transport Truck lineup with about 37 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Chengliwei Dongfeng chassis Explosives Transport?

Chengliwei Dongfeng chassis Explosives Transport export reference is about $10,972 – $27,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Chengliwei Dongfeng chassis Explosives Transport cover?

Chengliwei Dongfeng chassis Explosives Transport mainly covers: Drive: 4x2; Horsepower: 109 hp / 129 hp; Emission: China III / Euro III / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Chengliwei Dongfeng chassis Explosives Transport?

For Chengliwei Dongfeng chassis Explosives Transport: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is Explosives Transport Truck typically used for?

Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does Chengliwei Dongfeng chassis Explosives Transport include?

Chengliwei Dongfeng chassis Explosives Transport currently lists about 37 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Chengliwei Dongfeng chassis Explosives Transport?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
