Xi'an Cummins M12NS6B480 Plus 480 hp 12.5L China VI Diesel Engine
EXW
Export quote
Xi’an Cummins M12 Series engine
Main model photos
8 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Xi'an Cummins M12NS6B480 Plus 480 hp 12.5L China VI Diesel Engine | 480hp / China VI | ||
| Xi'an Cummins M12NS6B520 520hp 12.5L China VI Diesel Engine | 520hp / China VI | ||
| Xi'an Cummins M12NS6B520PLUS 520 hp 12.5L China VI diesel engine | 520hp / China VI | ||
| Xi'an Cummins M12NS6B490 490 hp 11.8L China VI Diesel Engine | 490hp / China VI | ||
| Xi'an Cummins M12NS6B470 470 hp 11.8L China VI Diesel Engine | 470hp / China VI |
Xi'an Cummins M12NS6B520 520hp 12.5L China VI Diesel Engine
EXW
Export quote

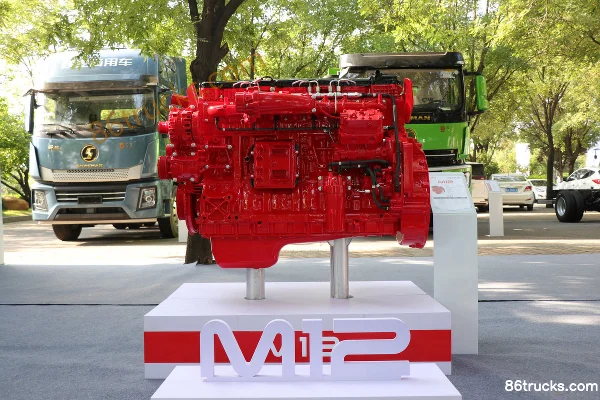

Xi'an Cummins M12NS6B520PLUS 520 hp 12.5L China VI diesel engine
EXW
Export quote
Xi'an Cummins M12NS6B490 490 hp 11.8L China VI Diesel Engine
EXW
Export quote
Xi'an Cummins M12NS6B470 470 hp 11.8L China VI Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: M12 series
Engine manufacturer: Xi'an Cummins Engine Co., Ltd.
Engine net weight: ＜1000kg
Bore × Stroke: 135x145 / 132×144mm
Engine Brand: Xi’an Cummins
Engine Model: M12NS6B480Plus / M12NS6B520 / M12NS6B520PLUS / M12NS6B490 / M12NS6B470 / M12NS6B460 / M12NS6B440 / M12NS6B430 / M12NS6B400 / M12NS6B385 / M12NS6B360
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.5 / 11.8L
Emission standard: China VI
Max output power: 353 / 382 / 360 / 348 / 344 / 326 / 322 / 301 / 279 / 265kW
Max hp: 480 / 520 / 490 / 470 / 460 / 440 / 430 / 400 / 385 / 360Horsepower
Max torque: 2400 / 2300 / 2200 / 2100 / 2000 / 1900N·m
Max torque speed: 850-1500 / 1000-1400 / 1000-1300rpm
Rated speed: 1800 / 1900rpm
Engine Type: DOC+DPF+SCR+ASC
FAQ
What kind of truck is Xi’an Cummins Xi’an Cummins M12 Series engine?
Xi’an Cummins Xi’an Cummins M12 Series is an export-oriented engine lineup with about 11 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Xi’an Cummins M12 Series engine cover?
Xi’an Cummins M12 Series engine mainly covers: Horsepower: 470 hp / 480 hp / 490 hp / 520 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xi’an Cummins M12 Series engine?
For Xi’an Cummins M12 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Xi’an Cummins M12 Series engine include?
Xi’an Cummins M12 Series engine currently lists about 11 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xi’an Cummins M12 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
