Dongfeng 145 Series 170hp 4X2(6 wheels) Garbage Truck (Hongyu Brand)
EXW
Export quote
Hongyu Dongfeng Commercial Vehicle Chassis garbage
Main model photos
41 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 145 Series 170hp 4X2(6 wheels) Garbage Truck (Hongyu Brand) | 4x2 / 170hp / China III / Euro III | ||
| Dongfeng 140 Series 140hp 4X2(6 wheels) Garbage Truck (Hongyu Brand) | 4x2 / 140hp / China III / Euro III |

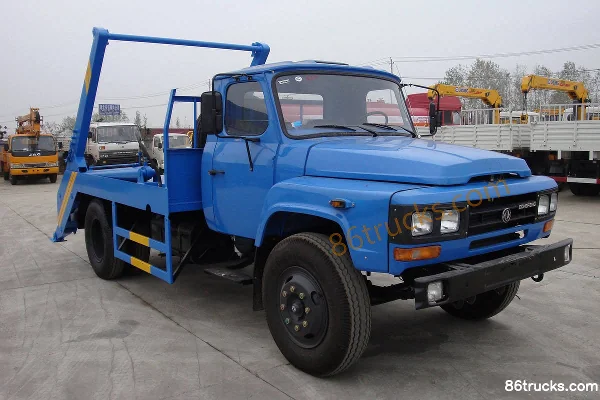

Dongfeng 140 Series 140hp 4X2(6 wheels) Garbage Truck (Hongyu Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.06×2.5×3.45 / 7.165×2.49×3.16m
Type: garbage truck with swing arm
Drive type: 4X2
Front/rear track width: 1900，1800 / Front track 1810 Rear track 1800mm
Wheelbase: 3950mm
Rated mass: 6.5 / 4.5ton
GVWR: 12.45 / 9.95ton
Front/rear suspension: 1.25/1.86 / 1.065/2.150m
Energy Type: Diesel
Body Parameters
Special Function Description: Side guard: cold-formed channel steel/Q235-A, threaded connection. The rear of the vehicle is the working device; the rear guard is integrated with the vehicle structure. This vehicle must be equipped with a trip recorder. / Side guard: cold-formed channel steel/Q235-A, bolted connection. The rear of the vehicle is the working area; the rear guard is integrated with the vehicle structure.
Vehicle certification code: HYS5120ZBSE / HYS5100ZBSE
Body Brand: Hongyu Brand
Engine parameters
Engine Model: Dongfeng B170 33 / Yuchai YC4E140-30
Displacement: 5.9 / 4.26L
Emission standard: China III / Euro III
Max output power: 125 / 105kW
Max hp: 170 / 140Horsepower
Rated speed: 2500rpm
Cargo box parameters
Box volume: 8 / 6m³
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng145 / Dongfeng140
Chassis Model: EQ1121GKJ / EQ1102FLJ5
rear axle description: 3t front axle 9t rear axle / 3.6t front axle, 8t rear axle
Leaf spring count: 8/10+8 / 9/12+9
Transmission Parameters
Number of gears: 6 / 5Gear
Transmission Model: Dongfeng 6-Speed / Dongfeng 5-Speed
Tire
Tire Size: 9.00-20
Number of tires: 6pcs
FAQ
What kind of truck is Hongyu Hongyu Dongfeng Commercial Vehicle Chassis garbage truck?
Hongyu Hongyu Dongfeng Commercial Vehicle Chassis is an export-oriented garbage truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Hongyu Dongfeng Commercial Vehicle Chassis garbage cover?
Hongyu Dongfeng Commercial Vehicle Chassis garbage mainly covers: Drive: 4x2; Horsepower: 140 hp / 170 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hongyu Dongfeng Commercial Vehicle Chassis garbage?
For Hongyu Dongfeng Commercial Vehicle Chassis garbage: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Hongyu Dongfeng Commercial Vehicle Chassis garbage include?
Hongyu Dongfeng Commercial Vehicle Chassis garbage currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hongyu Dongfeng Commercial Vehicle Chassis garbage?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
