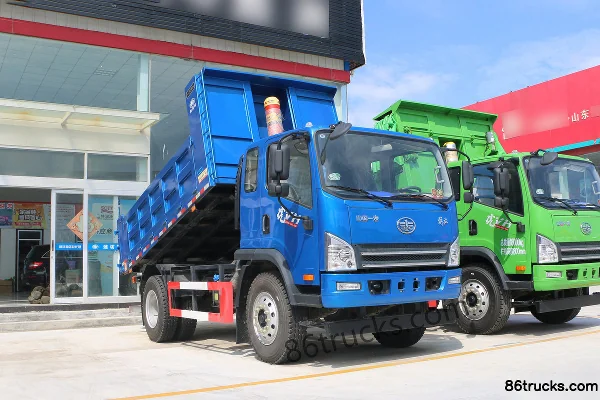

FAW Jiefang Qingdao Hu VH 180hp 4X2(6 wheels) 4.85m Dump Truck
EXW
From $23,264
Export quote
FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks
Main model photos
35 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Hu VH 180hp 4X2(6 wheels) 4.85m Dump Truck | 4x2 / 180hp / China VI | From $23,264 | |
| FAW Jiefang Qingdao Hu VH 220 hp 6X2(8 wheels) 4.2m Dump Truck (China VI) | 6x2 / 220hp / China VI | From $30,611 | |
| FAW Jiefang Qingdao Hu VH 220 hp 6X2(8 wheels) 4.3m Dump Truck (China VI) | 6x2 / 220hp / China VI | From $30,819 | |
| FAW Jiefang Qingdao Hu VH 220hp 6X2(8 wheels) 4.5m Dump Truck (China VI) | 6x2 / 220hp / China VI | From $26,639 | |
| FAW Jiefang Qingdao Hu VH 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) | 4x2 / 200hp / China VI | From $23,264 |
FAW Jiefang Qingdao Hu VH 220 hp 6X2(8 wheels) 4.2m Dump Truck (China VI)
EXW
From $30,611
Export quote
FAW Jiefang Qingdao Hu VH 220 hp 6X2(8 wheels) 4.3m Dump Truck (China VI)
EXW
From $30,819
Export quote
FAW Jiefang Qingdao Hu VH 220hp 6X2(8 wheels) 4.5m Dump Truck (China VI)
EXW
From $26,639
Export quote
FAW Jiefang Qingdao Hu VH 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI)
EXW
From $23,264
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Hu V 180 hp 4X2(6 wheels) 4.12 m Dump Truck (China VI) | 4x2 / 180hp / China VI | ||
| FAW Jiefang Hu VH 140 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 140hp / China V | From $19,722 | |
| FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 160hp / China V | From $24,306 | |
| FAW Jiefang Hu VH 170hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 170hp / China V | From $21,944 | |
| FAW Jiefang Hu V 160hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 160hp / China V | From $21,528 |
FAW Jiefang Hu V 180 hp 4X2(6 wheels) 4.12 m Dump Truck (China VI)
EXW
Export quote
FAW Jiefang Hu VH 140 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $19,722
Export quote
FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m dump truck
EXW
From $24,306
Export quote
FAW Jiefang Hu VH 170hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $21,944
Export quote
FAW Jiefang Hu V 160hp 4X2(6 wheels) 4.2m dump truck
EXW
From $21,528
Export quote
Series Specs
Basic Info
Model code (announced): CA3180P40K15L4E6A90 / CA3240P40K8L1T2E6A90 / CA3181P40K15L3E6A90 / CA3161P40K8L3E6A90 / CA3180P40K15L3E6A90 / CA3161P40K8L4E6A90 / CA3120P40K15L3E6A90
Drive type: 4X2 / 6X2
Wheelbase: 3950 / 2450+1200 / 2600+1200 / 3650 / 3400 / 4500 / 4250 / 3800 / 3300mm
Engine Model: YuchaiYCDV3663-180 / YuchaiYCS04220-61A / YuchaiYCS04200-68 / WeichaiWP4.1NQ190E61 / DachaiCA4DD2-18E6
Transmission Model: Fast Gear8JS75TE-C / Fast Gear10JS90A-B / Fast Gear8JS85F / Fast Gear8JS75TE / Fast Gear8JS85E / Fast Gear 10-Speed
Rear Axle Ratio: 5.833 / 5.571 / 5.143 / 6.5 / 6.166
Cab length: 7.18 / 6.63 / 6.83 / 6.53 / 6.13 / 8.01 / 7.61 / 6.33 / 5.995m
Cab width: 2.4 / 2.45 / 2.5 / 2010m
Cab height: 2.77 / 2.7 / 2.8 / 2.66 / 2.75m
Front track width: 1770 / 1760mm
rear track: 1860 / 1960/1750 / 1760 / 1770 / 1720mm
Curb Weight: 7.11 / 7.6 / 6 / 7.81 / 6.8ton
Rated payload: 10.695 / 16.705 / 11.805 / 8.695 / 7.995 / 5.595 / 9.995ton
GVWR: 18 / 24.5 / 16 / 11.99ton
Origin: Qingdao, Shandong / Liuzhou / Liuzhou, Qingdao / Qingdao, Liuzhou, Qingdao / Liuzhou, Guangxi
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 20°
departure angle: 13 / 17 / 16°
Remarks: driving recorder / Standard: instrument panel EOL, overhead box, center seat, phone holder, dual-element high-flow air cleaner, transmission auxiliary support, internal spline PTO, Φ102 clutch booster, end-face tooth driveshaft
Version: Hu VH
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai / Dachai
Number of cylinders: 4cylinder
Displacement: 3.621 / 4.295 / 4.16 / 4.088 / 3.2L
Emission standard: China VI
Max output power: 132 / 162 / 147 / 140kW
Max hp: 180 / 220 / 200 / 190Horsepower
Max torque: 850 / 720 / 680 / 550N·m
Max torque speed: 1200-1600 / 1300-1900 / 1600rpm
Rated speed: 2300 / 2600 / 3200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / High-pressure common rail, EGR+DOC+DPF+SCR / DOC+DPF+SCR+ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: Ф110 / Ф160 / Ф140
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.85 / 4.2 / 4.3 / 4.5 / 3.8 / 5.7 / 5.3 / 4 / 3.72m
Body Parameters
Lifting type: Center-mounted dual-cylinder top / Construction top / Front lift
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks?
FAW Jiefang Qingdao FAW Jiefang Qingdao Tiger V Light Truck is an export-oriented Dump Trucks lineup with about 70 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks?
FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks export reference is about $19,722 – $30,819. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks cover?
FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks mainly covers: Drive: 4x2 / 6x2; Horsepower: 140 hp / 160 hp / 170 hp / 180 hp / 200 hp / 220 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks?
For FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks include?
FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks currently lists about 70 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao Tiger V Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
