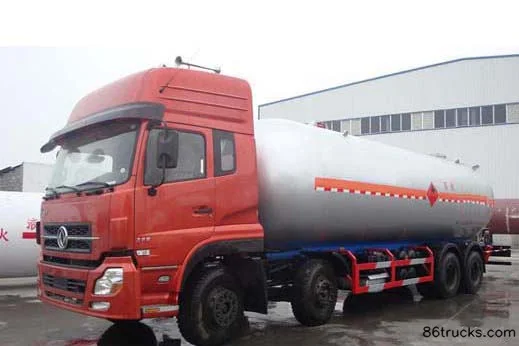

Dongfeng Commercial Vehicle Tianlong 290 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand)
EXW
Export quote
Chengliwei Dongfeng Commercial Vehicle Chassis
Main model photos
256 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong 290 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) | 8x4 / 290hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianlong 270 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) | 8x4 / 270hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianlong 270 hp 8X4(12 wheels) Liquefied Gas Transport Truck (Chengliwei Brand) | 8x4 / 270hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 11.995×2.5×3.69,3.2 / 11.98×2.5×3.69,3.4 / 11.7×2.5×3.72m
Truck Type: liquefied gas transport truck
Drive type: 8X4
Front/rear track width: Front track: 1940/1940 Rear track: 1860/1860 / Front track: 1940/1940mm; Rear track: 1986/1986 1860/1860mm
Wheelbase: 1950+4250+1350 / 1950+4250+1300 / 1950+4250+1300；1950+4250+1350；1950+4500+1300；1950+4500+1350；1950+4500+1430；1850+4600+1430mm
Front track width: 1940/1940mm
rear track: 1986/1986 1860/1860mm
Rated payload: 12.678 / 14.5 / 14.49ton
GVWR: 31ton
Max. speed: 85km/h
Front/rear suspension: 1.46/2.985 / 1.46/2.97 / 1.46/2.69；1.46/2.74m
Energy Type: Diesel
Body Parameters
Tank Size: 9.413×1.878 / 8.576×2.016 / 8.757×2.374m
Other special notes: Unit volume filling capacity: 0.52 t/m³; wheelbase (mm) 1950+4250+1350 corresponds to rear overhang (mm) 2985, wheelbase (mm) 1950+4250+1300 corresponds to rear overhang (mm) 3035. Flat-top cab optional with chassis, corresponding vehicle height (mm) 3200. Front lower mirror optional. Connection: front/rear guards welded, rear guard section (mm): 120×60×5, ground clearance (mm): 540. / Unit volume filling capacity: 0.562 t/m³; optional front lower mirror for cab. Guard material: Q235 carbon steel; connection method: left and right / Unit volume filling capacity: 0.42 t/m³; wheelbase (mm) 1950+4250+1350 corresponds to rear overhang (mm) 2690, wheelbase (mm) 1950+4250+1300 corresponds to rear overhang (mm) 2740. Cab and front lower mirror optional with chassis. Protection material: Q235 carbon steel, connection: front/rear guards welded, rear guard section (mm): 150×50×5, ground clearance (mm): 540.
Tank Straight Section Length: 8.4 / 7.5 / 6.389m
Tank Volume: 24.38 / 25.8 / 34.5m3
Transport medium: liquid ammonia / dimethyl ether / liquefied petroleum gas (propane)
Vehicle certification code: CLW5312GYQ / CLW5315GYQ / CLW5311GYQD
Body Brand: Chengliwei
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng ISLe29030 / Dongfeng ISDe27030
Number of cylinders: 6cylinder
Displacement: 8.9 / 6.7L
Emission standard: China III / Euro III
Max output power: 213 / 198kW
Max hp: 290 / 270Horsepower
Max torque: 1050 / 970N·m
Max torque speed: 1000-1900 / 1400rpm
Rated speed: 2100 / 2500rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianlong
Chassis Model: DFL1311A3
Leaf spring count: 8/8/10,3/3/4
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS119T-B / Fast Gear 9JS119
Tire
Tire Size: 10.00-20,10.00R20,11.00-20,11.00R20 / 10.00-20；10.00R20；11.00-20；11.00R20；295/80R22.5
Number of tires: 12pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis liquefied gas transport truck?
Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis is an export-oriented liquefied gas transport truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengliwei Dongfeng Commercial Vehicle Chassis cover?
Chengliwei Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 8x4; Horsepower: 270 hp / 290 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Commercial Vehicle Chassis?
For Chengliwei Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is liquefied gas transport truck typically used for?
liquefied gas transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Commercial Vehicle Chassis include?
Chengliwei Dongfeng Commercial Vehicle Chassis currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
