Dongfeng Commercial Vehicle Tianlong 375 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chengliwei Brand)
EXW
Export quote
Chengliwei Dongfeng Commercial Vehicle Chassis
Main model photos
256 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong 375 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chengliwei Brand) | 8x4 / 375hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianlong 290 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chengliwei brand) | 8x4 / 290hp / China III / Euro III |

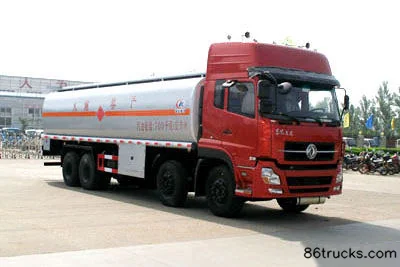

Dongfeng Commercial Vehicle Tianlong 290 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chengliwei brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.99×2.5×3.9 / 11.98×2.5×3.4,3.7m
Drive type: 8X4
Truck Type: chemical liquid transport truck
Vehicle origin: Hubei
Front/rear track width: Front track: 1940/1940mm; Rear track: 1860/1860mm
Wheelbase: 1950+4250+1300mm
Rated payload: 16 / 15.665ton
GVWR: 31ton
Max. speed: 90 / 85km/h
Front/rear suspension: 1.46/3.03 / 1.46/2.97m
Energy Type: Diesel
Body Parameters
Tank Size: 9.2×2.4×1.76 / 9.2×2.45×1.62m
Tank Volume: 26.4 / 24.8m3
Transport medium: Dilute Sulfuric Acid / Dimethylamine solution
Medium Density: 0.5 / 0.66ton/cubic meter
Vehicle certification code: CLW5310GHY3 / CLW5311GHY3
Body Brand: Chengliwei
Others: Others as per factory standard / Rear overhang (mm) 3020, 2970 corresponds to wheelbase (mm) 1950+4250+1300, 1950+4250+1350 respectively. Cab seating capacity 2,3 corresponds to load mass (kg) 15665, 15600 respectively. Flat-top cab optional with chassis. Front lower mirror optional. Guard material: Q235 carbon steel, connection: front/rear and side guards welded, rear guard section (mm): 100×60×5, rear guard ground clearance (mm): 490.
Chassis Specs
Front/rear axle description: Front axle 5T
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianlong
Chassis Model: DFL1311A4 / DFL1311A3
Leaf spring count: 9/9/10 / 8/8/10,3/3/4
Engine parameters
Engine Model: Dongfeng dCi375-30 / Dongfeng ISLe29030
Number of cylinders: 6cylinder
Displacement: 11.12 / 8.9L
Emission standard: China III / Euro III
Max output power: 276 / 213kW
Max hp: 375 / 290Horsepower
Transmission Parameters
Number of gears: 7Gear
Tire
Tire Size: 11.00-20 / 10.00-20
Number of tires: 12pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis liquid transport truck?
Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis is an export-oriented liquid transport truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengliwei Dongfeng Commercial Vehicle Chassis cover?
Chengliwei Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 8x4; Horsepower: 290 hp / 375 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Commercial Vehicle Chassis?
For Chengliwei Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is liquid transport truck typically used for?
liquid transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Commercial Vehicle Chassis include?
Chengliwei Dongfeng Commercial Vehicle Chassis currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
