Dongfeng Commercial Vehicle Tianjin KR 300 hp 6X4(10 wheels) Compressed Garbage Truck (Chengliwei Brand)
EXW
Export quote
Chengliwei Dongfeng Commercial Vehicle Chassis
Main model photos
256 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin KR 300 hp 6X4(10 wheels) Compressed Garbage Truck (Chengliwei Brand) | 6x4 / 300hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin VR 230 hp 4X2(6 wheels) Compressed Garbage Truck (Chengliwei Brand) | 4x2 / 230hp / China VI | From $41,667 | |
| Dongfeng Commercial Vehicle Tianjin VR 230 hp 4X2(6 wheels) Compressed Garbage Truck (Chengliwei Brand) | 4x2 / 230hp / China VI | From $41,111 | |
| Dongfeng Commercial Vehicle Tianjin VR 210 hp 4X2(6 wheels) compression refuse truck (Chengliwei brand) | 4x2 / 210hp / China VI | From $38,056 | |
| Dongfeng Commercial Vehicle Jincheng 115hp 4X2(6 wheels) 3800mm Wheelbase Garbage Truck Chassis | 4x2 / 115hp / China V | From $11,528 |

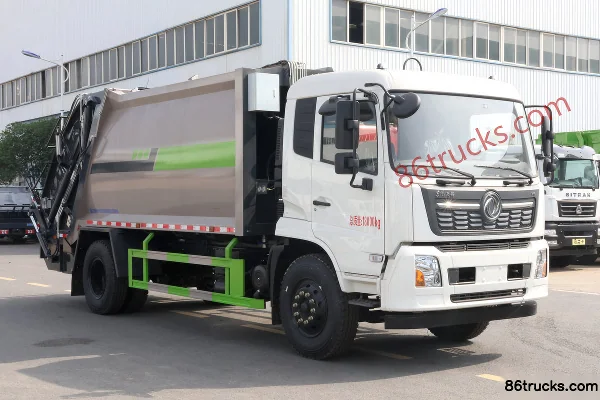

Dongfeng Commercial Vehicle Tianjin VR 230 hp 4X2(6 wheels) Compressed Garbage Truck (Chengliwei Brand)
EXW
From $41,667
Export quote
Dongfeng Commercial Vehicle Tianjin VR 230 hp 4X2(6 wheels) Compressed Garbage Truck (Chengliwei Brand)
EXW
From $41,111
Export quote
Dongfeng Commercial Vehicle Tianjin VR 210 hp 4X2(6 wheels) compression refuse truck (Chengliwei brand)
EXW
From $38,056
Export quote
Dongfeng Commercial Vehicle Jincheng 115hp 4X2(6 wheels) 3800mm Wheelbase Garbage Truck Chassis
EXW
From $11,528
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 153 Series 190 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand) | 4x2 / 190hp / China IV | ||
| Dongfeng 145 series 180 hp 4X2(6 wheels) garbage truck (Chengliwei brand) | 4x2 / 180hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand) | 4x2 / 180hp / China III / Euro III | ||
| Dongfeng 140 Series 160 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand) | 4x2 / 160hp / China III / Euro III | ||
| Dongfeng 140 Series 140 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand) | 4x2 / 140hp / China III / Euro III |
Dongfeng 153 Series 190 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand)
EXW
Export quote
Dongfeng 145 series 180 hp 4X2(6 wheels) garbage truck (Chengliwei brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand)
EXW
Export quote
Dongfeng 140 Series 160 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand)
EXW
Export quote
Dongfeng 140 Series 140 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.35×2.55×3.25 / 8.74×2.5×3.3 / 8.66×2.5×3.3 / 8.89×2.5×3.3 / 6.56×1.9×2.44 / 6.36×1.9×2.44 / 6.06×1.9×2.44 / 8.79×2.5×2.84 / 8.43×2.5×2.84 / 8.29×2.5×2.84 / 8.51X2.5X3.25 / 7.070×2.47×3.33 / 7.3×2.47×2.9 / 6.85×2.44×2.72 / 6.83×2.45×2.75 / 7.22×2.48×3.1 / 8.38×2.5×3.32 / 7.22×2.48×3.15 / 7.37×2.47×3.3m
Type: Compression-type garbage truck / garbage truck / garbage truck with swing arm / hook-lift garbage truck / Dump refuse truck
Drive type: 6X4 / 4X2
Front/rear track width: Front track: 1934mm; Rear track: 1860/1860 / Front track: 1860mm; Rear track: 1920 / Front: 1876mm; Rear: 1820 / Front track: 1630mm; Rear track: 1500 / Front track: 1880mm; Rear track: 1800 / Front track: 1920; Rear track: 1860 / 1810，1800 / Front track: 1880mm; Rear track: 1800mm / 1810/1800 / Front track: 1900mm; Rear track: 1800mm / Front track: 1940mm; Rear track: 1860mm / Front track: 1900, Rear track: 1800 / 1900,1810
Wheelbase: 4350+1350 / 4700 / 3800 / 3600 / 3300 / 5000 / 4500 / 3650,3800,3950 / 3950mm
Rated mass: 11.055 / 7.36 / 7.505 / 7.305 / 5.5 / 6 / 6.8 / 4 / 4.5 / 5 / 3.8ton
GVWR: 25 / 18 / 7.45 / 16 / 15.9 / 12.49 / 9.91 / 9.715 / 11.495 / 14.49 / 10.99ton
Front/rear suspension: 1.5/3.15 / 1.43/2.41 / 1.4/2.51 / 1.25/1.514 / 1.25/1.512 / 1.43/1.87 / 1.25/2.56 / 1.25/1.8 / 1.43/1.37 / 1.065/1.835 / 1.065/1.815 / 1.25/2.02 / 1.25/2.63 / 1.25/2.17m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: DongfengDDi75E300-60 / DongfengD6.7NS6B230 / DongfengB6.2NS6B210 / YuchaiYC4FA115-50 / YuchaiYC6J180-52 / Dongfeng ISB190 40 / YC6J-180 / Dongfeng ISDe18030 / Yuchai YC6J160-33 / Yuchai YC4E140-30 / Dongfeng B17033 / Dongfeng B190 33
Displacement: 7.5 / 6.7 / 6.2 / 2.982 / 6.494 / 5.9 / 4.5 / 4.26L
Emission standard: China VI / China V / China IV / China III / Euro III
Max output power: 220 / 169 / 154 / 85 / 132 / 140 / 118 / 105 / 125kW
Max hp: 300 / 230 / 210 / 115 / 180 / 190 / 160 / 140 / 170Horsepower
Rated speed: 2300 / 2500 / 2200rpm
Body Parameters
Special Function Description: Semi-floating rear suspension with mechanical damping cab mount, hydraulic mechanical tilt, manual window regulator, manual front door lock, channel-type dashboard, with A/C / This vehicle corresponds to a chassis rear overhang of 1360mm. / Roof height: 200mm, roof weight: 250kg. / waste transport / When this vehicle is selected without a rear turnover mechanism, the overall length is 8150mm, corresponding to a rear overhang of 2400mm.
Vehicle certification code: CLW5251ZYSD6 / CLW5180ZYSBHJ / CLW5180ZYSD6 / CLW5070ZZZE5 / CLW5163ZDJD5 / CLW5162ZYST4 / CLW5121ZBST4 / CLW5120ZKX3 / CLW5100ZZZT3 / CLW5100ZLJT3 / CLW5110ZDJT3 / CLW5140ZYST3 / CLW5110ZCYS / CLW5110BZLT3
Body Brand: Chengliwei
Cargo box parameters
Box volume: 6 / 8m³
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Tianjin KR / Tianjin VR / Jincheng / Dongfeng Tianjin / Dongfeng153 / Dongfeng145 / 140 series / Dongfeng 140 series / 145
Chassis Model: DFH1250B / DFH1180EX8 / EQ1070GD5DJ / EQ1168VFJ1 / EQ1128GLJ / DFL1120B2 / EQ1102FLJ5 / EQ1110GLJ / EQ5140KLJ
Frame Dimensions: 250×80×(7+4)mm
rear axle description: 11T×2 / 9T / 10T / 24Q54-00005Q6, stamped-welded axle housing / 9T, single reduction / 3/9 / 3.6t front axle, 9t rear axle / 5T front axle / 10T rear axle / 3.6/6.5 / 3-ton / 9-ton rear axle
Axle ratio: 5.29 / 4.33 / 4.556 / 5.286
Leaf spring count: 9/10 / 7/9+6 / 7/9+6,8/10+8,8/9+6,11/10+8 / 9/11+8 / 9/10+8 / 7/9+6,8/10+8 / 9/12+9 / 8/11+8 / 8/10+8
clutch: Φ395
Transmission Parameters
Number of gears: 8 / 6 / 5Gear
Transmission Model: 8-speed gearbox / Dongfeng 6-speed / WLYWLY535 / DongfengDF6S900 / Dongfeng
Cab parameters
Cab: D560 / D530 / D530 flat-front single-row cab / D530 flat-front single-row sleeper standard-roof cab
Tire
Tire Size: 11.00R20 18PR / 10.00R20 18PR / 10.00R20 18PR,275/80R22.5 18PR / 8.25R16 14PR / 9.00R20 / 9.00-20，10.00-20 / 9.00-20,9.00R20，10.00-20,10.00R20 / 9.00-20 / 10.00-20
Number of tires: 10 / 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis garbage truck?
Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis is an export-oriented garbage truck lineup with about 19 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei Dongfeng Commercial Vehicle Chassis?
Chengliwei Dongfeng Commercial Vehicle Chassis export reference is about $10,833 – $41,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei Dongfeng Commercial Vehicle Chassis cover?
Chengliwei Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2 / 6x4; Horsepower: 115 hp / 140 hp / 160 hp / 180 hp / 190 hp / 210 hp / 230 hp / 300 hp; Emission: China III / Euro III / China IV / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Commercial Vehicle Chassis?
For Chengliwei Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Commercial Vehicle Chassis include?
Chengliwei Dongfeng Commercial Vehicle Chassis currently lists about 19 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
