JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck

Export reference
From $19,972
MSRP ¥14.38M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.805ton
Wheelbase:: 3308mm
Tire Size:: 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR
Cab dimensions:: 5.995×2.25×3.1m
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.03×2.01×2m
Horsepower 120

Overview

The JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck is a Refrigerated Truck featuring 4.03×2.01×2m cargo body, 1.495t payload, Single Row cab and 3308mm wheelbase. On the powertrain side, it comes with 120 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.25×3.1m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Hefei, Anhui
Wheelbase: 3308mm
Front track width: 1580mm
rear track: 1395mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
Max. speed: 98km/h
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Model: JACHFC4DA1-2D
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 4.03×2.01×2m
Cargo box width: 2.01m
Cargo box height: 2m
Body Parameters
Vehicle certification code: HFC5045XLCP92K1C2V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Junling V5
Chassis Model: HFC1045P92K1C2V
Axle ratio: 4.33
Leaf spring count: 3/9+7,5/9+7
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Lu'an LC5T28
Cab parameters
Cab: Single Row
Tire
Tire Size: 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR
Number of tires: 6pcs
Service brake
Parking brake: Spring brake

Photos

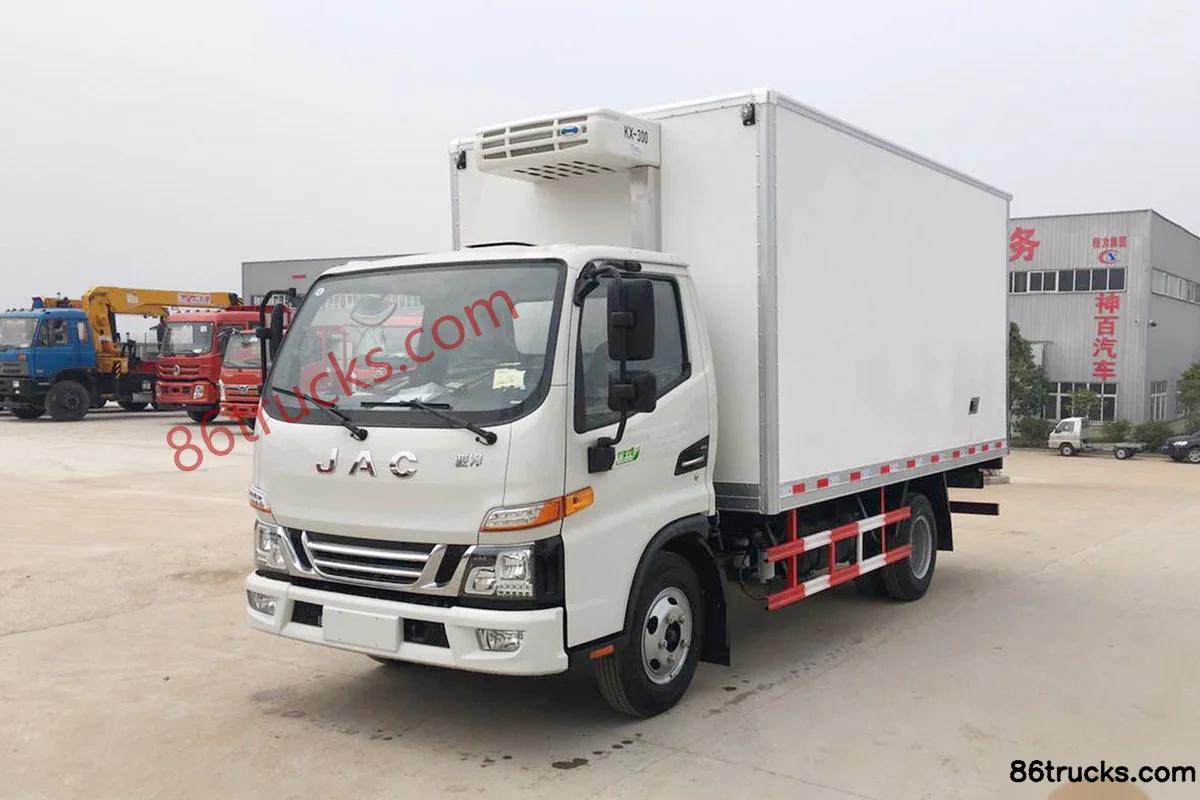

Exterior1

1 photos

FAQ

What is the export price of JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck, and what does it include?

JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck export reference is about From $19,972; MSRP is ¥14.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck?

Key specs of JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck suited for?

JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck differ from other variants in the same series?

JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck belongs to JAC V5 light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V5 120 hp 4X2(6 wheels) refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
