JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck

Export reference
MSRP N/A
Wheelbase:: 1800+3800+1350mm
Cab dimensions:: 10.635×2.5×3.5m
Type:: Flatbed dump truck
GVWR:: 31ton
Front/rear suspension:: 1.495/2.19m
Energy Type:: Diesel
Drive 8X4 (12 wheels)
Horsepower 310
Rated mass: 15.355ton
Emission China V

Overview

The JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck is a flatbed truck featuring 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 310 hp, China V emissions and Diesel fuel.

China V 310 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.635×2.5×3.5m
Type: Flatbed dump truck
Drive type: 8X4
Wheelbase: 1800+3800+1350mm
Rated mass: 15.355ton
GVWR: 31ton
Front/rear suspension: 1.495/2.19m
Energy Type: Diesel
Body Parameters
Other special notes: K5Ⅱ wide semi-high roof; factory body, A/C, air-suspension seat, power windows, remote key, power tilt, 400L aluminum fuel tank, tachograph.
Vehicle certification code: HFC3311P1K6H38S3V
Body Brand: JAC Gallop
Engine parameters
Engine Model: WeichaiWP10.310E53
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK5
Chassis Model: HFC3311P1K6H38S3V
rear axle description: 457 rear axle (4.44 ratio)
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD160
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

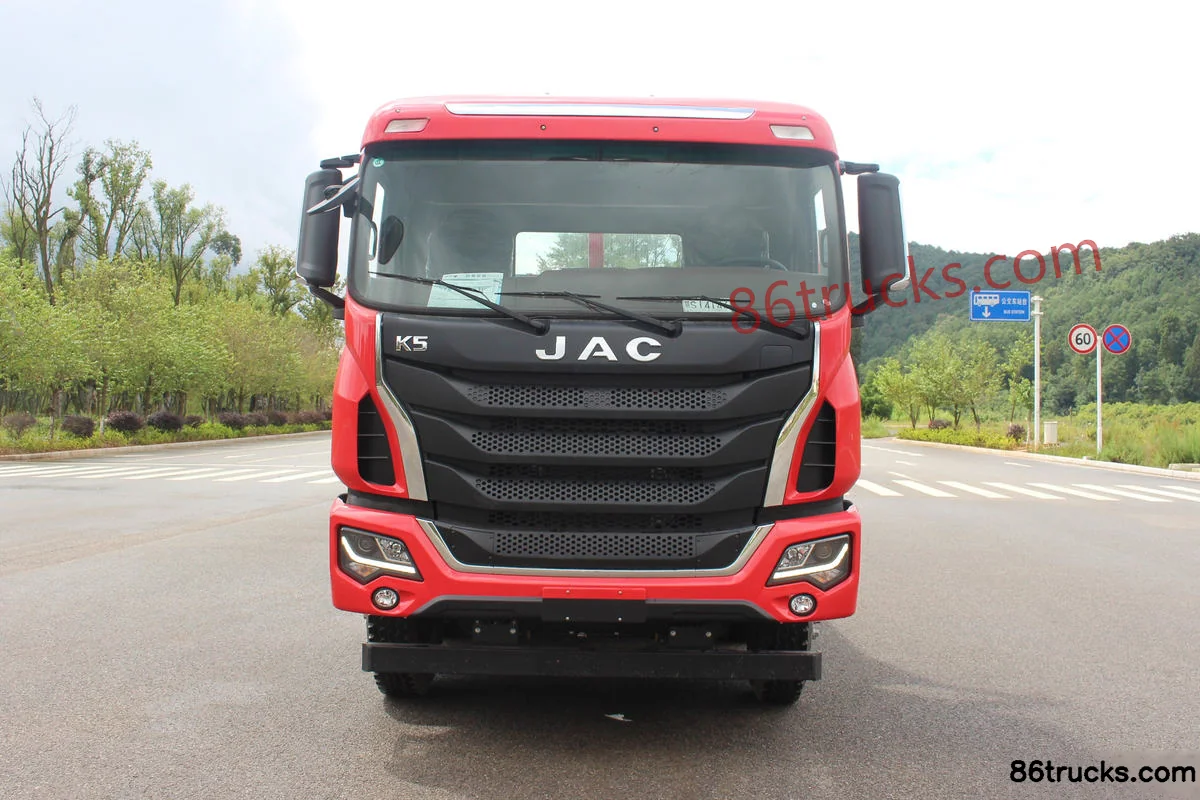

Exterior1

1 photos

FAQ

What emission standard does JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck?

Key specs of JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck: Drive: 8x4; Horsepower: 310 hp; Emission: China V. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck suited for?

JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck is a flatbed truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck differ from other variants in the same series?

JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck belongs to JAC Gallop K5 Heavy Truck (flatbed truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
