JAC Gallop K5W 350 hp 8X4(12 wheels) Flatbed Truck (China VI)
EXW
From $45,556
Export quote
JAC Gallop K5 Heavy Truck flatbed truck
Main model photos
805 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5W 350 hp 8X4(12 wheels) Flatbed Truck (China VI) | 8x4 / 350hp / China VI | From $45,556 | |
| JAC Gallop K5X 350hp 8X4(12 wheels) flatbed truck (China VI) | 8x4 / 350hp / China VI | From $55,000 | |
| JAC Gallop K5L 220 hp 4X2(6 wheels) Flatbed Truck (Dali brand) | 4x2 / 220hp / China V | From $21,944 | |
| JAC Gallop K5W 350 hp 8X4(12 wheels) Flatbed Truck (12-speed) | 8x4 / 350hp / China V | From $49,722 | |
| JAC Gallop K5Ⅱ 350 hp 8X4(12 wheels) Flatbed Truck | 8x4 / 350hp / China V | From $44,306 |
JAC Gallop K5X 350hp 8X4(12 wheels) flatbed truck (China VI)
EXW
From $55,000
Export quote
JAC Gallop K5L 220 hp 4X2(6 wheels) Flatbed Truck (Dali brand)
EXW
From $21,944
Export quote

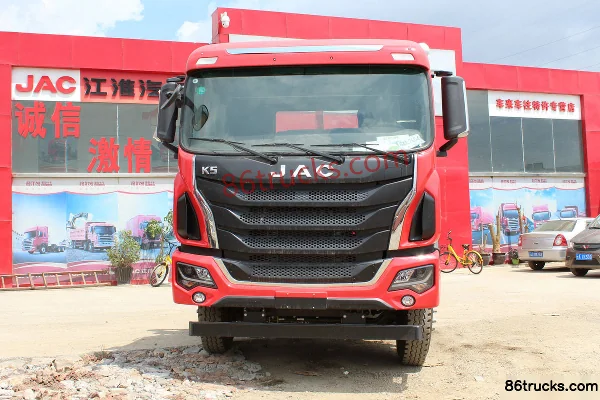

JAC Gallop K5W 350 hp 8X4(12 wheels) Flatbed Truck (12-speed)
EXW
From $49,722
Export quote
JAC Gallop K5Ⅱ 350 hp 8X4(12 wheels) Flatbed Truck
EXW
From $44,306
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck | 8x4 / 310hp / China V |
JAC Gallop K5Ⅱ 310 hp 8X4(12 wheels) Flatbed Dump Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.375×2.55×3.42 / 10.505×2.55×3.43 / 9×2.55×3.24 / 11.155×2.55×3.55 / 10.635×2.5×3.5 / 10.555×2.55×3.55m
Type: Flatbed dump truck / flatbed truck
Drive type: 8X4 / 4X2
Wheelbase: 2100+3500+1350 / 1800+3200+1350 / 5000 / 1800+3800+1350mm
Rated mass: 16.87 / 16.57 / 10.305 / 15.42 / 15.355ton
GVWR: 31 / 18ton
Front/rear suspension: 1.495/1.93 / 1.495/2.66 / 1.4/2.6 / 1.495/2.71 / 1.495/2.19m
Energy Type: Diesel
Body Parameters
Other special notes: This vehicle is only used for transporting non-dismantlable objects. The cab appearance can be selected with the chassis. A rear ladder mechanism and without ladder mechanism are optional. Side guard. / K5Ⅱ wide semi-high roof; factory body, A/C, air-suspension seat, power windows, remote key, power tilt, 400L aluminum fuel tank, tachograph. / K5W new wide-body cab; A/C, air-suspension seat, power windows, remote key, power tilt, 400L aluminum fuel tank, DVR. / K5W new wide-body cab / K5W new wide-body cab; factory body, A/C, air-suspension seat, power windows, remote key, power tilt, 400L aluminum fuel tank, DVR.
Vehicle certification code: HFC5311TPBP1K4H29S / HFC5311TPBP2K4H32S / DLQ5180TPBXK5 / HFC5311TPBP1K4H38S3V / HFC3311P1K6H38S3V
Body Brand: JAC Gallop / Dali Brand
Engine parameters
Engine Model: YuchaiYCK08350-60 / WeichaiWP8.350E61 / Yunnei PowerD45TCIE1 / WeichaiWP10.350E53 / WeichaiWP10.310E53
Displacement: 7.7 / 7.8 / 4.46 / 9.726L
Emission standard: China VI / China V
Max output power: 257 / 162 / 228kW
Max hp: 350 / 220 / 310Horsepower
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK5W / GallopK5X / GallopK5
Chassis Model: HFC1311P1K4H29S / HFC1311P2K4H32S / HFC5181XXYP3K2A47V / HFC1311P1K4H38S3V / HFC3311P1K6H38S3V
rear axle description: 4.875 / 459 axle / 457 rear axle (4.44 ratio) / 457 axle (4.11 ratio) / 457 rear axle / 457 axle
Leaf spring count: 3/3/4+3,9/9/12 / 9/9/12 / 3/4+3,3/9+7,9/9+7
Transmission Parameters
Number of gears: 10 / 8 / 12Gear
Transmission Model: Fast Gear10JS160A / Fast Gear10JSD160A / 8-speed manual / Fast Gear12JSD160 / Fast Gear10JSD160
Tire
Tire Size: 11.00R20 16PR / 10.00R20 / 11.00R20
Number of tires: 12 / 6pcs
FAQ
What kind of truck is JAC Gallop JAC Gallop K5 Heavy Truck flatbed truck?
JAC Gallop JAC Gallop K5 Heavy Truck is an export-oriented flatbed truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Gallop K5 Heavy Truck flatbed truck?
JAC Gallop K5 Heavy Truck flatbed truck export reference is about $21,944 – $55,000. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Gallop K5 Heavy Truck flatbed truck cover?
JAC Gallop K5 Heavy Truck flatbed truck mainly covers: Drive: 4x2 / 8x4; Horsepower: 220 hp / 310 hp / 350 hp; Emission: China V / China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K5 Heavy Truck flatbed truck?
For JAC Gallop K5 Heavy Truck flatbed truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is flatbed truck typically used for?
flatbed truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JAC Gallop K5 Heavy Truck flatbed truck include?
JAC Gallop K5 Heavy Truck flatbed truck currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K5 Heavy Truck flatbed truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
