SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck

Export reference
From $46,806
MSRP ¥33.7M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.8ton
Wheelbase:: 1800+3975+1400mm
Tire Size:: 12.00R20
Rated payload: 16.07ton
Drive 8X4 (12 wheels)
Horsepower 336
Cargo box type: Dump type

Overview

The SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck is a Heavy truck featuring 16.07t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Fast Gear transmission.

China IV 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3316HR366
Drive type: 8X4
Wheelbase: 1800+3975+1400mm
engine: WeichaiWP10.336E40
transmission: Fast Gear12JSD160T
Rear Axle Ratio: 4.769
Cab length: 10.235m
Cab width: 2.49m
Cab height: 3.6m
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 14.8ton
Rated payload: 16.07ton
GVWR: 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 27°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.4m
Cargo box width: 2.3m
Cargo box height: 1.13m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Hande 13t MAN double reduction axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.769
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

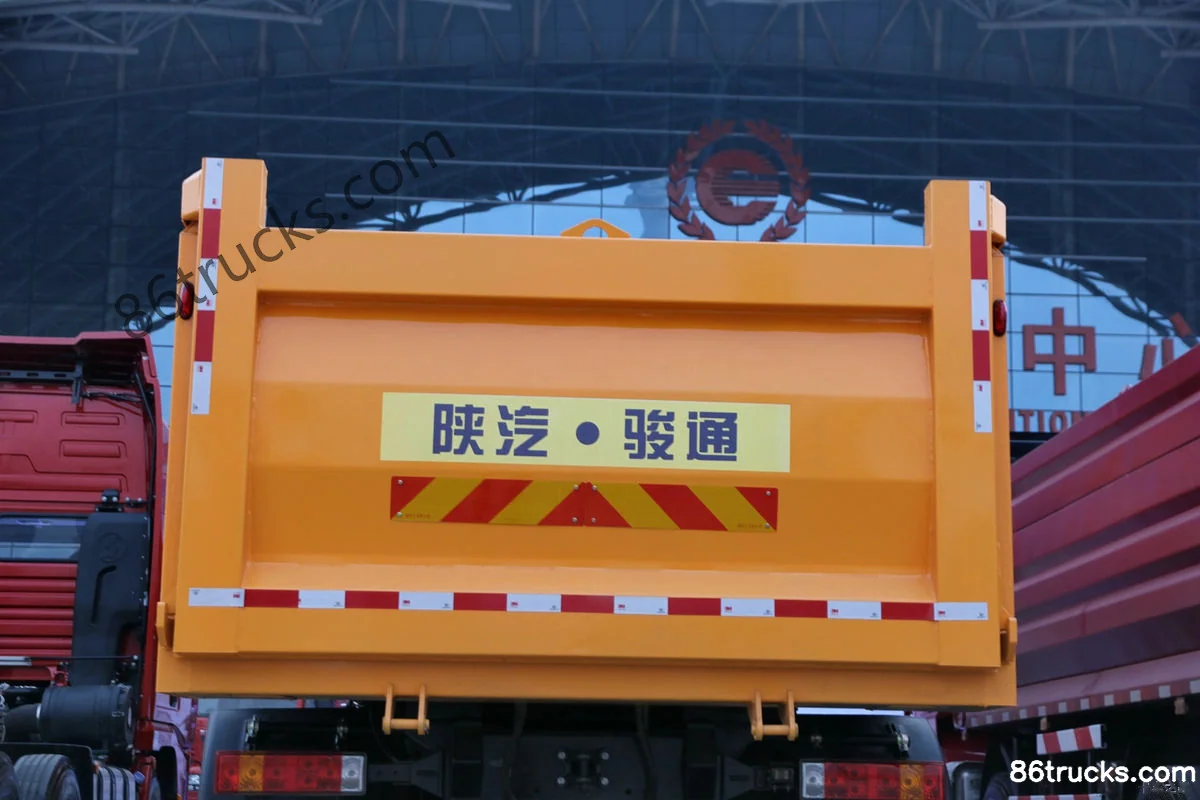

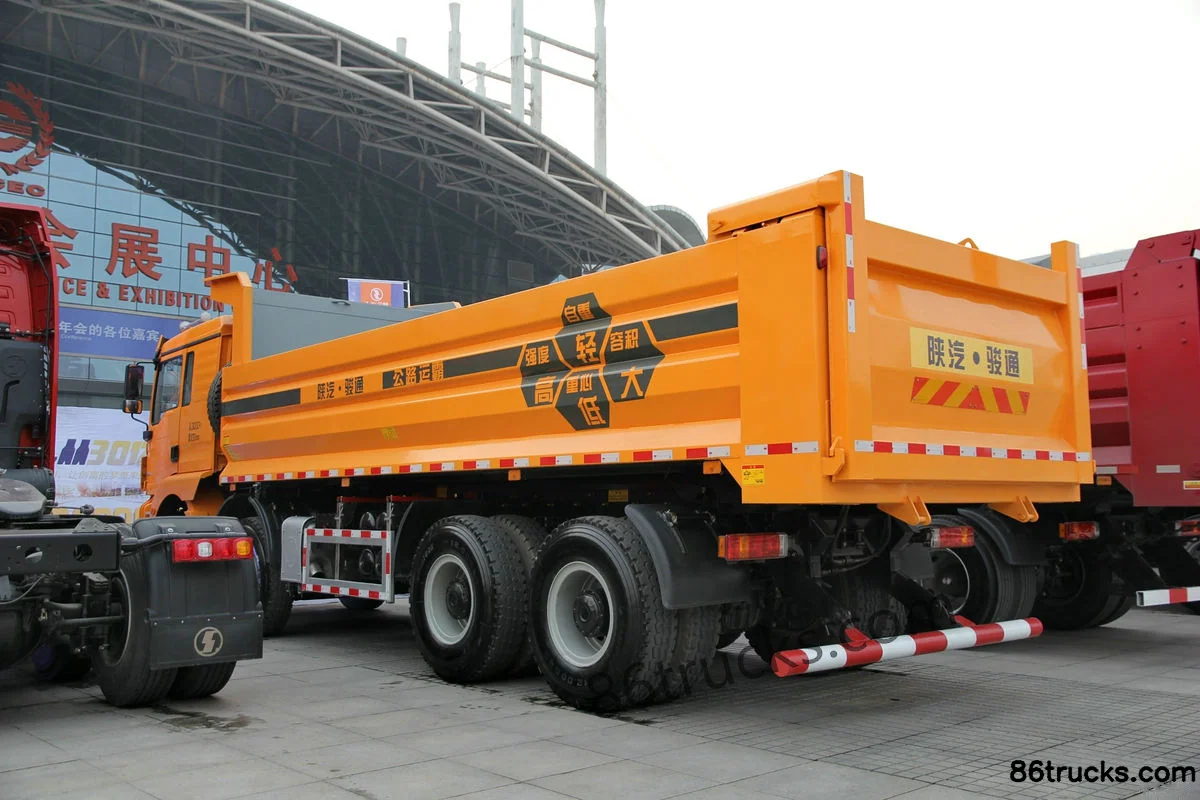

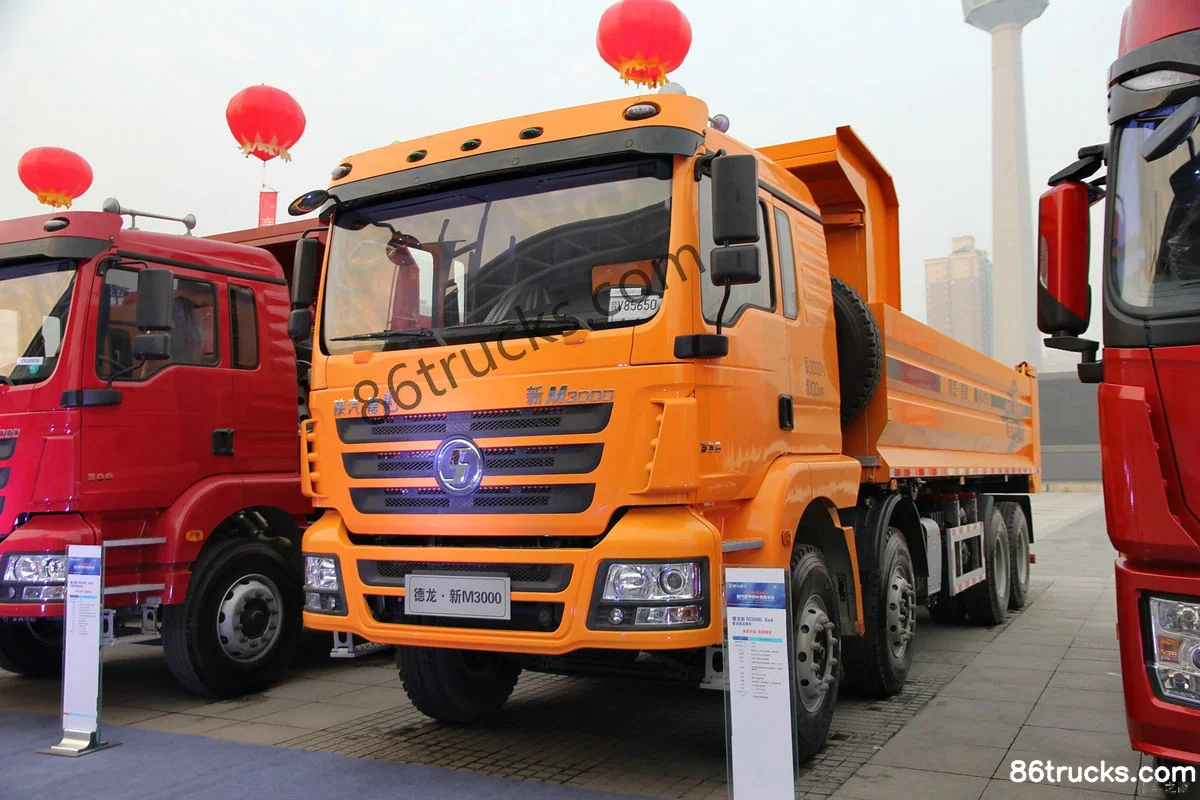

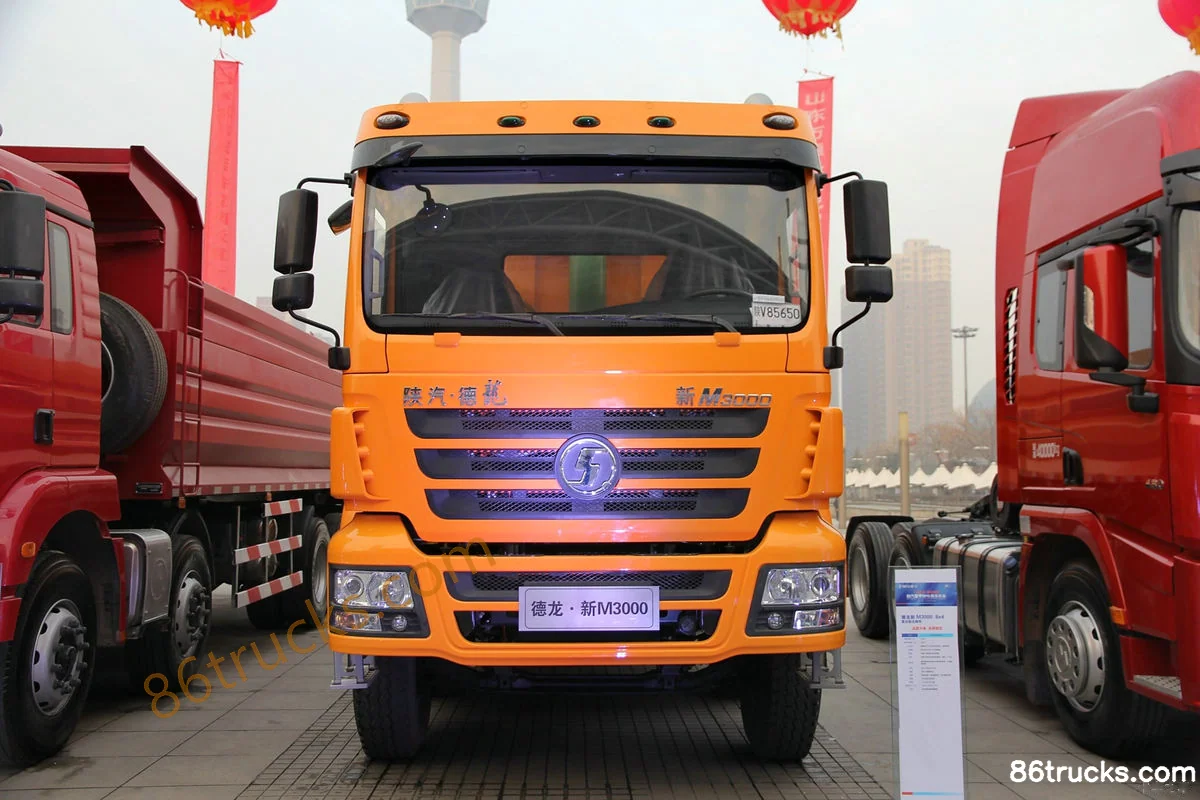

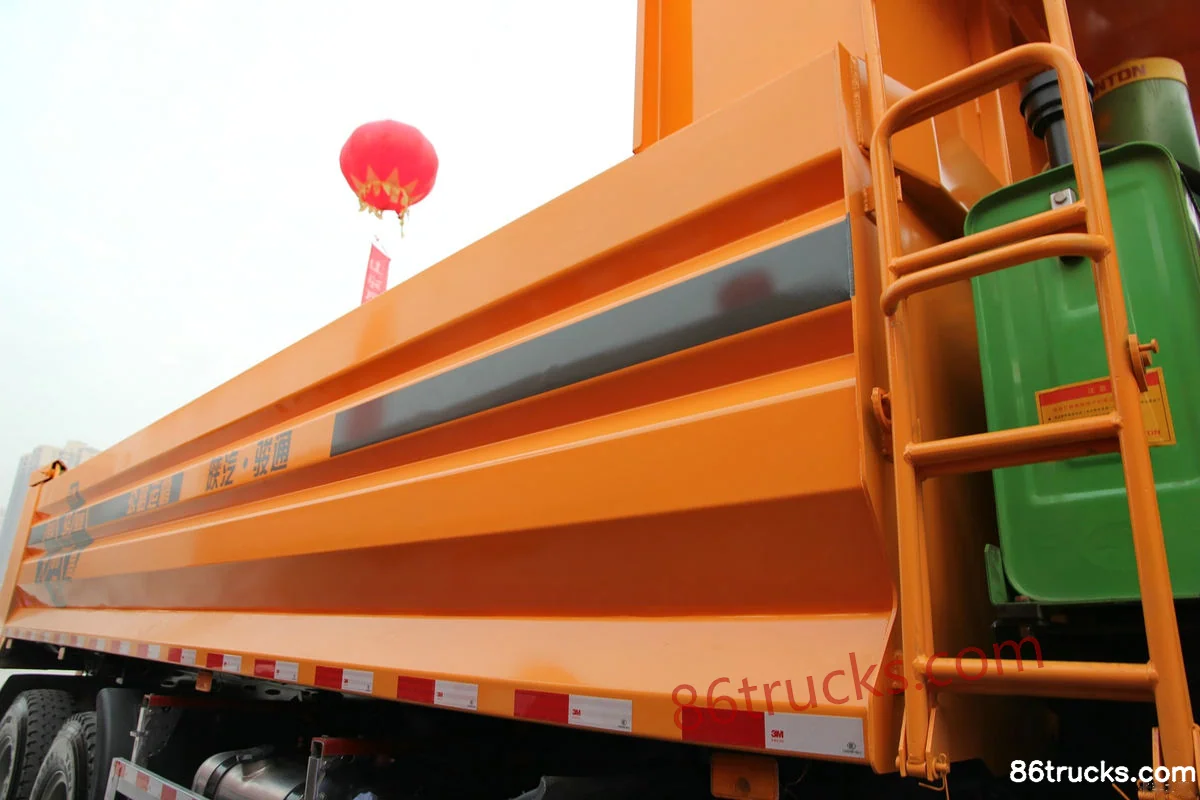

Exterior3

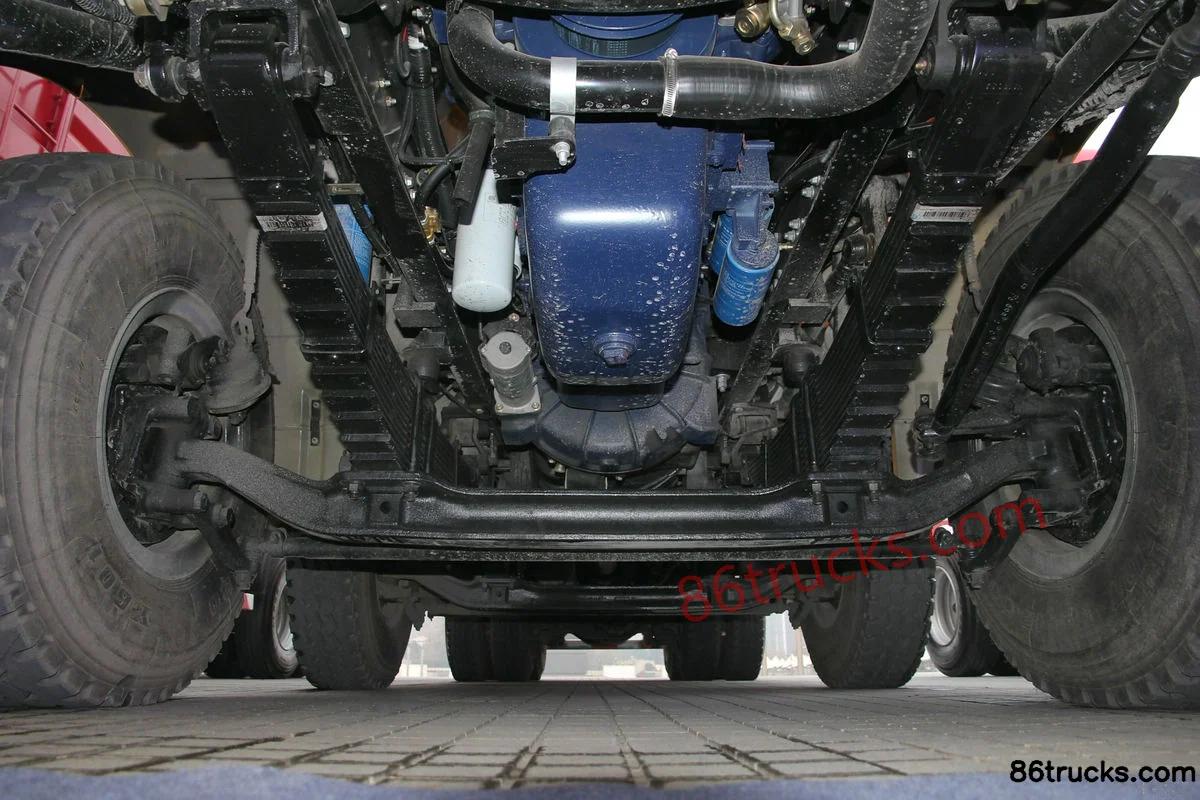

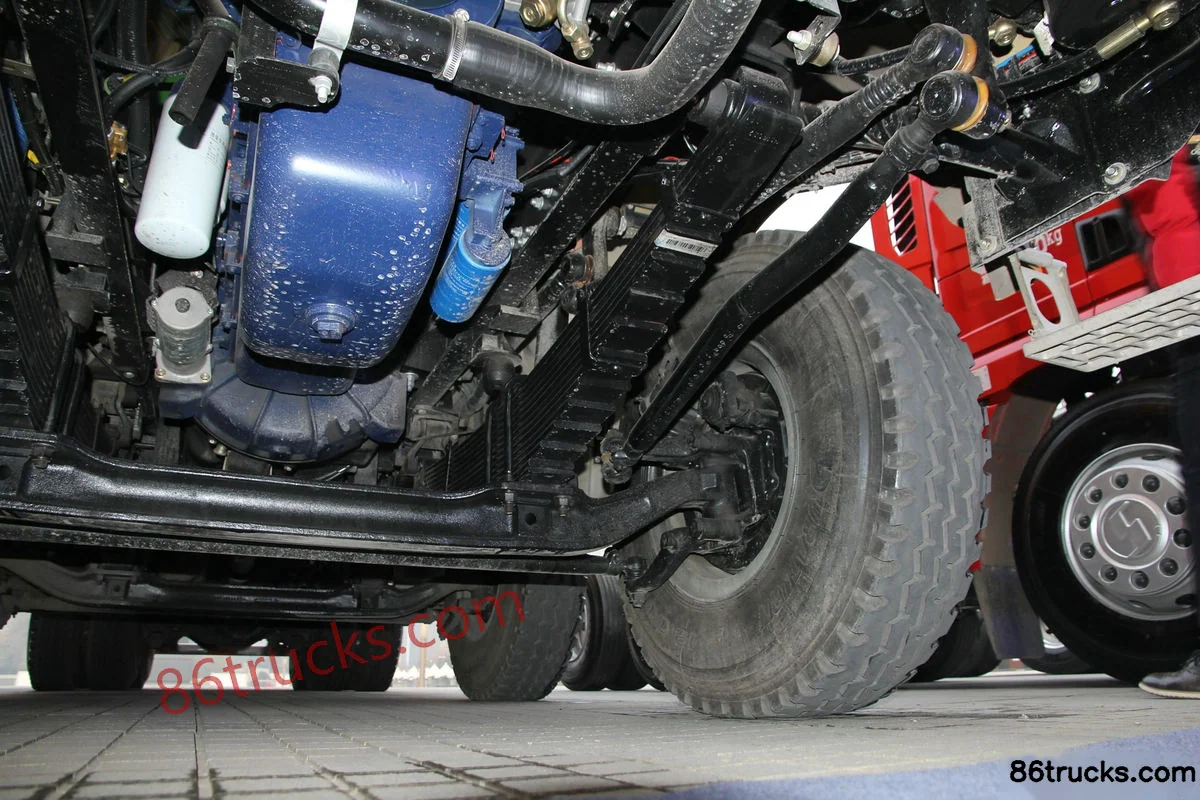

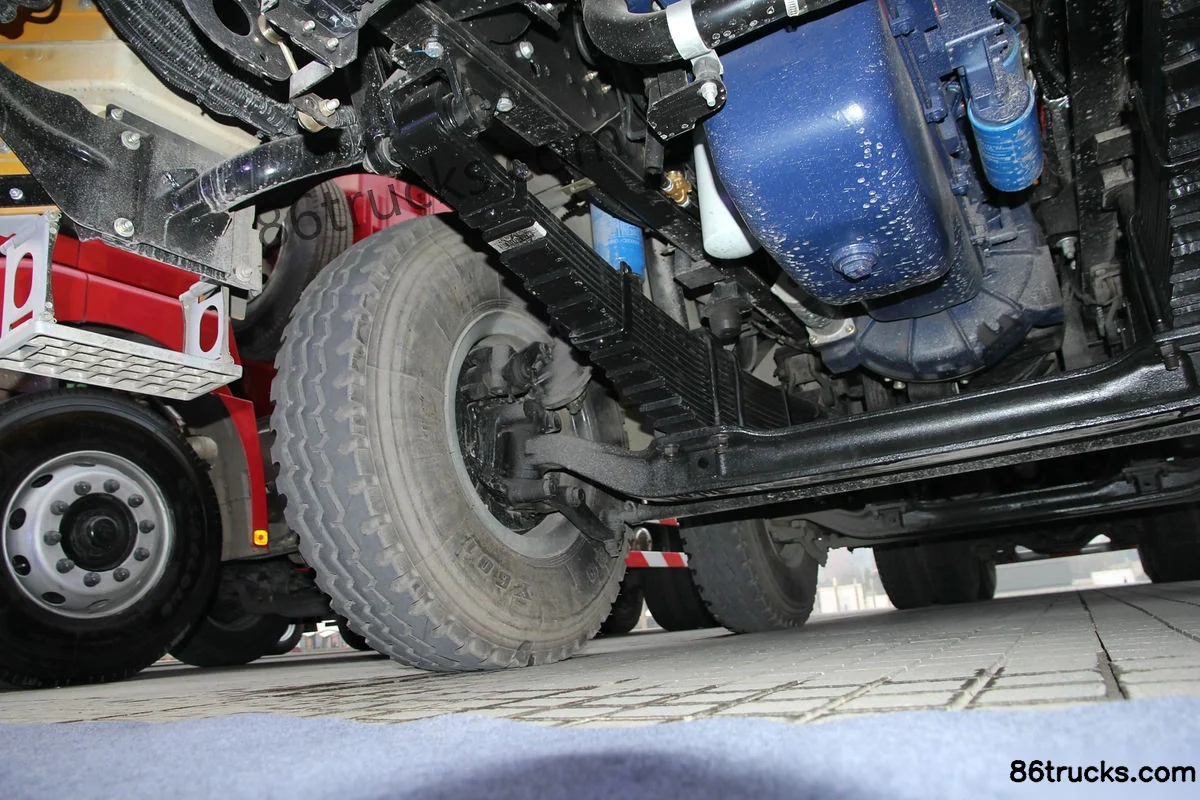

Chassis3

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck, and what does it include?

SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck export reference is about From $46,806; MSRP is ¥33.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck?

Key specs of SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck suited for?

SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck differ from other variants in the same series?

SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck belongs to SHACMAN Delong New M3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 336hp 8X4(12 wheels) 7.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
