Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck
EXW
Export quote
Dongfeng Jiayun Dump Trucks
Main model photos
13 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck | 4x2 / 130hp / China V | ||
| Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck | 4x2 / 160hp / China V | From $24,444 | |
| Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 160hp / China V | From $22,500 | |
| Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck | 4x2 / 140hp / China III / Euro III | From $20,833 | |
| Dongfeng (original special chassis) Jiayun 132 hp 4X2(6 wheels) 3.85m dump truck | 4x2 / 132hp / China III / Euro III | From $19,444 |

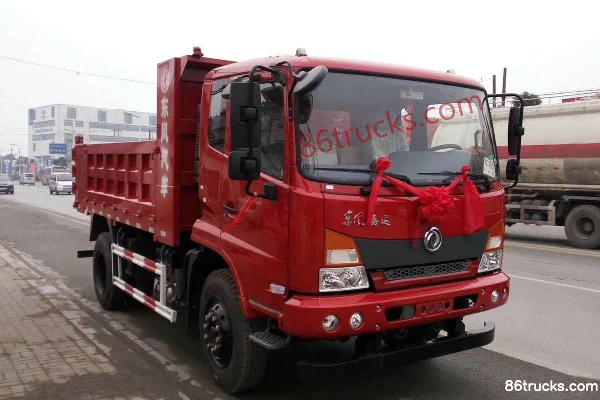

Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck
EXW
From $24,444
Export quote

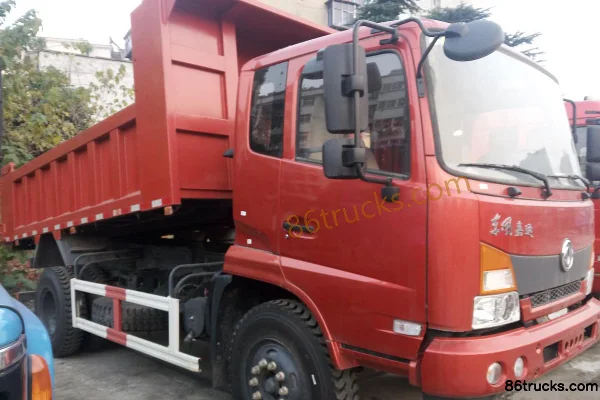

Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $22,500
Export quote
Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck
EXW
From $20,833
Export quote
Dongfeng (original special chassis) Jiayun 132 hp 4X2(6 wheels) 3.85m dump truck
EXW
From $19,444
Export quote
Series Specs
Basic Info
Model code (announced): YG3040BX5B / EQ3160GZ5D / EQ3040LZ5D / DFL3060B1 / DFL3060B
Drive type: 4X2
Wheelbase: 3300 / 4200 / 3800 / 3500mm
Engine Model: YuchaiYC4S130-50 / YuchaiYC4EG160-50 / YuchaiYC4E160-56 / YuchaiYC4E140-33 / YuchaiYCD4F63-132
Transmission Model: DongfengDF6S550 / Fast Gear10JS90A / Fast Gear10JS90 / Fast Gear8JS55F
Rear Axle Ratio: 4.33 / 5.83
Cab length: 5.995 / 7.43 / 6.995 / 6.25m
Cab width: 2.5 / 2.55 / 2.29 / 2.45 / 2.37m
Cab height: 2.99 / 3.18 / 2.85 / 2.69m
Front track width: 1810 / 1900 / 1750 / 1876mm
rear track: 1680 / 1800 / 1586mm
Curb Weight: 2.6 / 7.675 / 2.58 / 3.335 / 3.325ton
Rated payload: 1.495 / 7.93 / 1.49 / 1.99ton
GVWR: 4.29 / 15.8 / 4.265 / 5.54 / 5.51ton
Origin: Shiyan, Hubei / Wuhan, Hubei
tonnage class: Light Truck / Heavy truck
Approach angle: 20 / 28 / 18.5°
departure angle: 14 / 16 / 24 / 22°
Remarks: Optional YC4D130-30 engine, cargo box side panel structure. / Optional YC4BJ115-33 and YC4D130-30 engines, optional cargo box side panel structure.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 3.767 / 4.73 / 4.26 / 4.257 / 3.922L
Emission standard: China V / China III / Euro III
Max output power: 96 / 118 / 105 / 97kW
Max hp: 130 / 160 / 140 / 132Horsepower
Max torque: 430 / 600 / 500 / 3200N·m
Max torque speed: 1300-1800 / 1300-1600 / 1600 / 1600-2100rpm
Rated speed: 2600 / 2500 / 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Vertical, inline, water-cooled, four-stroke, direct injection / Vertical, inline, 4-stroke, water-cooled
Transmission Parameters
Transmission Brand: Dongfeng / Fast Gear
shift method: Manual
Forward gears: 6 / 10 / 8Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.4 / 4.75 / 4.2 / 4.65 / 3.85m
Cargo box width: 2.12 / 2.35 / 2.2 / 2.3m
Cargo box height: 0.8 / 0.6m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 145 / 160L
FAQ
What kind of truck is Dongfeng Dongfeng Jiayun Dump Trucks?
Dongfeng Dongfeng Jiayun is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Jiayun Dump Trucks?
Dongfeng Jiayun Dump Trucks export reference is about $19,444 – $24,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Jiayun Dump Trucks cover?
Dongfeng Jiayun Dump Trucks mainly covers: Drive: 4x2; Horsepower: 130 hp / 132 hp / 140 hp / 160 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Jiayun Dump Trucks?
For Dongfeng Jiayun Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Jiayun Dump Trucks include?
Dongfeng Jiayun Dump Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Jiayun Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
