Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck

Export reference
From $20,833
MSRP ¥15M CNY
Emission: China III / Euro III
Fuel: Diesel
Curb Weight:: 3.335ton
Wheelbase:: 4200mm
Tire Size:: 7.50-16,7.50R16,8.25-16,8.25R16
Model code (announced):: DFL3060B1
Rated payload: 1.99ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Rear-dump body

Overview

The Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck is a Light Truck featuring 1.99t payload, 5.54t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E140-33 engine, 140 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL3060B1
Drive type: 4X2
Wheelbase: 4200mm
engine: YuchaiYC4E140-33
Cab length: 6.995m
Cab width: 2.45m
Cab height: 2.69m
Front track width: 1876mm
rear track: 1680mm
Curb Weight: 3.335ton
Rated payload: 1.99ton
GVWR: 5.54ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 18.5°
departure angle: 22°
Remarks: Optional YC4D130-30 engine, cargo box side panel structure.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E140-33
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.257L
Emission standard: China III / Euro III
Max output power: 105kW
Max hp: 140Horsepower
Max torque: 500N·m
Max torque speed: 1600rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.65m
Cargo box width: 2.3m
Cargo box height: 0.8m
Chassis Specs
rear axle allowable load: 3400kg
Leaf spring count: 9/10+9
Tire
Tire Size: 7.50-16,7.50R16,8.25-16,8.25R16
Number of tires: 6pcs

Photos

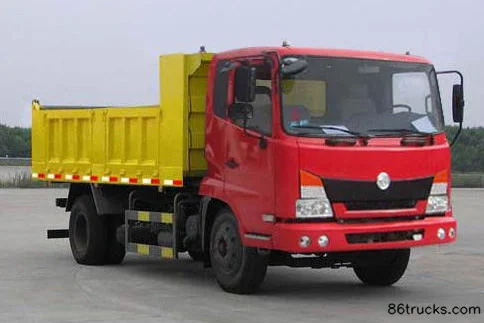

Exterior1

1 photos

FAQ

What is the export price of Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck, and what does it include?

Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck?

Key specs of Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck suited for?

Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck differ from other variants in the same series?

Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck belongs to Dongfeng Jiayun (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (original special chassis) Jiayun 140 hp 4X2(6 wheels) 4.65m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
