Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior)
EXW
From $29,167
Export quote
Sanhuan Shitong Haolong Medium Truck Dump Trucks
Main model photos
1,344 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) | 4x2 / 200hp / China VI | From $29,167 | |
| Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck | 6x2 / 240hp | ||
| Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck | 8x2 / 260hp / China VI | ||
| Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck | 6x4 / 270hp | ||
| Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck (New Appearance) | 6x2 / 270hp / China VI | From $29,194 |

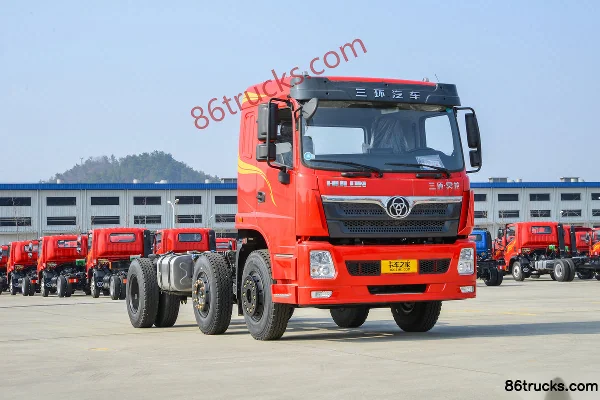

Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck
EXW
Export quote

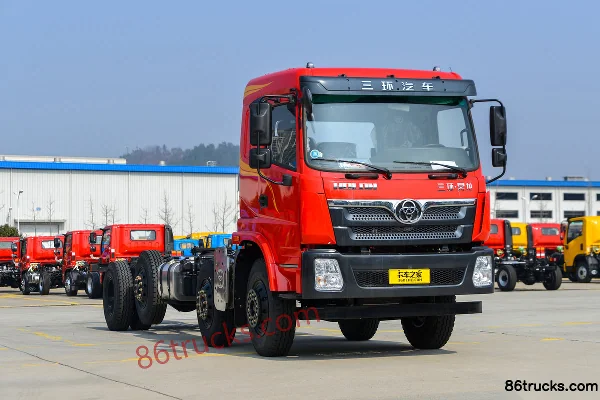

Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck
EXW
Export quote
Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck
EXW
Export quote
Sanhuan Shitong Haolong 6.2L Diesel 270hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck (New Appearance)
EXW
From $29,194
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong Haolong heavy truck 270 hp 8X4(12 wheels) 8 m dump truck | 8x4 / 270hp / China V | ||
| Sanhuan Shitong Haolong medium truck 240hp 6X4(10 wheels) 5.2m dump truck | 6x4 / 240hp / China V | ||
| Sanhuan Shitong Haolong Medium Truck 220hp 8X2(10 wheels) 7.2m Dump Truck | 8x2 / 220hp / China V | ||
| Sanhuan Shitong Haolong Medium Truck 160 hp 4X2(6 wheels) 6.7m dump truck | 4x2 / 160hp / China V | ||
| Sanhuan Shitong Haolong Medium Truck 270 hp 8X2(10 wheels) 7m dump truck (mid-axle lift) | 8x2 / 270hp / China V |
Sanhuan Shitong Haolong heavy truck 270 hp 8X4(12 wheels) 8 m dump truck
EXW
Export quote
Sanhuan Shitong Haolong medium truck 240hp 6X4(10 wheels) 5.2m dump truck
EXW
Export quote
Sanhuan Shitong Haolong Medium Truck 220hp 8X2(10 wheels) 7.2m Dump Truck
EXW
Export quote
Sanhuan Shitong Haolong Medium Truck 160 hp 4X2(6 wheels) 6.7m dump truck
EXW
Export quote
Sanhuan Shitong Haolong Medium Truck 270 hp 8X2(10 wheels) 7m dump truck (mid-axle lift)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): STQ3163L04Y4N6 / STQ1249L10Y3D6 / STQ3317L14Y3A6 / STQ3251L07Y3S6 / STQ3256L15Y4D6 / STQ3251L14Y3D6 / STQ3257L06Y4D6 / STQ3311L16Y6B6 / STQ3316L14Y3A6 / STQ3187L05Y2N6 / STQ3166L04Y4N6 / STQ3185L10Y2N6 / STQ3186L07Y3N6
Drive type: 4X2 / 6X2 / 8X2 / 6X4 / 8X4
Wheelbase: 3650 / 1850+3000 / 1850+2600+1300 / 3850+1350 / 1850+4250 / 1850+2600 / 1850+4000 / 1850+3850 / 1850+3250 / 1850+2800 / 1750+2200 / 2700+1250 / 1850+2700+1350 / 1850+3300+1300 / 1850+3300+130 / 1850+3600+1300 / 1850+3400+1300 / 1850+2900+1300 / 4200 / 1850+4300+1350 / 3800 / 5200mm
Engine Model: YuchaiYCS06200-60 / YuchaiYCS04240-66 / YuchaiYCK05260-61 / YuchaiYCS06270-60 / YuchaiYCS06245-60 / YuchaiYCK05230-61 / YuchaiYCS06300-61 / YuchaiYCS04200-68 / WeichaiWP8.350E61 / YCS06200-60 / YCS04240-66 / YCS06270-60
Transmission Model: Fast Gear 8-speed / Fast Gear 10-Speed / Fast Gear10JS90A-B / Yuchai10JSD120B / Yuchai10JS90A-B / Fast Gear10JSD120B / Fast Gear9JS119A / Fast Gear 12-speed / Fast Gear 9-speed
Rear Axle Ratio: 5.143 / 5.92 / 5.286 / 6.333 / 5.833 / 5.571 / 4.875 / 5.73
Cab length: 6.69 / 9.24 / 8.95 / 8.05 / 9.49 / 8.04 / 7.99 / 7.49 / 9.19 / 8.89 / 8.49 / 7.69 / 6.99 / 9.69 / 7.19 / 9.04 / 9.89 / 10.49 / 10.29 / 10.09 / 9.39 / 7.8 / 6.89 / 10.04 / 9 / 10.85 / 7.12m
Cab width: 2.55 / 2.45 / 2.4 / 2.5m
Cab height: 3.2 / 2.3 / 3.25 / 2.8 / 3.35 / 3 / 3.4 / 2.9m
Front track width: 1880 / 1940/1940 / 1790/1790 / 1760/1760 / 1860 / 1880/1880 / 1860/1860 / 1950/1950 / 1900 / 1986/1986 / 1940 / 2040/2040 / 1960mm
rear track: 1750 / 1860 / 1790/1750 / 1750/1750 / 1940/1860 / 1790/1830 / 1790/1765 / 1860/1860 / 1880mm
Curb Weight: 7.87 / 6.7 / 11.5 / 11 / 12.495 / 8.815 / 9.65 / 8.51 / 13.82 / 9.81 / 10.78 / 12.6 / 7.1 / 15.2 / 7.98 / 8.4 / 9ton
Rated payload: 7.925 / 17.07 / 19.305 / 13.805 / 12.31 / 15.99 / 15.155 / 16.295 / 16.985 / 20.995 / 20.025 / 18.205 / 10.705 / 7.99 / 15.605 / 9.405 / 8.805ton
GVWR: 15.99 / 24.5 / 31 / 25 / 18 / 16.1ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 15 / 21 / 17°
departure angle: 16 / 12 / 13 / 15 / 17°
Version: Comfort Edition / Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 6 / 4cylinder
Displacement: 6.23 / 4.295 / 5.13 / 6.442 / 4.16 / 7.8L
Emission standard: China VI
Max output power: 147 / 173 / 191 / 199 / 180 / 169 / 221 / 257kW
Max hp: 200 / 240 / 260 / 270 / 245 / 230 / 300 / 350Horsepower
Max torque: 750 / 1050 / 850 / 840 / 1200 / 720 / 1400N·m
Max torque speed: 1200-1700 / 1200-1600rpm
Rated speed: 2300 / 2200 / 2100rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8 / 10 / 9 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2 / 6.8 / 6 / 5.2 / 5.3 / 4.8 / 6.5 / 6.2 / 5.6 / 5 / 4.3 / 4.6 / 7 / 7.6 / 7.4 / 7.2 / 6.7 / 8 / 4.5m
Cargo box width: 2.3 / 2.4 / 2.15 / 2.2 / 2.35m
Cargo box height: 0.8 / 1.5 / 0.8/1.1/1.5 / 1.2 / 0.6 / 0.65 / 1.4 / 1m
FAQ
What kind of truck is Sanhuan Shitong Sanhuan Shitong Haolong Medium Truck Dump Trucks?
Sanhuan Shitong Sanhuan Shitong Haolong Medium Truck is an export-oriented Dump Trucks lineup with about 224 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sanhuan Shitong Haolong Medium Truck Dump Trucks?
Sanhuan Shitong Haolong Medium Truck Dump Trucks export reference is about $18,889 – $53,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sanhuan Shitong Haolong Medium Truck Dump Trucks cover?
Sanhuan Shitong Haolong Medium Truck Dump Trucks mainly covers: Drive: 4x2 / 6x2 / 6x4 / 8x2 / 8x4; Horsepower: 160 hp / 200 hp / 220 hp / 240 hp / 260 hp / 270 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sanhuan Shitong Haolong Medium Truck Dump Trucks?
For Sanhuan Shitong Haolong Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sanhuan Shitong Haolong Medium Truck Dump Trucks include?
Sanhuan Shitong Haolong Medium Truck Dump Trucks currently lists about 224 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sanhuan Shitong Haolong Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
