Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.5ton
Wheelbase:: 1850+2600+1300mm
Tire Size:: 10.00R20 18PR
Rated payload: 19.305ton
Drive 8X2 (10 wheels)
Horsepower 260
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck is a Heavy truck featuring 19.305t payload, 31t GVW, Dump type cargo body and 8X2 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYCK05260-61 engine, 260 hp, China VI emissions and Fast Gear transmission.

China VI 260 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3317L14Y3A6
Drive type: 8X2
Wheelbase: 1850+2600+1300mm
engine: YuchaiYCK05260-61
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.286
Cab length: 8.95m
Cab width: 2.45m
Cab height: 2.3m
Front track width: 1790/1790mm
rear track: 1790/1750mm
Curb Weight: 11.5ton
Rated payload: 19.305ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 13°
Version: Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05260-61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6m
Cargo box width: 2.15m
Cargo box height: 0.8m
Cab parameters
Cab: Mid-roof
Cab tilting: Electric
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 151 dual front
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280(8+5)mm
rear axle description: 457 shortened
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.286
Leaf spring count: 9/9/7+-/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
interior configuration
Multifunction steering wheel:
AC control type: Manual

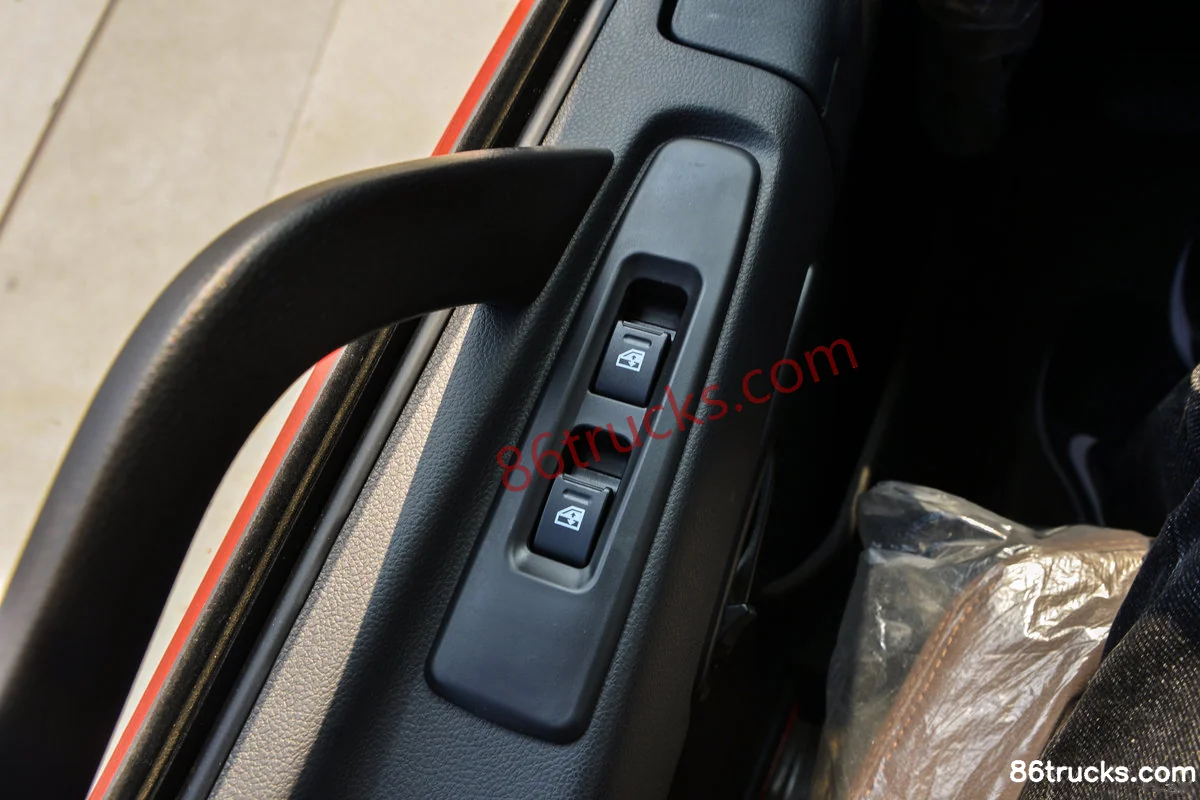

Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

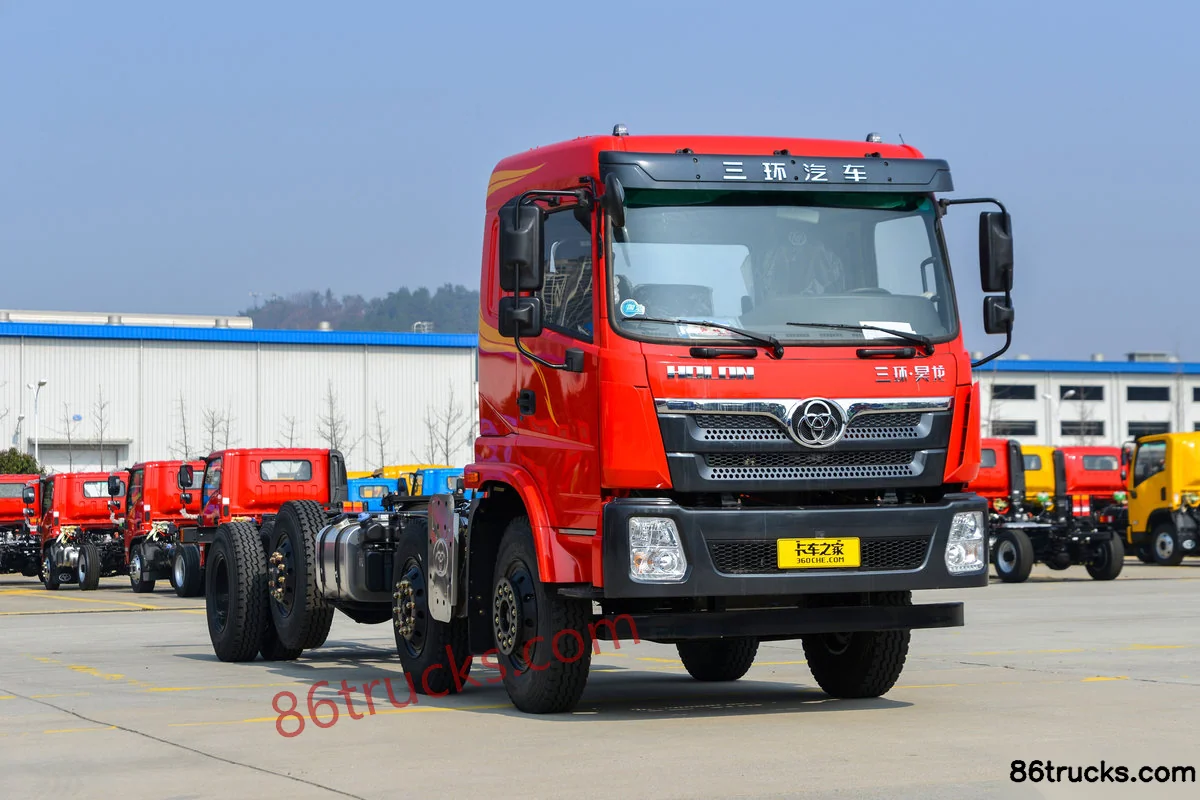

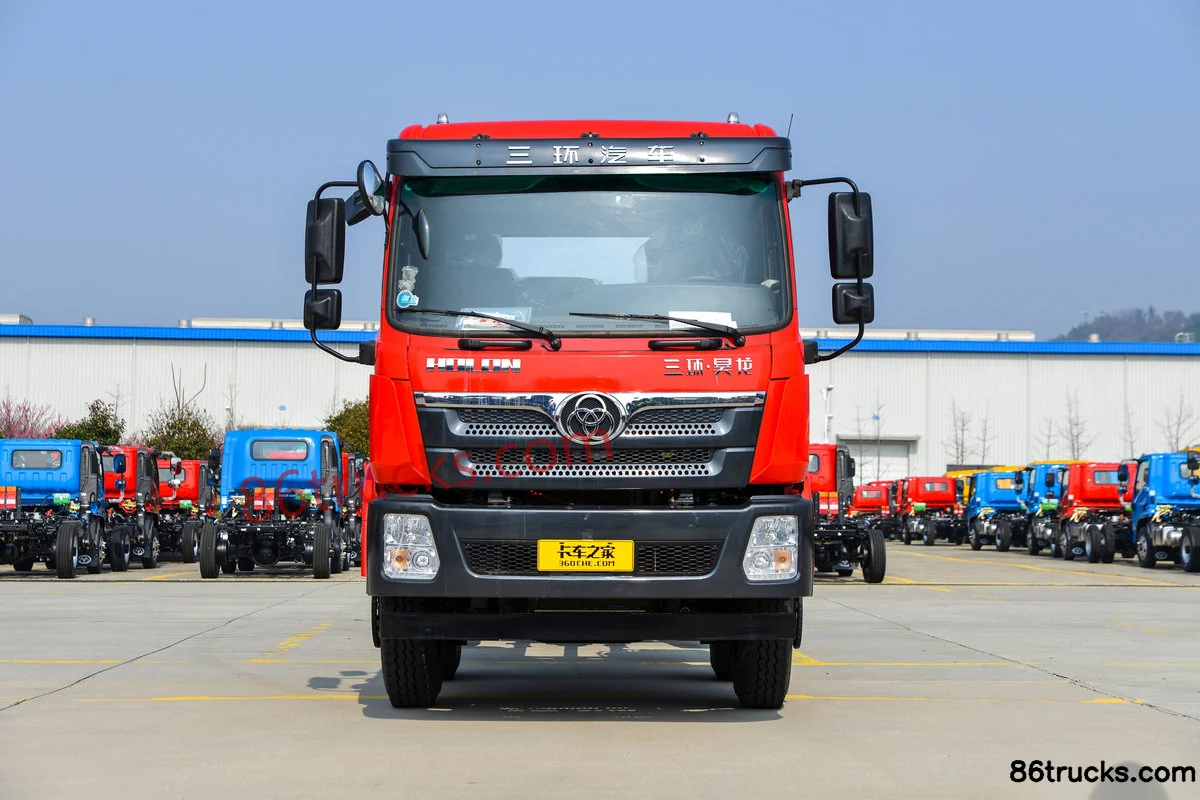

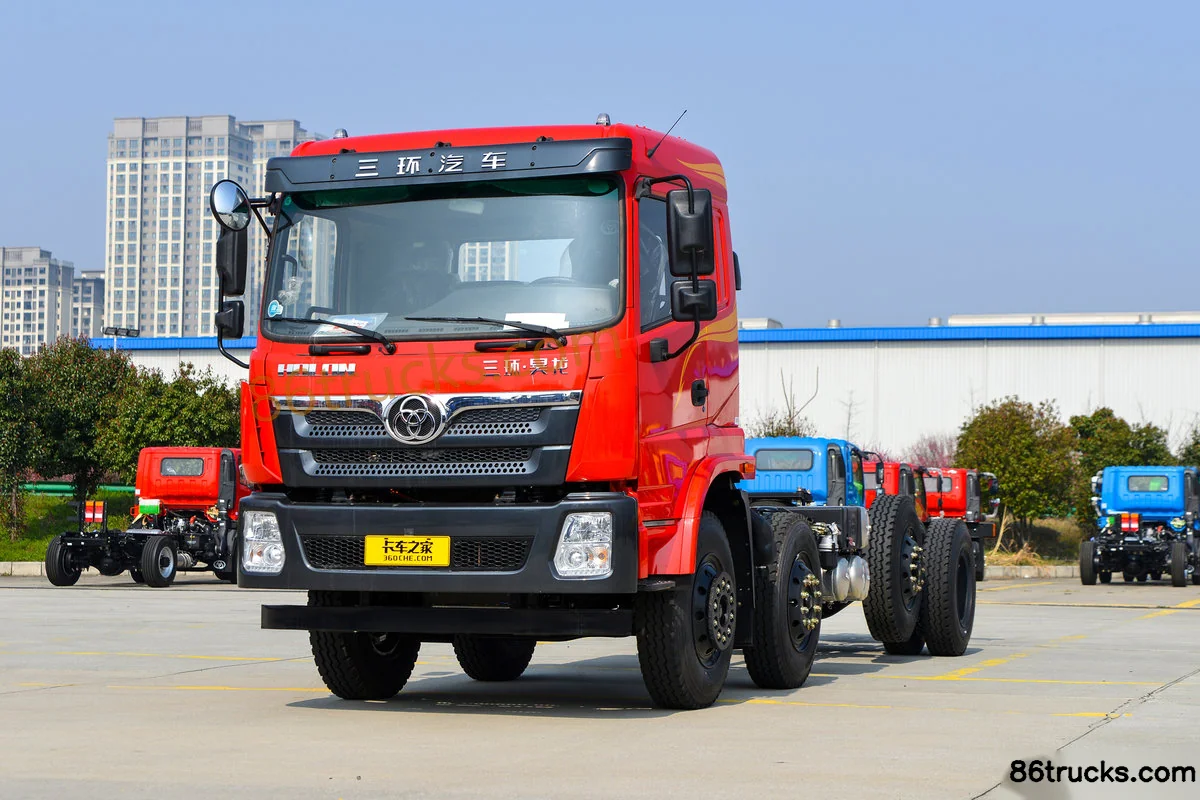

Exterior3

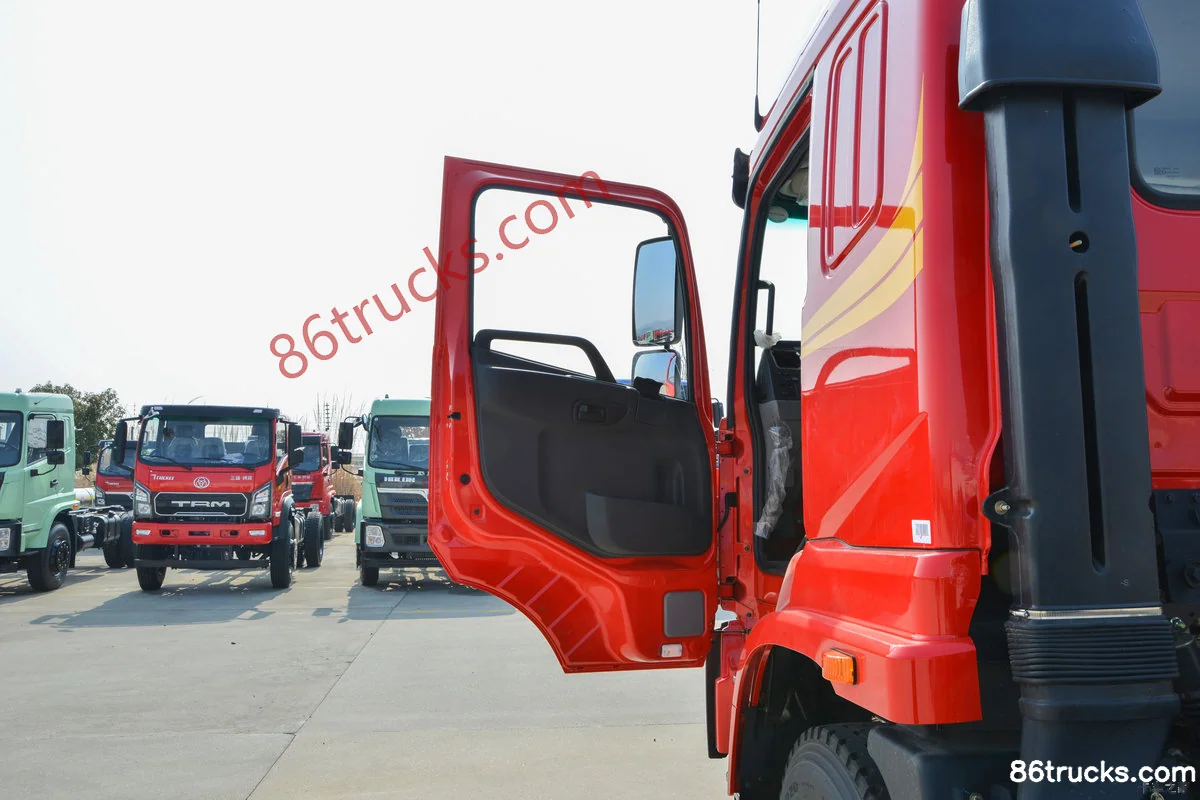

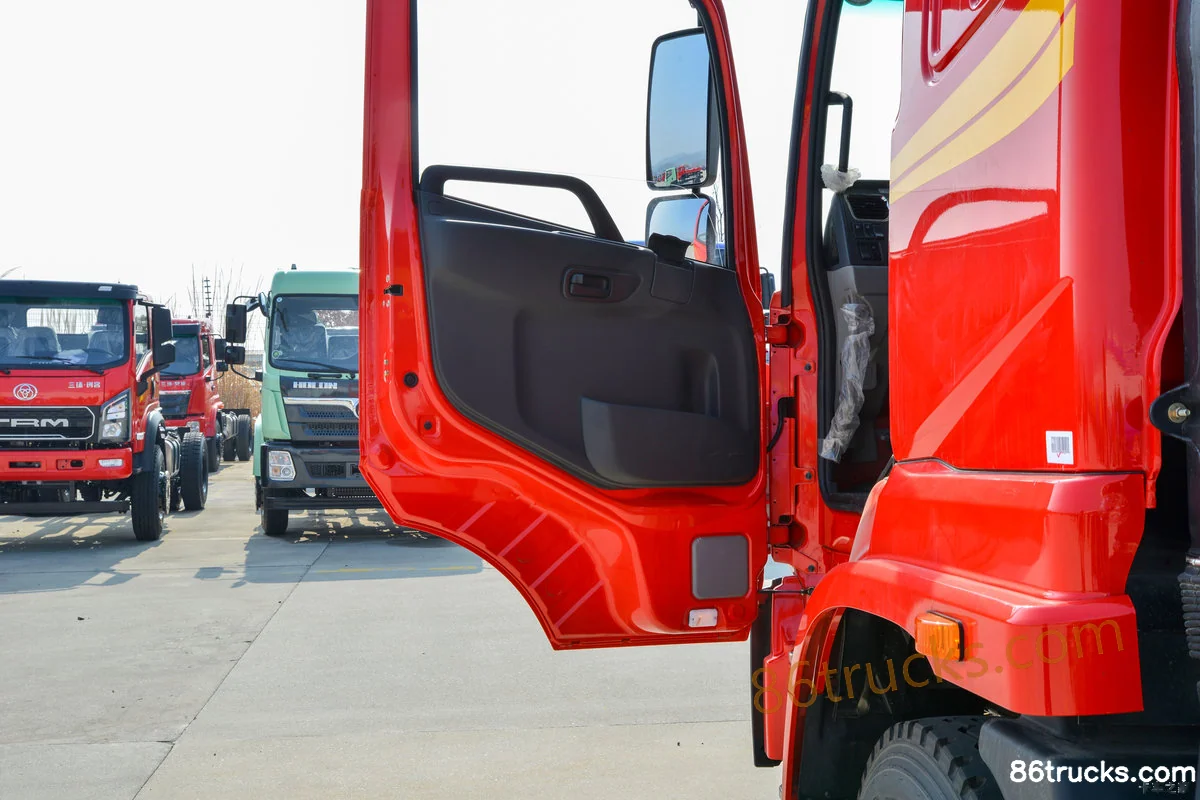

Cab3

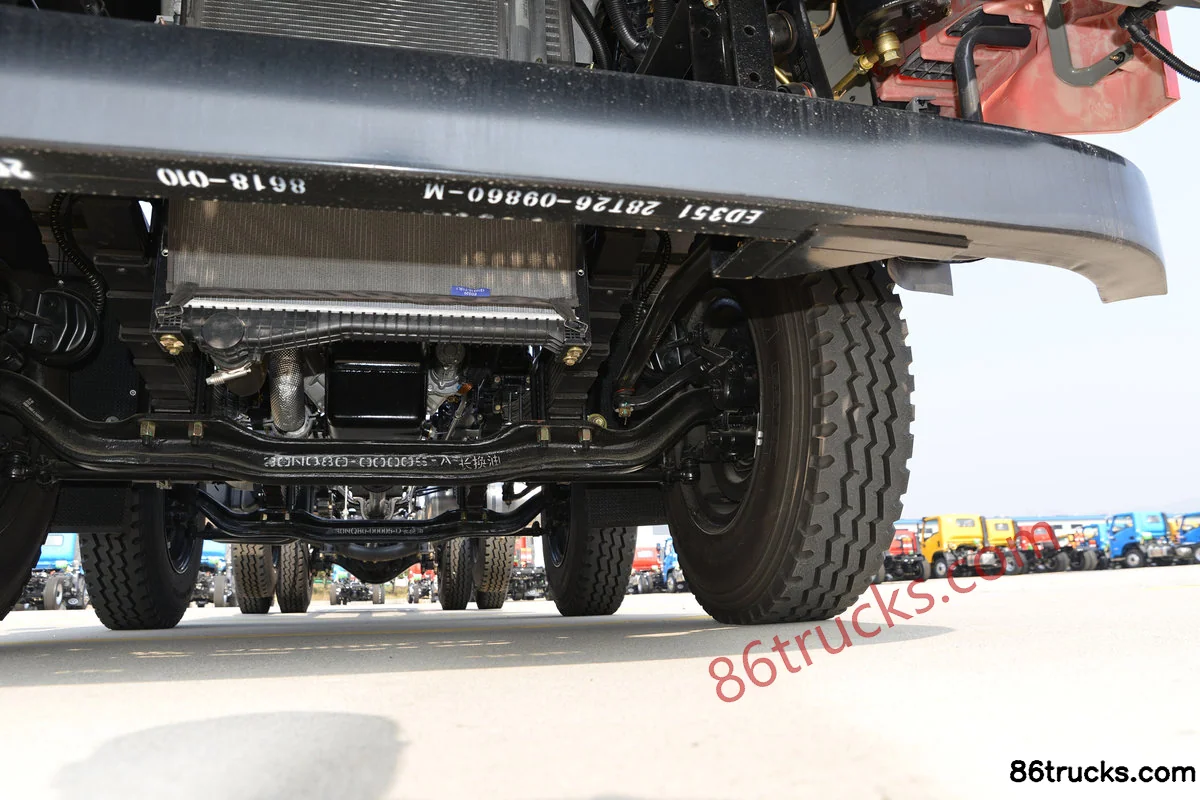

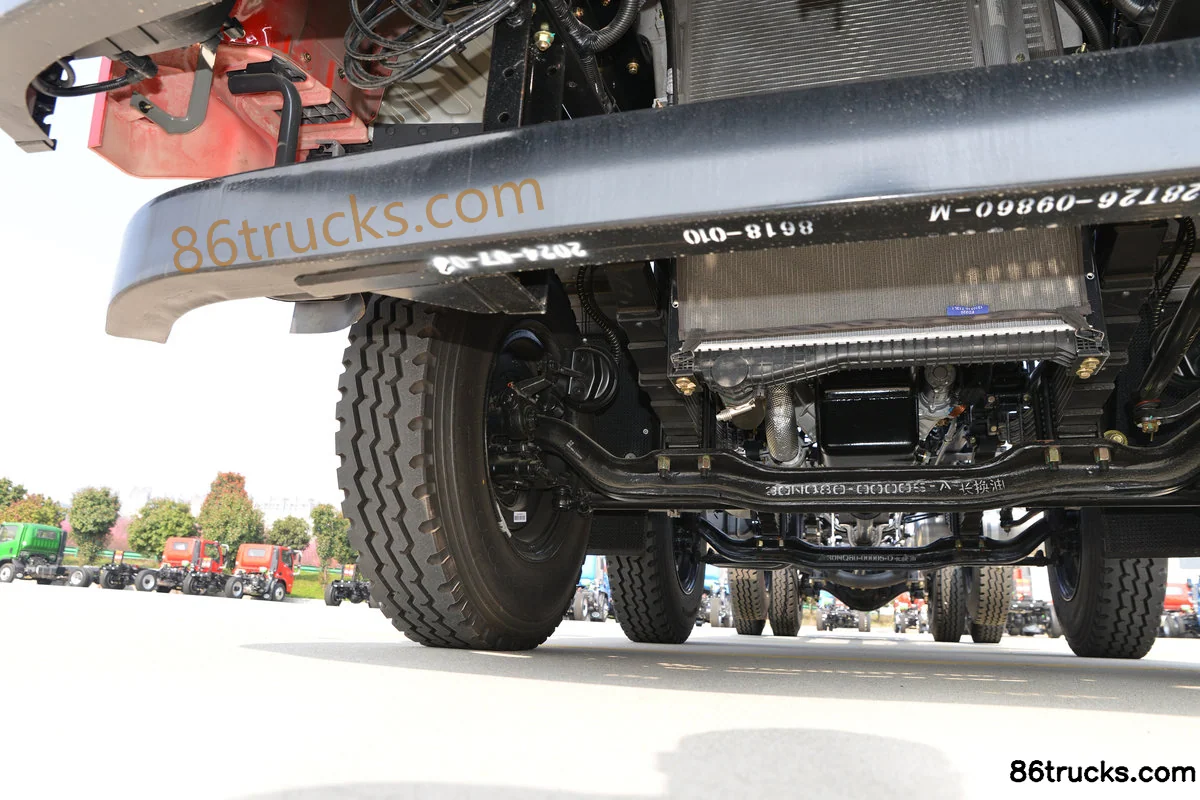

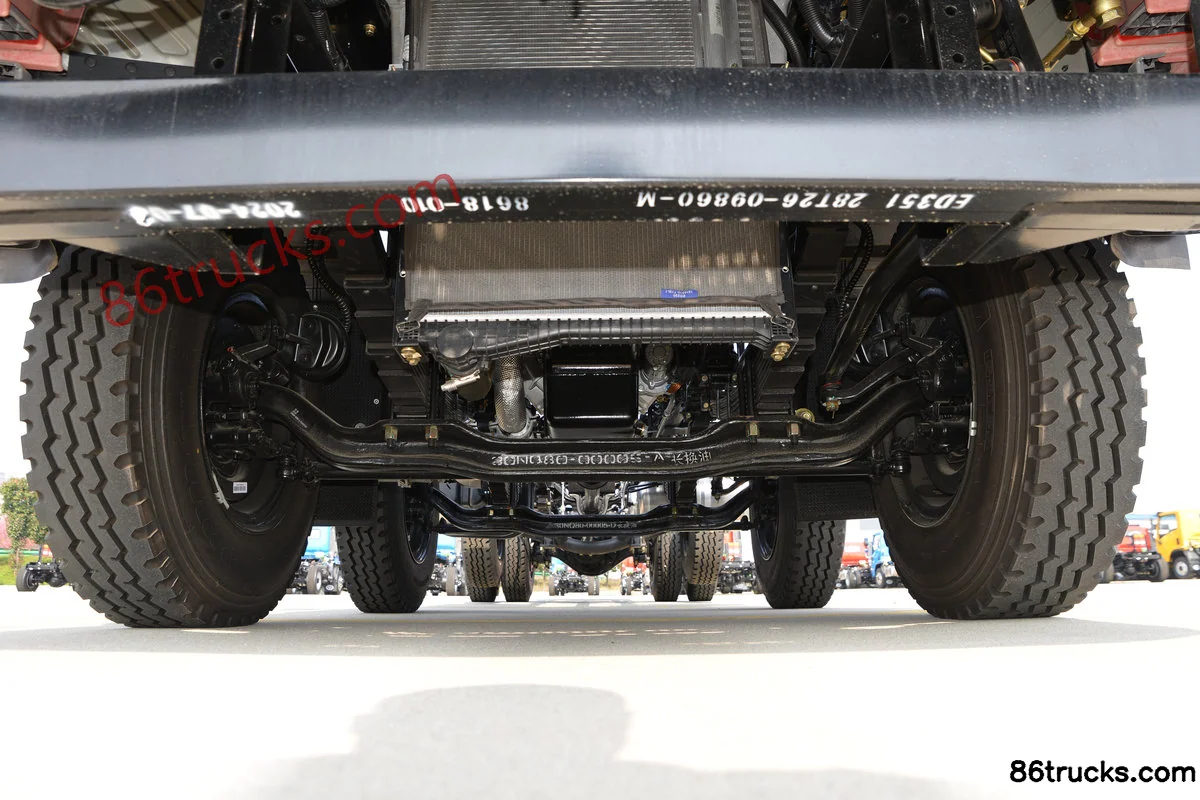

Chassis3

9 photos

FAQ

What emission standard does Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck?

Key specs of Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck: Drive: 8x2; Horsepower: 260 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck suited for?

Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong Comfort Edition 5.1L Diesel 260hp 8X2(10 wheels) Fast Gear 10-Speed 6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
