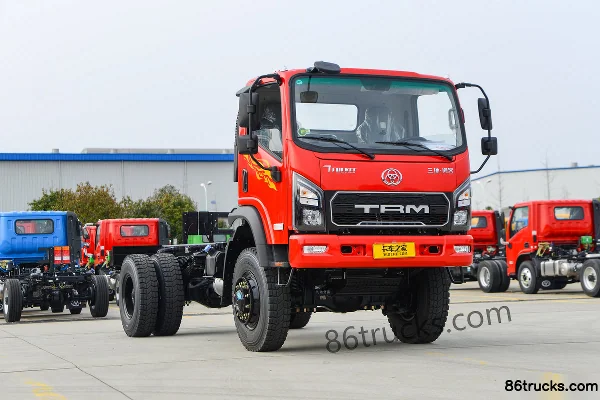

Sanhuan Shitong Xinchuangke 4.2L Diesel 200 hp 4X4(6 wheels) Fast Gear 10-speed 4.7m Dump Truck
EXW
From $32,889
Export quote
Sanhuan Shitong New Chuanke Light Truck Dump Trucks
Main model photos
206 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong Xinchuangke 4.2L Diesel 200 hp 4X4(6 wheels) Fast Gear 10-speed 4.7m Dump Truck | 4x4 / 200hp / China VI | From $32,889 | |
| Sanhuan Shitong Xinchuangke 3.6L Diesel 170hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck | 4x2 / 170hp | ||
| Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck | 4x2 / 240hp | ||
| Sanhuan Shitong New Chuangke 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 8-speed 3.2m single-row dump truck | 4x2 / 160hp / China VI | From $20,556 | |
| Sanhuan Shitong New Chuangke 163 hp 4X4(6 wheels) 3.6m Single Row Off-road Dump Truck | 4x4 / 163hp / China VI | From $22,903 |
Sanhuan Shitong Xinchuangke 3.6L Diesel 170hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck
EXW
Export quote

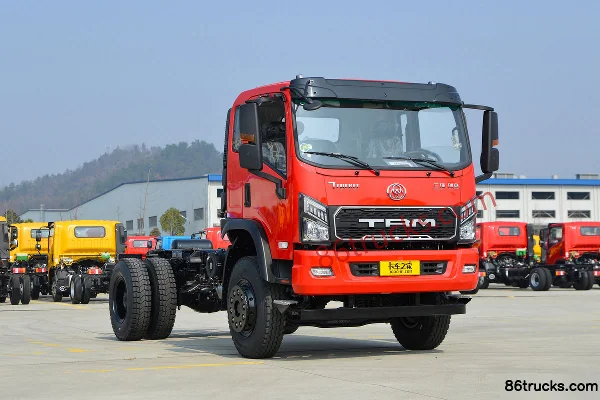

Sanhuan Shitong Xinchuangke 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-Speed 4m Dump Truck
EXW
Export quote
Sanhuan Shitong New Chuangke 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 8-speed 3.2m single-row dump truck
EXW
From $20,556
Export quote
Sanhuan Shitong New Chuangke 163 hp 4X4(6 wheels) 3.6m Single Row Off-road Dump Truck
EXW
From $22,903
Export quote
Series Specs
Basic Info
Model code (announced): STQ2181L03Y3E6 / STQ3101L03Y1N6 / STQ3181L03Y3N6 / STQ3043L01Y2N6 / STQ2111L03Y3E6 / STQ5046ZXLN6 / STQ3149L04Y1N6
Drive type: 4X4 / 4X2
Wheelbase: 3950 / 3400 / 2720 / 3250 / 3550 / 3800 / 3300mm
Engine Model: YuchaiYCS04200-68 / YuchaiYCDV3663-170 / YuchaiYCS04240-66 / YuchaiYCF25160-66 / Yunnei PowerD30TCIF2 / YuchaiYCS04160-68 / Yunnei PowerYN25PLUS160A / WeichaiWP2.3NQ130E61 / YuchaiYCDV2561-150 / YCDV3663-170 / YCS04240-66 / YCF25160-66
Transmission Model: Fast Gear10JS90A-B / Fast Gear 8-speed / Fast Gear10JS90-B / Fast Gear8J45TA / Fast Gear8JS85F / Fast Gear8JS85E / Fast Gear10JS90A / 8J45TA
Rear Axle Ratio: 6.73 / 5.92 / 6.33 / 4.875 / 5.286 / 5.833 / 5.871
Cab length: 7.27 / 6.085 / 4.995 / 5.905 / 6.155 / 6.27 / 6.77 / 6.67 / 6.99 / 4.895 / 5.745 / 6.305 / 5.68 / 4.955m
Cab width: 2.39 / 2.36 / 1.96 / 2.25 / 2 / 2.15 / 2.5 / 1.92 / 1750 / 1995m
Cab height: 2.95 / 3.1 / 2.15 / 2.8 / 2.2 / 2.23m
Front track width: 1750 / 1770 / 1675 / 1620 / 1670 / 1700 / 1650mm
rear track: 1700 / 1750 / 1590 / 1585 / 1680 / 1660 / 1560mm
Curb Weight: 8.59 / 5.6 / 7.905 / 2.72 / 6.075 / 7.81 / 3.805 / 4.2ton
Rated payload: 9.215 / 4.205 / 9.9 / 1.645 / 4.93 / 9.995 / 0.56 / 9.425ton
GVWR: 18 / 10 / 4.495 / 11.2 / 13.82ton
Origin: Shiyan, Hubei / 18
tonnage class: Medium-duty truck / Light Truck
Approach angle: 25 / 23 / 15 / 18 / 28°
departure angle: 26 / 18 / 21 / 16°
Version: Standard version / Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power / Weichai
Number of cylinders: 4cylinder
Displacement: 4.16 / 3.621 / 4.295 / 2.488 / 2.977 / 2.499 / 2.29L
Emission standard: China VI
Max output power: 147 / 125 / 173 / 116 / 120 / 114 / 96 / 110kW
Max hp: 200 / 170 / 240 / 160 / 163 / 155 / 130 / 150Horsepower
Max torque: 720 / 450 / 420 / 380N·m
Max torque speed: 1200-1600 / 1200-2200 / 1400-2300 / 1600-2400rpm
Rated speed: 2300 / 2800 / 3300 / 3200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / 4-valve, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear dump / Rear-dump body
Cargo box length: 4.7 / 4 / 3.2 / 3.6 / 4.05 / 4.5 / 4.2 / 3 / 3.8 / 3.18 / 3.16m
Cargo box width: 2.2 / 2.1 / 1.8m
Cargo box height: 0.8 / 0.55 / 1 / 0.6m
Cab parameters
Cab: With sleeper flat top standard version / Single Row / With sleeper flat top luxury version
seating capacity: 3 / 2Personnel
FAQ
What kind of truck is Sanhuan Shitong Sanhuan Shitong New Chuanke Light Truck Dump Trucks?
Sanhuan Shitong Sanhuan Shitong New Chuanke Light Truck is an export-oriented Dump Trucks lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sanhuan Shitong New Chuanke Light Truck Dump Trucks?
Sanhuan Shitong New Chuanke Light Truck Dump Trucks export reference is about $14,792 – $32,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sanhuan Shitong New Chuanke Light Truck Dump Trucks cover?
Sanhuan Shitong New Chuanke Light Truck Dump Trucks mainly covers: Drive: 4x2 / 4x4; Horsepower: 160 hp / 163 hp / 170 hp / 200 hp / 240 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sanhuan Shitong New Chuanke Light Truck Dump Trucks?
For Sanhuan Shitong New Chuanke Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sanhuan Shitong New Chuanke Light Truck Dump Trucks include?
Sanhuan Shitong New Chuanke Light Truck Dump Trucks currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sanhuan Shitong New Chuanke Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
