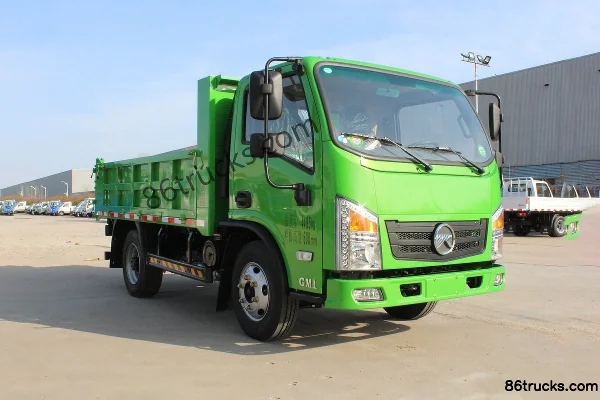

Kama Kaijie GM1 2.5L Diesel 176 hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck
EXW
From $20,278
Export quote
Kama Kaijie GM1 Light Truck Dump Trucks
Main model photos
24 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Kama Kaijie GM1 2.5L Diesel 176 hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck | 4x2 / 176hp / China VI | From $20,278 | |
| Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck | 4x2 / 137hp / China VI | From $20,139 | |
| Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-speed 3.2m dump truck | 4x2 / 137hp / China VI | From $20,139 |
Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck
EXW
From $20,139
Export quote
Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-speed 3.2m dump truck
EXW
From $20,139
Export quote
Series Specs
Basic Info
Model code (announced): KMC3041SC268D6 / KMC3041SA268DP6
Drive type: 4X2
Wheelbase: 2680mm
Engine Model: Yunnei PowerYN25PLUS180 / Yunnei Power490PLUS2 / YN25PLUS180 / 490PLUS2
Transmission Model: WLY 8-speed
Rear Axle Ratio: 6.143
Cab length: 4.995m
Cab width: 1.96 / 1760m
Cab height: 2.08 / 2.28m
Front track width: 1580 / 1525mm
rear track: 1500 / 1570mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 22 / 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Number of cylinders: 4cylinder
Displacement: 2.499L
Emission standard: China VI
Max output power: 129 / 101kW
Max hp: 176 / 137Horsepower
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.2m
Cargo box width: 1.8m
Cargo box height: 0.8 / 0.6m
Cab parameters
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Axle ratio: 6.143
Leaf spring count: 3/8+5 / 3/5+3
Tire
Tire Size: 7.00R16LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
FAQ
What kind of truck is Kama Kama Kaijie GM1 Light Truck Dump Trucks?
Kama Kama Kaijie GM1 Light Truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Kama Kaijie GM1 Light Truck Dump Trucks?
Kama Kaijie GM1 Light Truck Dump Trucks export reference is about $20,139 – $20,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Kama Kaijie GM1 Light Truck Dump Trucks cover?
Kama Kaijie GM1 Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 137 hp / 176 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Kama Kaijie GM1 Light Truck Dump Trucks?
For Kama Kaijie GM1 Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Kama Kaijie GM1 Light Truck Dump Trucks include?
Kama Kaijie GM1 Light Truck Dump Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Kama Kaijie GM1 Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
