Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck

Export reference
From $20,139
MSRP ¥14.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2680mm
Tire Size:: 7.00R16LT 8PR/245/70R17.5 18PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 137
Cargo box length: 3.2m

Overview

The Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.2m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei Power490PLUS2 engine, 137 hp, China VI emissions and WLY transmission.

China VI 137 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3041SA268DP6
Drive type: 4X2
Wheelbase: 2680mm
engine: Yunnei Power490PLUS2
transmission: WLY 8-speed
Rear Axle Ratio: 6.143
Cab length: 4.995m
Cab width: 1.96m
Cab height: 2.28m
Front track width: 1525mm
rear track: 1570mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: 490PLUS2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 101kW
Max hp: 137Horsepower
Transmission Parameters
Transmission Model: WLY 8-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.2m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
Cab width: 1760mm
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Axle ratio: 6.143
Leaf spring count: 3/5+3
Tire
Tire Size: 7.00R16LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake

Photos

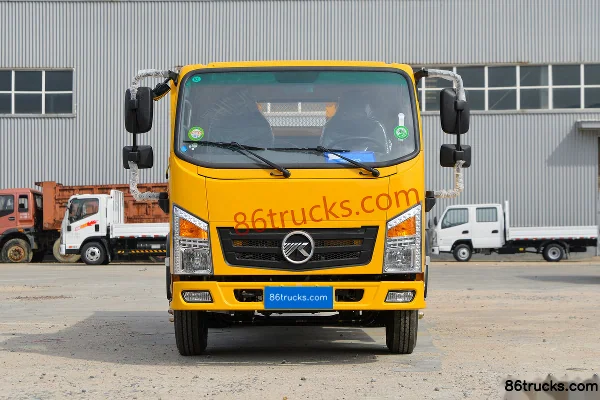

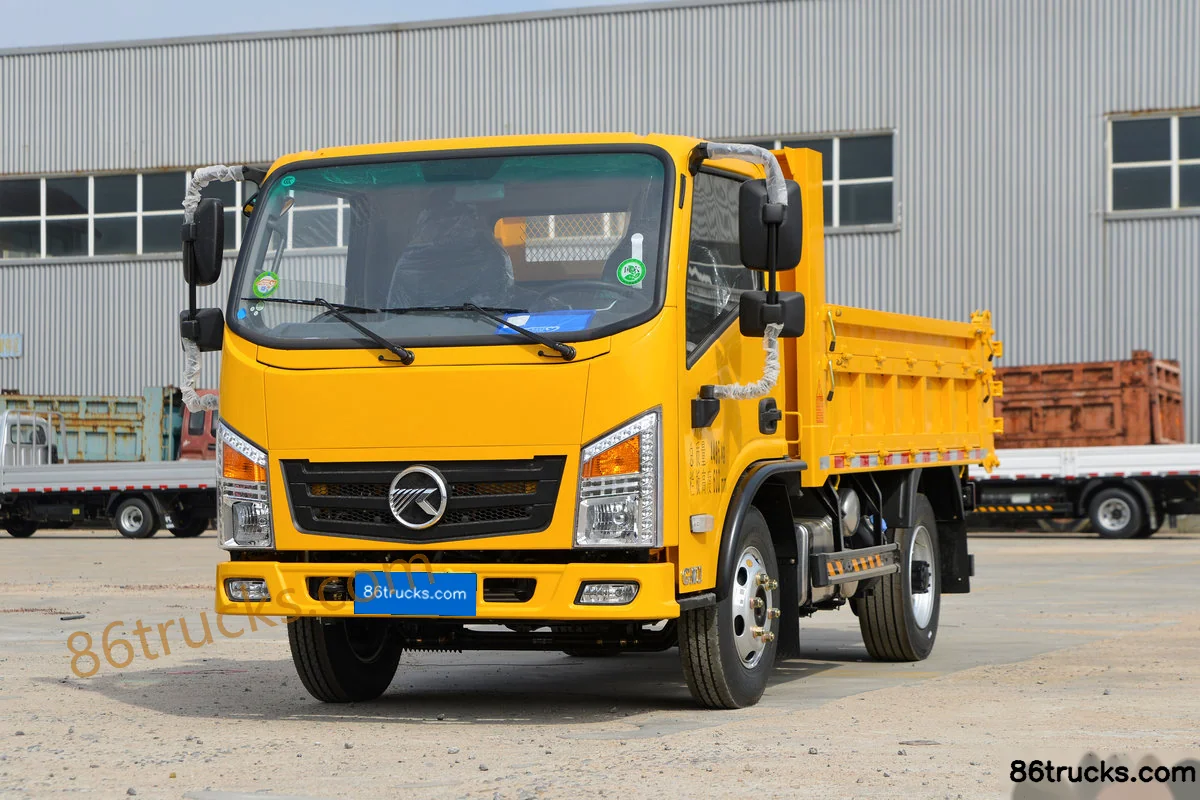

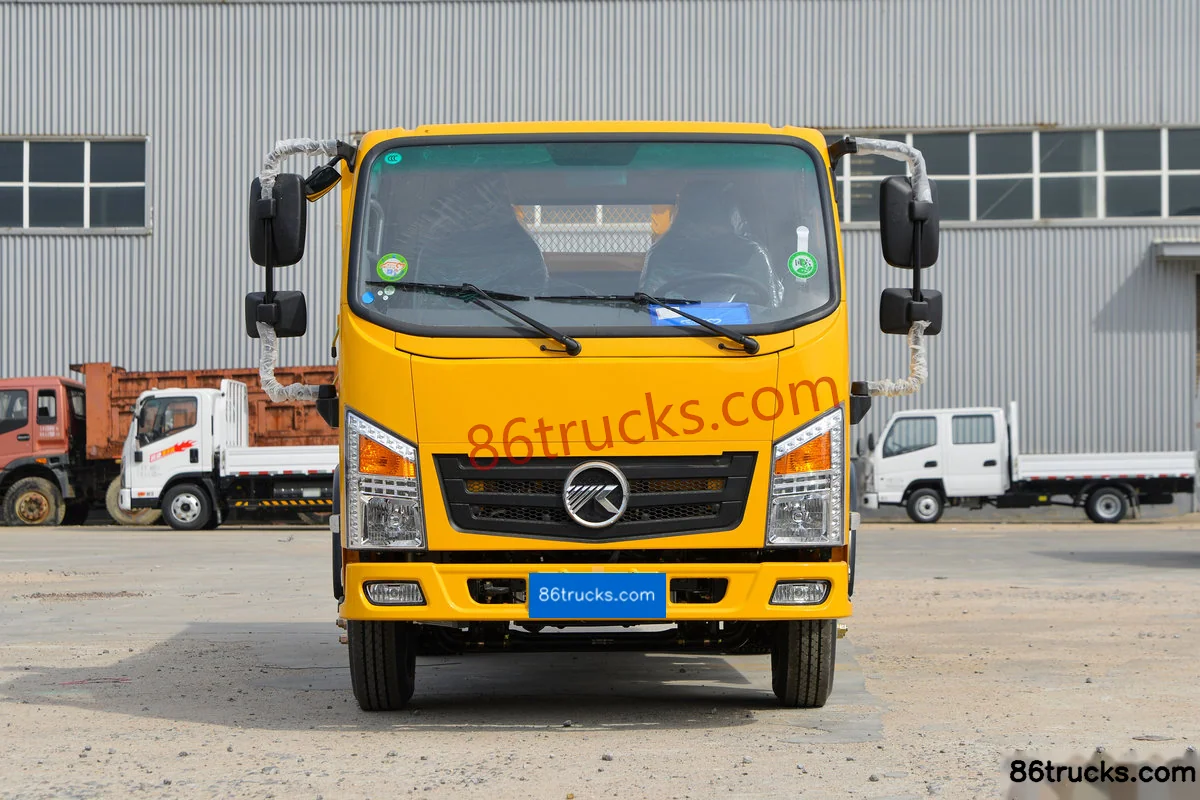

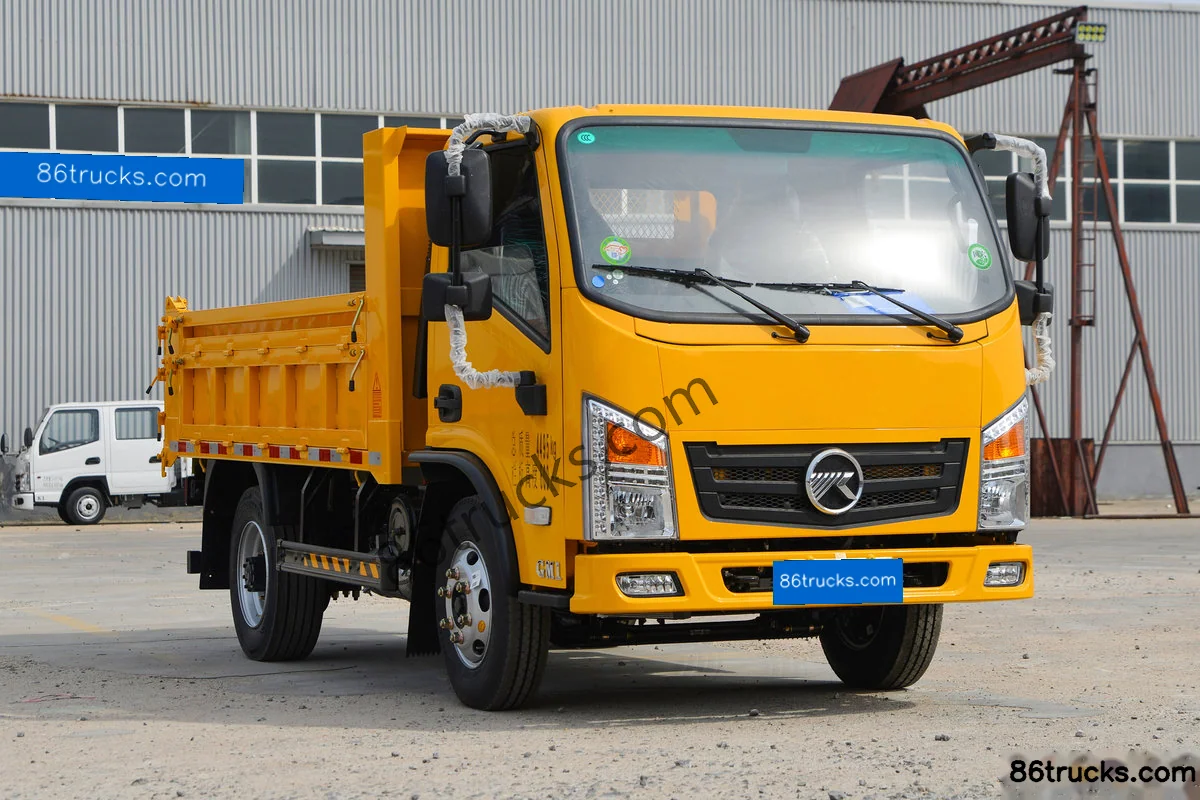

Exterior3

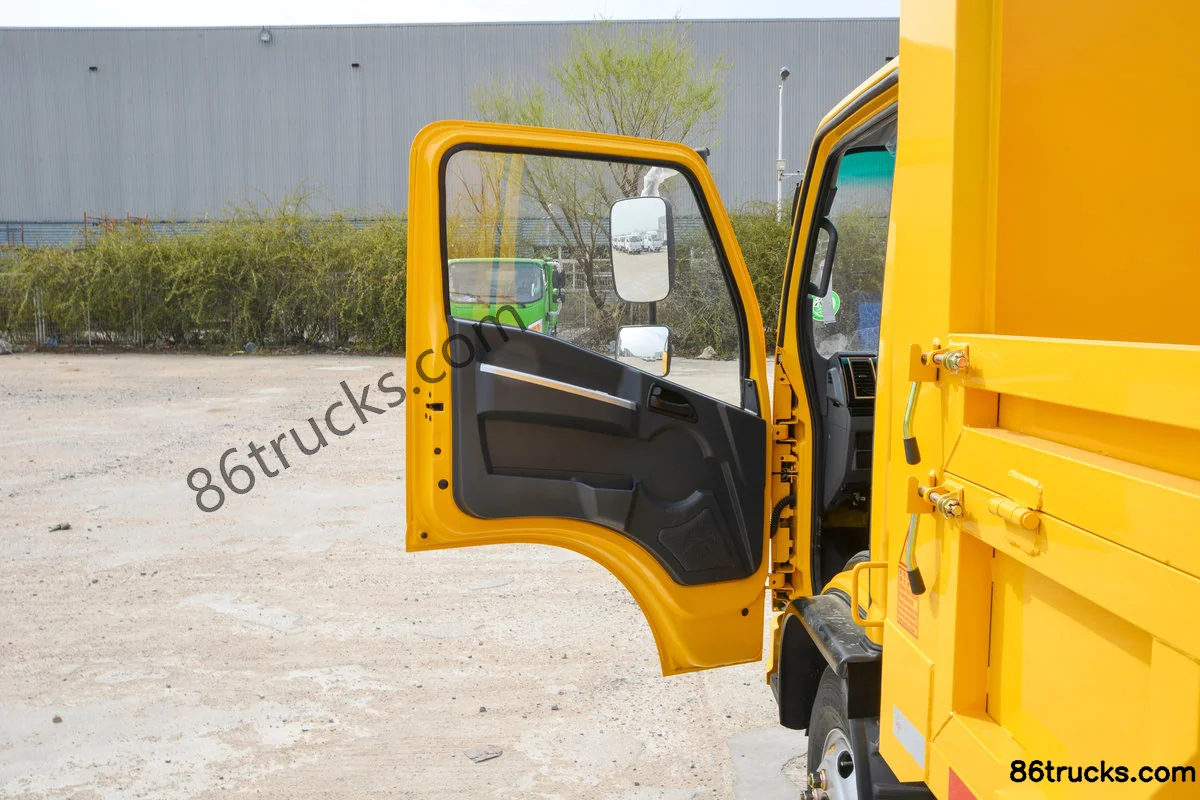

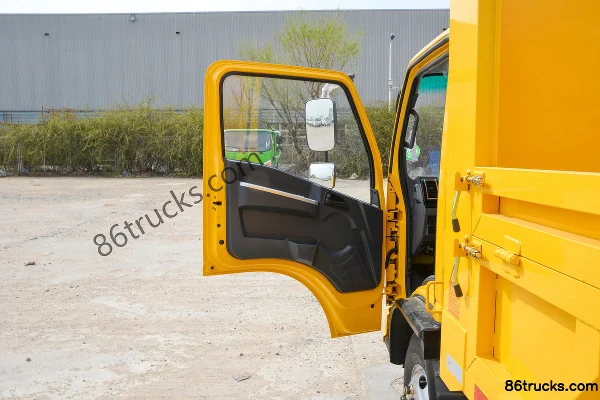

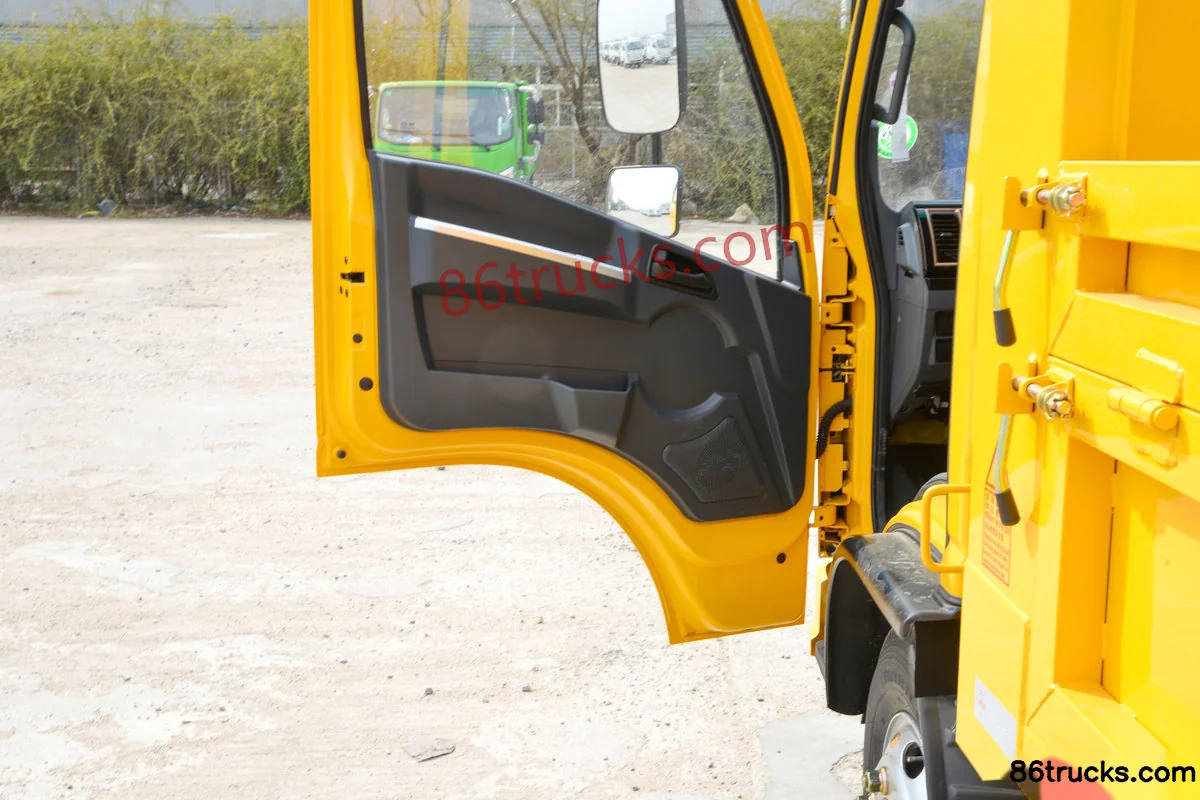

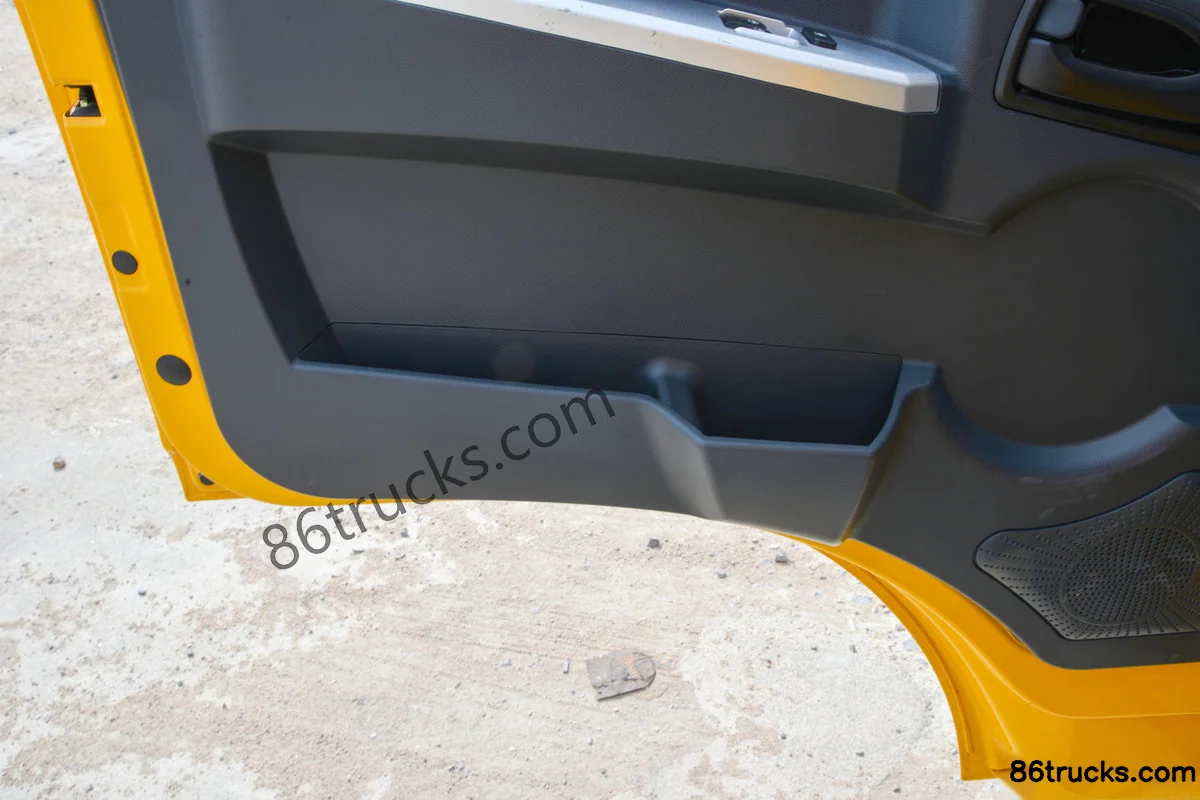

Cab3

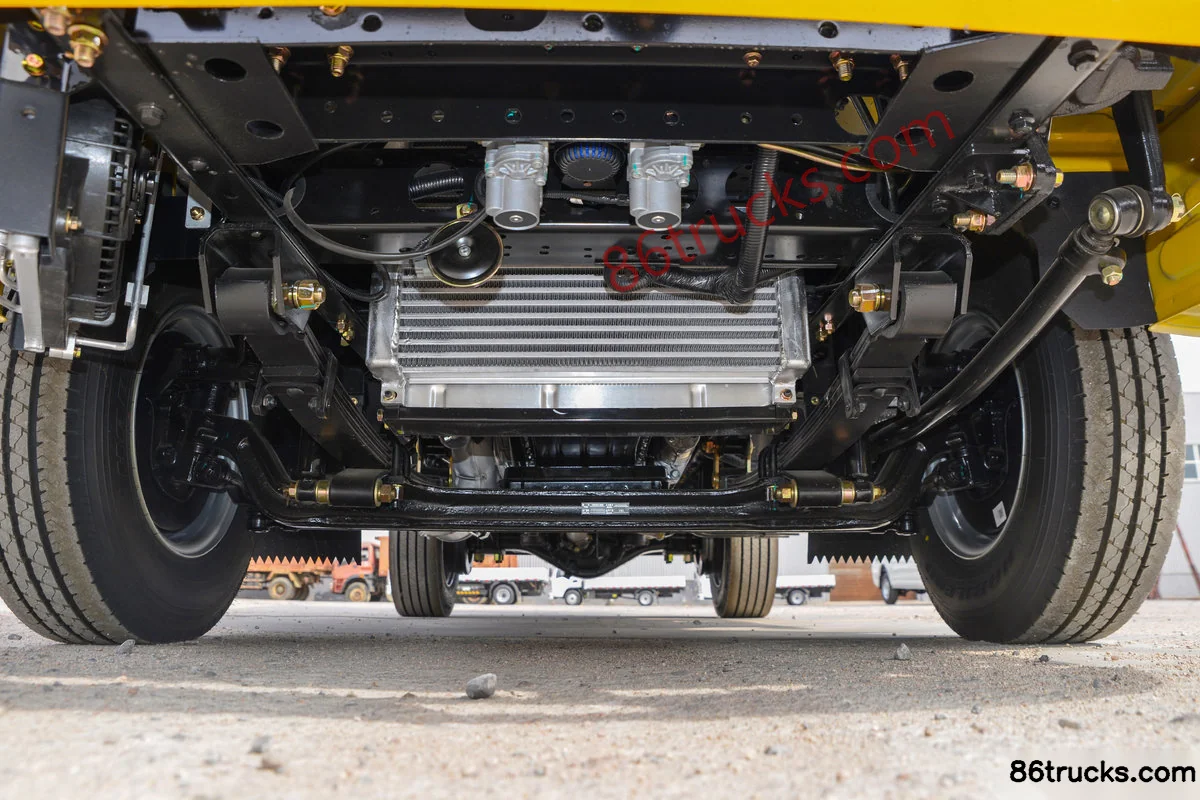

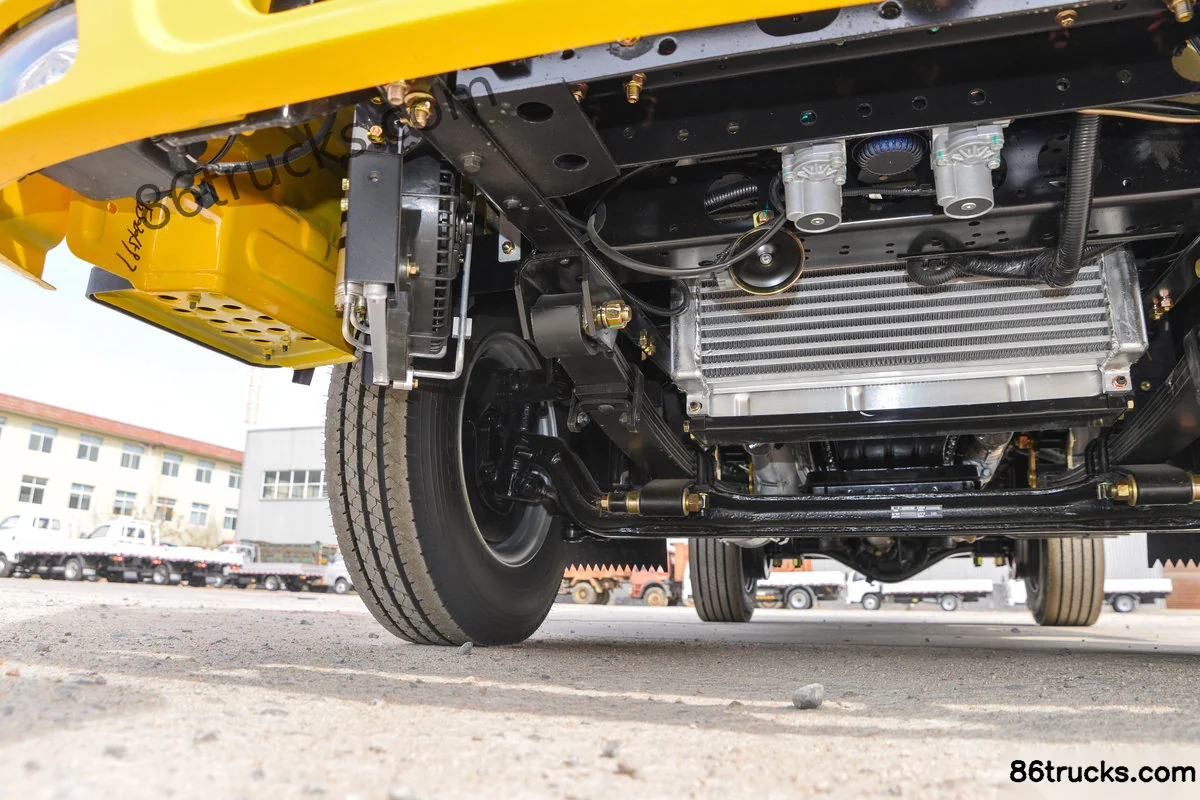

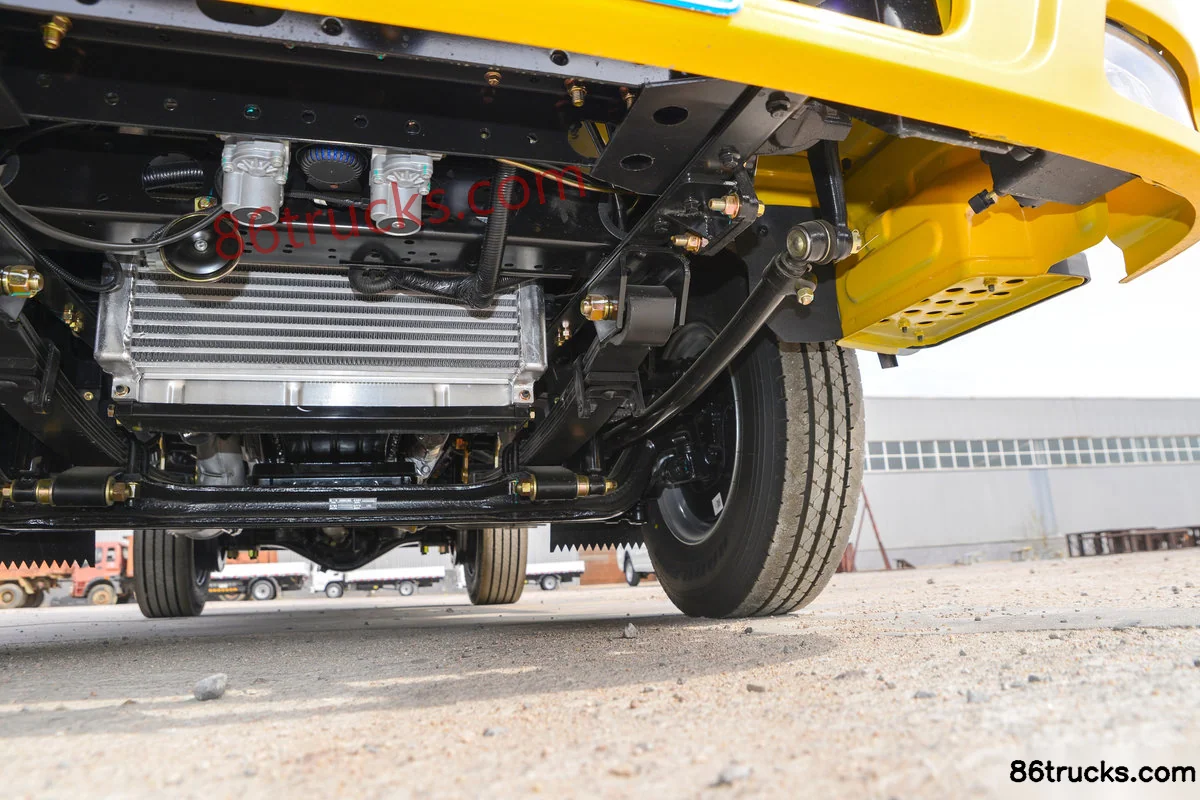

Chassis3

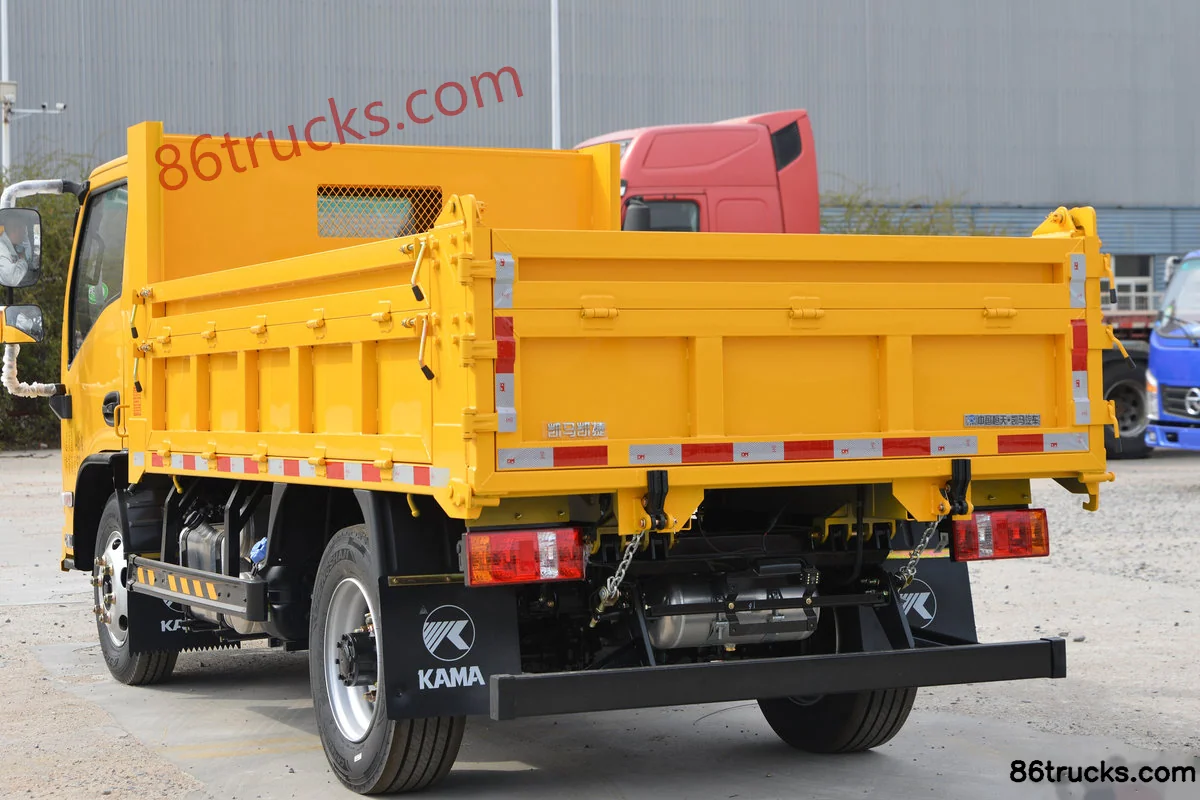

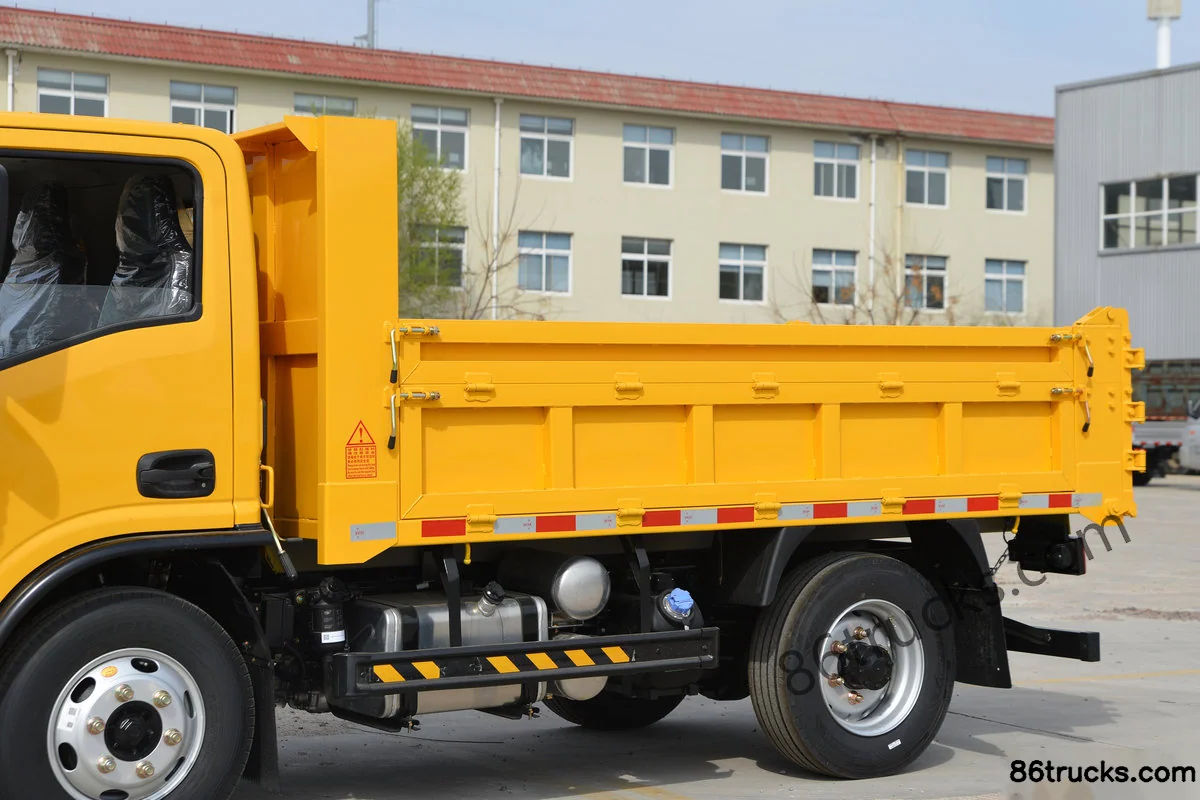

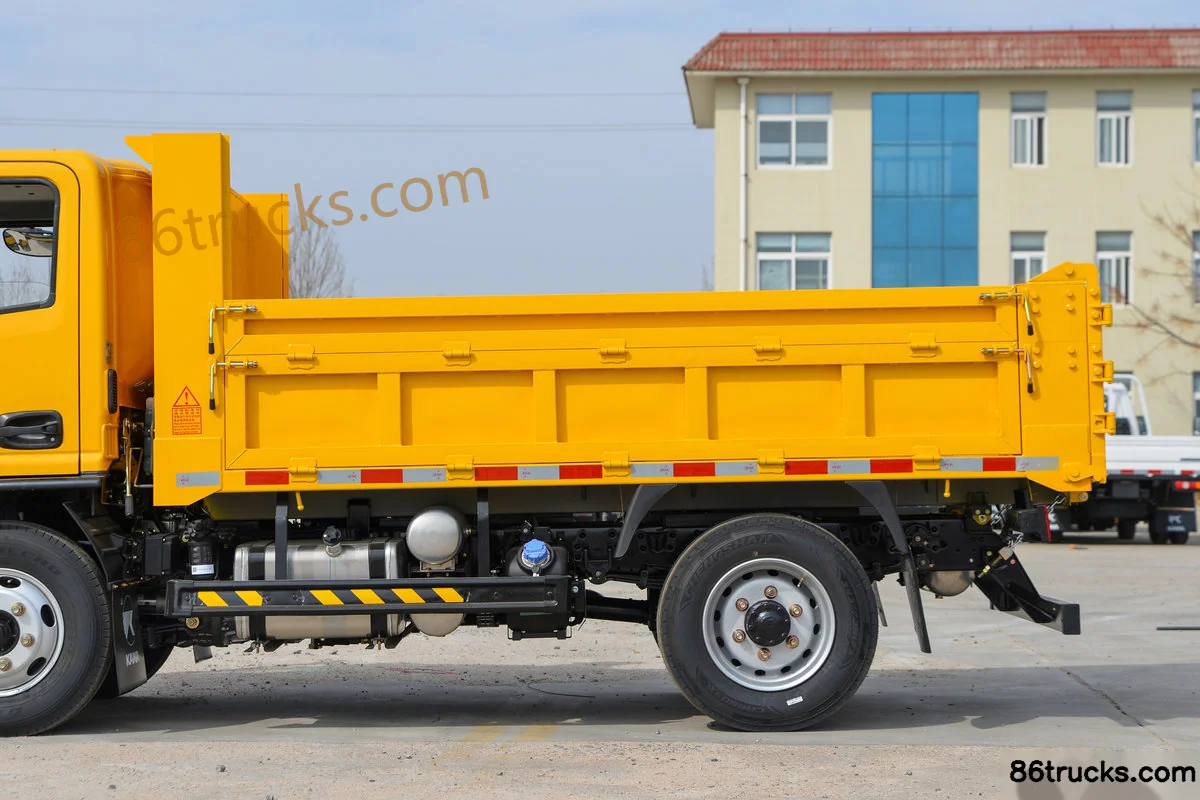

Body3

12 photos

FAQ

What is the export price of Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck, and what does it include?

Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck export reference is about From $20,139; MSRP is ¥14.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck?

Key specs of Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck: Drive: 4x2; Horsepower: 137 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck suited for?

Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck differ from other variants in the same series?

Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck belongs to Kama Kaijie GM1 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie GM1 2.5L Diesel 137hp 4X2(6 wheels) WLY 8-Speed 3.2m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
