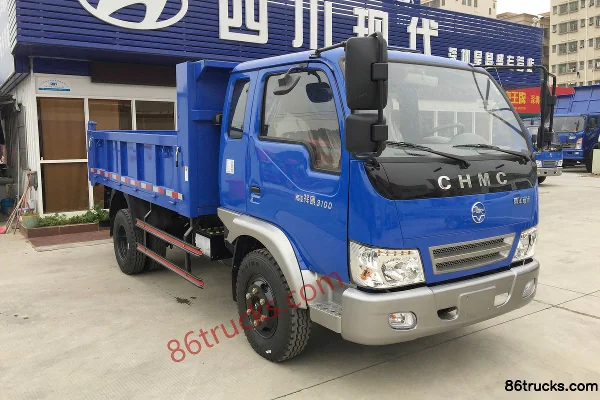

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m Dump Truck
EXW
From $14,583
Export quote
Hyundai Commercial Vehicle Sichuan Hyundai
Main model photos
28 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m Dump Truck | 4x2 / 102hp / China V | From $14,583 | |
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 82 hp 4X2(6 wheels) 3.55 m Dump Truck | 4x2 / 82hp / China V | From $13,889 | |
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) | 4x2 / 102hp / China V | From $17,472 | |
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102 hp 4X2(6 wheels) 3.15m Dump Truck | 4x2 / 102hp / China V | From $17,778 | |
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m Dump Truck | 4x2 / 102hp / China V | From $14,167 |
Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 82 hp 4X2(6 wheels) 3.55 m Dump Truck
EXW
From $13,889
Export quote
Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio)
EXW
From $17,472
Export quote

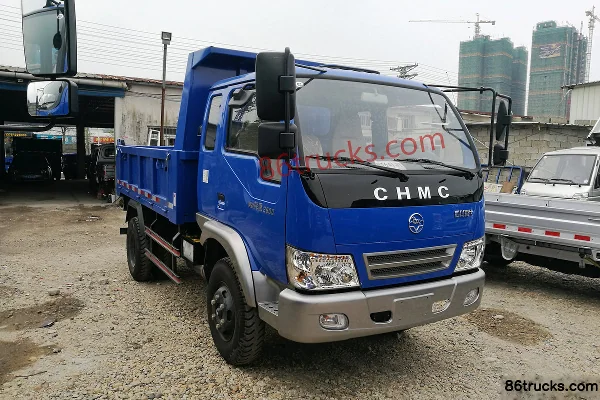

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102 hp 4X2(6 wheels) 3.15m Dump Truck
EXW
From $17,778
Export quote
Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m Dump Truck
EXW
From $14,167
Export quote
Series Specs
Basic Info
Model code (announced): CNJ3040ED26V / CNJ3040EP31V / CNJ3040EP28V / CNJ3040ZEP28M
Drive type: 4X2
Wheelbase: 2800 / 3100mm
Engine Model: Yunnei PowerYN33CRE2 / Yunnei PowerYN27CRD2 / Yunnei PowerYN33CRD2 / Yunnei PowerYN27CRE2
Transmission Model: WLYWLY5-speed / WLYWLY5FQ-43DY1 / WLYWLY5-43
Rear Axle Ratio: 6.833 / 6.143 / 6.333
Cab length: 5.43 / 5.73 / 5.32 / 5.35 / 5.3m
Cab width: 2 / 2.1 / 1.95 / 2.06m
Cab height: 2.09 / 2.54 / 2.5m
Front track width: 1580 / 1650mm
rear track: 1586 / 1540mm
Curb Weight: 2.5 / 2.57ton
Rated payload: 1.495 / 1.49ton
GVWR: 4.125 / 4.255ton
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck / Light Truck
Approach angle: 25°
departure angle: 22°
Remarks: Fuel tank capacity optional: 88L / Transmission optional WLY WLY535
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Number of cylinders: 4cylinder
Displacement: 3.298 / 2.672L
Emission standard: China V / China IV
Max output power: 75 / 60kW
Max hp: 102 / 82Horsepower
Max torque: 265 / 250 / 215N·m
Max torque speed: 1600-2400 / 1600-2600 / 1800-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / Electronic high-pressure common rail diesel engine
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.55 / 3.15 / 3.1m
Cargo box width: 1.9 / 2 / 1.85m
Cargo box height: 0.6m
Cab parameters
Cab: Flat Roof Semi-Sleeper
FAQ
What kind of truck is Hyundai Commercial Vehicle Sichuan Hyundai Xiangkang Dump Trucks?
Hyundai Commercial Vehicle Sichuan Hyundai Xiangkang is an export-oriented Dump Trucks lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hyundai Commercial Vehicle Sichuan Hyundai?
Hyundai Commercial Vehicle Sichuan Hyundai export reference is about $13,889 – $17,778. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hyundai Commercial Vehicle Sichuan Hyundai cover?
Hyundai Commercial Vehicle Sichuan Hyundai mainly covers: Drive: 4x2; Horsepower: 82 hp / 102 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hyundai Commercial Vehicle Sichuan Hyundai?
For Hyundai Commercial Vehicle Sichuan Hyundai: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hyundai Commercial Vehicle Sichuan Hyundai include?
Hyundai Commercial Vehicle Sichuan Hyundai currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hyundai Commercial Vehicle Sichuan Hyundai?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
