Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio)

Export reference
From $17,472
MSRP ¥12.58M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.5ton
Wheelbase:: 3100mm
Tire Size:: 7.50-16 6PR,7.50R16 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Dump type

Overview

The Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) is a Light Truck featuring 1.495t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE2 engine, 102 hp, China V emissions and WLY transmission.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ3040EP31V
Drive type: 4X2
Wheelbase: 3100mm
engine: Yunnei PowerYN33CRE2
transmission: WLYWLY5FQ-43DY1
Rear Axle Ratio: 6.143
Cab length: 5.73m
Cab width: 2.1m
Cab height: 2.54m
Front track width: 1650mm
rear track: 1586mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: WLYWLY5FQ-43DY1
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.55m
Cargo box width: 2m
Cargo box height: 0.6m
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1540kg
rear axle allowable load: 2585kg
Axle ratio: 6.143
Leaf spring count: 3/11+8,9/10+8,9/11+8
Tire
Tire Size: 7.50-16 6PR,7.50R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Parking brake: Spring brake

Photos

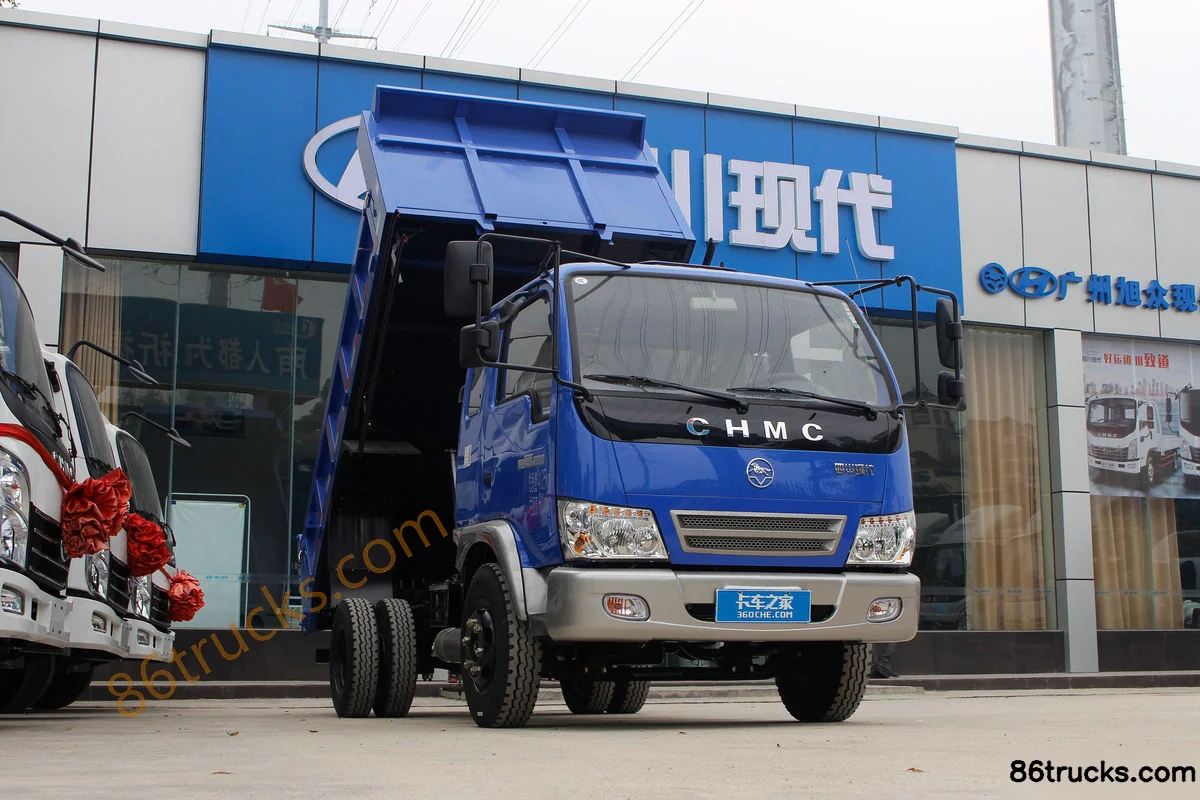

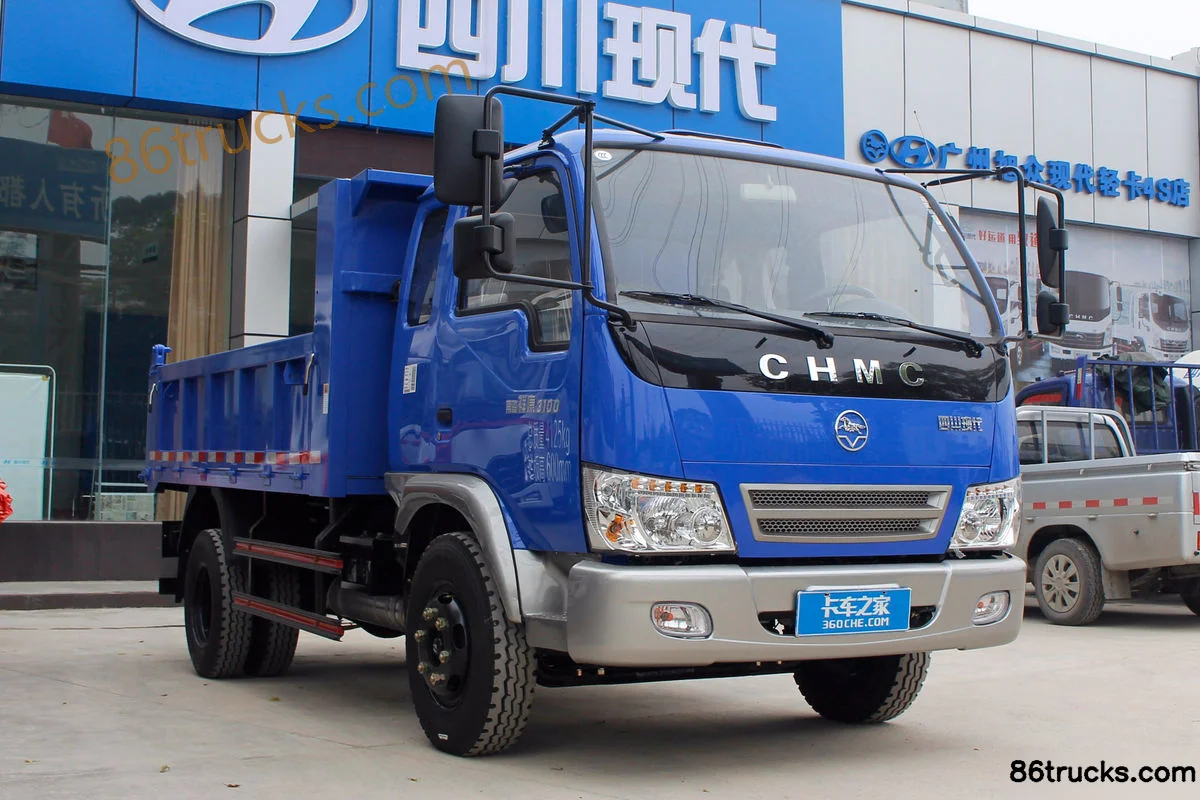

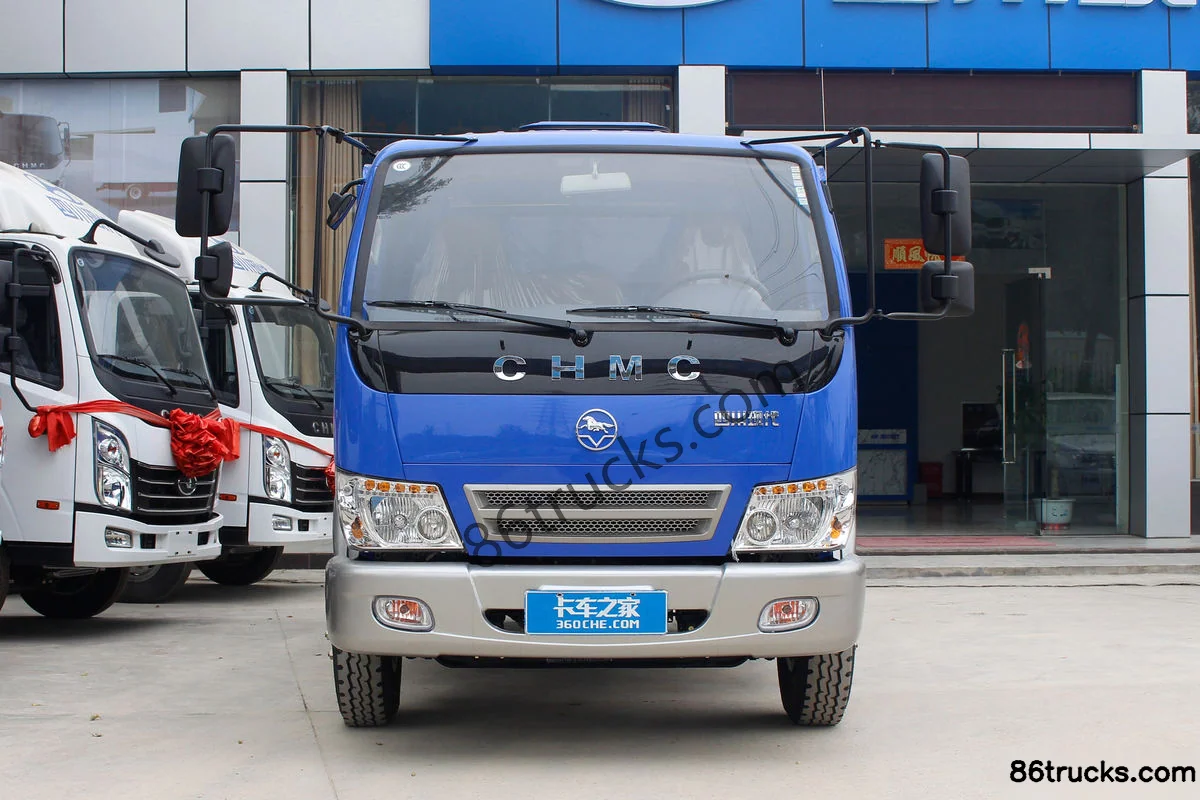

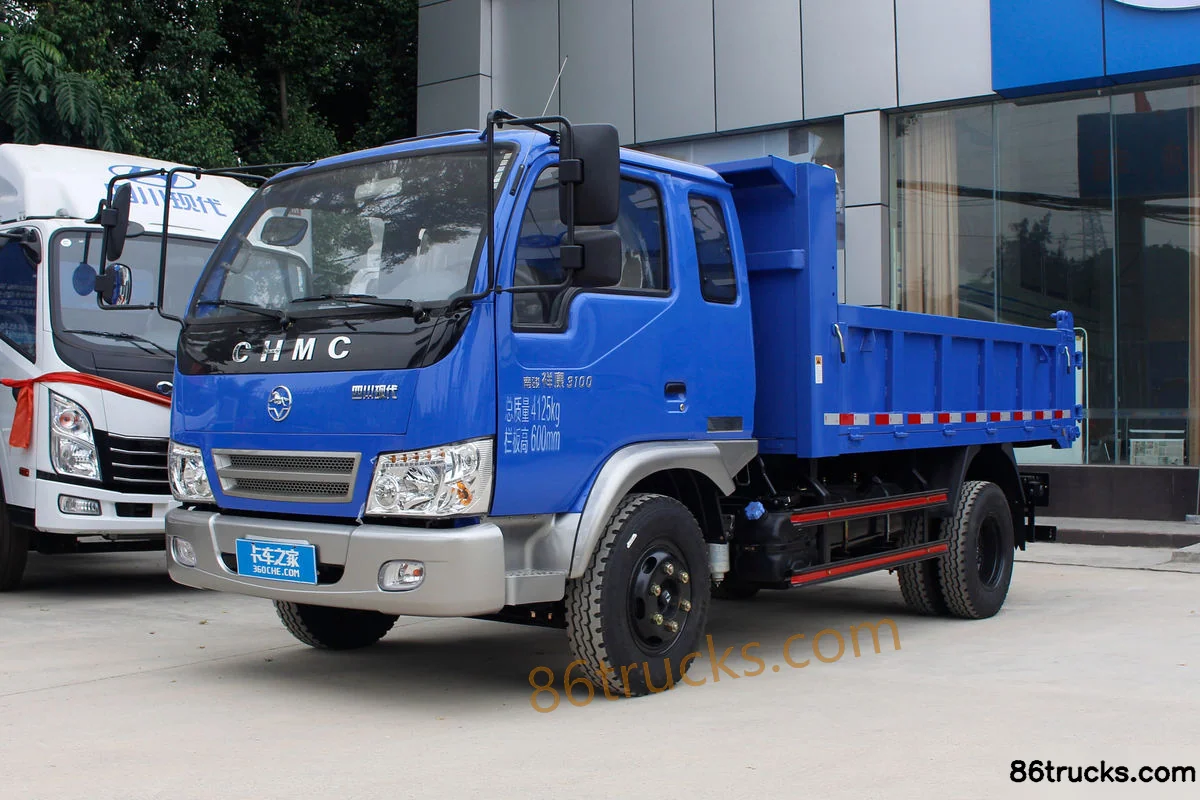

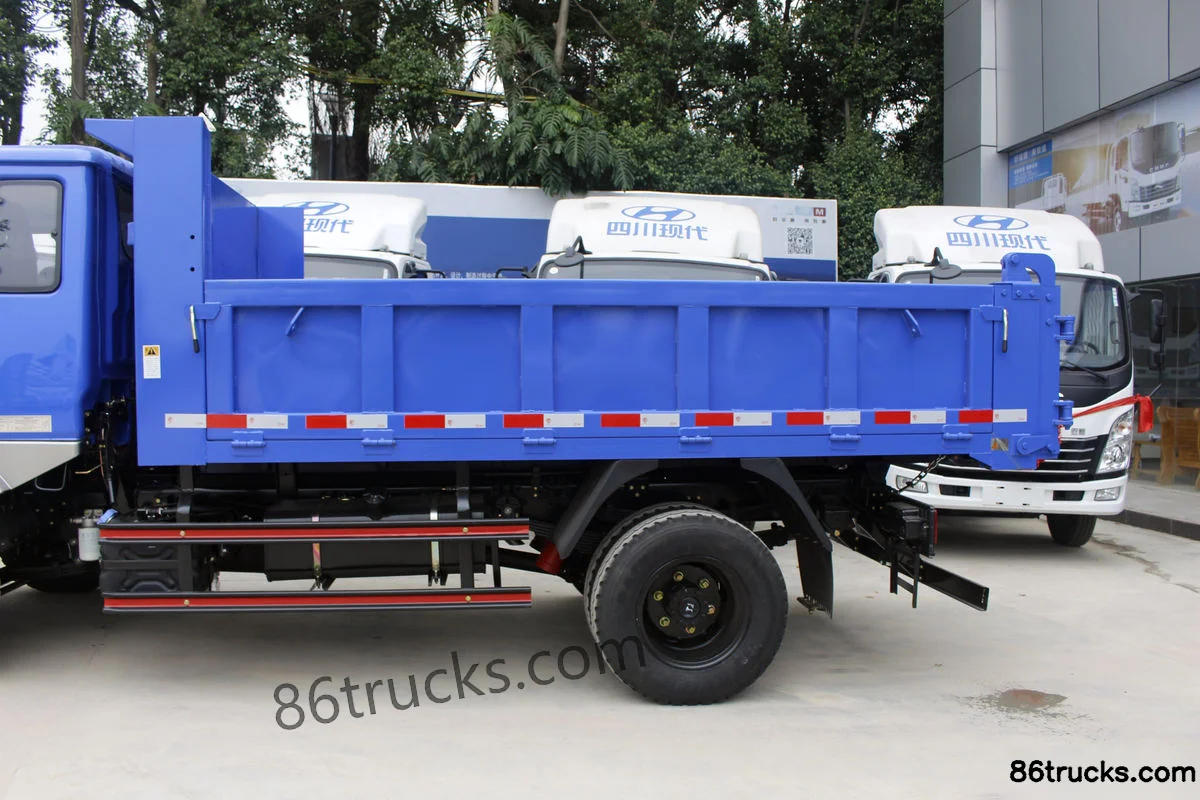

Exterior3

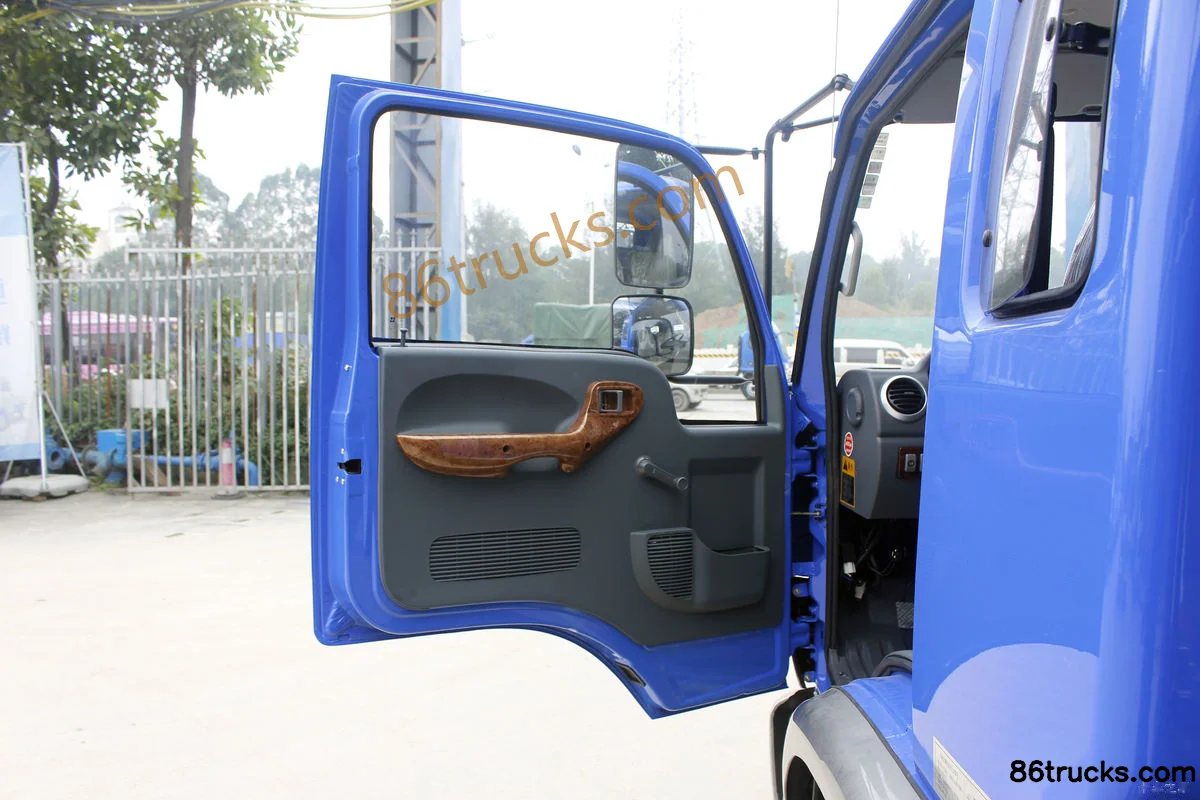

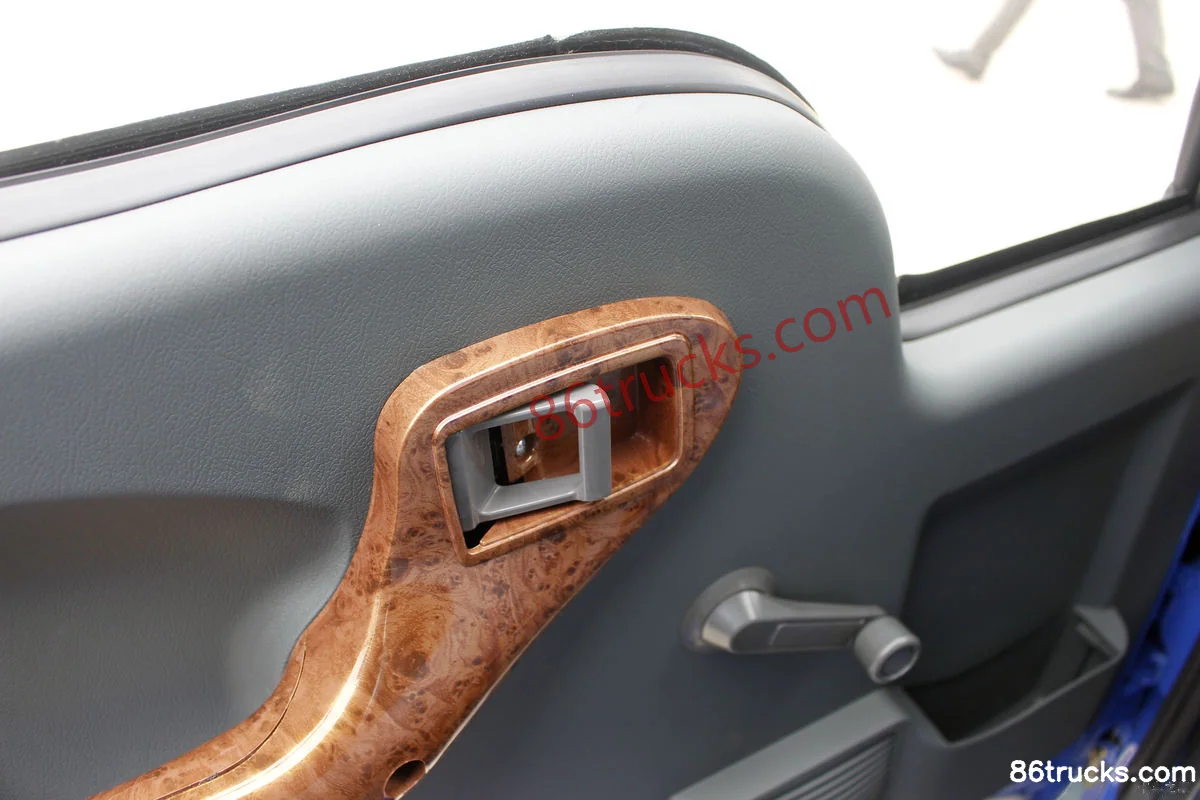

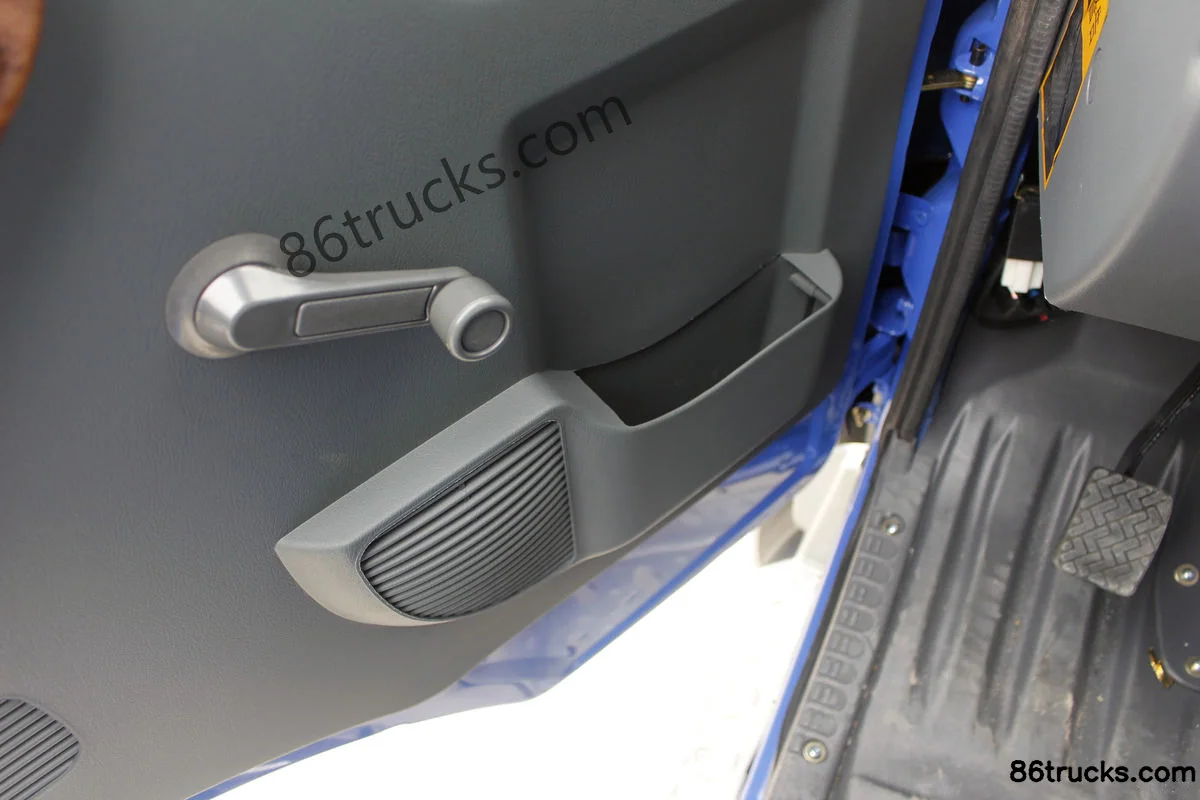

Cab3

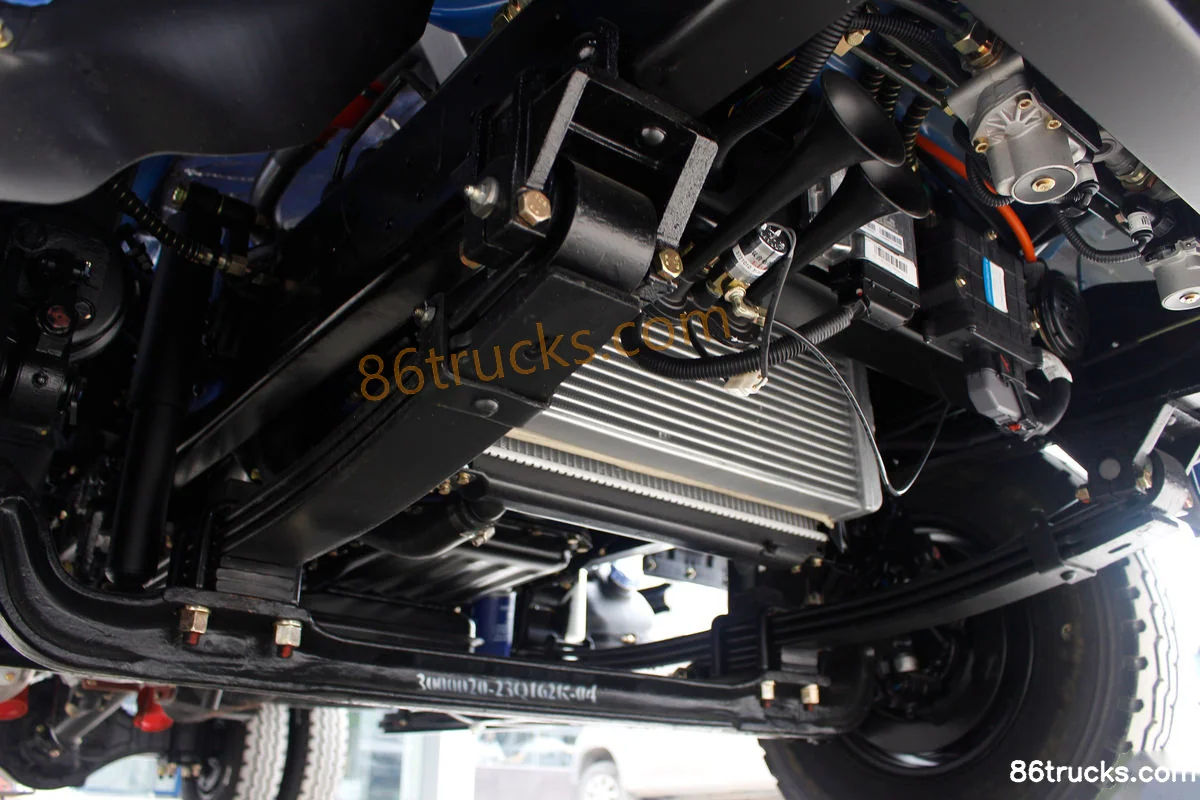

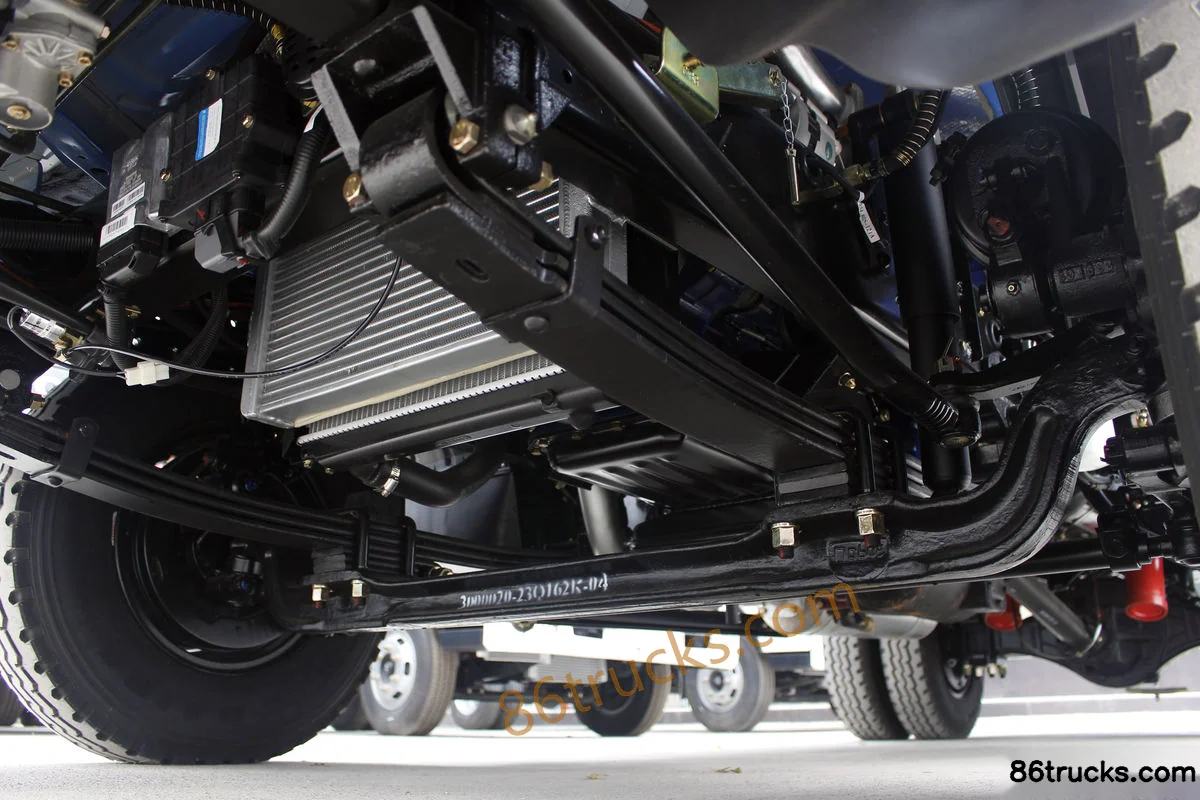

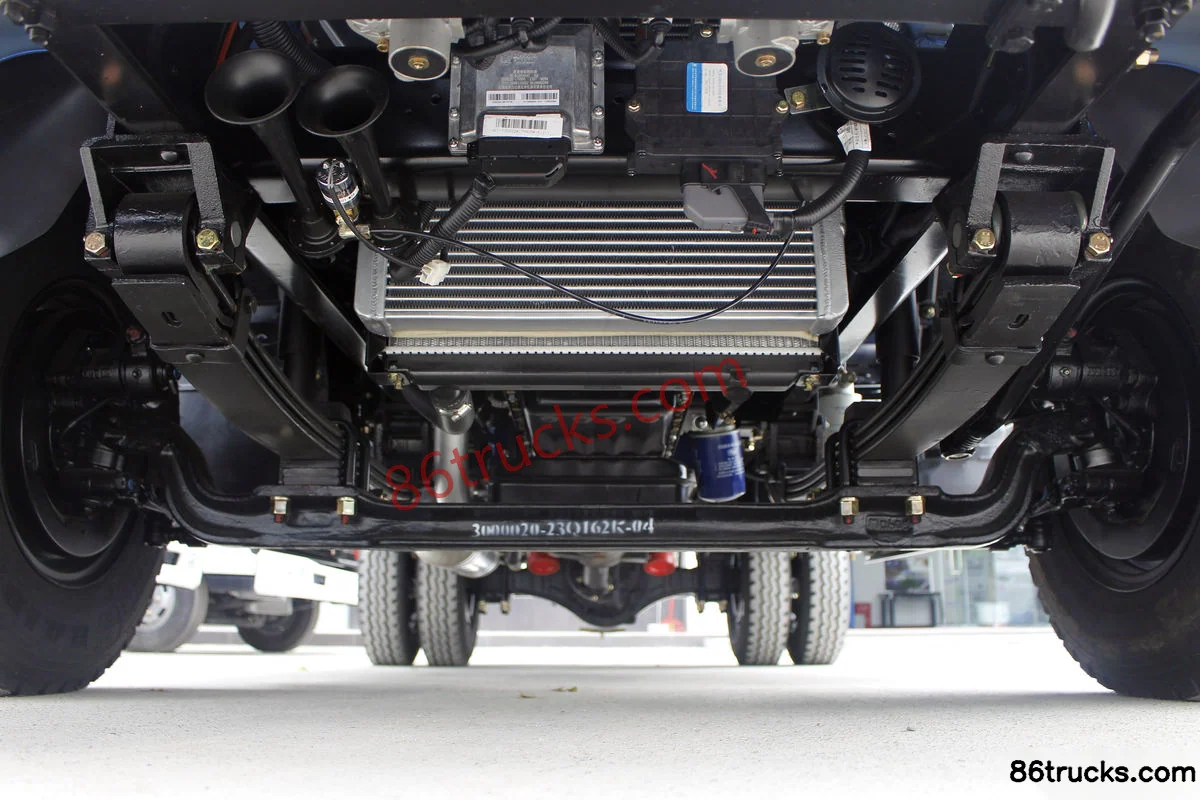

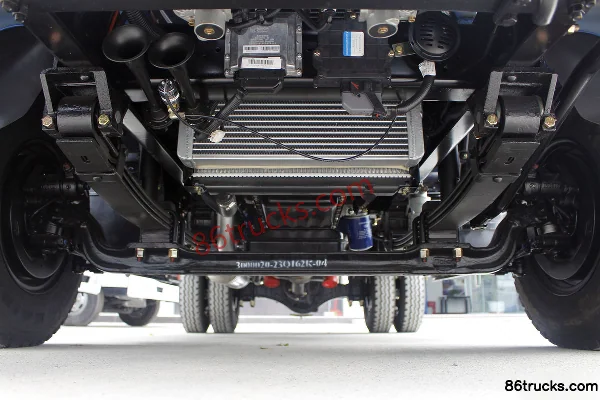

Chassis3

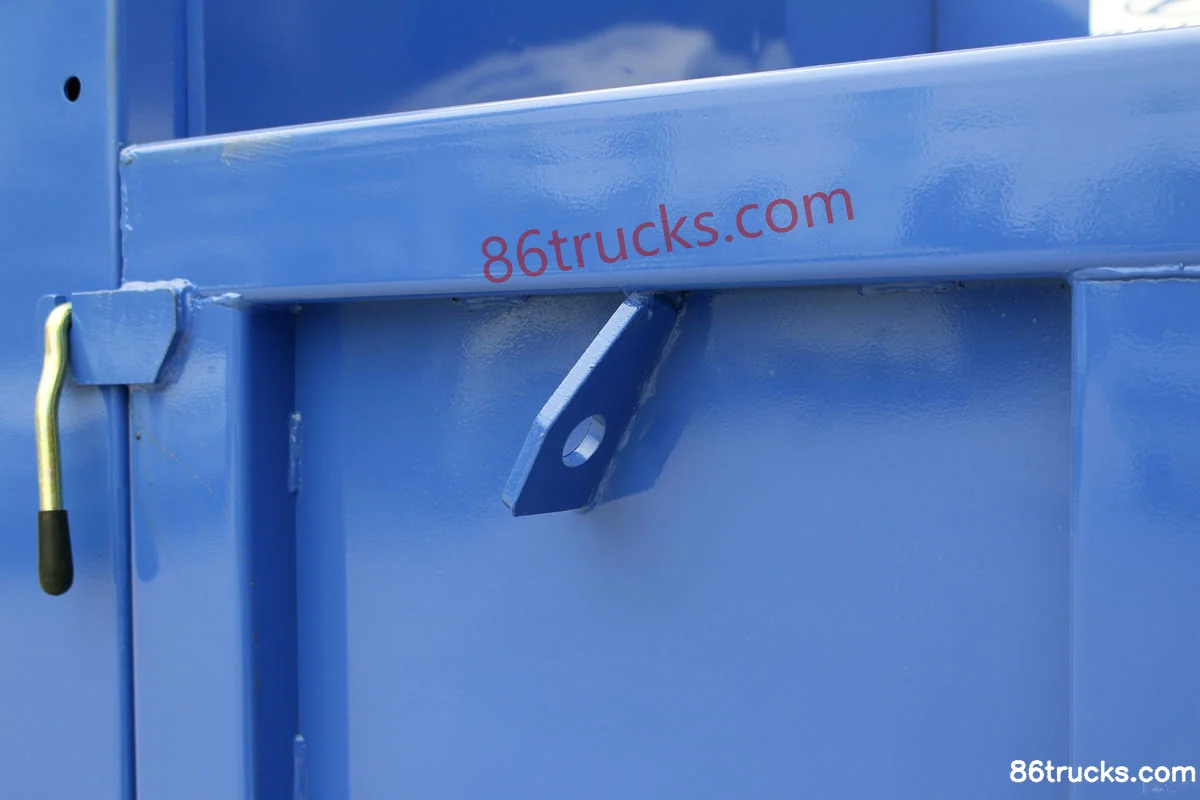

Body3

12 photos

FAQ

What is the export price of Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio), and what does it include?

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) export reference is about From $17,472; MSRP is ¥12.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio)?

Key specs of Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio): Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) suited for?

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) differ from other variants in the same series?

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio) belongs to Sichuan Hyundai Xiangkang (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xiangkang 102hp 4X2(6 wheels) 3.55m dump truck (6.143 ratio)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
