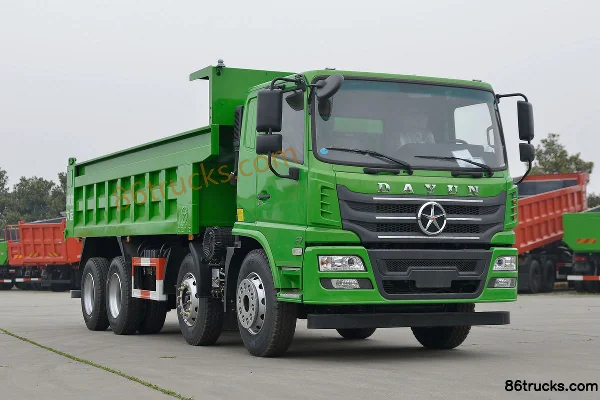

Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck
EXW
From $37,500
Export quote
DayunF7 Dump Trucks
Main model photos
214 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck | 8x4 / 300hp / China VI | From $37,500 | |
| Dayun F7 medium truck heavy-duty 270hp 4X2(6 wheels) 5m dump truck (China VI) | 4x2 / 270hp / China VI | From $29,819 | |
| Dayun F7 Heavy Truck 300hp 8X2(10 wheels) 6.5m dump truck | 8x2 / 300hp / China VI | From $35,722 | |
| Dayun F7 Heavy Truck 300 hp 8X2(10 wheels) 6.8m Dump Truck (China VI) | 8x2 / 300hp / China VI | ||
| Dayun F7 heavy truck 330hp 8X4(12 wheels) 6.2m dump truck (China VI) | 8x4 / 330hp / China VI | From $37,639 |

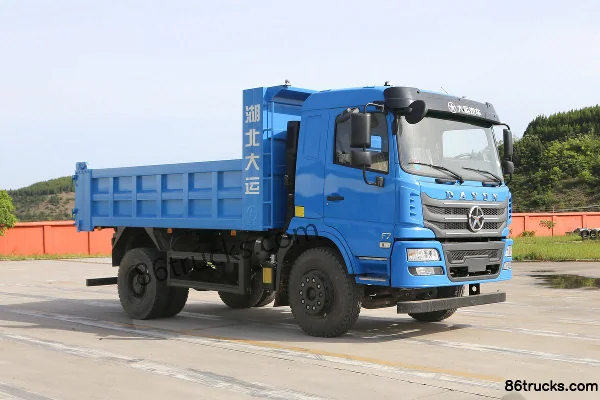

Dayun F7 medium truck heavy-duty 270hp 4X2(6 wheels) 5m dump truck (China VI)
EXW
From $29,819
Export quote
Dayun F7 Heavy Truck 300hp 8X2(10 wheels) 6.5m dump truck
EXW
From $35,722
Export quote
Dayun F7 Heavy Truck 300 hp 8X2(10 wheels) 6.8m Dump Truck (China VI)
EXW
Export quote
Dayun F7 heavy truck 330hp 8X4(12 wheels) 6.2m dump truck (China VI)
EXW
From $37,639
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun F7 Heavy Truck Standard Load 270 hp 8X2(10 wheels) 6.8m Dump Truck (China VI) | 8x2 / 270hp / China VI | ||
| Dayun F7 Heavy Truck Standard Load 270hp 8X4(12 wheels) 7.6m Dump Truck (China VI) | 8x4 / 270hp / China VI | ||
| Dayun F7 Heavy Truck Standard Load 270hp 8X4(12 wheels) 7.2m Dump Truck (China VI) | 8x4 / 270hp / China VI | ||
| Dayun F7 Heavy Truck Standard Load 350 hp 8X4(12 wheels) 6m Dump Truck (China VI) | 8x4 / 350hp / China VI | ||
| Dayun F7 Heavy Truck Composite Type 270hp 6X2(8 wheels) 4.8m Dump Truck (China VI) | 6x2 / 270hp / China VI |
Dayun F7 Heavy Truck Standard Load 270 hp 8X2(10 wheels) 6.8m Dump Truck (China VI)
EXW
Export quote
Dayun F7 Heavy Truck Standard Load 270hp 8X4(12 wheels) 7.6m Dump Truck (China VI)
EXW
Export quote
Dayun F7 Heavy Truck Standard Load 270hp 8X4(12 wheels) 7.2m Dump Truck (China VI)
EXW
Export quote
Dayun F7 Heavy Truck Standard Load 350 hp 8X4(12 wheels) 6m Dump Truck (China VI)
EXW
Export quote
Dayun F7 Heavy Truck Composite Type 270hp 6X2(8 wheels) 4.8m Dump Truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): DYQ3310D6FK / DYQ3183D6AB / DYQ3313D6EB / DYQ3253D6CD / DYQ3310D6FD / DYQ3313D6EC / DYQ3310D6FJ / DYQ3310D6FH / DYQ3310D6FC / DYQ3310D6FB
Drive type: 8X4 / 4X2 / 8X2 / 6X2
Wheelbase: 1850+2350+1350 / 4200 / 1850+2800+1300 / 1850+3000+1300 / 1850+2800+1350 / 1800+3200 / 1850+3800+1350 / 1850+3400+1350 / 1850+2600+1300 / 1850+3400+1300 / 1850+2500+1350 / 1850+3000+1350 / 1850+2600+1350mm
Engine Model: YuchaiYCK08300-60 / YuchaiYCS06270-60 / WeichaiWP7.300E61 / YuchaiYCK08330-60 / WeichaiWP7H245E62 / WeichaiWP8.350E62 / WeichaiWP8.350E61 / WeichaiWP7.270E61 / WeichaiWP8.320E62 / YCK08300-60
Transmission Model: Fast Gear10JSD140B / Fast Gear10JSD120B / Fast Gear10JSD160A / Fast Gear 10-Speed / Fast Gear12JSD160A / Fast Gear12JSD160T / Fast Gear10JSD120A / Fast Gear10JSD140A / Fast Gear10JSD160B / 10JSD140B
Rear Axle Ratio: 5.262 / 5.92 / 5.286 / 6.33 / 6.36
Cab length: 8.55 / 7.5 / 9.35 / 9.65 / 9.34 / 8.35 / 10.44 / 10.04 / 9.68 / 9.28 / 10.28 / 9.05 / 10.05 / 8.85 / 8.7 / 10.24 / 9.71 / 9.64 / 8.69 / 8.84 / 9.04m
Cab width: 2.55 / 2.48 / 2.5 / 2.4 / 2.52m
Cab height: 3.3 / 3.05 / 2.95m
Front track width: 1985/1985 / 1920 / 1910/1910 / 2055/2055 / 2070/2070 / 1935/1935 / 1820/1820mm
rear track: 1750/1750 / 1750 / 1840/1860 / 1880 / 1870/1870 / 1840/1750mm
Curb Weight: 13 / 8.98 / 10.875 / 11.5 / 14.85 / 14.2 / 10.25 / 12.9 / 10.08 / 13.6 / 12.8 / 10.9ton
Rated payload: 17.87 / 8.89 / 19.995 / 13.37 / 15.955 / 16.605 / 20.555 / 19.93 / 17.97 / 20.725 / 17.205 / 18.005 / 19.905 / 19.97ton
GVWR: 31 / 18 / 25ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 16 / 15°
departure angle: 21 / 19 / 17 / 18°
Remarks: Steel air reservoir. / Iron air reservoir, trailing axle with lift and load air bags (without steering) / Steel air reservoir, trailing axle with lift and load air bags (non-steering); optional dual 153 standard axles / 5t front axle. / Steel air reservoir, trailing axle with lift and load air bags (non-steering); optional dual 1094 standard axles / 3.6t front axle. / Iron air reservoir, U-shaped muffler arranged between the first and second axles
Version: Heavy-duty / composite version / Heavy-duty version / Standard Load Type / Composite type
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 6cylinder
Displacement: 7.7 / 6.23 / 7.5 / 6.8 / 7.8 / 7.47L
Emission standard: China VI
Max output power: 221 / 199 / 220 / 243 / 180 / 257 / 235kW
Max hp: 300 / 270 / 330 / 245 / 350 / 320Horsepower
Max torque: 1180 / 1050 / 1300 / 1350 / 1400 / 1160N·m
Max torque speed: 1200-1700 / 1200-1600rpm
Rated speed: 2200 / 2300 / 2100 / 1900rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / CR+EGR+DOC+DPF+SCR / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type / Side-dump tipper.
Cargo box type: U-shaped box / Dump type / Side-dump tipper.
Cargo box length: 5.6 / 4.7 / 6.5 / 6.8 / 6.2 / 5.5 / 7.6 / 7.2 / 6 / 5.8m
Body Parameters
Lifting type: Front lift / Front lift cylinder / Mid-mounted side tilt
FAQ
What kind of truck is Dayun DayunF7 Dump Trucks?
Dayun DayunF7 is an export-oriented Dump Trucks lineup with about 197 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DayunF7 Dump Trucks?
DayunF7 Dump Trucks export reference is about $28,764 – $45,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DayunF7 Dump Trucks cover?
DayunF7 Dump Trucks mainly covers: Drive: 4x2 / 6x2 / 8x2 / 8x4; Horsepower: 270 hp / 300 hp / 330 hp / 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DayunF7 Dump Trucks?
For DayunF7 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DayunF7 Dump Trucks include?
DayunF7 Dump Trucks currently lists about 197 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DayunF7 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
