Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck

Export reference
From $37,500
MSRP ¥27M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 13ton
Wheelbase:: 1850+2350+1350mm
Tire Size:: 11.00R20 18PR
Rated payload: 17.87ton
Drive 8X4 (12 wheels)
Horsepower 300
Cargo box type: U-shaped box

Overview

The Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck is a Heavy truck featuring 17.87t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK08300-60 engine, 300 hp, China VI emissions and Fast Gear transmission.

China VI 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3310D6FK
Drive type: 8X4
Wheelbase: 1850+2350+1350mm
engine: YuchaiYCK08300-60
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 5.262
Cab length: 8.55m
Cab width: 2.55m
Cab height: 3.3m
Front track width: 1985/1985mm
rear track: 1750/1750mm
Curb Weight: 13ton
Rated payload: 17.87ton
GVWR: 31ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCK08300-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China VI
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1180N·m
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: U-shaped box
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift
Cab parameters
Cab: Standard Top
seating capacity: 3Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: Dual 153 widened axle/5t
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×(8+6)mm
rear axle description: Dual-wheel reduction standard axle/13t
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

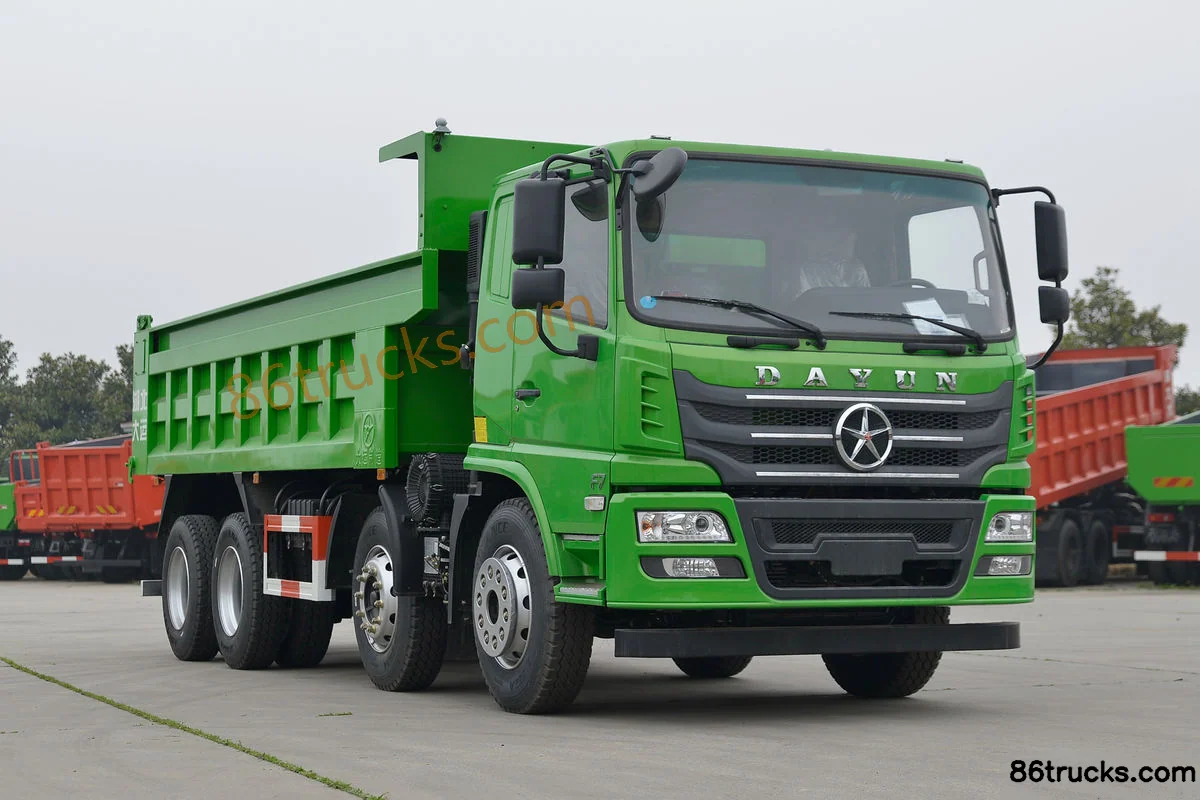

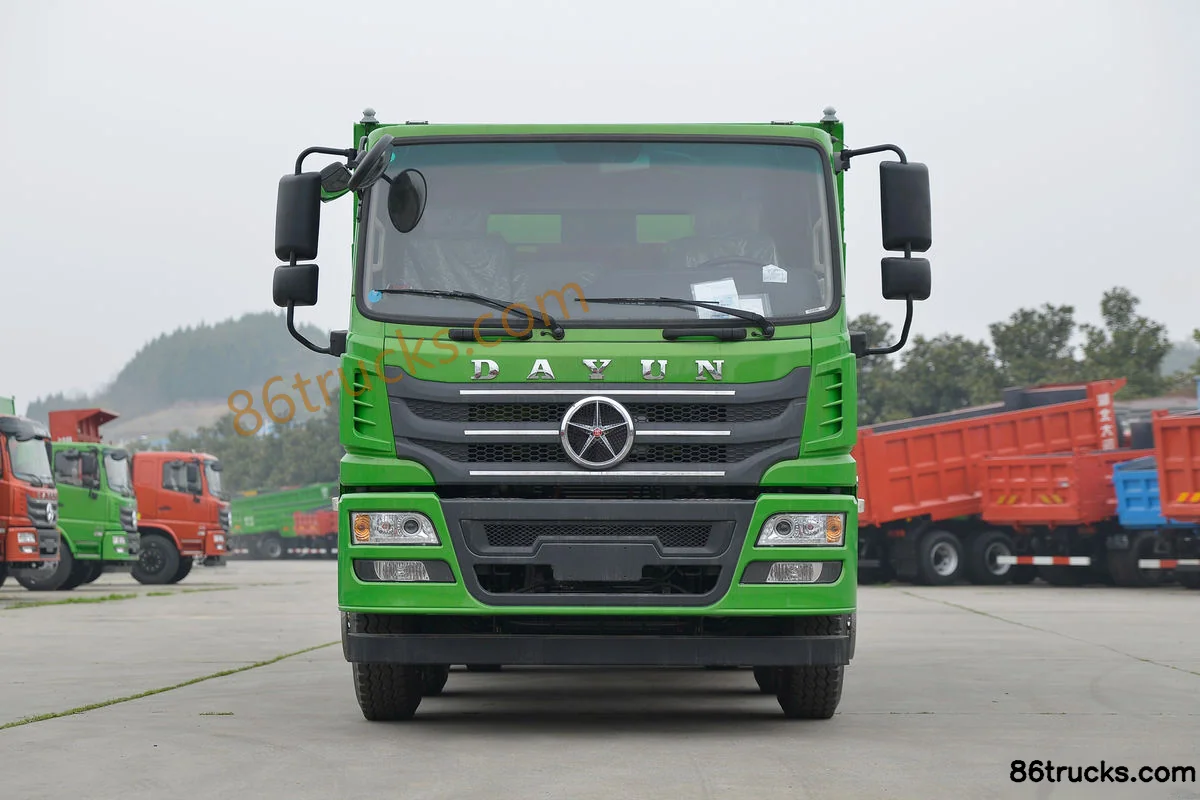

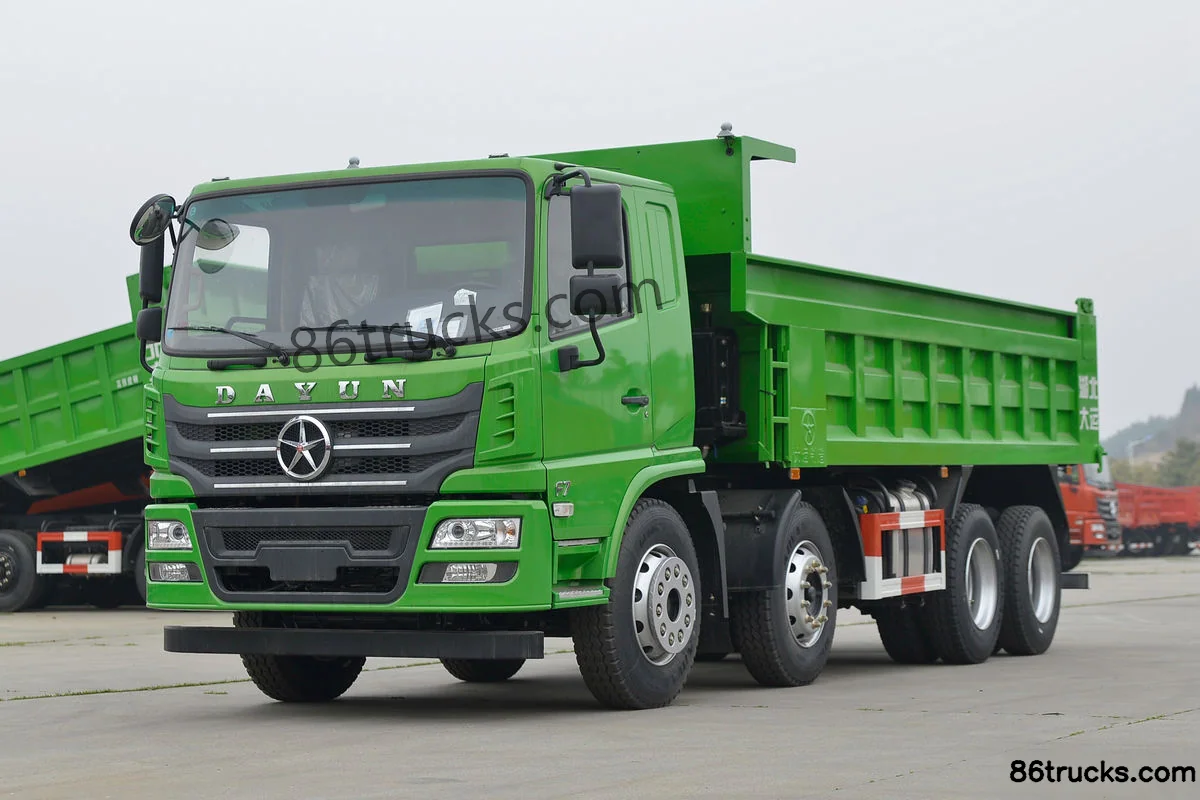

Exterior3

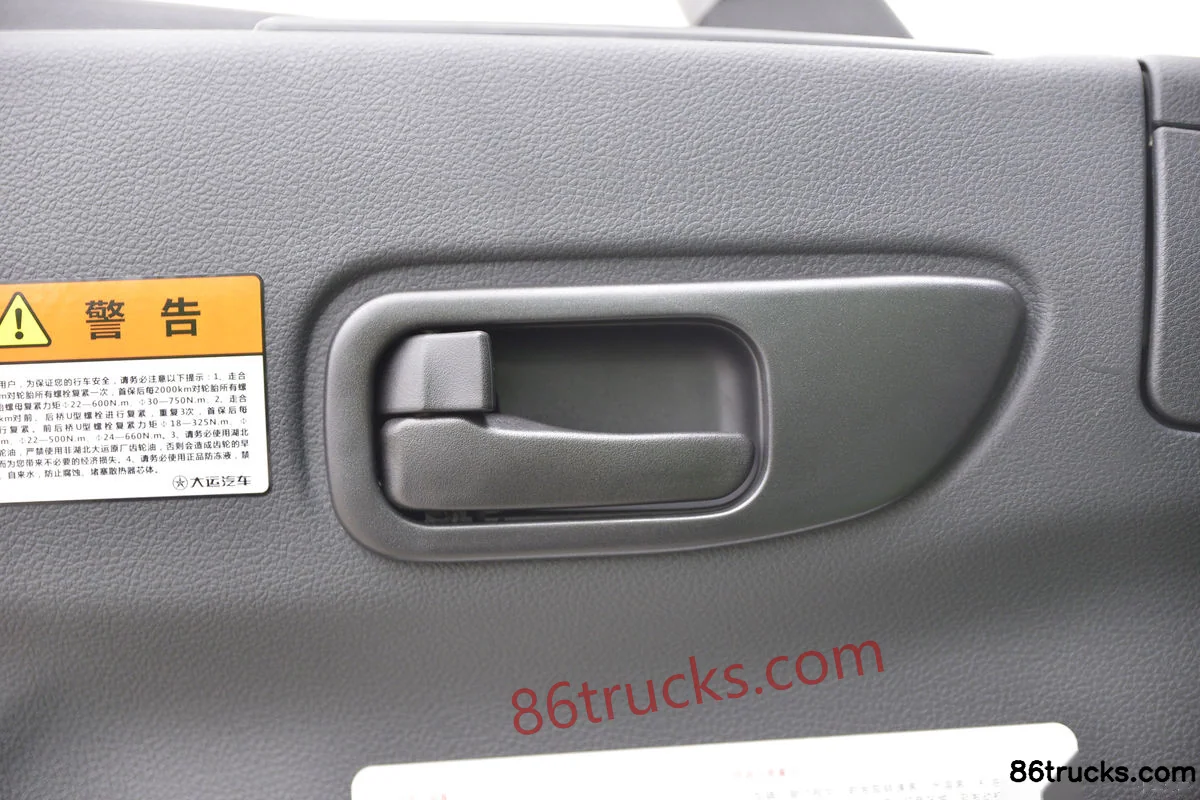

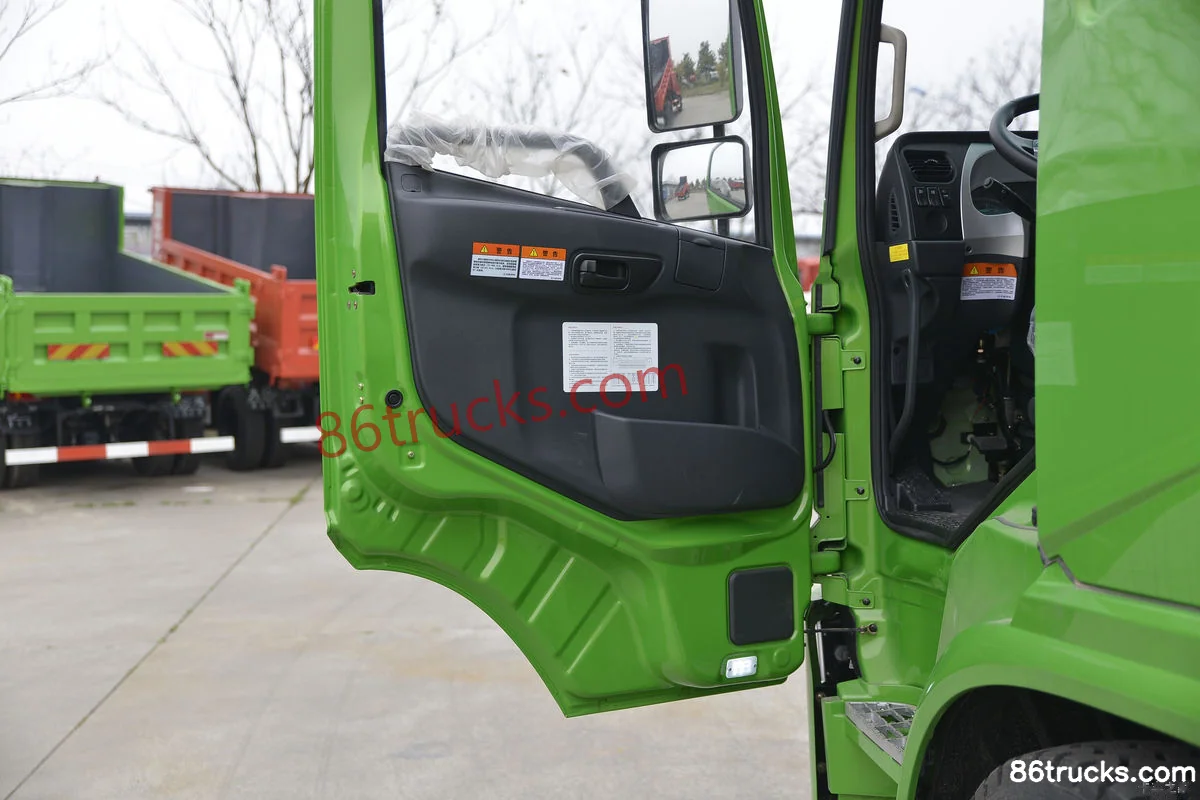

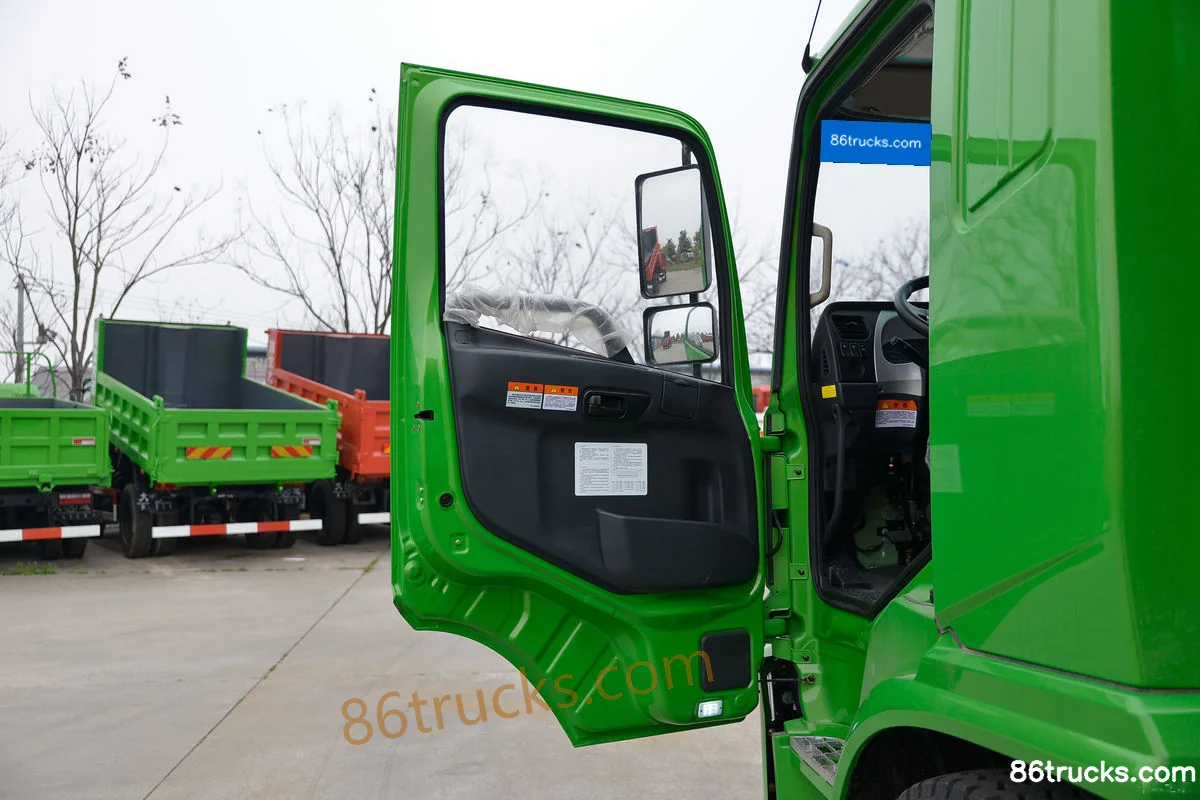

Cab3

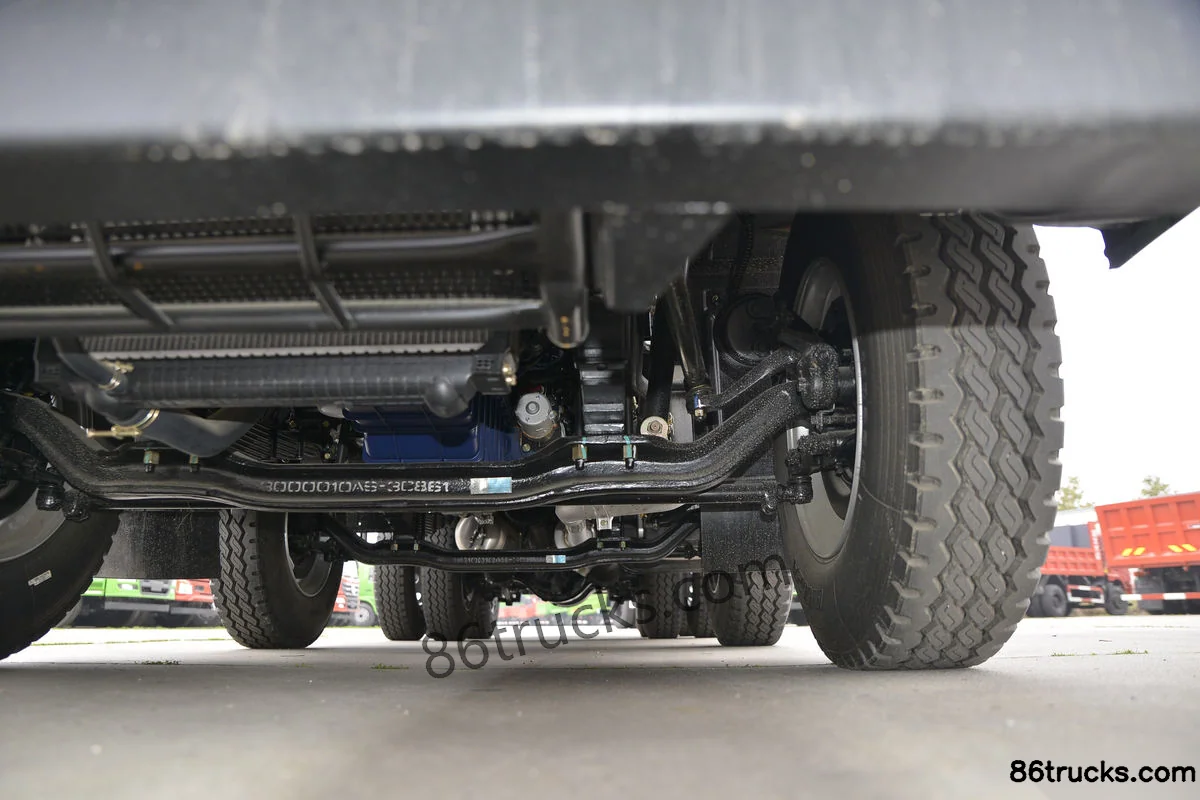

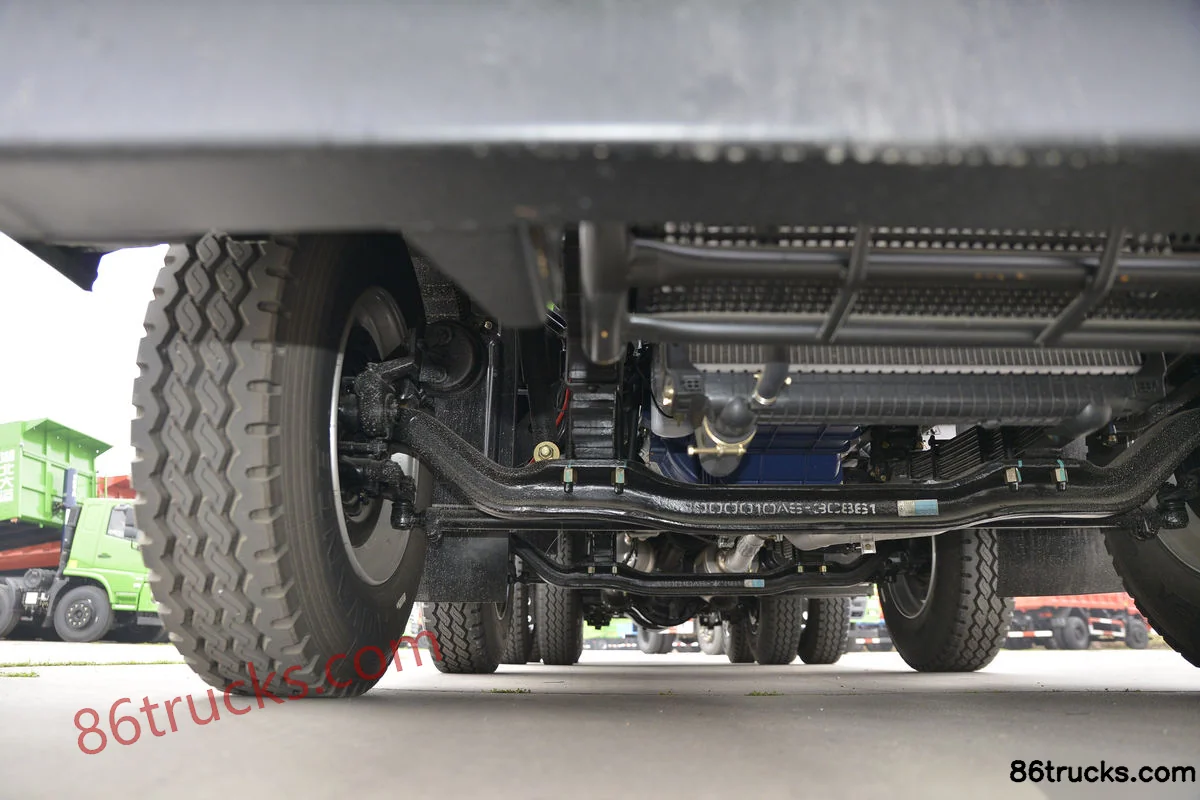

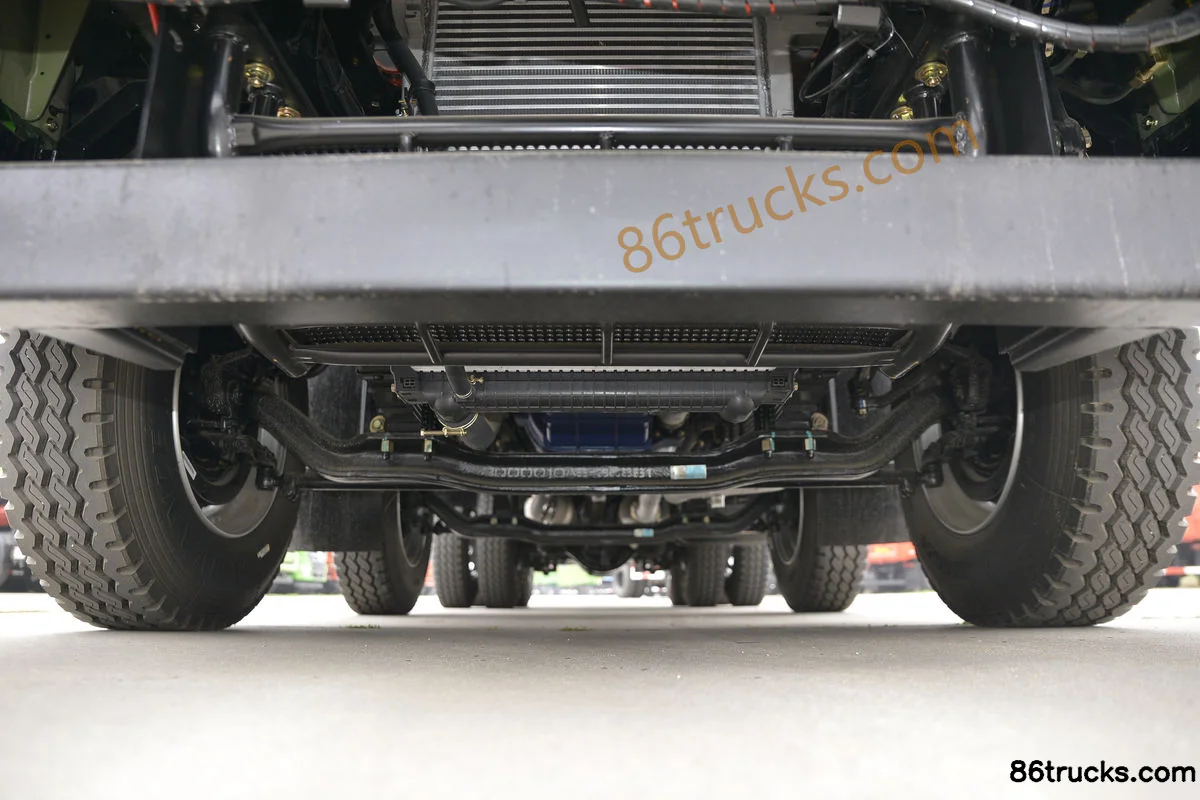

Chassis3

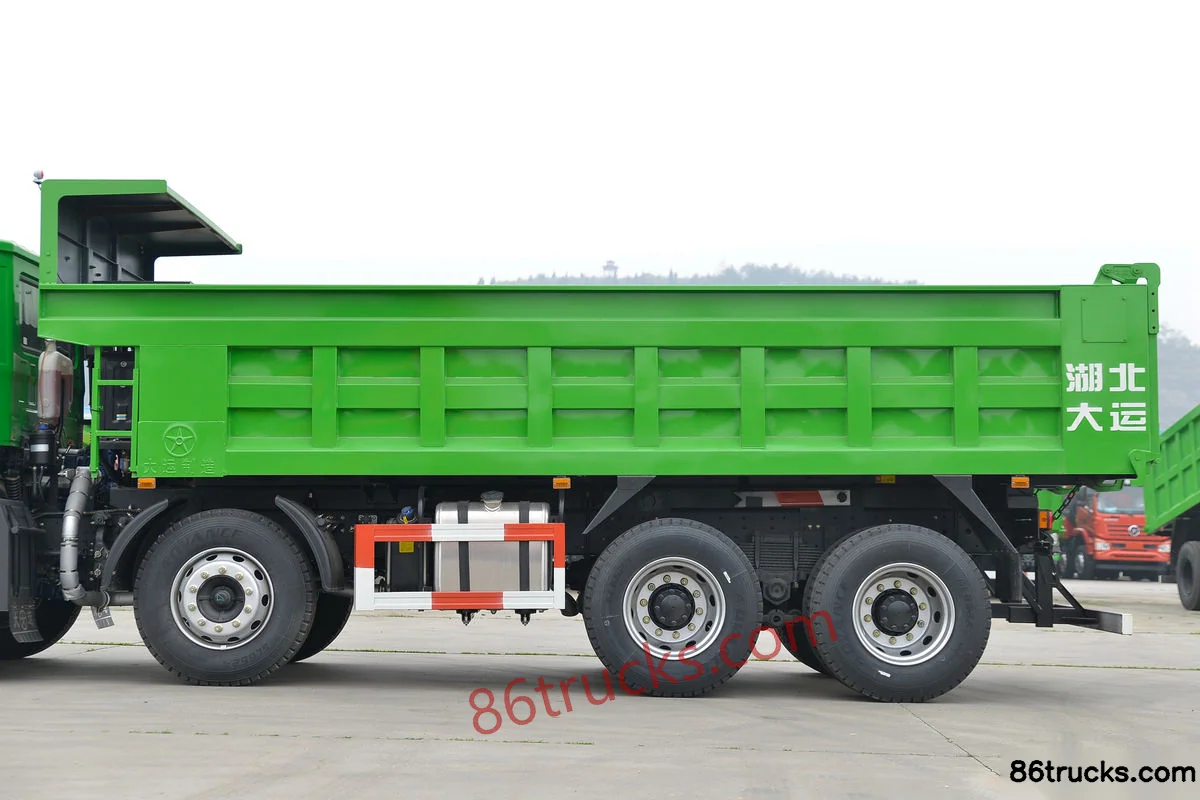

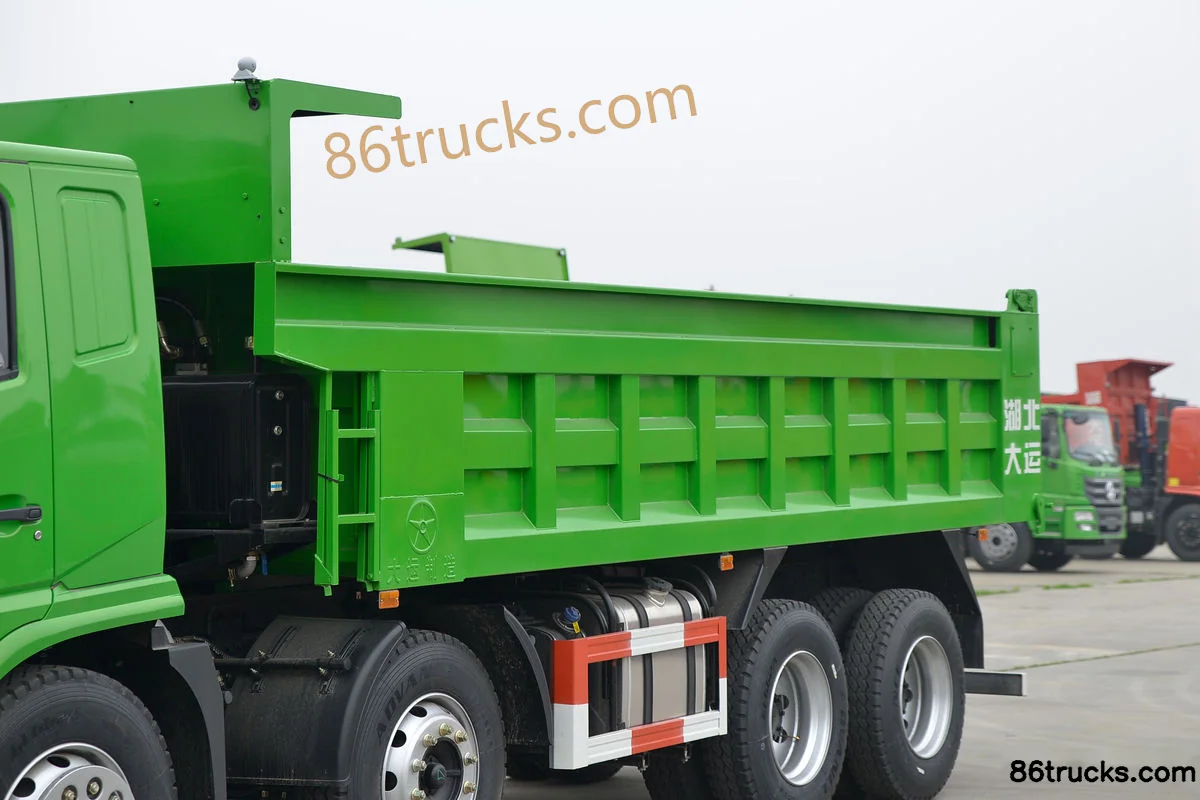

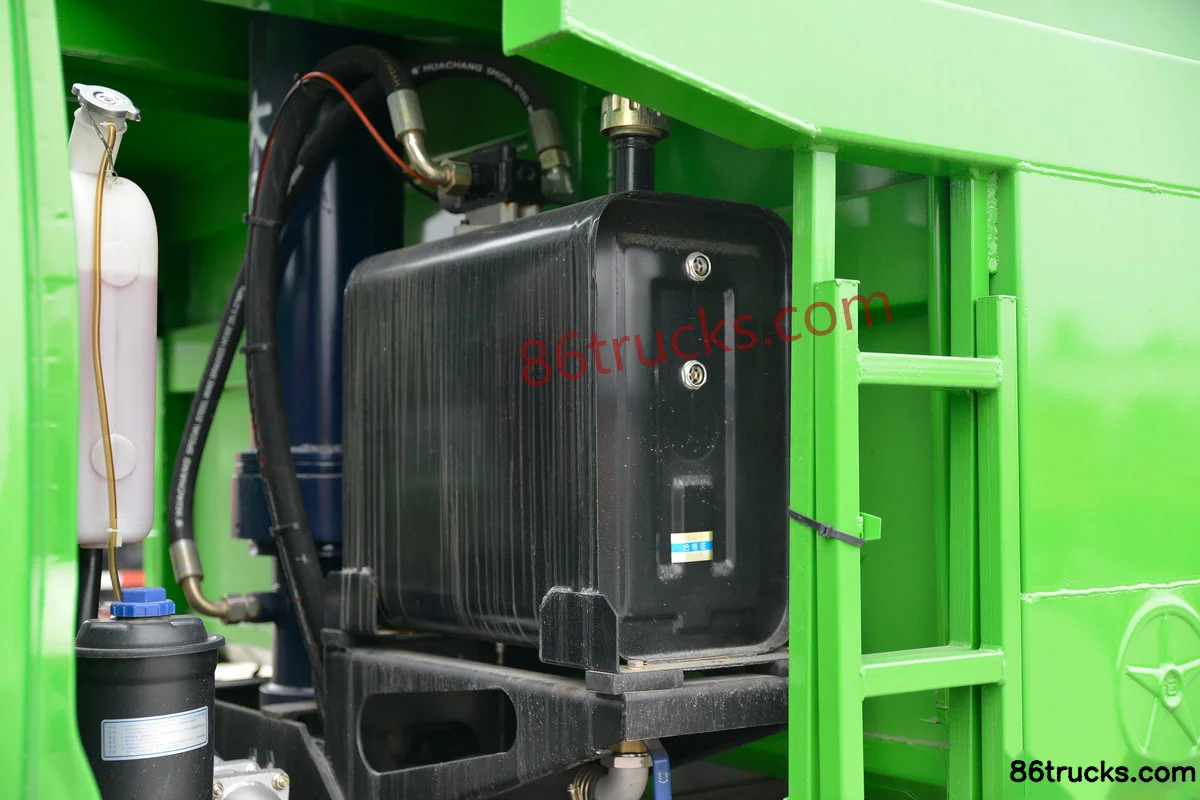

Body3

12 photos

FAQ

What is the export price of Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck, and what does it include?

Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck export reference is about From $37,500; MSRP is ¥27M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck?

Key specs of Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck: Drive: 8x4; Horsepower: 300 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck suited for?

Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck differ from other variants in the same series?

Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck belongs to DayunF7 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun F7 7.7L Diesel 300hp 8X4(12 wheels) Fast Gear 10-speed 5.6m Cab-over Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
