DAF CF Series Heavy Truck 435hp 6X4(10 wheels) Dump Truck
EXW
Export quote
DAF CF Heavy Truck Dump Trucks
Main model photos
63 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| DAF CF Series Heavy Truck 435hp 6X4(10 wheels) Dump Truck | 6x4 / 435hp / China VI | ||
| DAF CF Series Heavy Truck 460 hp 6X4(10 wheels) Dump Truck (CF85) | 6x4 / 460hp | ||
| DAF CF Series Heavy Truck 340 hp 8X4(12 wheels) 8.6 m Dump Truck (CF85) | 8x4 / 340hp / China IV |

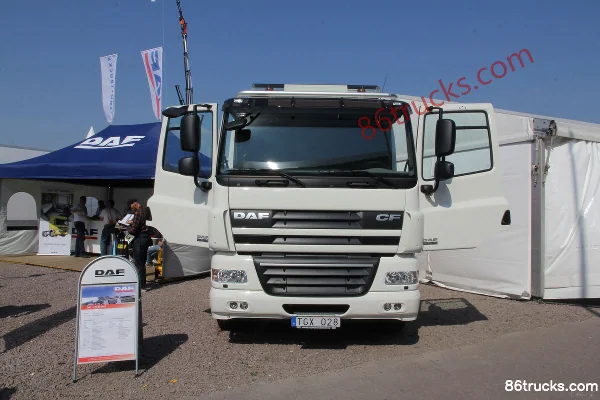

DAF CF Series Heavy Truck 460 hp 6X4(10 wheels) Dump Truck (CF85)
EXW
Export quote

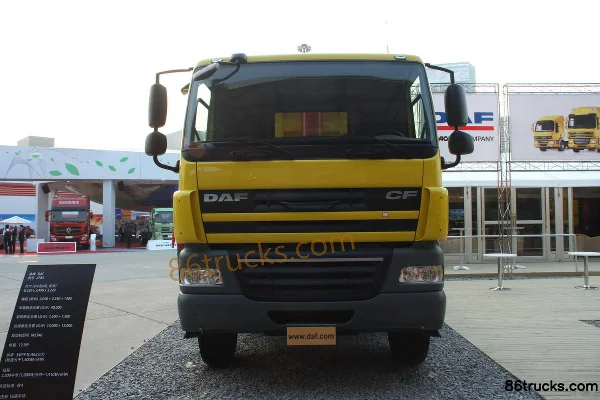

DAF CF Series Heavy Truck 340 hp 8X4(12 wheels) 8.6 m Dump Truck (CF85)
EXW
Export quote
Series Specs
Basic Info
Drive type: 6X4 / 8X4
Wheelbase: 4050 / 4550+3850 / 2050+2550+1400mm
Engine Model: PACCARPACCAR MX-11 / PACCAR12.9 / PACCARMX340
Transmission Model: 16-speed transmission
Cab length: 11.22m
Cab width: 2.49m
Cab height: 3.22m
Rated payload: 40ton
GVWR: 26ton
Origin: Netherlands
tonnage class: Heavy truck
Remarks: Cargo box capacity 12.6 m³
Energy Type: Diesel
Engine parameters
Engine Brand: PACCAR
Number of cylinders: 6cylinder
Displacement: 10.8 / 12.9L
Emission standard: China VI / China IV
Max output power: 320 / 338 / 250kW
Max hp: 435 / 460 / 340Horsepower
Max torque: 2100 / 2300N·m
Max torque speed: 1000-1450 / 1410rpm
Rated speed: 1700 / 1500rpm
Engine Type: Inline
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 8.6m
Transmission Parameters
Forward gears: 16Gear
fuel tank
Fuel tank capacity: 340L
Chassis Specs
Front axle description: 167N，8T
rear axle description: HR1355T / Tandem axle
rear axle allowable load: 13000+13000kg
Tire
Tire Size: 385/65R22.5，315/80R22.5 / 315/80R22.5
Number of tires: 10 / 12pcs
FAQ
What kind of truck is DAF DAF CF Heavy Truck Dump Trucks?
DAF DAF CF Heavy Truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does DAF CF Heavy Truck Dump Trucks cover?
DAF CF Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp / 435 hp / 460 hp; Emission: China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DAF CF Heavy Truck Dump Trucks?
For DAF CF Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DAF CF Heavy Truck Dump Trucks include?
DAF CF Heavy Truck Dump Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DAF CF Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
