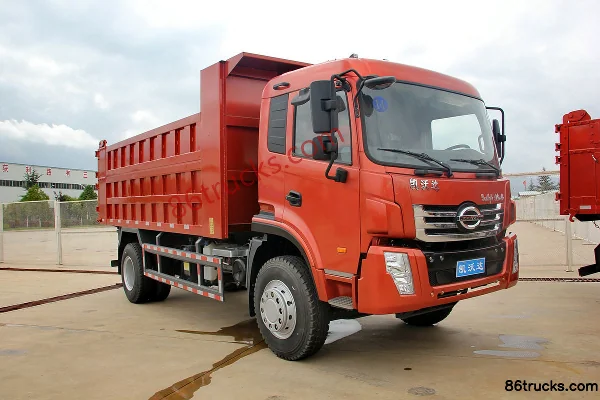

Shijun D750 165hp 4X2(6 wheels) 4.2m dump truck
EXW
Export quote
ShijunD750 Dump Trucks
Main model photos
36 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Shijun D750 165hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 165hp / China V | ||
| Shijun D750 160hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 160hp / China V | ||
| Shijun D750 185hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 185hp / China V | ||
| Shijun D750 160hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 160hp / China V | ||
| Shijun D750 165hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 165hp / China V |

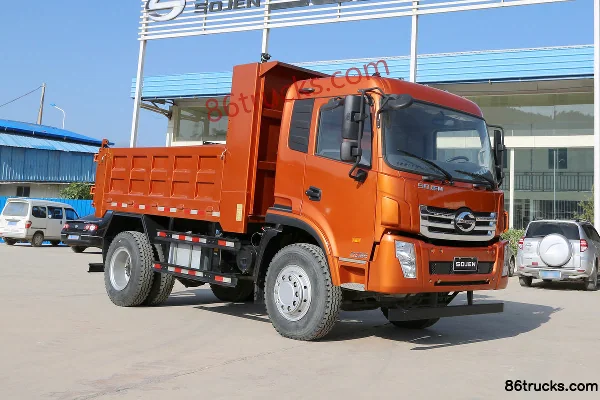

Shijun D750 160hp 4X2(6 wheels) 4.2m dump truck
EXW
Export quote
Shijun D750 185hp 4X2(6 wheels) 4.2m dump truck
EXW
Export quote
Shijun D750 160hp 4X2(6 wheels) 4.2m dump truck
EXW
Export quote
Shijun D750 165hp 4X2(6 wheels) 4.2m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): LFJ3120SCG2 / LFJ3180SCG2 / LFJ3044SCG2 / LFJ3120G4
Drive type: 4X2
Wheelbase: 3500 / 4050 / 3950mm
Engine Model: WeichaiWP4.165E50 / YuchaiYC4E160-56 / YuchaiYC4EG185-50 / WeichaiWP6.180E40
Transmission Model: Fast Gear10JS90 / Fast Gear10JS90A / Fast Gear8JS118
Rear Axle Ratio: 6.33 / 4.875
Cab length: 6.68 / 5.995 / 7.22 / 7.02m
Cab width: 2.41/2.45/2.55 / 2.45 / 2.49 / 2260m
Cab height: 2.8/3.15 / 3.1 / 2.78 / 3.15m
Front track width: 1875 / 1940mm
rear track: 1800 / 1860mm
Curb Weight: 6.805 / 7.92 / 2.715 / 6.8ton
Rated payload: 4.995 / 9.885 / 1.585 / 4.99ton
GVWR: 11.995 / 18 / 4.495 / 11.985ton
Origin: Dali, Yunnan
tonnage class: Medium-duty truck
Approach angle: 22 / 25°
departure angle: 25 / 30 / 31°
Remarks: Ratio optional 6.83
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Yuchai
Number of cylinders: 4 / 6cylinder
Displacement: 4.5 / 4.26 / 4.73 / 6.75L
Emission standard: China V / China IV
Max output power: 121 / 118 / 136 / 132kW
Max hp: 165 / 160 / 185 / 180Horsepower
Max torque: 600 / 700 / 680N·m
Max torque speed: 1200-1600 / 1300-1600 / 1300-1800 / 1400-1600rpm
Rated speed: 2300 / 2600 / 2500rpm
Engine Type: Inline 4-cylinder, electronically controlled high-pressure common rail + SCR / Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2 / 3.65 / 4.7 / 4.5m
Cargo box width: 2.22/2.24/2.3 / 2.2/2.24/2.3 / 2.24 / 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: 2260G crew cab / Sleeper cab
FAQ
What kind of truck is Shijun ShijunD750 Dump Trucks?
Shijun ShijunD750 is an export-oriented Dump Trucks lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ShijunD750 Dump Trucks cover?
ShijunD750 Dump Trucks mainly covers: Drive: 4x2; Horsepower: 160 hp / 165 hp / 185 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ShijunD750 Dump Trucks?
For ShijunD750 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does ShijunD750 Dump Trucks include?
ShijunD750 Dump Trucks currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ShijunD750 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
