Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.715ton
Wheelbase:: 3500mm
Tire Size:: 8.25-16LT 6PR
Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck exterior
View more photos (12)
Rated payload: 1.585ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck is a Medium-duty truck featuring 1.585t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LFJ3044SCG2
Drive type: 4X2
Wheelbase: 3500mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.33
Cab length: 5.995m
Cab width: 2.45m
Cab height: 2.78m
Front track width: 1875mm
rear track: 1800mm
Curb Weight: 2.715ton
Rated payload: 1.585ton
GVWR: 4.495ton
Origin: Dali, Yunnan
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 30°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.65m
Cargo box width: 2.24m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab width: 2260mm
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: with ABS
Front axle allowable load: 1620kg
Frame Dimensions: 280x80x(6.5+4/6.5)mm
rear axle description: with ABS
rear axle allowable load: 2875kg
Axle ratio: 6.33
Leaf spring count: 8/10+8
clutch: Φ380
Tire
Tire Size: 8.25-16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

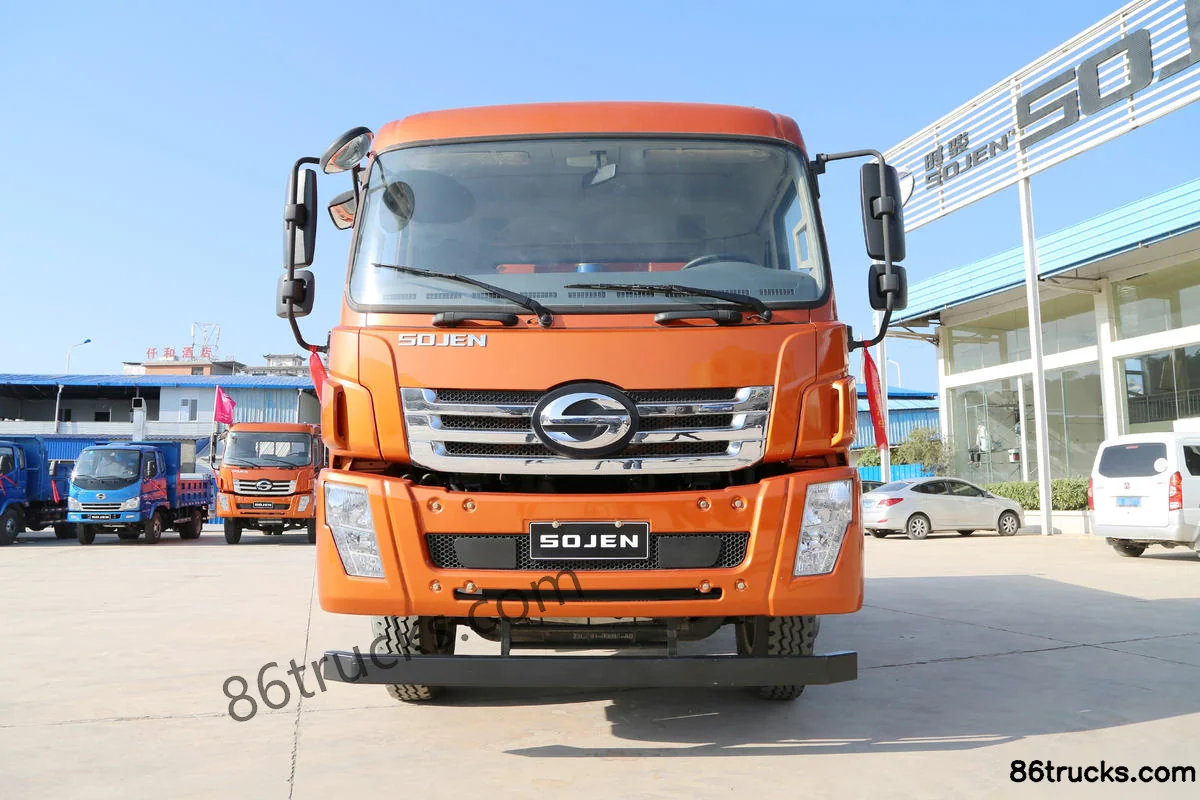

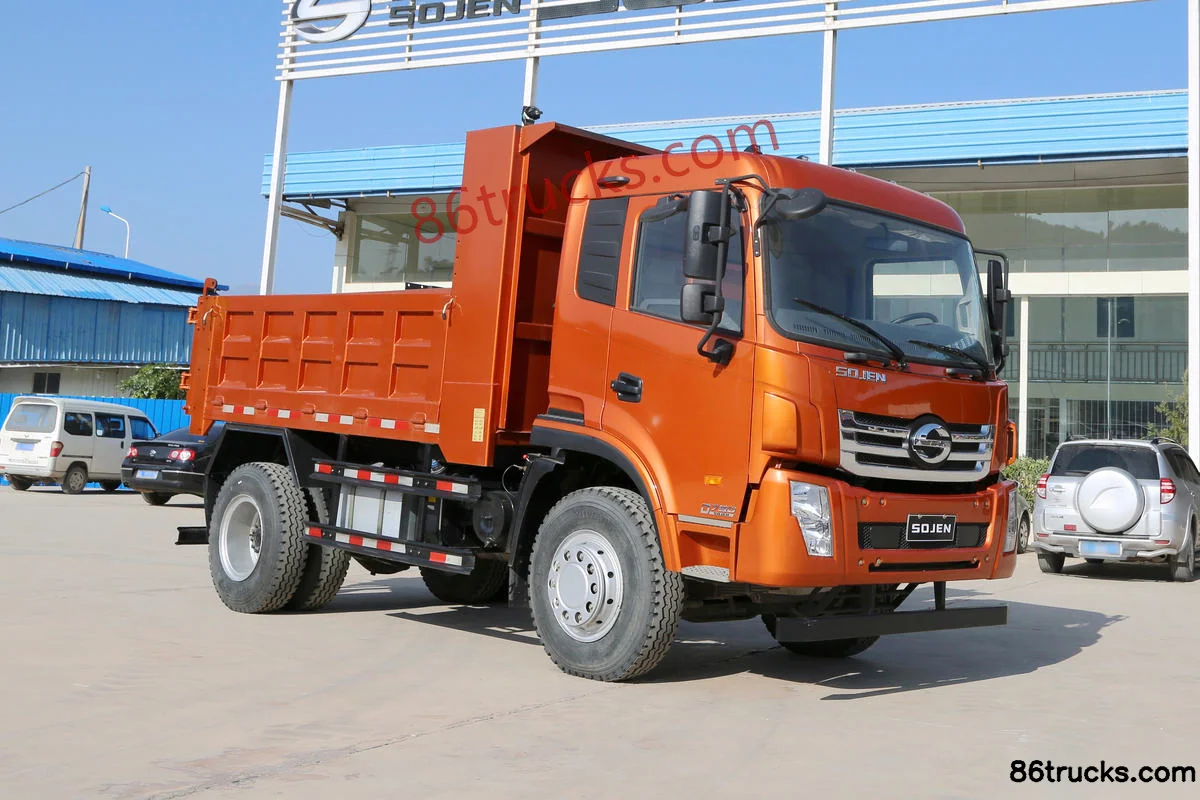

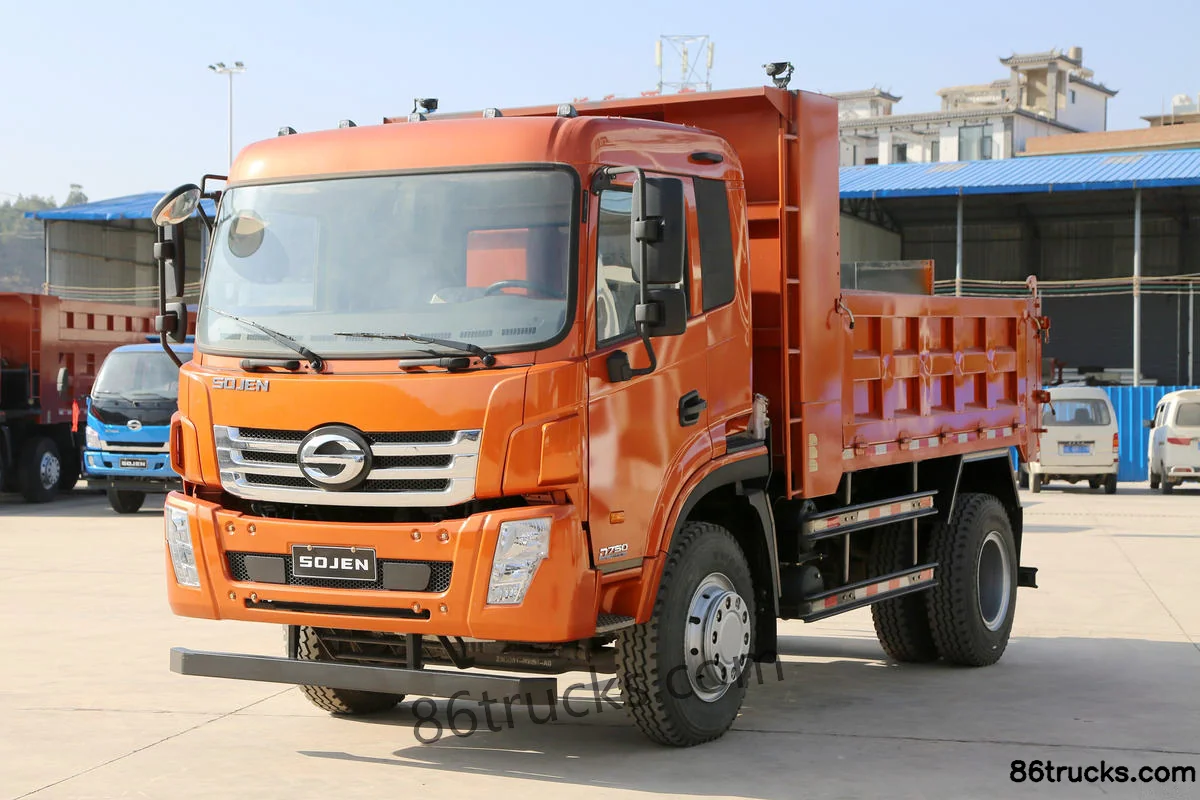

Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Exterior (1) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Exterior (2) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Exterior (3) | 86Trucks

Cab3

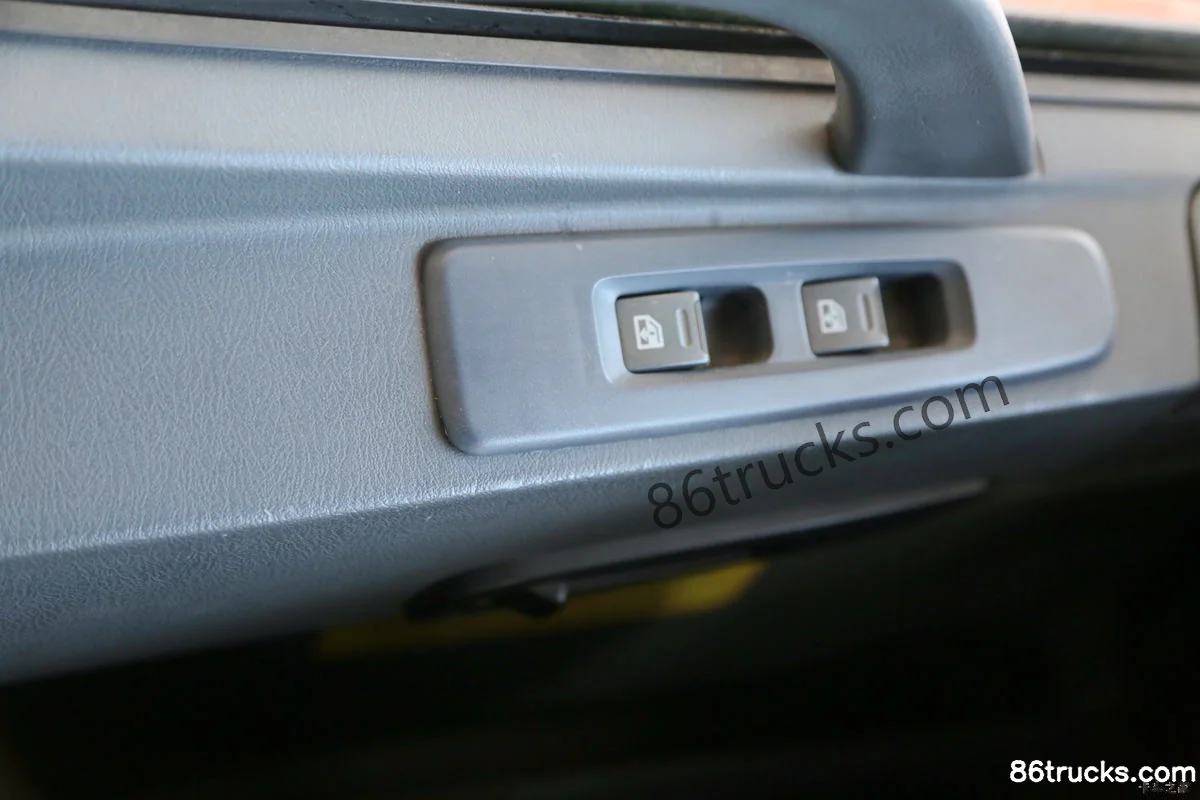

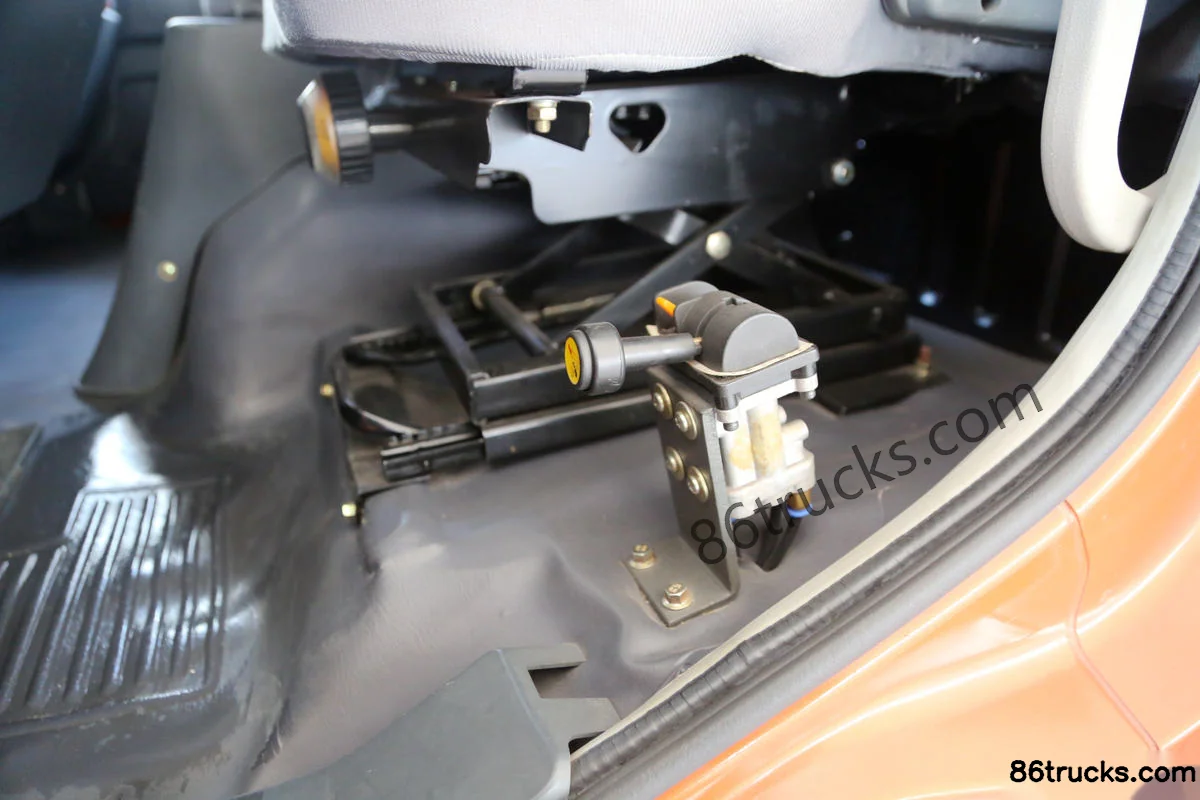

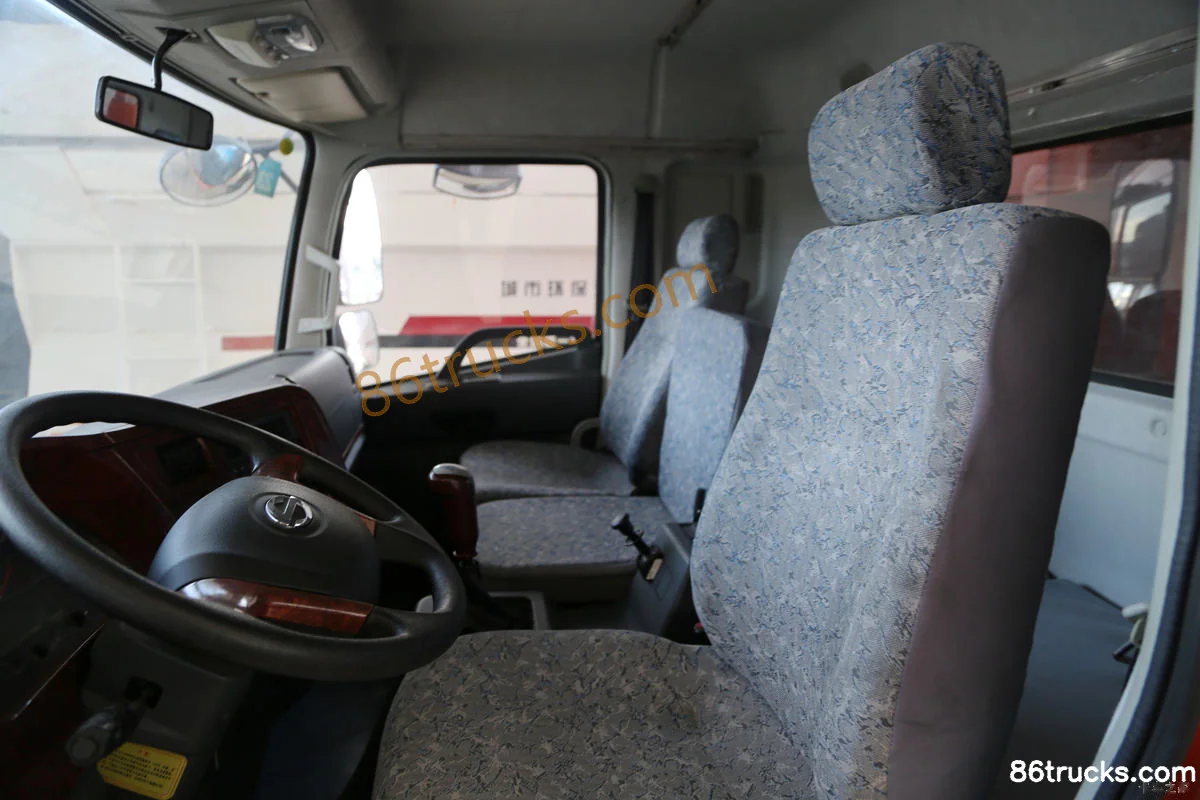

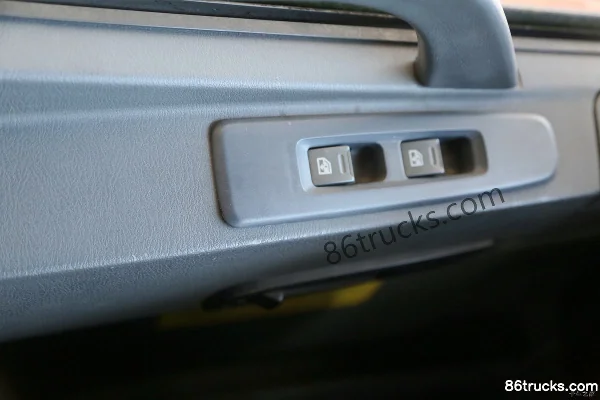

Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Cab (1) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Cab (2) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Cab (3) | 86Trucks

Chassis3

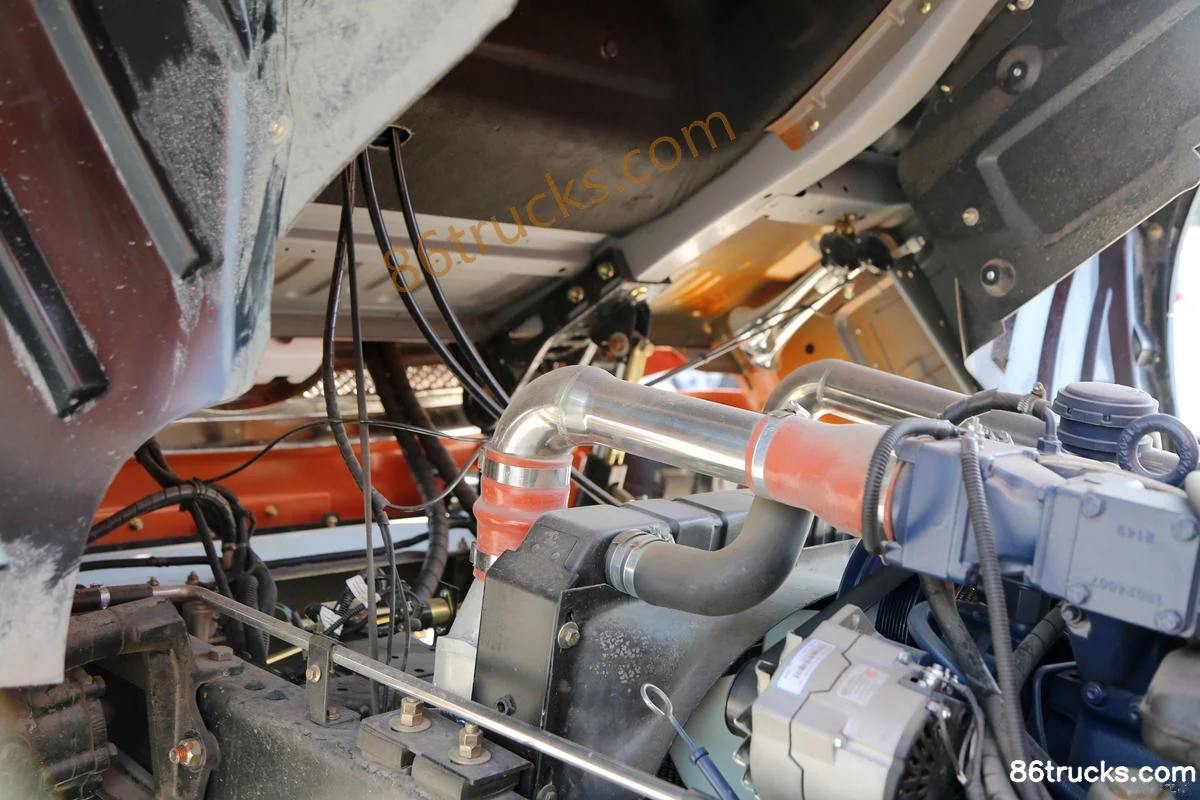

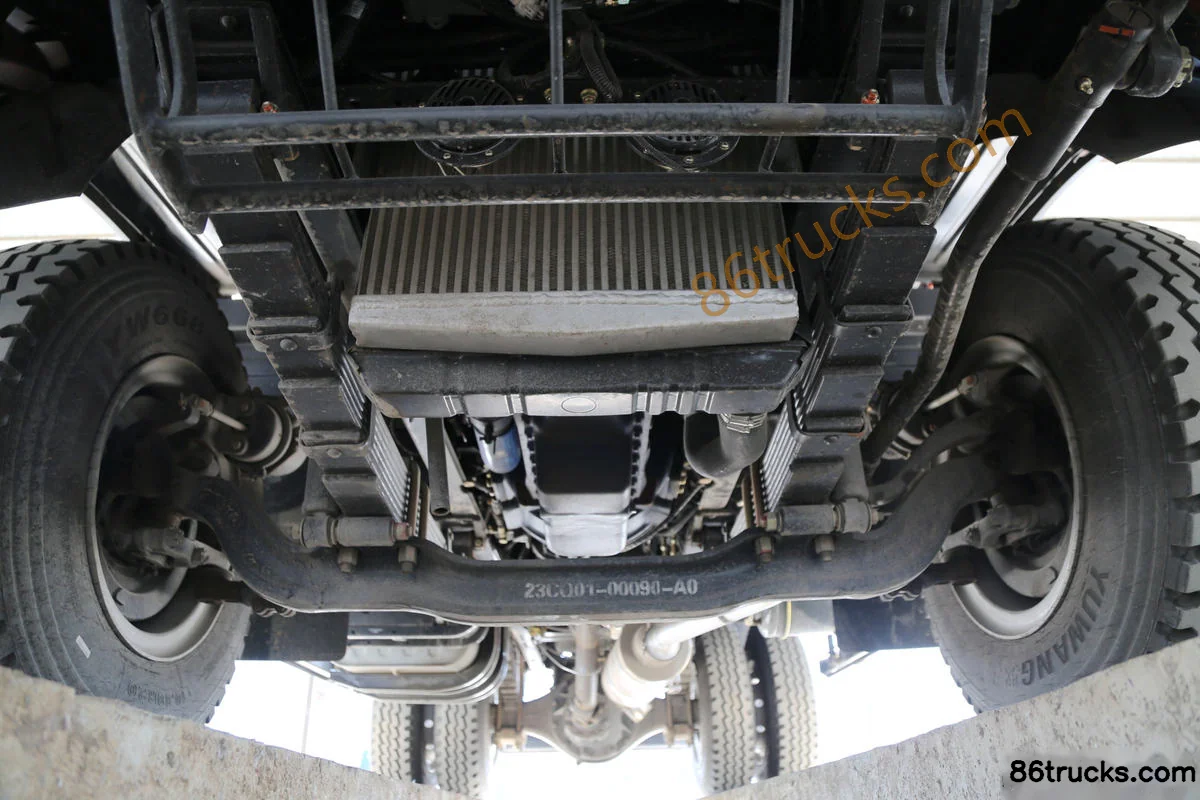

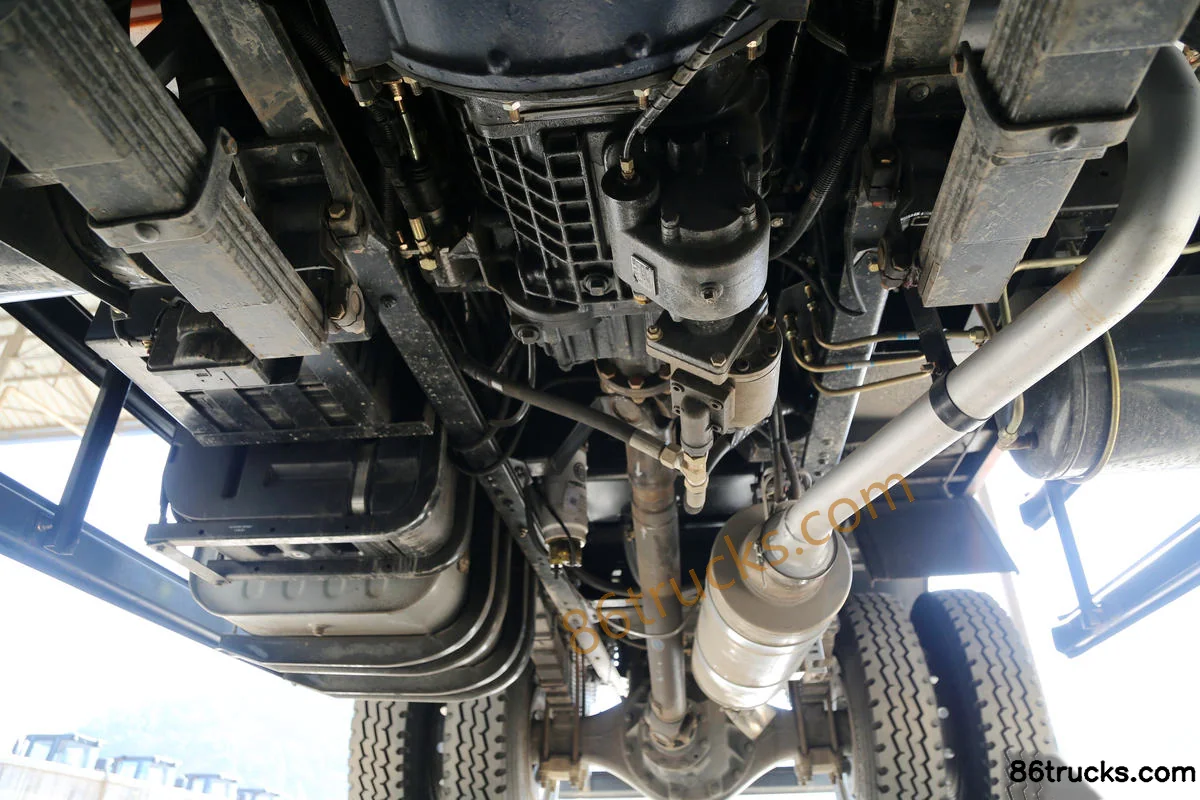

Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Chassis (1) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Chassis (2) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Chassis (3) | 86Trucks

Body3

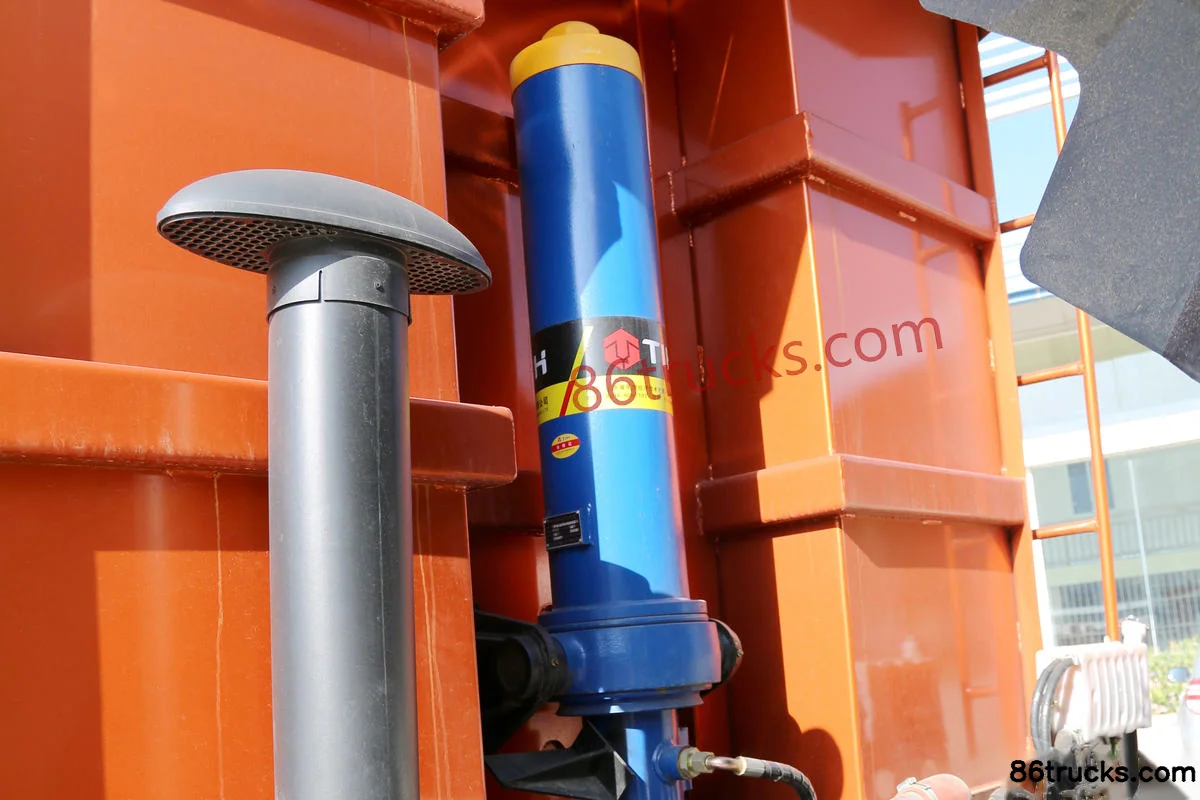

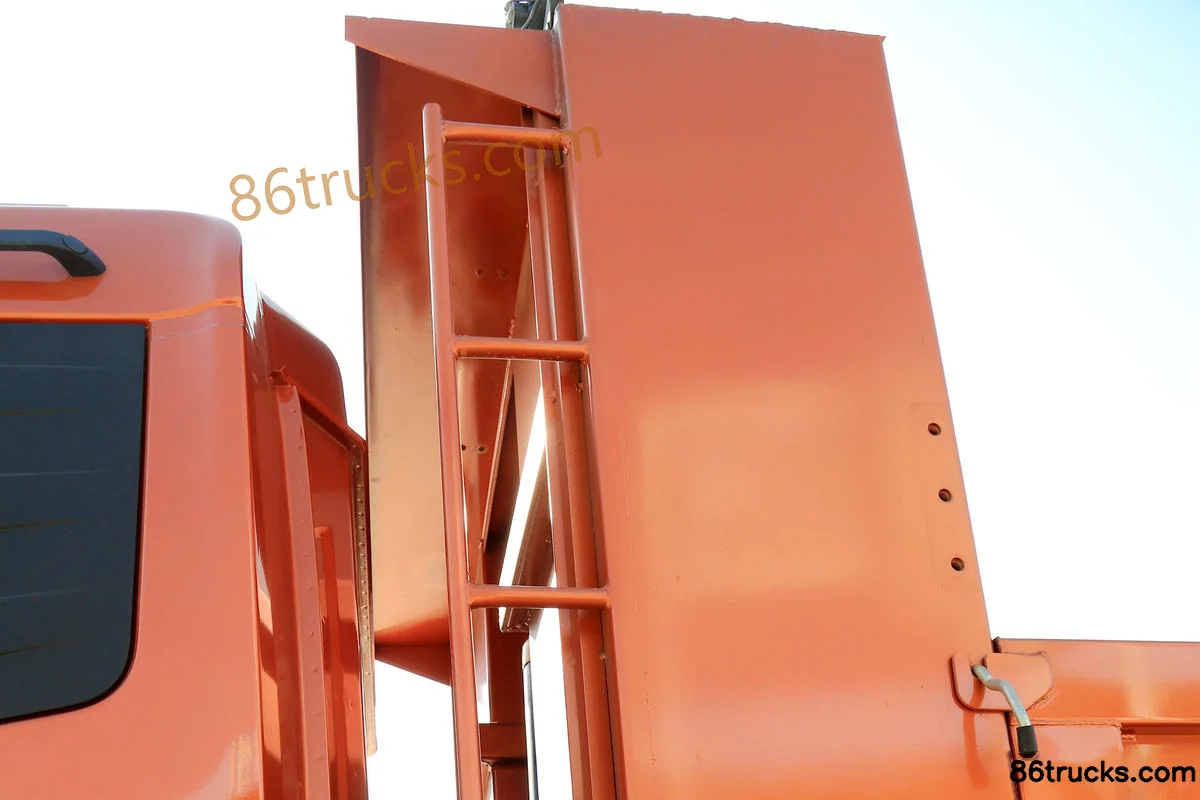

Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Body (1) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Body (2) | 86Trucks Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck?

Key specs of Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck suited for?

Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck differ from other variants in the same series?

Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck belongs to ShijunD750 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun D750 160hp 4X2(6 wheels) 3.65m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
