FAW Jiefang Aowei (J5P) heavy truck 280hp 6X4(10 wheels) 5.4m dump truck
EXW
From $41,667
Export quote
FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks
Main model photos
104 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Aowei (J5P) heavy truck 280hp 6X4(10 wheels) 5.4m dump truck | 6x4 / 280hp / China III / Euro III | From $41,667 | |
| FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 310hp / China III / Euro III | From $44,444 | |
| FAW Jiefang Aowei(J5P) Heavy Truck 330hp 6X6(10 wheels) 4.6m Dump Truck | 6x6 / 330hp / China III / Euro III | From $45,833 | |
| FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) | 6x4 / 320hp / China III / Euro III | From $45,833 | |
| FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 6m dump truck | 6x4 / 310hp / China III / Euro III | From $46,111 |

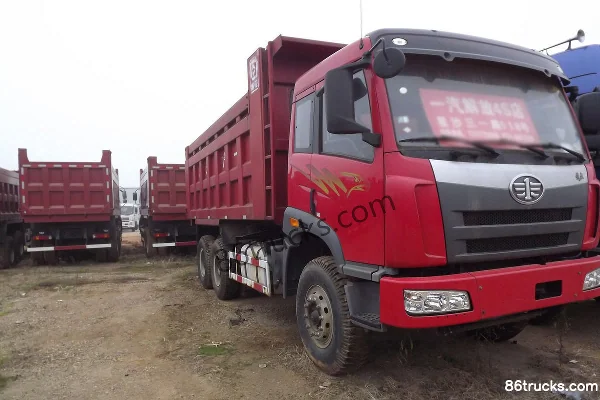

FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck
EXW
From $44,444
Export quote

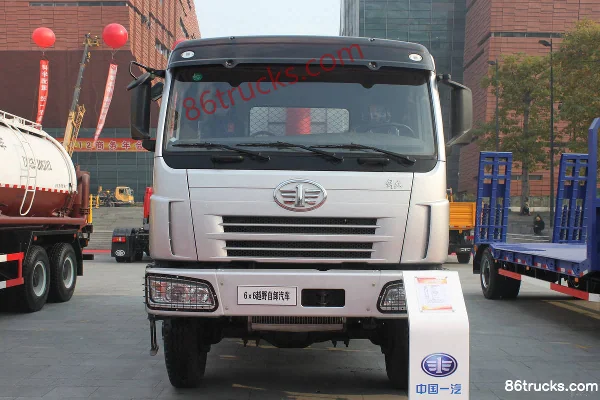

FAW Jiefang Aowei(J5P) Heavy Truck 330hp 6X6(10 wheels) 4.6m Dump Truck
EXW
From $45,833
Export quote
FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab)
EXW
From $45,833
Export quote
FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 6m dump truck
EXW
From $46,111
Export quote
Series Specs
Basic Info
Model code (announced): CA3252P2K2L2T1A1E / CA3250P2K2TA70E3 / CA3252P2K2T1B / CA3252P2K2T1A / CA3252P2K2L1T1E / CA3312P2K2T4E / CA3312P2K2L4T4E / CA3312P2K2LT4E / CA3312P2K2L2T4E / CA3312P2K2L1T4E
Drive type: 6X4 / 6X6 / 8X4
Wheelbase: 3900+1350 / 3500+1350 / 3300+1350 / 3600+1350 / 5100+1350 / 2000+3100+1350 / 4800+1350 / 2000+4700+1350 / 2000+3500+1350 / 2000+4300+1350 / 2000+3900+1350mm
Engine Model: XichaiCA6DL1-28E3F / XichaiCA6DL2-31E3F / XichaiCA6DL2-33E3 / XichaiCA6DL1-32E3 / XichaiCA6DL1-31E3F / XichaiCA6DL2-35E3 / XichaiCA6DL1-28E3 / DachaiBF6M1013-28E3
Transmission Model: FAW JiefangCA10TA190M / 5S-160GPA / FAW JiefangCA10TA130M / Fast Gear9JS135 / Fast GearRT-11509C / Fast Gear12JSD160 / Fast Gear12JS160
Rear Axle Ratio: 5.73 / 5.217 / 5.769 / 5.128
Cab length: 8.328 / 7.725 / 7.768 / 9.068 / 9.5 / 9.228 / 9.468 / 9.2 / 12 / 10.3 / 11.1 / 10.7 / 8.9 / 8.6 / 8 / 7.76m
Cab width: 2.495 / 2.49 / 2.5m
Cab height: 3.49 / 3.24 / 3.09 / 3.5 / 3.1 / 3.44 / 3.25m
Front track width: 2020 / 2020/2020mm
rear track: 1830/1830 / 1847/1847 / 1830mm
Curb Weight: 11.91 / 12.37 / 11.6 / 12.4 / 12.5 / 15.5 / 15.4ton
Rated payload: 12.96 / 12.5 / 13.155 / 12.42 / 12.3 / 15.3 / 12.4 / 15.355ton
GVWR: 25 / 24.95 / 31ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 25 / 33 / 47°
departure angle: 23 / 21 / 25 / 18 / 19 / 22 / 16 / 50 / 24°
Remarks: FAW original cargo box / J5P full-floating flat roof cab (facelift, wrap-around interior, CAN), under-mounted muffler, auto AC, manual hydraulic tilt, drum 400L iron fuel tank, dual air filter setup, V-rod setup, TRW steering gear, WABCO valves / Optional steel bumper, corresponding headlights and under-mounted muffler; optional square or boat-shaped side-dump body, body optional with eco cover. Front/rear overhang 1418/1800,1900,2100,2300. Overall length also available: 9268mm. Cargo box length also available: 6400mm. Cargo box size 4800×2300×1300mm corresponds to rated payload 12420kg; 5000×2300×1300mm → 12420kg; 5400×2300×1200mm → 12355kg; 5600×2300×1150mm → 12420kg; 6000×2300×1100mm → 12420kg; 6200×2300×1000mm → 12355kg; 6400×2300×1000mm → 12355kg. Transmission also available: RT11509C, 12JS160 / Optional high-top cab. Cargo box size 6500×2300×1000mm corresponds to rated payload 12355kg; 7000×2300×850mm corresponds to 12355kg; 7200×2300×820mm corresponds to 12305kg; 7500×2300×800mm corresponds to 12305kg. Overall dimensions L×W×H (mm): 9468,9868 ×2490 ×3090,3440. Wheelbase (mm): 4800+1350,5100+1350. Front/rear overhang (mm): 1418/1900,1418/2000. Transmission also available: 12JS160, RT11509C. / Optional high-roof cab; cargo box dimensions 6000×2300×1300mm, 6400×2300×1250, 6600×2300×1200 correspond to rated payload 15305kg; overall dimensions L×W×H (mm): 9228,9603 ×2490 ×3250,3490; front/rear overhang (mm): 1418/1360,1418/1735; axle load (kg): 6500/6500/17950 (tandem axle) / Optional high-roof cab; cargo box also available as 6000×2300×1300mm, 6400×2300×1250, 6600×2300×1200 corresponding to rated payload 15305kg. Overall dimensions L×W×H (mm): 9228,9603 ×2490 ×3250,3490; axle load (kg): 6500/6500/17950 (tandem axle). Overall dimensions L×W×H (mm): 9228,9603 ×2490 ×3250,3490; front/rear overhang (mm): 1418/1360,1418/1735; engine net power: CA6DL1-32E3 228kW, CA6DL2-35E3 258kW; VIN correspondence: LFNMVXNU for CA6DL1-32E3 engine, LFNMVXPU for CA6DL2-35E3 engine; optional high-roof cab; engine displacement 7700, 8600; / Engine net power: CA6DL1-32E3 228kW, CA6DL2-35E3 258kW; VIN mapping: LFNMVXNX → CA6DL1-32E3, LFNMVXPX → CA6DL2-35E3; optional high-top cab. Engine displacement 7700, 8600. Overall dimensions L×W×H (mm): 10803,11603,11990 ×2490 ×3250,3490. Optional high-top cab and environmental cover. Cargo box internal dimensions L×W×H (mm): 7500,8500,9500 ×2000,2300 ×1230,1100,870. Axle load (kg): 6500/6500/17950 (tandem axle). Front/rear overhang (mm): 1418/1335,1418/2135,1418/2522 / Engine net power: CA6DL1-32E3 228kW, CA6DL2-35E3 258kW; VIN mapping: LFNMVXNX → CA6DL1-32E3, LFNMVXPX → CA6DL2-35E3; optional high-top cab. Front/rear overhang (mm): 1418/1335,1418/2135,1418/2522. Axle load (kg): 6500/6500/17950 (tandem axle). Overall dimensions L×W×H (mm): 10803,11603,11990 ×2490 ×3250,3490. Cargo box internal dimensions L×W×H (mm): 7500,8500,9500 ×2000,2300 ×1230,1100,870. Approach/departure angle (°): 25/22,25/12,25/8 / Engine net power: CA6DL1-32E3 228kW; CA6DL2-35E3 258kW. VIN mapping: LFNMVXNX for CA6DL1-32E3; LFNMVXPX for CA6DL2-35E3. Optional high-top cab. / Engine net power: CA6DL1-32E3 228kW; CA6DL2-35E3 258kW. VIN mapping: LFNMVXNX for CA6DL1-32E3; LFNMVXPX for CA6DL2-35E3. Optional high-top cab. Engine net power: CA6DL1-32E3 228kW; CA6DL2-35E3 258kW. VIN mapping: LFNMVXNX for CA6DL1-32E3; LFNMVXPX for CA6DL2-35E3. Optional high-top cab. Engine displacement 7700, 8600. Axle load (kg): 6500/6500/17950 (tandem axle). Dimensions L×W×H (mm): 10803,11603,11990×2490×3250,3490. Cargo box interior L×W×H (mm): 7500,8500,9500×2000,2300×1230,1100,870. Approach/departure angle (°): 25/22,25/12,25/8. Front/rear overhang (mm): 1418/1335,1418/2135,1418/2522. / Engine net power: CA6DL1-32E3 228kW; CA6DL2-35E3 258kW. VIN mapping: LFNMVXNX for CA6DL1-32E3; LFNMVXPX for CA6DL2-35E3. Optional high-top cab. Engine displacement 7700, 8600. Curb weight 10500, 10530, 10570. Dimensions L×W×H (mm): 11103,11769,11994×2490×3250,3490. Cargo box interior L×W×H (mm): 8000,8800,9500×2300×1000,940,870. Rated payload (kg): 15355,15325,15285. Front/rear overhang (mm): 1418/2035,1418/2701,1418/2926. Approach/departure angle (°): 25/19,25/12,25/8. / Engine net power: CA6DL1-32E3 228kW; CA6DL2-35E3 258kW. VIN mapping: LFNMVXNX for CA6DL1-32E3; LFNMVXPX for CA6DL2-35E3. Engine displacement 7700, 8600. Axle load (kg): 6500/6500/17950 (tandem axle). Dump type: rear tipping. Reflective markings on side and rear. / Engine net power: CA6DL1-32E3 228kW; CA6DL2-35E3 258kW. VIN mapping: LFNMVXNX for CA6DL1-32E3; LFNMVXPX for CA6DL2-35E3. Engine displacement 7700, 8600. Axle load (kg): 6500/6500/17950 (tandem axle). / Optional steel bumper, corresponding headlights and under-mounted muffler; optional square or boat-shaped side-dump body, body optional with eco cover. Front/rear overhang 1418/1800,1900,2100,2300. Overall length also available: 9268mm. Cargo box length also available: 6400mm. Cargo box size 4800×2300×1300mm corresponds to rated payload 12420kg; 5000×2300×1300mm → 12420kg; 5400×2300×1200mm → 12355kg; 5600×2300×1150mm → 12420kg; 6000×2300×1100mm → 12420kg; 6200×2300×1000mm → 12355kg; 6400×2300×1000mm → 12355kg. Transmission also available: RT11509C, 9JS135
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai / Dachai
Number of cylinders: 6cylinder
Displacement: 7.7 / 8.6 / 8.57 / 7.146L
Emission standard: China III / Euro III
Max output power: 209 / 231 / 249 / 235 / 228 / 270 / 258 / 206kW
Max hp: 280 / 310 / 330 / 320 / 350Horsepower
Max torque: 1100 / 1250 / 1350 / 1200 / 1500 / 1050N·m
Max torque speed: 1400 / 1300-1500 / 1300-1700 / 1200-1500 / 1100-1400rpm
Rated speed: 2300 / 2100rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR / Inline, direct injection, turbocharged, intercooled, electronically controlled unit pump / Inline, electronic, common rail, turbocharged, air-to-air intercooled / 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / 6-cylinder inline, direct injection, turbocharged intercooled, electronic unit pump
Transmission Parameters
Transmission Brand: FAW Jiefang / Fast Gear
shift method: Manual
Forward gears: 10 / 5 / 9 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type / Side-dump tipper.
Cargo box length: 5.4 / 5.6 / 4.6 / 4.8 / 6 / 7.2 / 6.5 / 6.4 / 9.5 / 7.1 / 8 / 8.2 / 7.6 / 5m
Cargo box width: 2.3m
Cargo box height: 1.21 / 1.2 / 1.3 / 1.1 / 1 / 1.39 / 0.87 / 0.97 / 1.5m
fuel tank
Fuel tank capacity: 400 / 300L
Chassis Specs
rear axle description: 290 wheel reduction axle / 300 hub reduction axle / Tandem axle / Diameter 300 wheel reduction axle / 300 / Diameter 300 / 485
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks?
FAW Jiefang FAW Jiefang Aowei J5P Heavy-duty Truck is an export-oriented Dump Trucks lineup with about 23 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks?
FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks export reference is about $35,875 – $52,083. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks cover?
FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks mainly covers: Drive: 6x4 / 6x6; Horsepower: 280 hp / 310 hp / 320 hp / 330 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks?
For FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks include?
FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks currently lists about 23 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Aowei J5P Heavy-duty Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
