FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab)

Export reference
From $45,833
MSRP ¥33M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 11.6ton
Wheelbase:: 3300+1350mm
Tire Size:: 11.00R20,11.00-20,12.00-20,12.00R20
Rated payload: 13.155ton
Drive 6X4 (10 wheels)
Horsepower 320
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) is a Heavy truck featuring 13.155t payload, 24.95t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL1-32E3 engine, 320 hp, China III / Euro III emissions and FAW Jiefang transmission.

China III / Euro III 320 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3252P2K2T1B
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: XichaiCA6DL1-32E3
transmission: FAW JiefangCA10TA190M
Cab length: 7.768m
Cab width: 2.49m
Cab height: 3.09m
Front track width: 2020mm
rear track: 1830/1830mm
Curb Weight: 11.6ton
Rated payload: 13.155ton
GVWR: 24.95ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 25°
Remarks: J5P full-floating flat roof cab (facelift, wrap-around interior, CAN), under-mounted muffler, auto AC, manual hydraulic tilt, drum 400L iron fuel tank, dual air filter setup, V-rod setup, TRW steering gear, WABCO valves
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China III / Euro III
Max output power: 235kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Engine Type: Inline, electronic, common rail, turbocharged, air-to-air intercooled
Transmission Parameters
Transmission Model: FAW JiefangCA10TA190M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.8m
Cargo box width: 2.3m
Cargo box height: 1.3m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: Tandem axle
rear axle allowable load: 17960kg
Leaf spring count: 11/12
Tire
Tire Size: 11.00R20,11.00-20,12.00-20,12.00R20
Number of tires: 10pcs

Photos

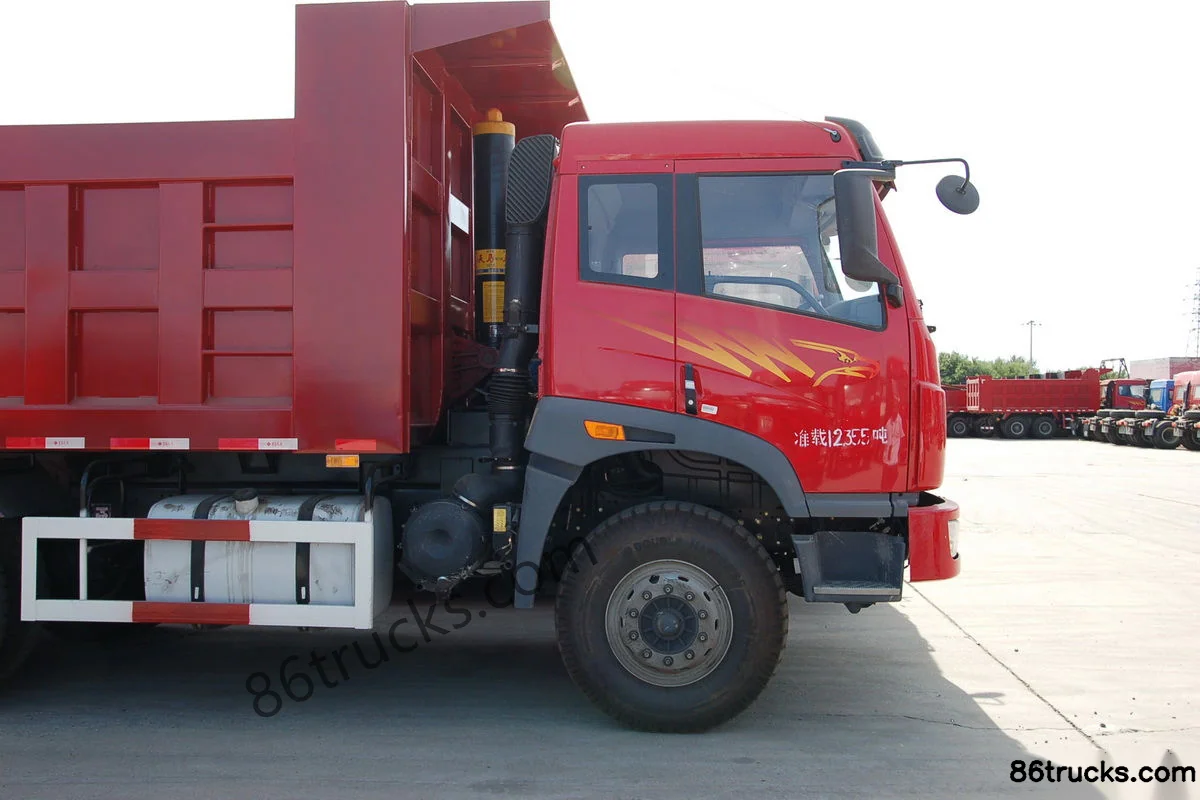

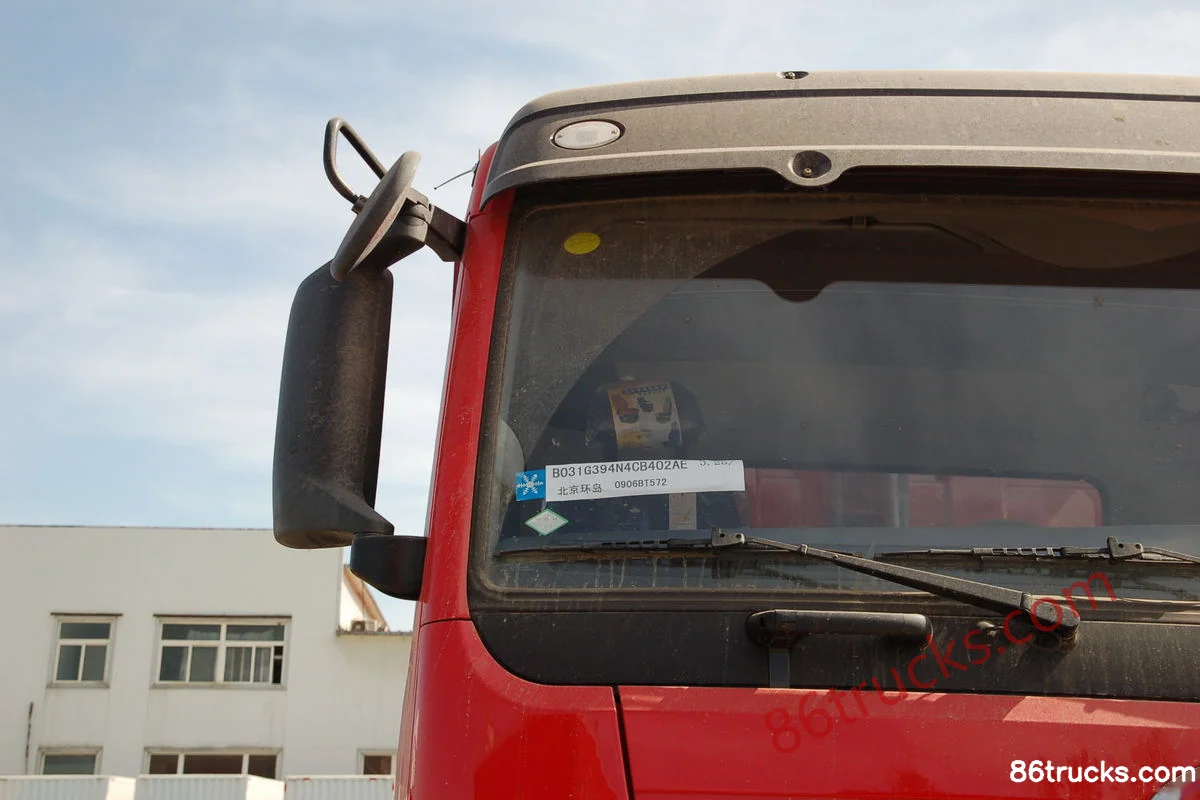

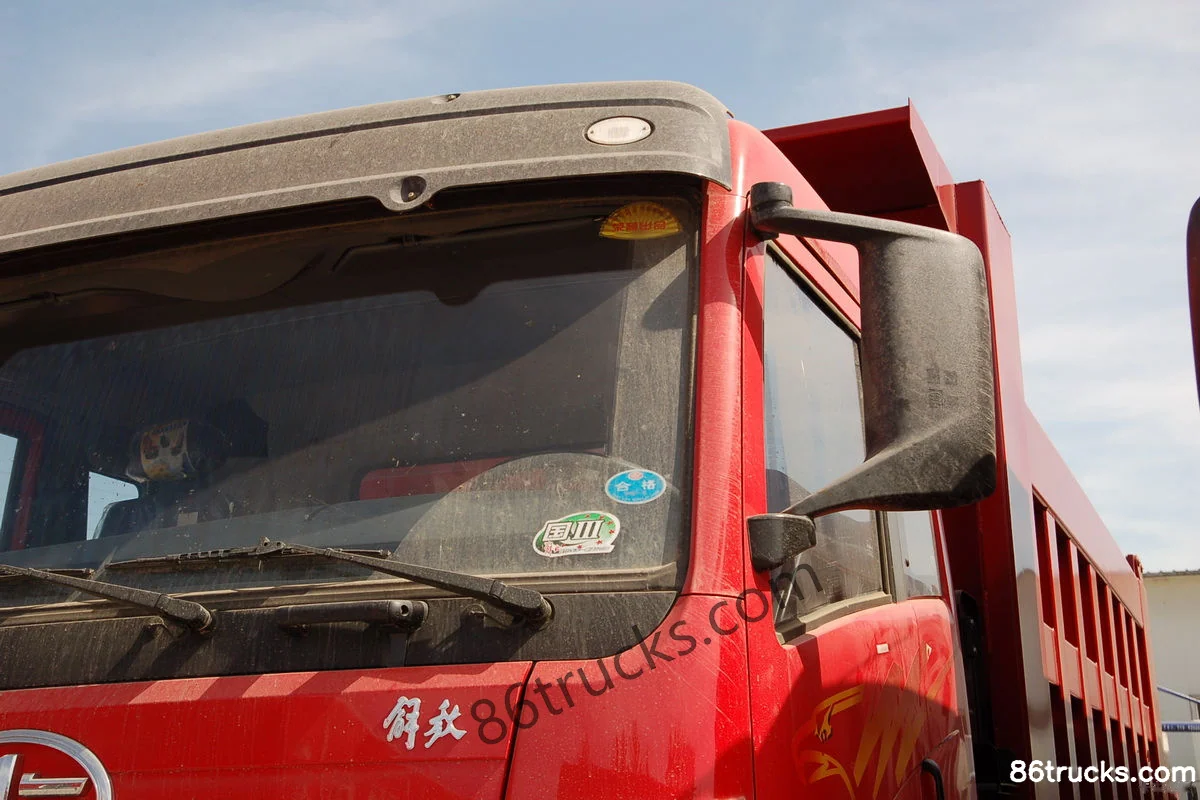

Exterior3

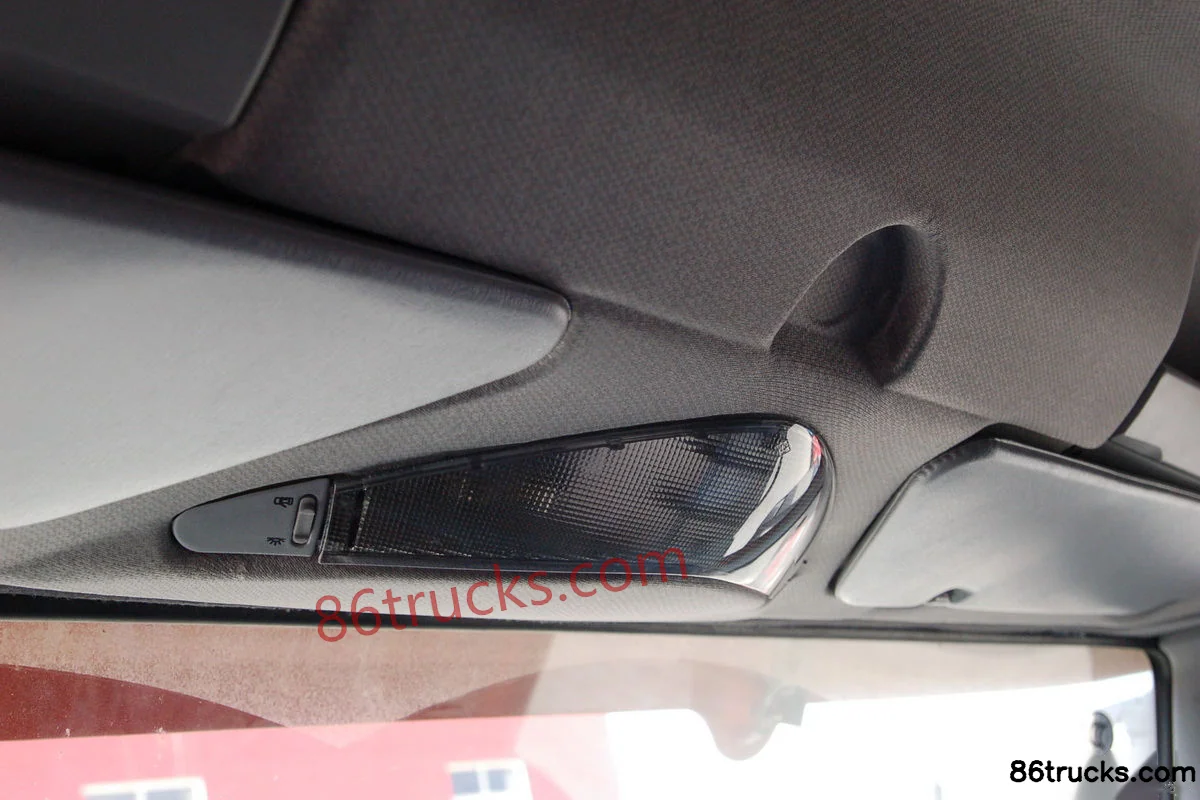

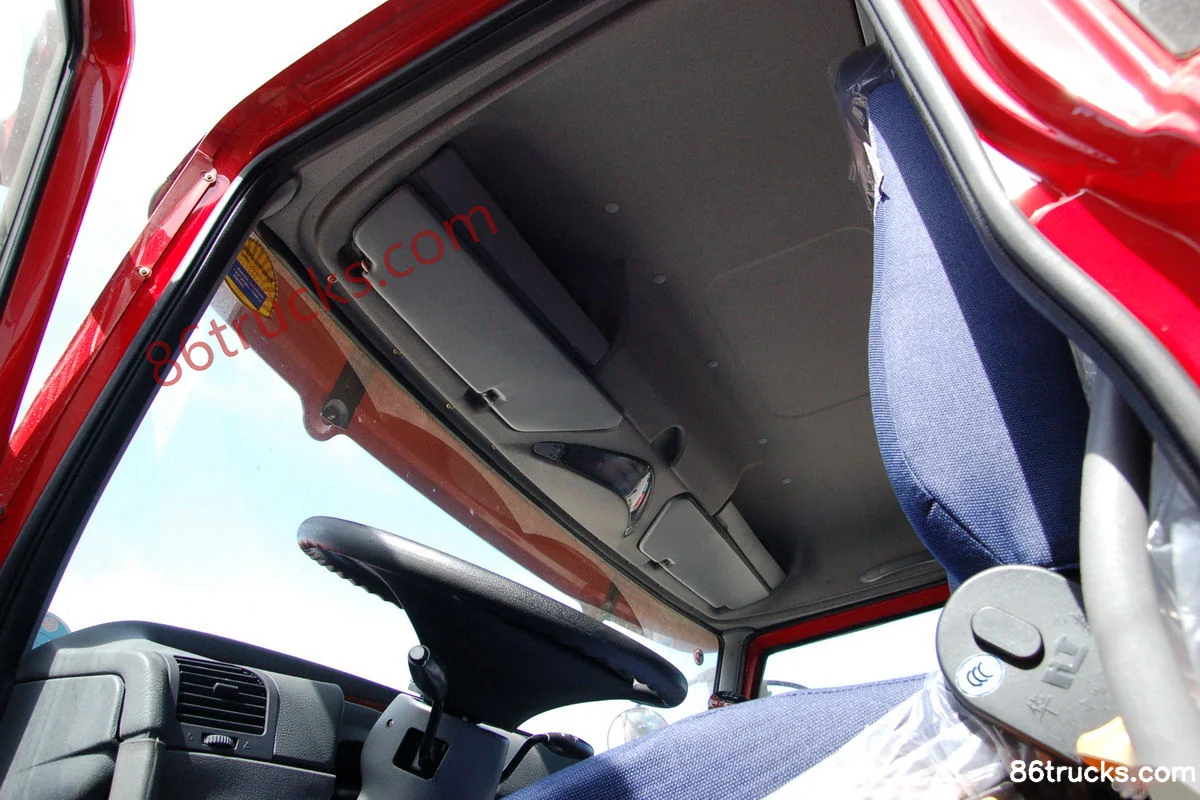

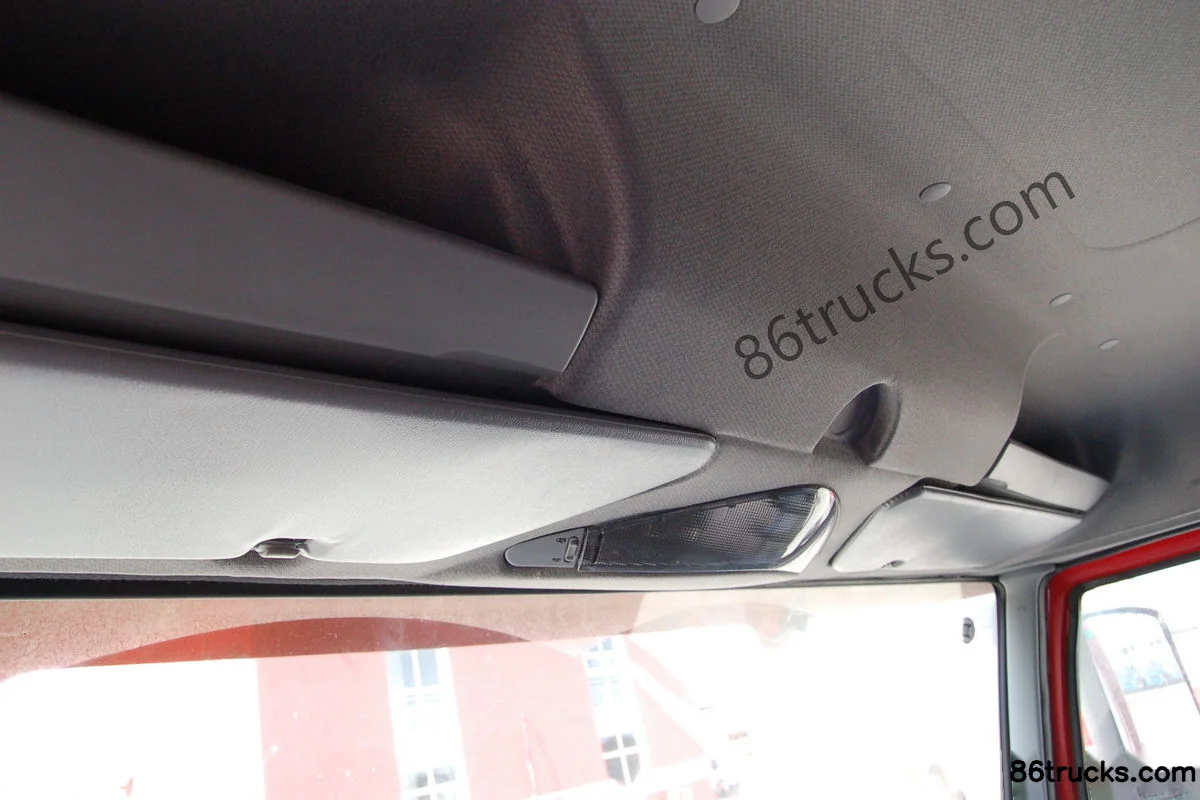

Cab3

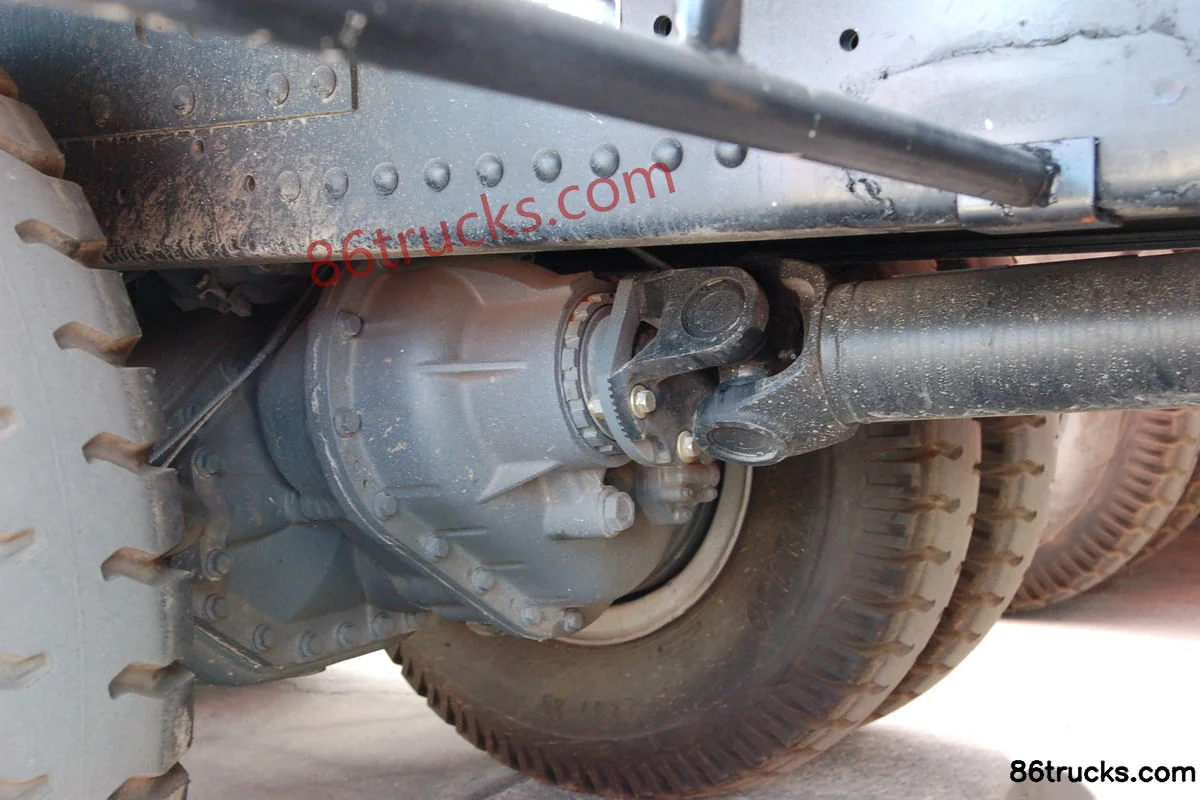

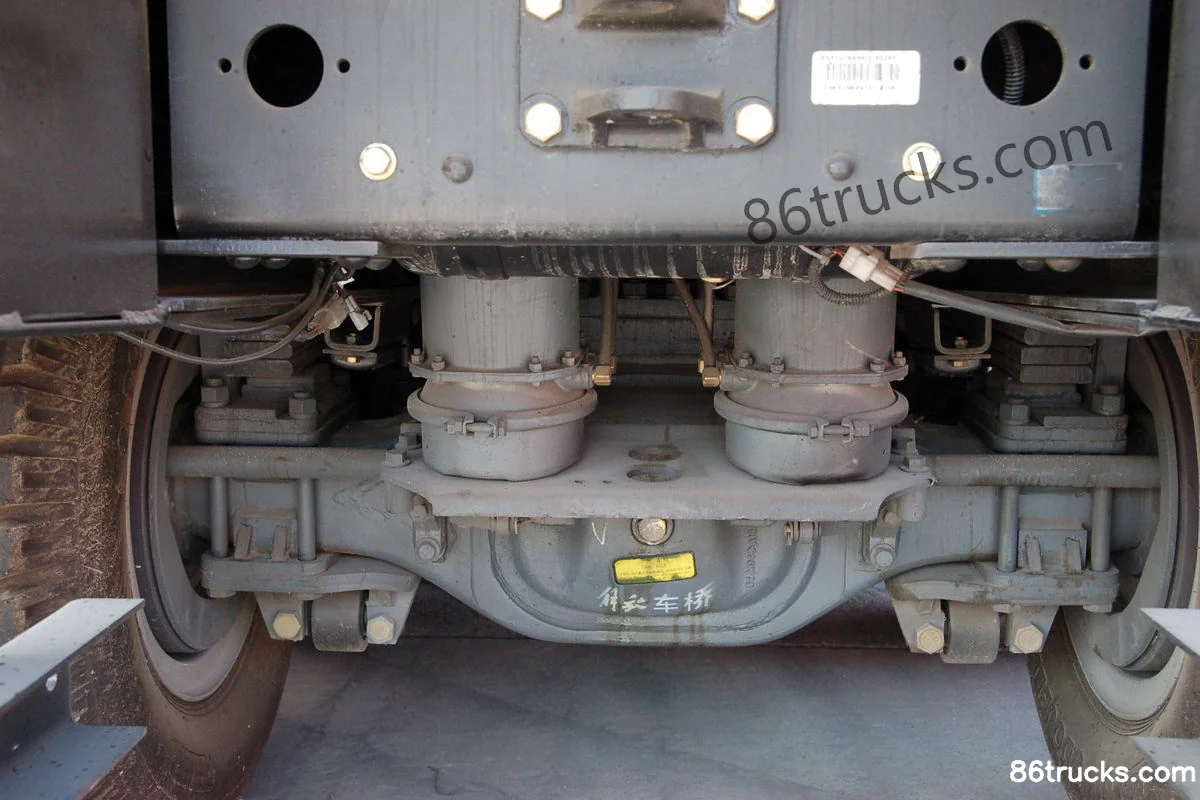

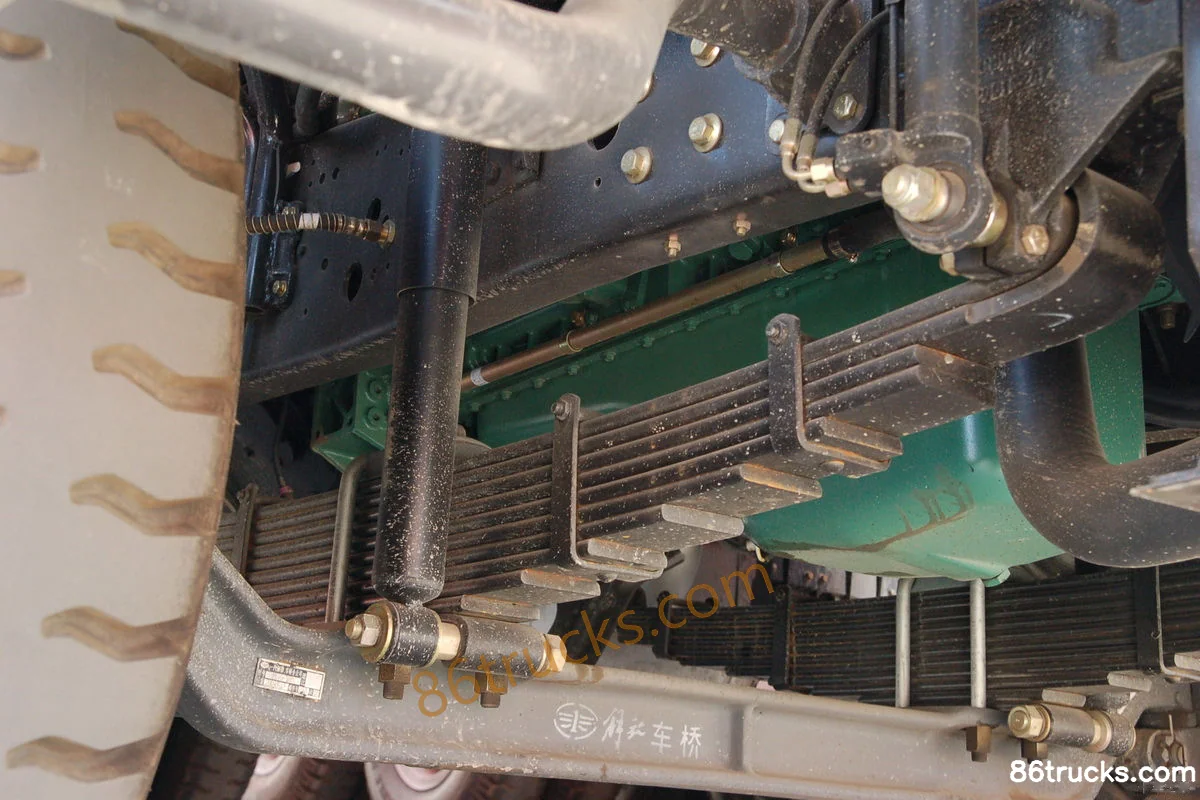

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab), and what does it include?

FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab)?

Key specs of FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab): Drive: 6x4; Horsepower: 320 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) suited for?

FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) differ from other variants in the same series?

FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab) belongs to FAW Jiefang Aowei J5P Heavy-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei (J5P) Heavy Truck 320hp 6X4(10 wheels) 4.8m Dump Truck (Cabover Cab)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
