FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck

Export reference
From $44,444
MSRP ¥32M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 11.91ton
Wheelbase:: 3900+1350mm
Tire Size:: 12.00-20
Rated payload: 12.96ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck is a Heavy truck featuring 12.96t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL2-31E3F engine, 310 hp, China III / Euro III emissions and FAW Jiefang transmission.

China III / Euro III 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3252P2K2L2T1A1E
Drive type: 6X4
Wheelbase: 3900+1350mm
engine: XichaiCA6DL2-31E3F
transmission: FAW JiefangCA10TA190M
Rear Axle Ratio: 5.73
Cab length: 8.328m
Cab width: 2.495m
Cab height: 3.49m
Front track width: 2020mm
rear track: 1830/1830mm
Curb Weight: 11.91ton
Rated payload: 12.96ton
GVWR: 25ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 23°
Remarks: FAW original cargo box
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-31E3F
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.6L
Emission standard: China III / Euro III
Max output power: 231kW
Max hp: 310Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1500rpm
Rated speed: 2100rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR
Transmission Parameters
Transmission Model: FAW JiefangCA10TA190M
Transmission Brand: FAW Jiefang
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.21m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: 300 hub reduction axle
rear axle allowable load: 160000kg
Axle ratio: 5.73
Leaf spring count: 11/12
Tire
Tire Size: 12.00-20
Number of tires: 10pcs

Photos

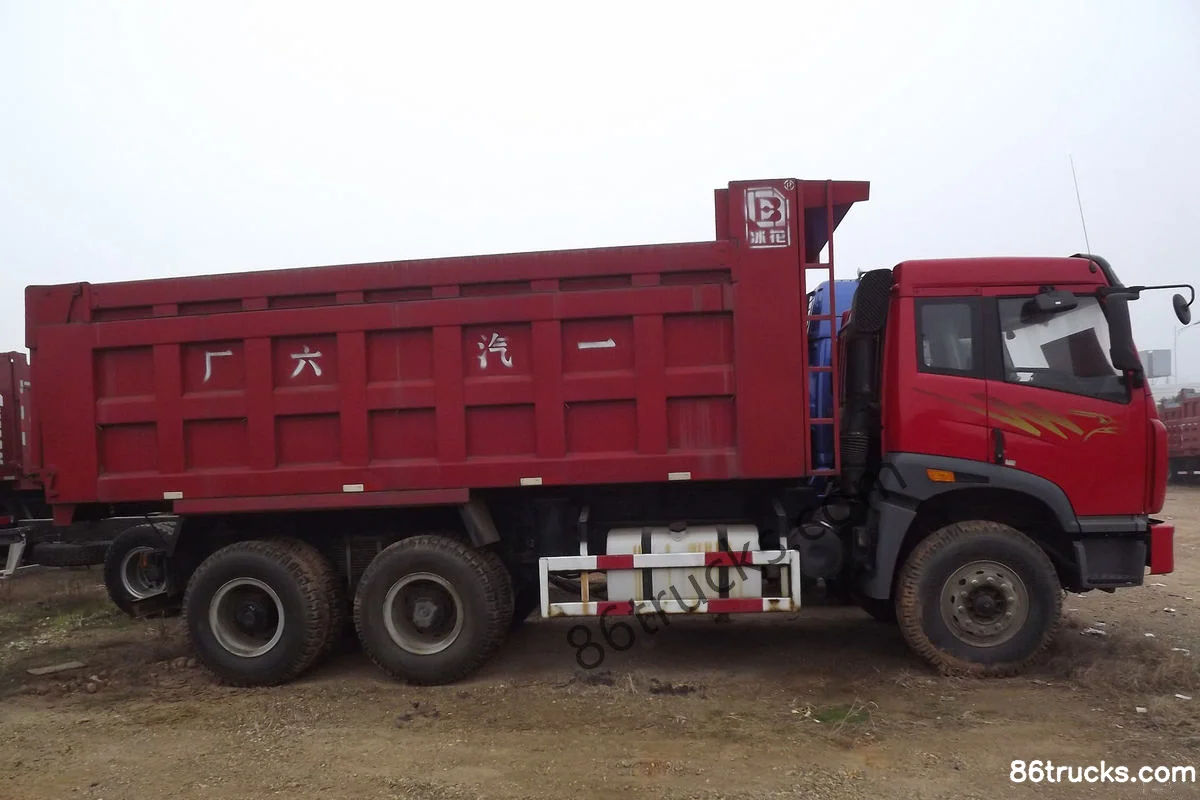

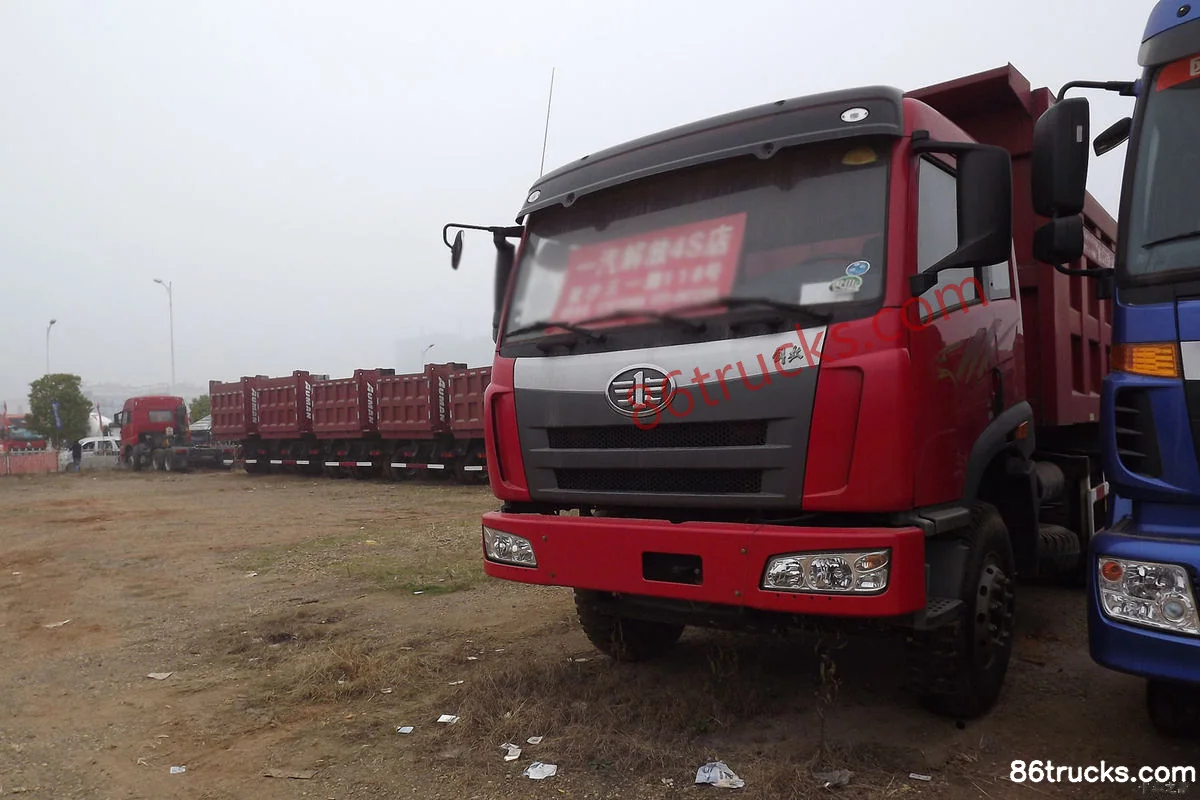

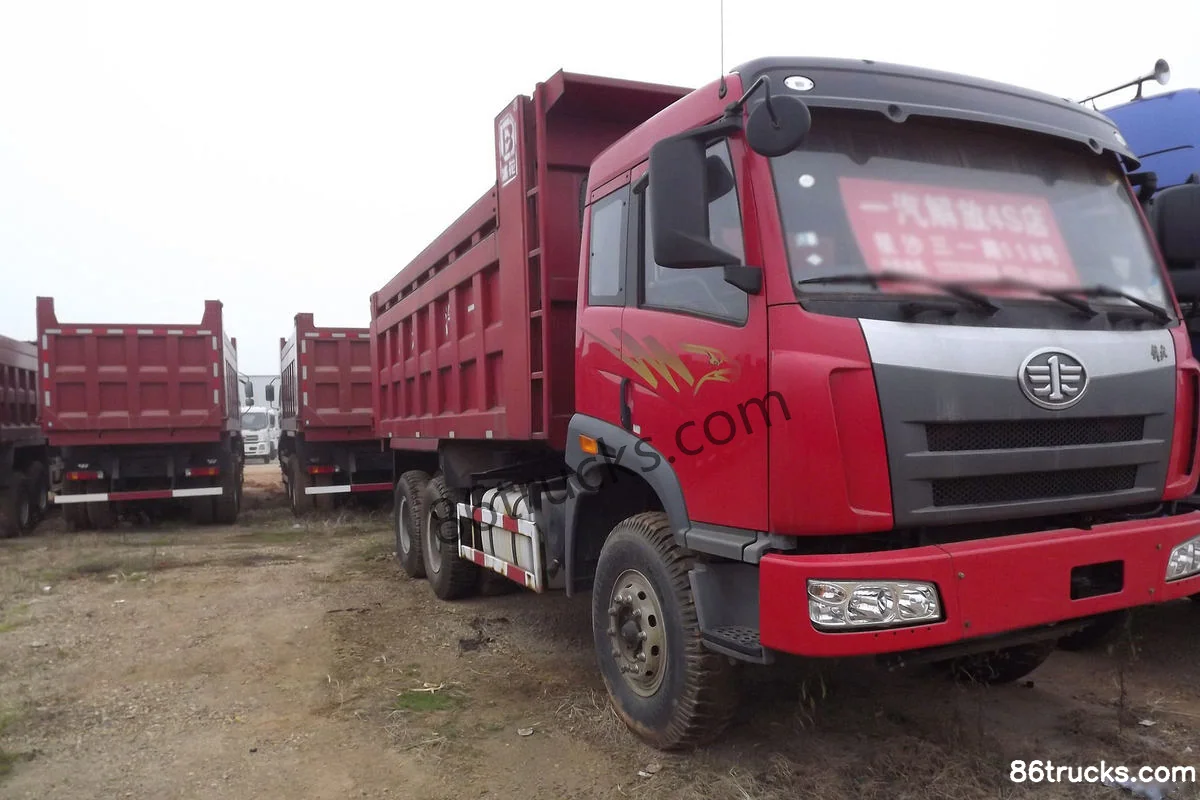

Exterior3

3 photos

FAQ

What is the export price of FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck, and what does it include?

FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck export reference is about From $44,444; MSRP is ¥32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck?

Key specs of FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck: Drive: 6x4; Horsepower: 310 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck suited for?

FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck differ from other variants in the same series?

FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck belongs to FAW Jiefang Aowei J5P Heavy-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei (J5P) heavy truck 310hp 6X4(10 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
