Foton Shidai H1 95hp 4X2(6 wheels) 2.71m dump truck
EXW
From $12,319
Export quote
Foton Forland Linghang H Light Truck Dump Trucks
Main model photos
838 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Shidai H1 95hp 4X2(6 wheels) 2.71m dump truck | 4x2 / 95hp / China V | From $12,319 | |
| Foton Times H1 115hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 115hp / China V | From $12,222 | |
| Foton Times H3 129hp 4X2(6 wheels) 3.77m Dump Truck | 4x2 / 129hp / China V | From $15,528 | |
| Foton Times H2 115 hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 115hp / China V | From $12,931 | |
| Foton Times H1 115hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 115hp / China V | From $12,250 |

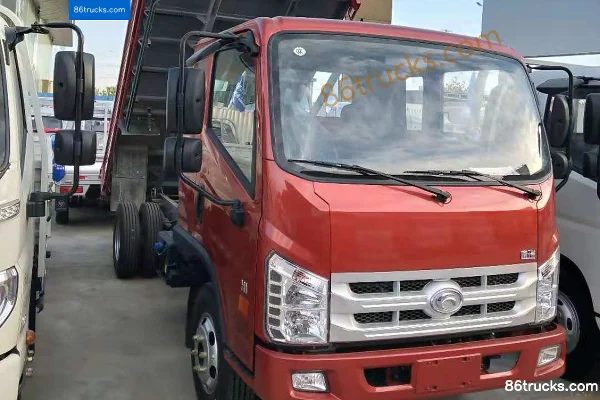

Foton Times H1 115hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $12,222
Export quote
Foton Times H3 129hp 4X2(6 wheels) 3.77m Dump Truck
EXW
From $15,528
Export quote
Foton Times H2 115 hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $12,931
Export quote
Foton Times H1 115hp 4X2(6 wheels) 3.8m Dump Truck
EXW
From $12,250
Export quote
Series Specs
Basic Info
Model code (announced): BJ3046D8ABA-FA / BJ3046D9PBA-FF / BJ3043D9PBA-FE / BJ3043D9PBA-FD / BJ3046D8PBA-FA / BJ3046D9JBA-FF / BJ3043D9JBA-FD / BJ3043D9JBA-FE
Drive type: 4X2
Wheelbase: 3050 / 3360mm
Engine Model: Yunnei PowerYN27CRE1 / Quanchai4B2-115C50 / Yunnei PowerYN38CRE1
Transmission Model: WLYWLY10H35 / WLYWLY5TS32 / WLYWLY10H41 / WLYWLY530
Rear Axle Ratio: 4.875 / 4.85 / 5.833
Cab length: 5.57 / 5.995m
Cab width: 2.03 / 2.31 / 2.23 / 2.15 / 1760m
Cab height: 2.36 / 2.35 / 2.47 / 2.445m
Front track width: 1525 / 1715 / 1550mm
rear track: 1485 / 1630 / 1590mm
Curb Weight: 2.72 / 2.615 / 2.305 / 2.5ton
Rated payload: 1.45 / 1.75 / 1.995 / 1.645 / 1.495ton
GVWR: 4.495 / 4.125ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21 / 19 / 26°
departure angle: 17 / 16 / 21°
Remarks: A/C Optional
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Quanchai
Number of cylinders: 4cylinder
Displacement: 2.672 / 2.545 / 3.76L
Emission standard: China V
Max output power: 70 / 85 / 95kW
Max hp: 95 / 115 / 129Horsepower
Max torque: 250 / 320 / 365N·m
Max torque speed: 1600-2600 / 1400-2400 / 1600-2400rpm
Rated speed: 3200 / 3000rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 90 / 100
Unloading Type: Rear-dump body / Dump type
Cargo box length: 2.71 / 3.8 / 3.77 / 4.2 / 4.15m
Cargo box width: 1.9 / 2.1 / 2.02m
Cargo box height: 0.4 / 0.5m
Body Parameters
Lifting type: 90 dual lift / 100 double lift
FAQ
What kind of truck is Foton Forland Linghang H Light Truck Dump Trucks?
Foton Forland Linghang H Light Truck is an export-oriented Dump Trucks lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Forland Linghang H Light Truck Dump Trucks?
Foton Forland Linghang H Light Truck Dump Trucks export reference is about $12,083 – $17,778. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Forland Linghang H Light Truck Dump Trucks cover?
Foton Forland Linghang H Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 95 hp / 115 hp / 129 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Forland Linghang H Light Truck Dump Trucks?
For Foton Forland Linghang H Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Forland Linghang H Light Truck Dump Trucks include?
Foton Forland Linghang H Light Truck Dump Trucks currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Forland Linghang H Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
