Dongfeng Qingtian 220 hp 6X2(8 wheels) 5.2m Dump Truck (EQ3240GLV)
EXW
From $26,528
Export quote
Dongfeng Qingtian Medium Truck Dump Trucks
Main model photos
33 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Qingtian 220 hp 6X2(8 wheels) 5.2m Dump Truck (EQ3240GLV) | 6x2 / 220hp / China V | From $26,528 | |
| Dongfeng Qingtian 245 hp 6X2(8 wheels) 7.3m Dump Truck (EQ3250GZMV) | 6x2 / 245hp / China V | ||
| Dongfeng Qingtian 240 hp 6X2(8 wheels) 7.3m Dump Truck (EQ3250GZMV) | 6x2 / 240hp / China V | ||
| Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (Fast Gear)(EQ3160GZMV) | 4x2 / 180hp / China V | ||
| Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) | 4x2 / 180hp / China V |
Dongfeng Qingtian 245 hp 6X2(8 wheels) 7.3m Dump Truck (EQ3250GZMV)
EXW
Export quote

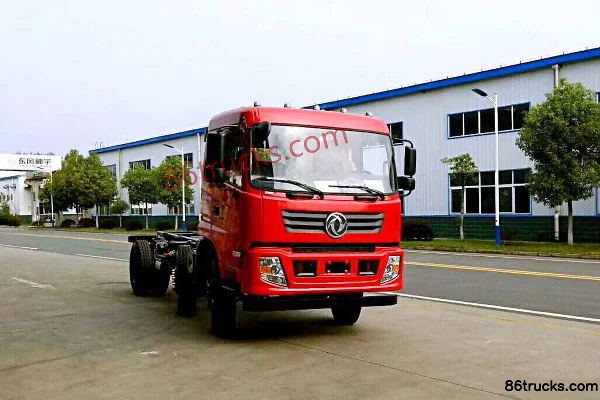

Dongfeng Qingtian 240 hp 6X2(8 wheels) 7.3m Dump Truck (EQ3250GZMV)
EXW
Export quote

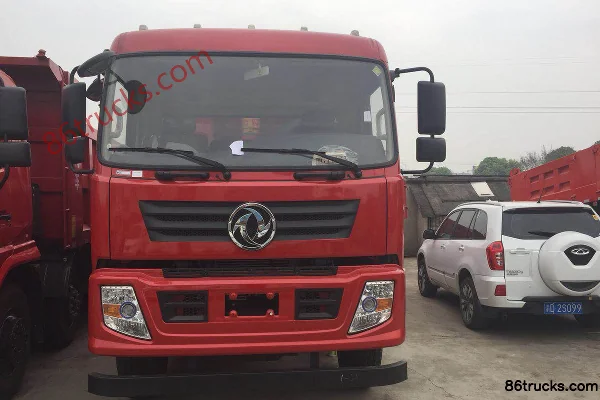

Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (Fast Gear)(EQ3160GZMV)
EXW
Export quote
Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3240GLV / EQ3250GZMV / EQ3160GZMV / EQ3258GLV5 / EQ3311GLV4 / EQ3318GFV4
Drive type: 6X2 / 4X2 / 8X4
Wheelbase: 1760+3000 / 1850+4550 / 3650 / 1850+2700 / 1760+2600 / 1850+2700+1350 / 1850+3000+1350 / 1850+2600+1350mm
Engine Model: YuchaiYC4EG220-50 / DongfengISD245 50 / YuchaiYC6JA240-50 / YuchaiYC6JA180-50 / YuchaiYC4EG185-50 / YuchaiYC6A270-50 / WeichaiWP7.300E51
Transmission Model: Fast Gear10JS90 / Fast Gear8JS118 / Fast Gear10JS90A / Dachi17G0A3-09 / Fast Gear 10-Speed / Fast Gear9JS119TA
Rear Axle Ratio: 6.33 / 5.286
Cab length: 7.5 / 9.5 / 9 / 9.25 / 8.9m
Cab width: 2.45 / 2.55 / 2.495 / 2.5m
Cab height: 2.95 / 3.45 / 3.15 / 3.3 / 3.25m
Front track width: 1810/1810 / 1940/1940 / 1910 / 1900/1900,1940/1940 / 1960/1960 / 1900/1900mm
rear track: 1710 / 1860 / 1750/1750 / 1800/1800mm
Curb Weight: 9.315 / 11.8 / 8 / 11.9 / 14.965 / 12ton
Rated payload: 14.99 / 13.005 / 7.805 / 12.97 / 15.84 / 18.805ton
GVWR: 24.5 / 25 / 16 / 31ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 25 / 24 / 20°
departure angle: 16 / 11 / 22 / 25 / 26 / 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Dongfeng / Weichai
Number of cylinders: 4 / 6cylinder
Displacement: 4.73 / 6.7 / 6.87 / 7.52 / 7.47L
Emission standard: China V
Max output power: 160 / 180 / 177 / 132 / 136 / 199 / 220kW
Max hp: 220 / 245 / 240 / 180 / 185 / 270 / 300Horsepower
Max torque: 800 / 950 / 700 / 1100 / 1250N·m
Max torque speed: 1300-1700 / 1200-1800 / 1300-1800 / 1200-1700rpm
Rated speed: 2500 / 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Water-cooled, electronic high-pressure common rail, turbocharged intercooled, SCR / Vertical, inline, water-cooled, four-stroke / Inline 6-cylinder, electronic high-pressure common rail, SCR
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear / Dachi
shift method: Manual
Forward gears: 10 / 8 / 6 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2 / 7.3 / 6.5 / 4.8 / 6m
Cargo box width: 2.3 / 2.4 / 2.38 / 2.2m
Cargo box height: 1.49 / 0.8 / 1.45 / 1.2 / 1.4m
Cab parameters
Cab: D913 Flat Roof
FAQ
What kind of truck is Dongfeng Dongfeng Qingtian Medium Truck Dump Trucks?
Dongfeng Dongfeng Qingtian Medium Truck is an export-oriented Dump Trucks lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Qingtian Medium Truck Dump Trucks?
Dongfeng Qingtian Medium Truck Dump Trucks export reference is about From $26,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Qingtian Medium Truck Dump Trucks cover?
Dongfeng Qingtian Medium Truck Dump Trucks mainly covers: Drive: 4x2 / 6x2; Horsepower: 180 hp / 220 hp / 240 hp / 245 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Qingtian Medium Truck Dump Trucks?
For Dongfeng Qingtian Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Qingtian Medium Truck Dump Trucks include?
Dongfeng Qingtian Medium Truck Dump Trucks currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Qingtian Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
