Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Dachi
Curb Weight:: 8ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20 16PR,10.00R20 16PR
Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) exterior
View more photos (7)
Rated payload: 7.805ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) is a Medium-duty truck featuring 7.805t payload, 16t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA180-50 engine, 180 hp, China V emissions and Dachi transmission.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): EQ3160GZMV
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYC6JA180-50
transmission: Dachi17G0A3-09
Rear Axle Ratio: 6.33
Cab length: 9m
Cab width: 2.55m
Cab height: 3.15m
Front track width: 1910mm
rear track: 1860mm
Curb Weight: 8ton
Rated payload: 7.805ton
GVWR: 16ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 11°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Dachi17G0A3-09
Transmission Brand: Dachi
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.38m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10400kg
Axle ratio: 6.33
Leaf spring count: 9/11+8,8/10+8,8/11+8,9/10+8,3/4+3
Tire
Tire Size: 9.00R20 16PR,10.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

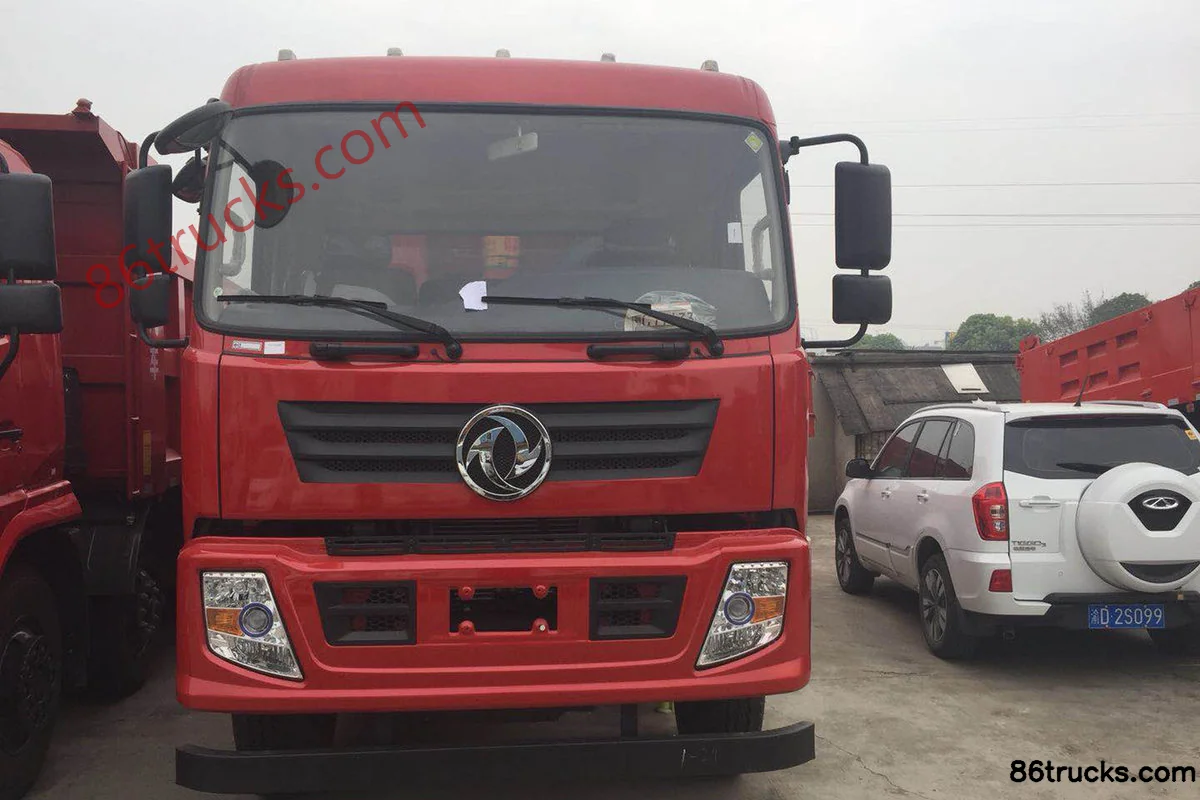

Exterior2

Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Exterior (1) | 86Trucks Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Exterior (2) | 86Trucks

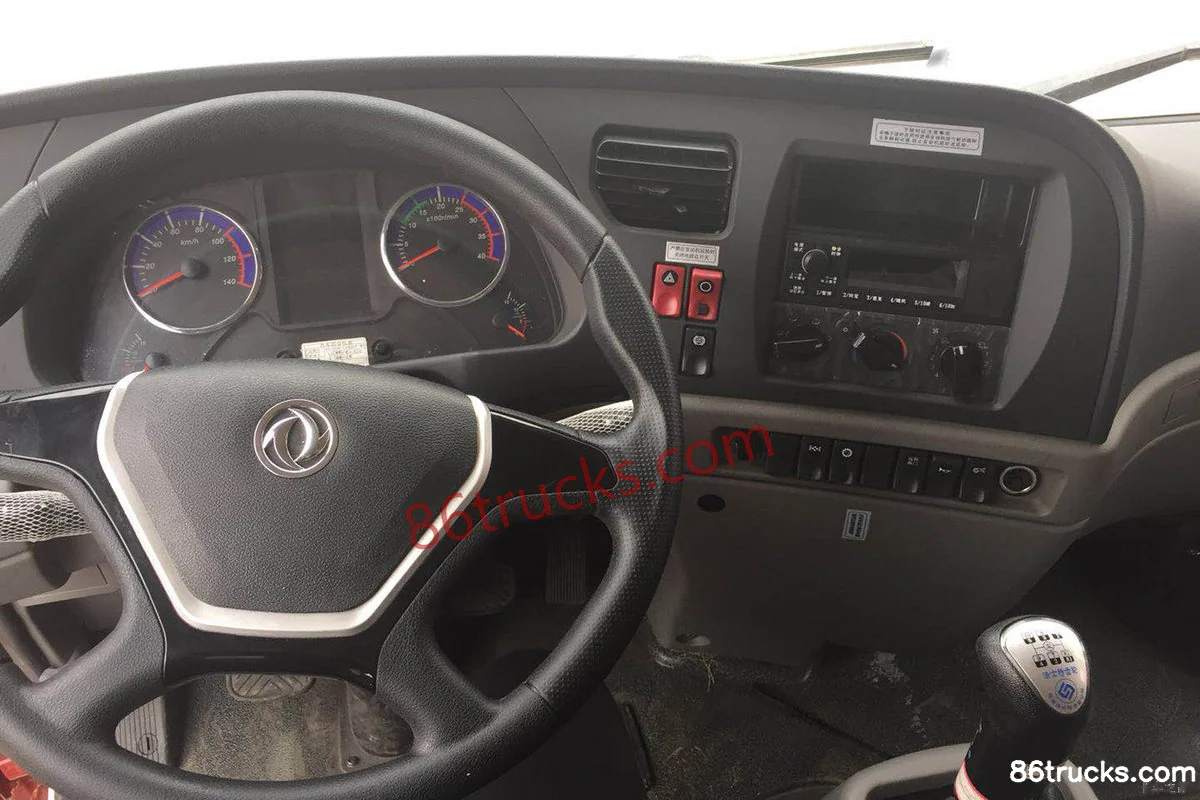

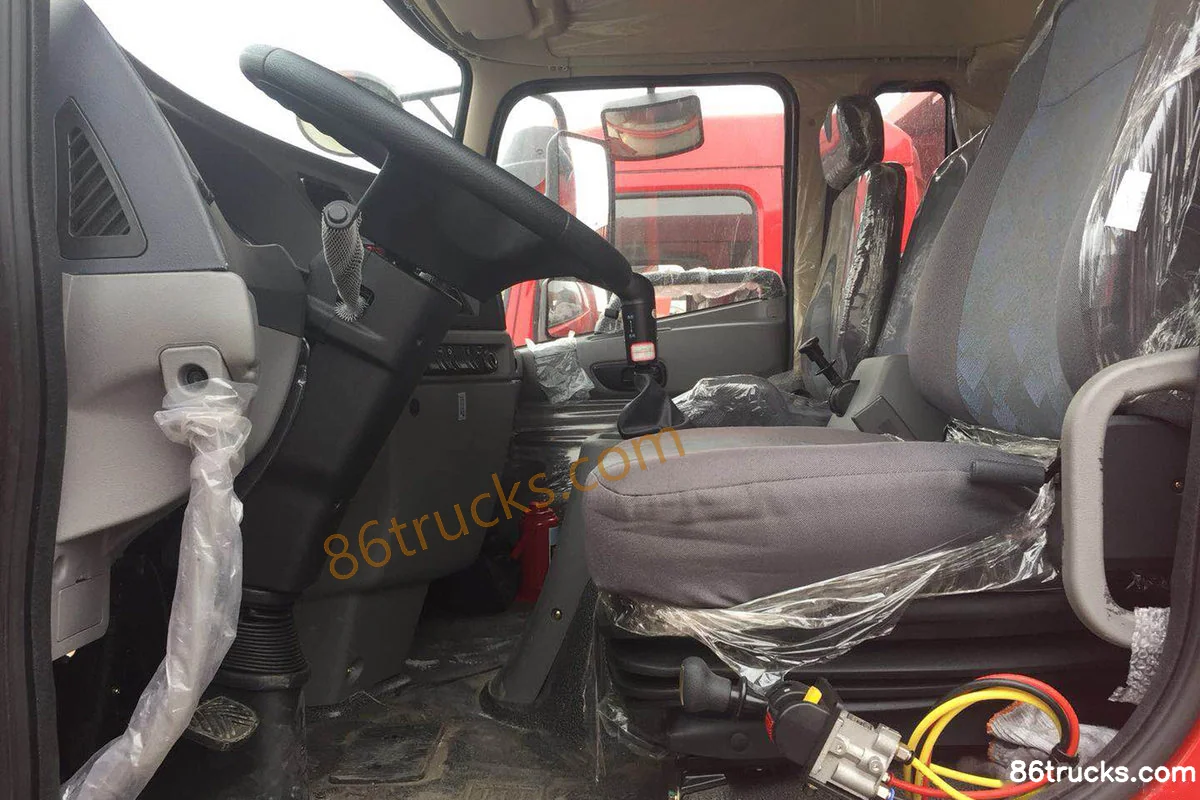

Cab2

Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Cab (1) | 86Trucks Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Cab (2) | 86Trucks

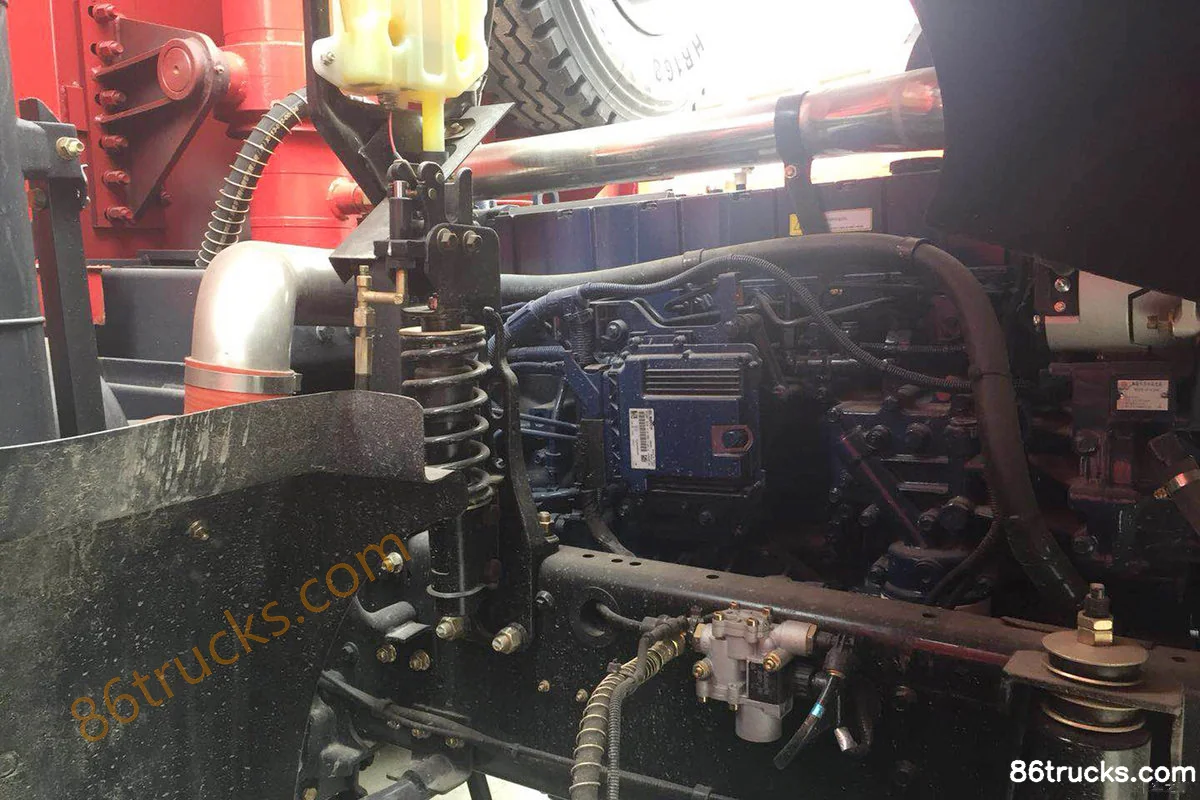

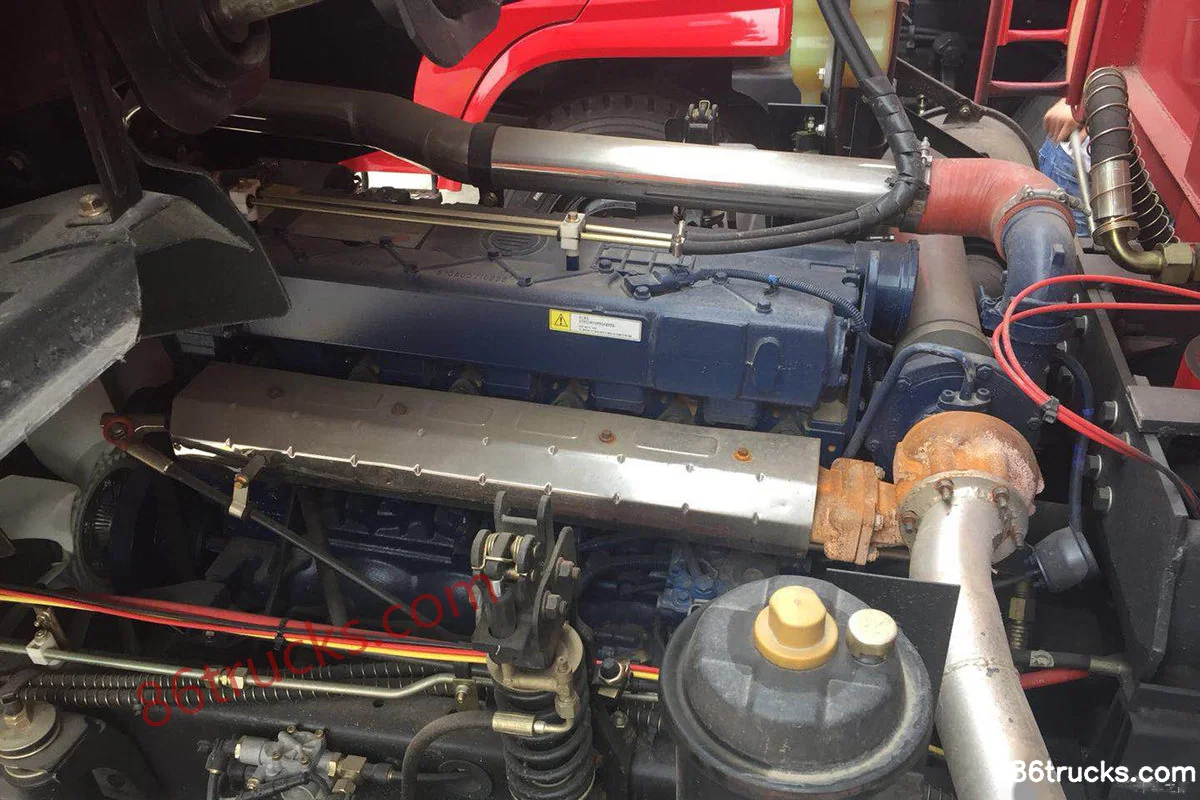

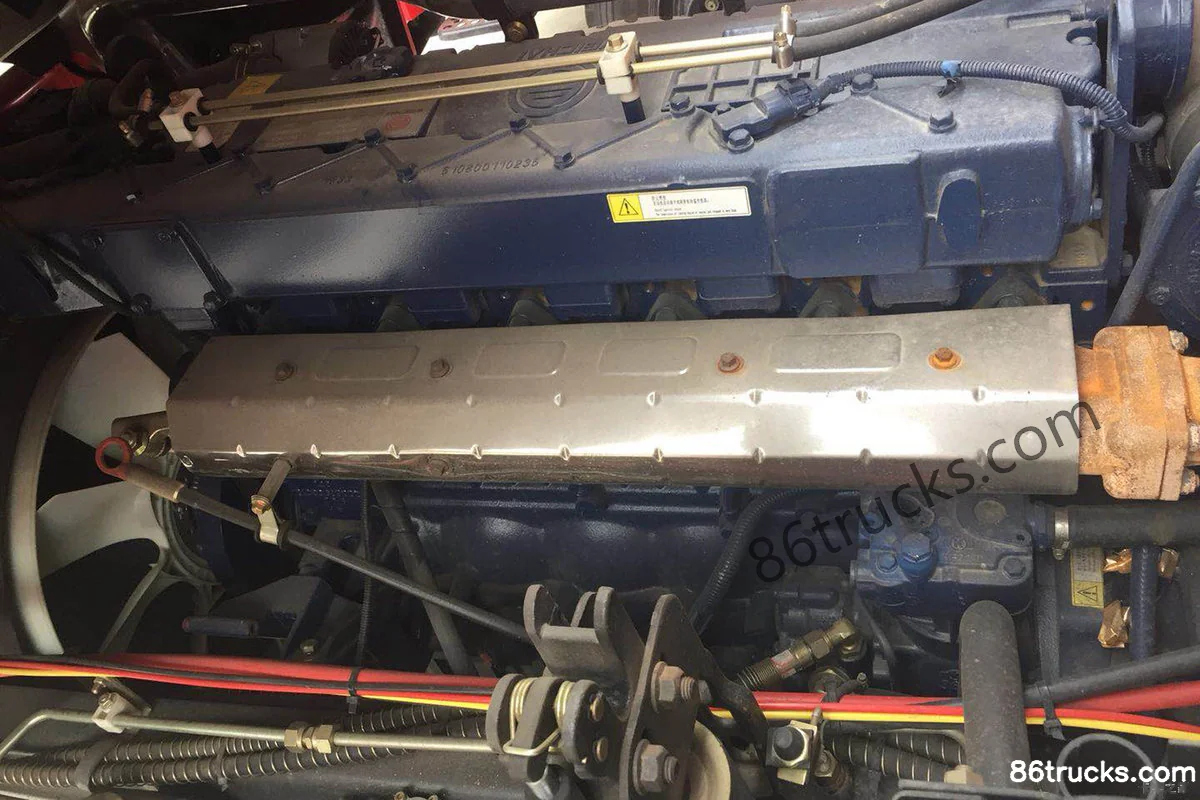

Chassis3

Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Chassis (1) | 86Trucks Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Chassis (2) | 86Trucks Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) Chassis (3) | 86Trucks

7 photos

FAQ

What emission standard does Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV)?

Key specs of Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV): Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Dachi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) suited for?

Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) differ from other variants in the same series?

Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV) belongs to Dongfeng Qingtian Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Qingtian 180 hp 4X2(6 wheels) 6.5m Dump Truck (EQ3160GZMV)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
