Shijun D550 150 hp 4X2(6 wheels) 4.2m dump truck
EXW
Export quote
ShijunD550 Dump Trucks

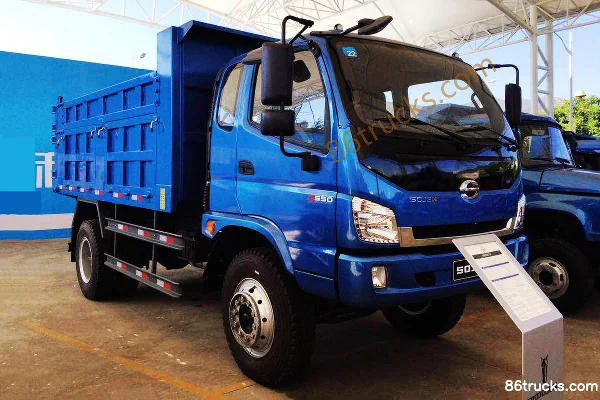

Main model photos
14 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Shijun D550 150 hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 150hp / China V | ||
| Shijun D550 150 hp 4X2(6 wheels) 4m dump truck | 4x2 / 150hp / China V | ||
| Shijun D550 130hp 4X2(6 wheels) 3.7m dump truck | 4x2 / 130hp / China V | ||
| Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 130hp / China IV |
Shijun D550 150 hp 4X2(6 wheels) 4m dump truck
EXW
Export quote
Shijun D550 130hp 4X2(6 wheels) 3.7m dump truck
EXW
Export quote
Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): LFJ3120SCG1 / LFJ3041SCG1 / LFJ3165G1
Drive type: 4X2
Wheelbase: 3650 / 3500 / 3400mm
Engine Model: YuchaiYC4D150-50 / YuchaiYCD4F4S-130 / YuchaiYC4D130-41
Transmission Model: WLYWLY12T53
Rear Axle Ratio: 6.833 / 6.83
Cab length: 6.56 / 6.51 / 5.995 / 6.73m
Cab width: 2.3 / 2.4 / 2060m
Cab height: 2.57 / 2.8m
Front track width: 1780 / 1750mm
rear track: 1700 / 1690mm
Curb Weight: 6.765 / 2.72 / 7.605ton
Rated payload: 4.995 / 1.58 / 7.99ton
GVWR: 11.955 / 4.495 / 15.79ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 32 / 25 / 22°
departure angle: 17 / 22 / 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 4.214 / 3.922L
Emission standard: China V / China IV
Max output power: 110 / 97 / 96kW
Max hp: 150 / 130Horsepower
Max torque: 500 / 430 / 420N·m
Max torque speed: 1400-1800 / 1500-1950rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Electronic unit pump SCR
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: WLY
Forward gears: 6 / 12Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2 / 4 / 3.7m
Cargo box width: 2.1 / 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: 2060G
fuel tank
Fuel tank material: aluminum alloy / Iron
FAQ
What kind of truck is Shijun ShijunD550 Dump Trucks?
Shijun ShijunD550 is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ShijunD550 Dump Trucks cover?
ShijunD550 Dump Trucks mainly covers: Drive: 4x2; Horsepower: 130 hp / 150 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ShijunD550 Dump Trucks?
For ShijunD550 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does ShijunD550 Dump Trucks include?
ShijunD550 Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ShijunD550 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
