Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 7.605ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck is a Light Truck featuring 7.99t payload, 15.79t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-41 engine, 130 hp, China IV emissions and WLY transmission.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ3165G1
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYC4D130-41
transmission: WLYWLY12T53
Rear Axle Ratio: 6.833
Cab length: 6.73m
Cab width: 2.4m
Cab height: 2.8m
Front track width: 1750mm
rear track: 1690mm
Curb Weight: 7.605ton
Rated payload: 7.99ton
GVWR: 15.79ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-41
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump SCR
Transmission Parameters
Transmission Model: WLYWLY12T53
Transmission Brand: WLY
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 140L
Chassis Specs
Front axle description: 145SD
Front axle allowable load: 5995kg
Frame Dimensions: 250×70, outer width 800mm
rear axle description: 153SD
rear axle allowable load: 9795kg
Axle ratio: 6.833
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

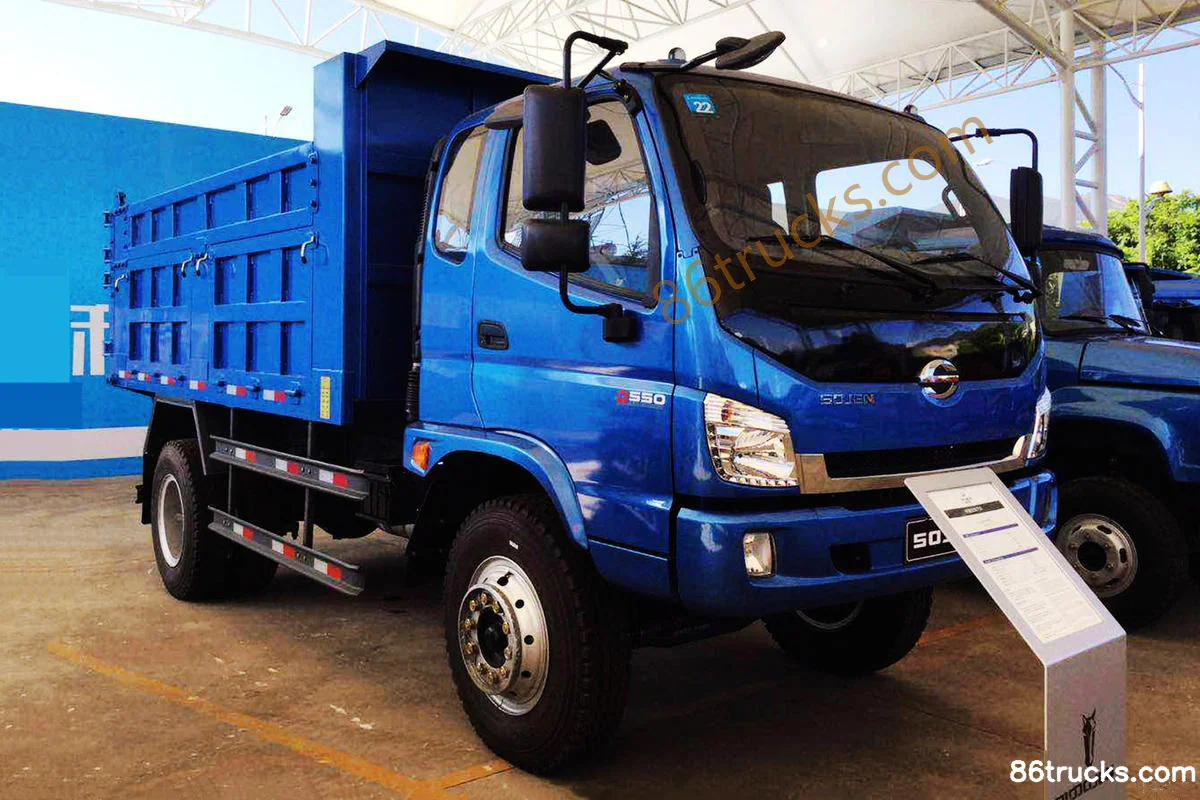

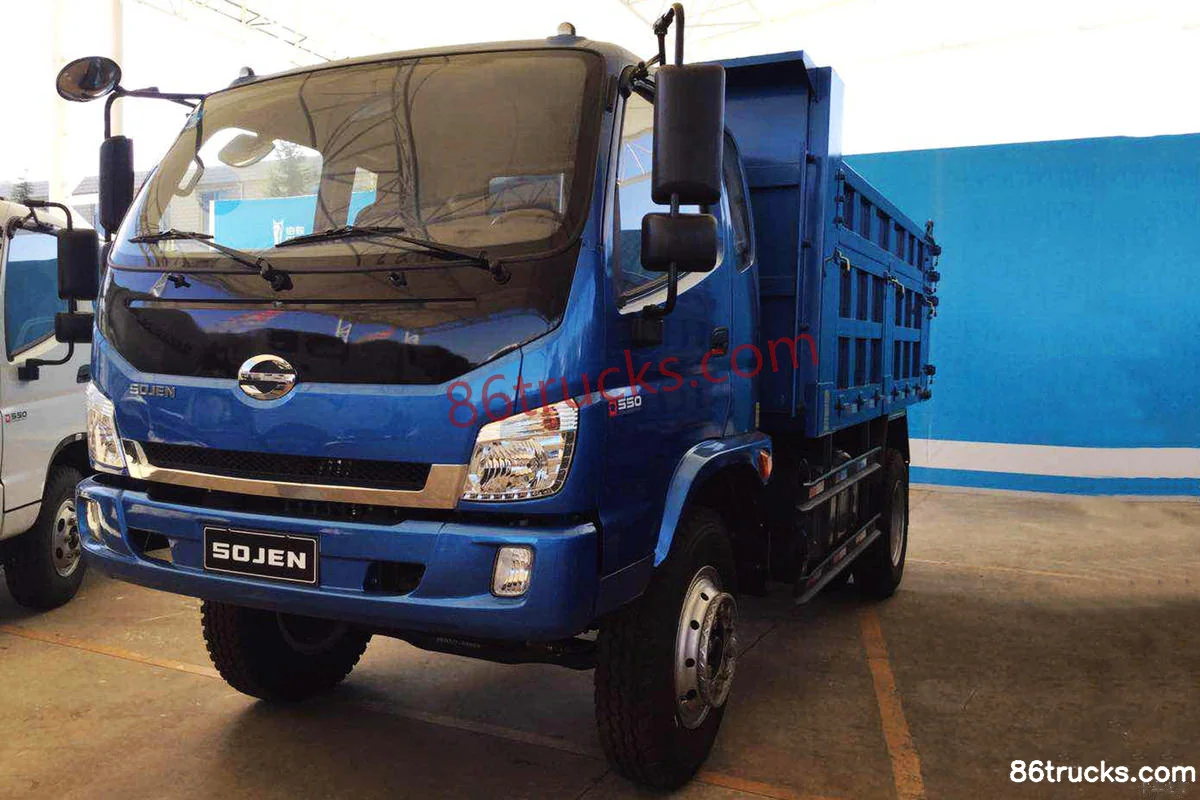

Exterior2

2 photos

FAQ

What emission standard does Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck?

Key specs of Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck suited for?

Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck differ from other variants in the same series?

Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck belongs to ShijunD550 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun D550 Light Truck 130hp 4X2(6 wheels) 4.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
