Dongfeng Tesun 160 hp 4X2(6 wheels) 4.2m dump truck (EQ3180GFV)
EXW
From $24,306
Export quote
Dongfeng Tesun Medium Truck Dump Trucks
Main model photos
392 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Tesun 160 hp 4X2(6 wheels) 4.2m dump truck (EQ3180GFV) | 4x2 / 160hp / China V | From $24,306 | |
| Dongfeng Teson Zhixing Edition 300 hp 8X4(12 wheels) 6.8m Dump Truck (EQ3318GFV4) | 8x4 / 300hp / China V | From $38,194 | |
| Dongfeng Teson Zhixing Edition 300 hp 8X4(12 wheels) 6.5m Dump Truck (EQ3318GFV4) | 8x4 / 300hp / China V | From $38,194 | |
| Dongfeng Tesun 270hp 8X4(12 wheels) 6m dump truck (EQ3318GFV4) | 8x4 / 270hp / China V | From $35,000 | |
| Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1) | 4x2 / 160hp / China V | From $22,750 |
Dongfeng Teson Zhixing Edition 300 hp 8X4(12 wheels) 6.8m Dump Truck (EQ3318GFV4)
EXW
From $38,194
Export quote

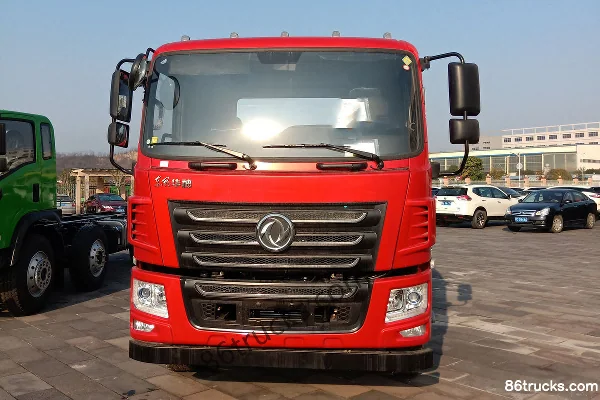

Dongfeng Teson Zhixing Edition 300 hp 8X4(12 wheels) 6.5m Dump Truck (EQ3318GFV4)
EXW
From $38,194
Export quote

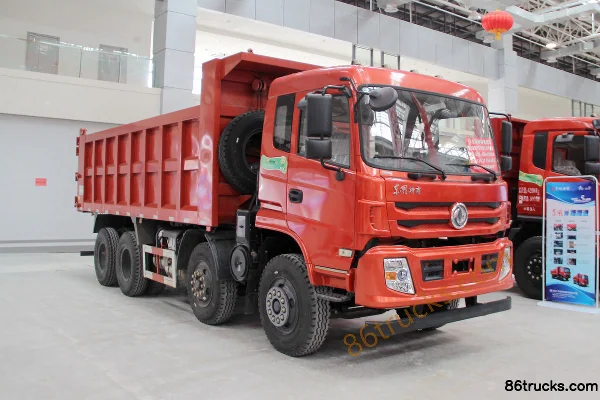

Dongfeng Tesun 270hp 8X4(12 wheels) 6m dump truck (EQ3318GFV4)
EXW
From $35,000
Export quote
Dongfeng Teshang 160hp 4X2(6 wheels) 4.5m Dump Truck (EQ3160GFV1)
EXW
From $22,750
Export quote
Series Specs
Basic Info
Model code (announced): EQ3180GFV / EQ3318GFV4 / EQ3160GFV1 / EQ3040GFV / LDW3250GF / EQ3259GFV / EQ3318GFV / EQ3318GFV3 / EQ3250VFV / EQ3319GFV / EQ3160GFV2 / EQ3160GFV / EQ3168KFN / EQ3120GFV / EQ1120GZ5DJ / EQ3040GF / EQ3319GF3 / EQ3060GF2 / EQ3318GF2 / EQ3318GF3 / EQ3318VF3 / CCF3040A1
Drive type: 4X2 / 8X4 / 6X2 / 6X4 / 8X2
Wheelbase: 3650 / 1850+3400+1350 / 1850+2900+1300 / 1850+2600+1300 / 3800 / 1850+4950 / 1750+3500 / 1850+3800+1300 / 3800+1300 / 5100 / 4500 / 3950 / 4250+1350 / 1750+2800 / 1850+3100+1300 / 1850+3400+1300 / 1850+2400+1300mm
Engine Model: YuchaiYC4E160-56 / WeichaiWP7.300E51 / WeichaiWP7.270E51 / YuchaiYC6A270-50 / YuchaiYC6JA220-50 / YuchaiYC4E140-56 / YuchaiYC6JA180-50 / YuchaiYC6L290-50 / YuchaiYC6JA240-50 / YuchaiYC6J210N-52 / YuchaiYC4FA120-50 / YuchaiYC4EG185-50 / YuchaiYC4G160-50 / YuchaiYC4D120-45 / YuchaiYC6A240-46 / YuchaiYC4EG160-40 / YuchaiYC6L290-42 / YuchaiYC6A270-46 / WeichaiWP10.270E40 / YuchaiYC6MK375-40 / YuchaiYC4E160-45 / YuchaiYC4D130-41
Transmission Model: Fast Gear10JS90A / Fast Gear10JSD140B / Fast Gear10JS120 / Fast Gear 8-speed / Fast Gear 10-Speed / Fast Gear8JS85E / Fast Gear8JS85F-C / Fast Gear9JS119A / Fast Gear10JSD120A / Fast Gear 9-speed / Fast Gear8JS118 / Fast Gear9JS119TA / Fast Gear8JS85I / Fast Gear8JS85E-C / WLYWLY5-speed / DachiDC6J70TC / Fast Gear10JS90 / Fast Gear8JS85F / Fast Gear12JSD200T / Fast Gear10JS118
Rear Axle Ratio: 6.833 / 5.571 / 6.83 / 5.75 / 6.33 / 4.875 / 6.167 / 4.83 / 5.286 / 3.6 / 4.44 / 5.92 / 5.57 / 6.5 / 5.143 / 5.51 / 6.38
Cab length: 6.6 / 9.7 / 10.4 / 6.85 / 6.15 / 5.99 / 9.3 / 8.9 / 9.85 / 6.53 / 6.55 / 8.35 / 8.3 / 10.3 / 8.95 / 8 / 6.7 / 7.86 / 7.35 / 7.05 / 7.55 / 7.43 / 5.995 / 10.5 / 7 / 9.9 / 9.73 / 9.5m
Cab width: 2.48 / 2.55 / 2.4 / 2.3 / 2.5 / 2.35 / 2120m
Cab height: 3 / 3.3 / 2.8 / 3.31 / 2.95 / 3.35 / 3.18 / 2.85m
Front track width: 1870 / 1950/1950 / 1790 / 1900/1900 / 1920/1920 / 1790/1790 / 1980 / 1980/1980 / 1920 / 1960 / 1810 / 2050/2050 / 1750mm
rear track: 1755 / 1860/1860 / 1750/1750 / 1860 / 1800 / 1586mm
Curb Weight: 7.875 / 12 / 7.71 / 2.6 / 10.8 / 9.9 / 14.8 / 11.9 / 12.5 / 7.58 / 7.85 / 6.71 / 6.81 / 3.36 / 2.58ton
Rated payload: 9.93 / 18.87 / 7.995 / 1.495 / 18.805 / 13.905 / 14.805 / 16.005 / 12.805 / 18.305 / 8.125 / 7.855 / 4.495 / 4.925 / 1.99 / 1.49ton
GVWR: 18 / 31 / 15.9 / 4.29 / 24.9 / 11.9 / 11.93 / 5.545 / 4.265ton
Origin: Shiyan, Hubei / Xiangyang, Hubei
tonnage class: Medium-duty truck / Heavy truck / Light Truck
Approach angle: 23 / 20°
departure angle: 23 / 18 / 17 / 16 / 21 / 20 / 19 / 13 / 14 / 15 / 22°
Remarks: Desert air filter, optional 10JSD120B, Tianlong-style battery master switch / Optional transmission: 10JSD / Rear axle ratio optional 6.833 / Optional air suspension seat / Optional air conditioning
Version: Zhixing Edition / LNG Edition / Lightweight version
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 4 / 6cylinder
Displacement: 4.26 / 7.47 / 7.52 / 6.87 / 8.424 / 6.494 / 2.982 / 4.73 / 4.214 / 7.255 / 9.726 / 10.338L
Emission standard: China V / China V (Beijing) / China IV
Max output power: 118 / 220 / 199 / 162 / 103 / 132 / 213 / 177 / 155 / 88 / 136 / 90 / 276 / 96kW
Max hp: 160 / 300 / 270 / 220 / 140 / 180 / 290 / 240 / 210 / 120 / 185 / 375 / 130Horsepower
Max torque: 600 / 1250 / 1160 / 1100 / 860 / 500 / 700 / 950 / 710 / 320 / 380 / 900 / 1150 / 1000 / 1270 / 1900 / 550 / 420N·m
Max torque speed: 1300-1600 / 1200-1700 / 1200-1800 / 1600-2400 / 1300-1800 / 1400-1800 / 1200-1500 / 1100-1500rpm
Rated speed: 2600 / 2300 / 2200 / 2500 / 3200 / 2800 / 1900rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Inline 6-cylinder, electronic high-pressure common rail, SCR / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Electronic unit pump EGR + POC + DOC / Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection / BOSCH high-pressure common rail SCR / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronic high-pressure common rail, SCR / Electronic high-pressure common rail + SCR / Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Electronic unit pump SCR
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Dachi
shift method: Manual
Forward gears: 10 / 8 / 9 / 5 / 6 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box thickness: floor 3mm side 2mm
Cargo box type: Dump type
Cargo box length: 4.2 / 6.8 / 6.5 / 6 / 4.5 / 3.8 / 7.6 / 5.8 / 5.6 / 5.4 / 5.2 / 4.75 / 4.7 / 6.4 / 4.8 / 7.3 / 7m
Cargo box width: 2.2 / 2.38 / 2.3 / 2.35m
FAQ
What kind of truck is Dongfeng Dongfeng Tesun Medium Truck Dump Trucks?
Dongfeng Dongfeng Tesun Medium Truck is an export-oriented Dump Trucks lineup with about 76 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Tesun Medium Truck Dump Trucks?
Dongfeng Tesun Medium Truck Dump Trucks export reference is about $11,111 – $47,042. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Tesun Medium Truck Dump Trucks cover?
Dongfeng Tesun Medium Truck Dump Trucks mainly covers: Drive: 4x2 / 8x4; Horsepower: 160 hp / 270 hp / 300 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Tesun Medium Truck Dump Trucks?
For Dongfeng Tesun Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Tesun Medium Truck Dump Trucks include?
Dongfeng Tesun Medium Truck Dump Trucks currently lists about 76 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Tesun Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
