NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck
EXW
From $27,611
Export quote
NanJun Ruiyu K-Series Heavy Truck Dump Trucks
Main model photos
48 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck | 6x4 / 220hp / China V | From $27,611 | |
| NanJun Ruiyu K60 300 hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 300hp / China V | ||
| NanJun Ruiyu K60 300hp 8X4(12 wheels) 6m Dump Truck | 8x4 / 300hp / China V | From $39,306 | |
| NanJun Ruiyu K50D 160hp 4X2(6 wheels) 4.4m dump truck | 4x2 / 160hp / China V | From $24,486 | |
| NanJun Ruiyu K50D 160hp 4X2(6 wheels) 4.4m dump truck | 4x2 / 160hp / China V | From $24,486 |
NanJun Ruiyu K60 300 hp 8X4(12 wheels) 6.8m Dump Truck
EXW
Export quote

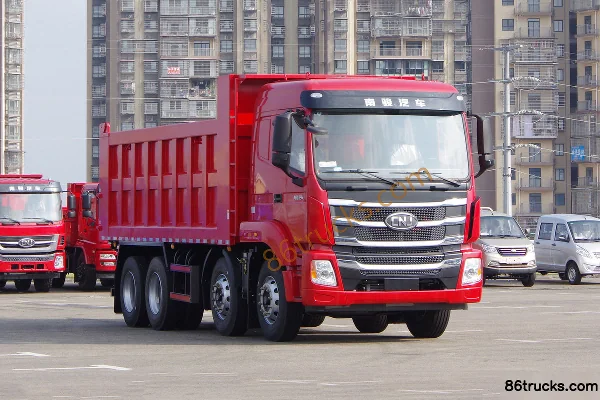

NanJun Ruiyu K60 300hp 8X4(12 wheels) 6m Dump Truck
EXW
From $39,306
Export quote
NanJun Ruiyu K50D 160hp 4X2(6 wheels) 4.4m dump truck
EXW
From $24,486
Export quote
NanJun Ruiyu K50D 160hp 4X2(6 wheels) 4.4m dump truck
EXW
From $24,486
Export quote
Series Specs
Basic Info
Model code (announced): NJA3240QPF38V / NJA3310RPE56V / NJA3180PPB38V / NJA3120PPB38V / NJA3100PPB38V / NJA3060PPB38V / NJA3250RPE56V
Drive type: 6X4 / 8X4 / 4X2
Wheelbase: 2550+1300 / 1800+3250+1300 / 1800+2550+1300 / 3600 / 3400 / 3850 / 3700 / 4200+1400mm
Engine Model: YuchaiYC4EG220-50 / WeichaiWP7.300E51 / YuchaiYC4E160-56 / YuchaiYC4E140-56A / WeichaiWP10H.375E50
Transmission Model: Fast Gear 8-speed / Fast Gear10-140CY1KQ / Fast Gear10-90CY6KQ / Fast Gear10-90CY5KQ / Fast Gear8-85CY7KQ / Fast Gear 10-Speed Transmission / 8-speed gearbox / Fast Gear 12-speed / Fast Gear 10-Speed / Fast Gear8-85DY3KQ
Rear Axle Ratio: 153 / 6.833 / 6.5 / 6.8 / 5.26 / 5.571
Cab length: 6.55 / 8.75 / 6.9 / 6.15 / 6.3 / 6.5 / 5.95 / 9.11m
Cab width: 2.5 / 2.485 / 2.3 / 2.4 / 2.54 / 2150 / 1995 / 2250m
Cab height: 3 / 3.35 / 2.85 / 2.65 / 2.75 / 2.7 / 3.54m
Front track width: 1870 / 1987/1987 / 1670 / 1630 / 1900 / 1760 / 2000mm
rear track: 1930/1750 / 1860/1860 / 1635 / 1750 / 1700mm
Curb Weight: 7.905 / 12.5 / 7.81 / 6.805 / 5.99 / 3.365ton
Rated payload: 16.4 / 18.37 / 9.995 / 4.995 / 4.895 / 1.995 / 13.37ton
GVWR: 24.5 / 31 / 18 / 11.995 / 10.49 / 5.555 / 25ton
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck / Heavy truck / Light Truck
Approach angle: 19 / 14 / 17 / 13°
departure angle: 14 / 18 / 17°
Remarks: Front lift cylinder, 5-door / Hydraulic power steering, pneumatic control valve, S-cam roller type, auto slack adjuster, built-in front lift, reverse canopy, four longitudinal beams, six wide flip seats, double flip, with slot, integrated sealed rear door, with weather strip, rack-and-pinion soft top system / Hydraulic power steering, semi-floating hydraulic lock cab, pneumatic control valve, front single lift
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 4 / 6cylinder
Displacement: 4.73 / 7.47 / 4.26 / 9.726L
Emission standard: China V
Max output power: 160 / 220 / 118 / 103 / 276kW
Max hp: 220 / 300 / 160 / 140 / 375Horsepower
Max torque: 800 / 1250 / 600 / 450 / 1800N·m
Max torque speed: 1300-1700 / 1200-1700 / 1300-1600 / 1000-1400rpm
Rated speed: 2500 / 2300 / 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Inline 6-cylinder, electronic high-pressure common rail, SCR / Vertical, inline, water-cooled, four-stroke
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
Forward gears: 8 / 10 / 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG/130× 2850 / 2TG/110×510 / 4TG/140×3060 / 4TG-E180 / 4TG-E160
Cargo box thickness: floor 2 side 2 / floor 4 side 3mm / 8mm base, 5mm sides / floor 3mm side 2mm
Unloading Type: Dump type
Cargo box type: square box / U-shaped box / Dump type
Cargo box length: 4.6 / 6.8 / 6 / 4.4 / 3.9 / 4.5 / 4.1 / 4.3 / 6.2m
Cargo box width: 2.3 / 2.35 / 2.2m
FAQ
What kind of truck is NanJun NanJun Ruiyu K-Series Heavy Truck Dump Trucks?
NanJun NanJun Ruiyu K-Series Heavy Truck is an export-oriented Dump Trucks lineup with about 16 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for NanJun Ruiyu K-Series Heavy Truck Dump Trucks?
NanJun Ruiyu K-Series Heavy Truck Dump Trucks export reference is about $21,444 – $55,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does NanJun Ruiyu K-Series Heavy Truck Dump Trucks cover?
NanJun Ruiyu K-Series Heavy Truck Dump Trucks mainly covers: Drive: 4x2 / 6x4 / 8x4; Horsepower: 160 hp / 220 hp / 300 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in NanJun Ruiyu K-Series Heavy Truck Dump Trucks?
For NanJun Ruiyu K-Series Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does NanJun Ruiyu K-Series Heavy Truck Dump Trucks include?
NanJun Ruiyu K-Series Heavy Truck Dump Trucks currently lists about 16 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for NanJun Ruiyu K-Series Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
