NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck

Export reference
From $27,611
MSRP ¥19.88M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.905ton
Wheelbase:: 2550+1300mm
Tire Size:: 10.00R20 18PR
Rated payload: 16.4ton
Drive 6X4 (10 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck is a Medium-duty truck featuring 16.4t payload, 24.5t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3240QPF38V
Drive type: 6X4
Wheelbase: 2550+1300mm
engine: YuchaiYC4EG220-50
transmission: Fast Gear 8-speed
Cab length: 6.55m
Cab width: 2.5m
Cab height: 3m
Front track width: 1870mm
rear track: 1930/1750mm
Curb Weight: 7.905ton
Rated payload: 16.4ton
GVWR: 24.5ton
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 14°
Remarks: Front lift cylinder, 5-door
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.6m
Cargo box width: 2.3m
Cargo box height: 1.2m
fuel tank
Fuel tank capacity: 220L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 457 rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 3/6/10+8

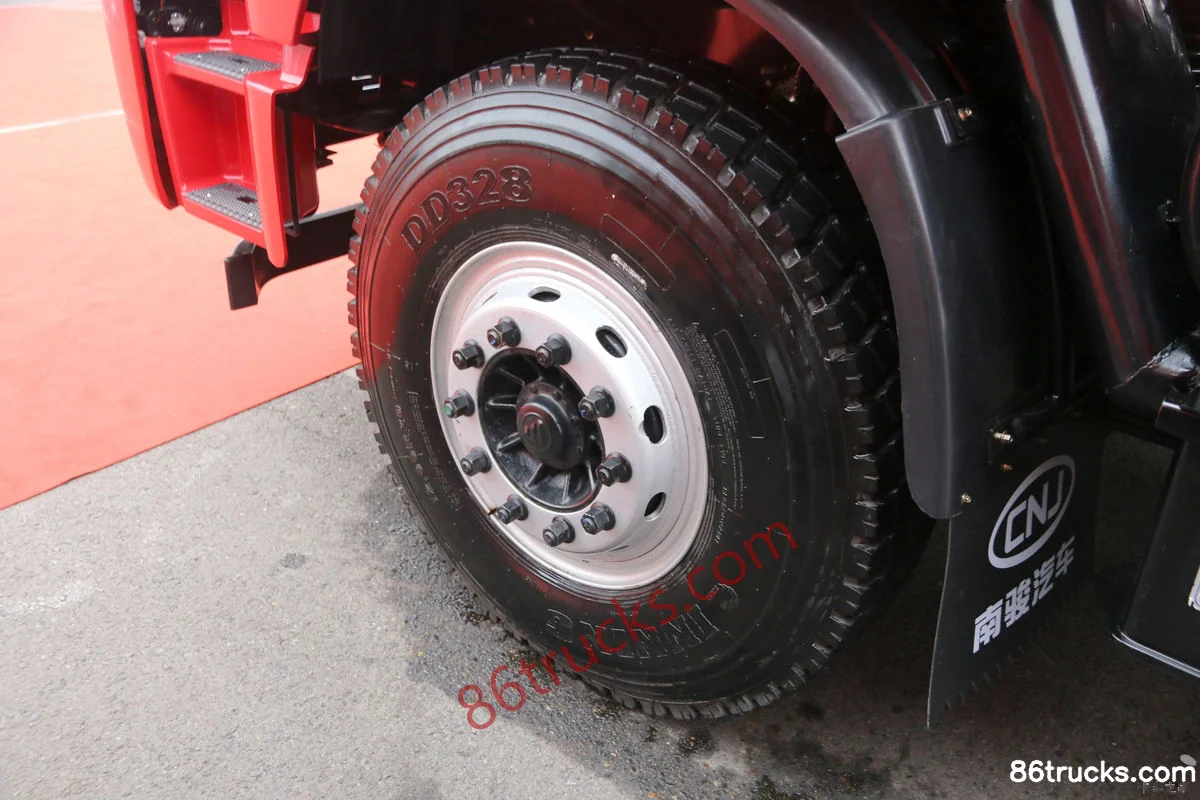

Tire
Tire Size: 10.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

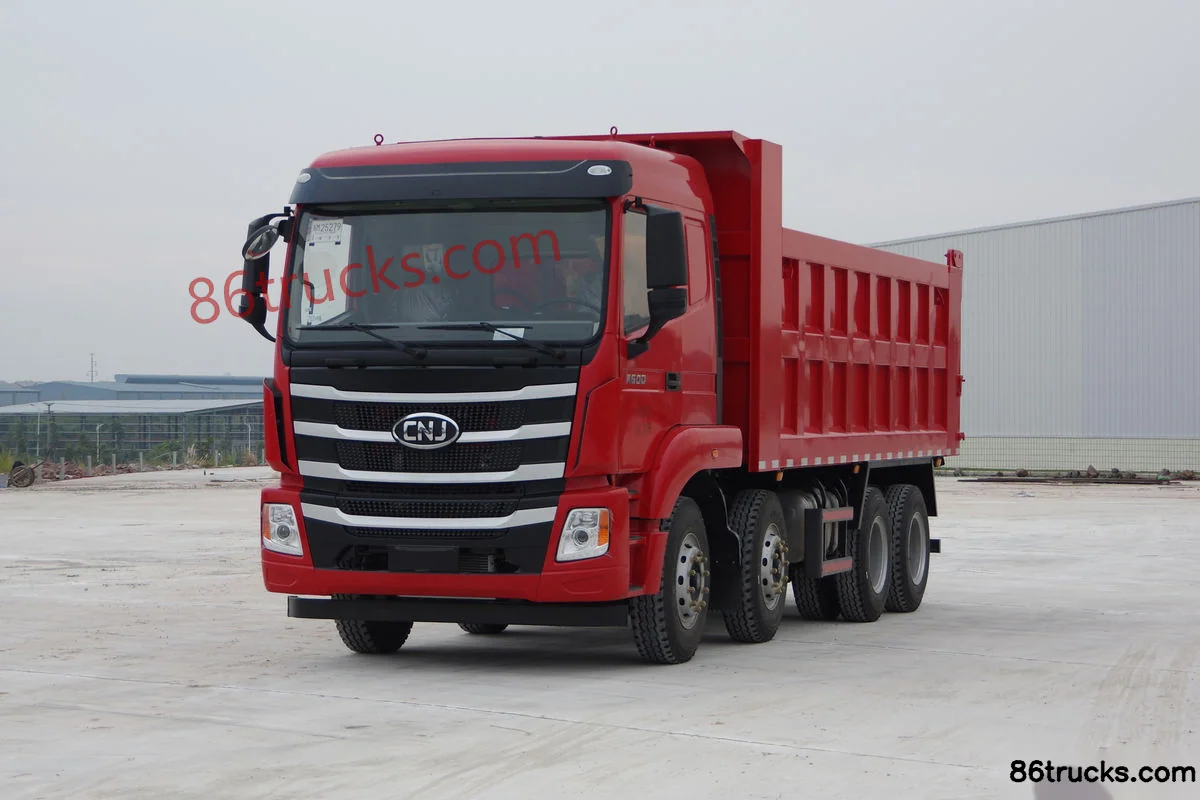

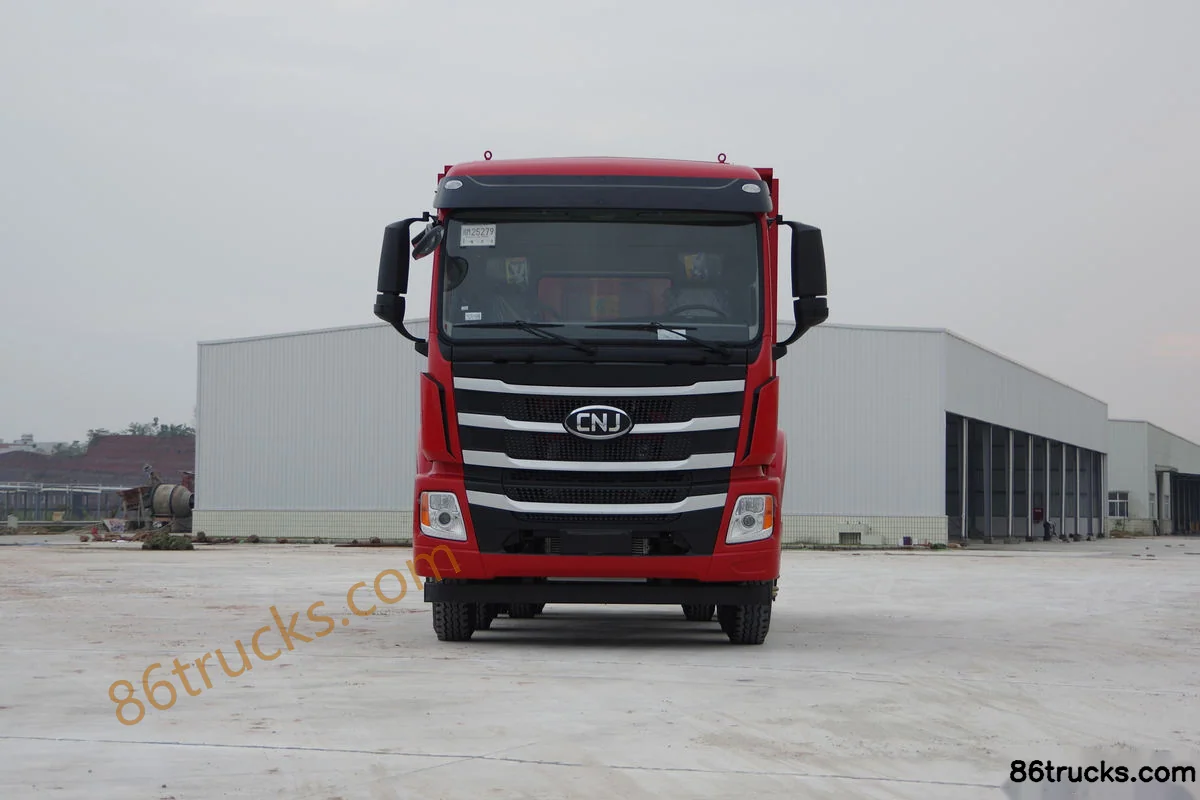

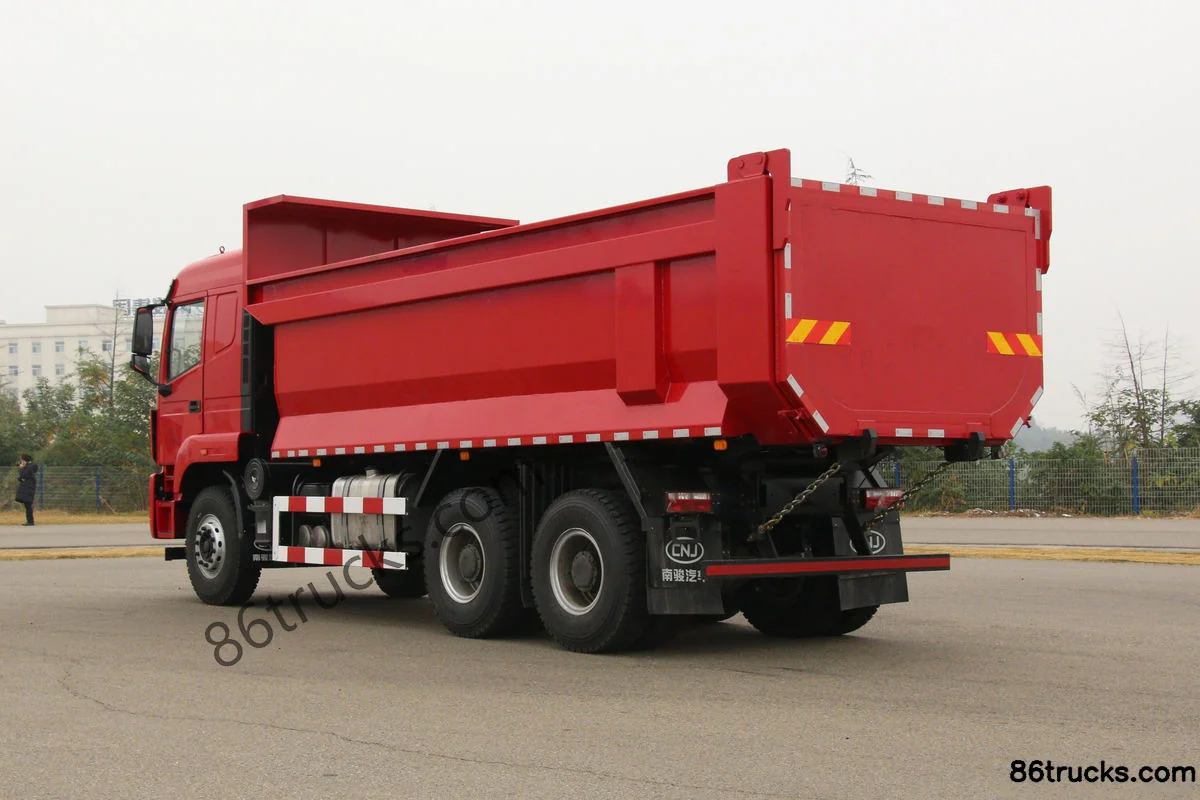

Exterior3

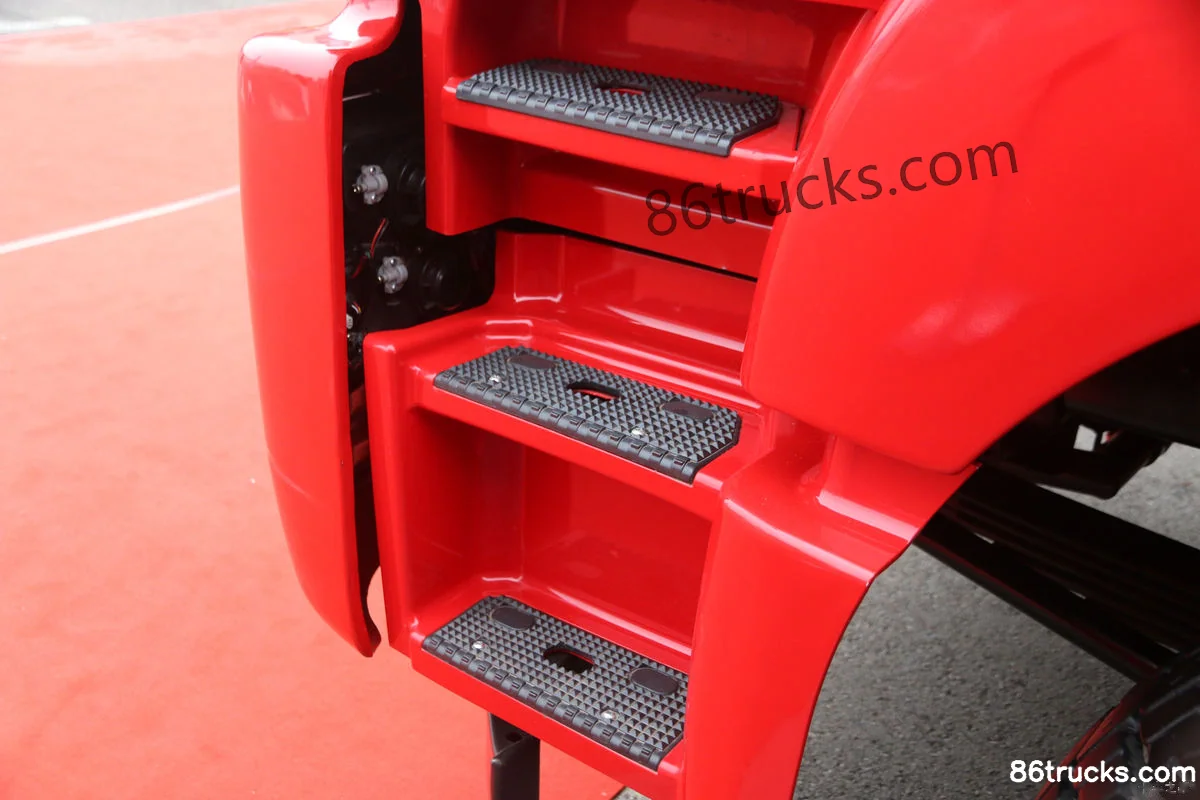

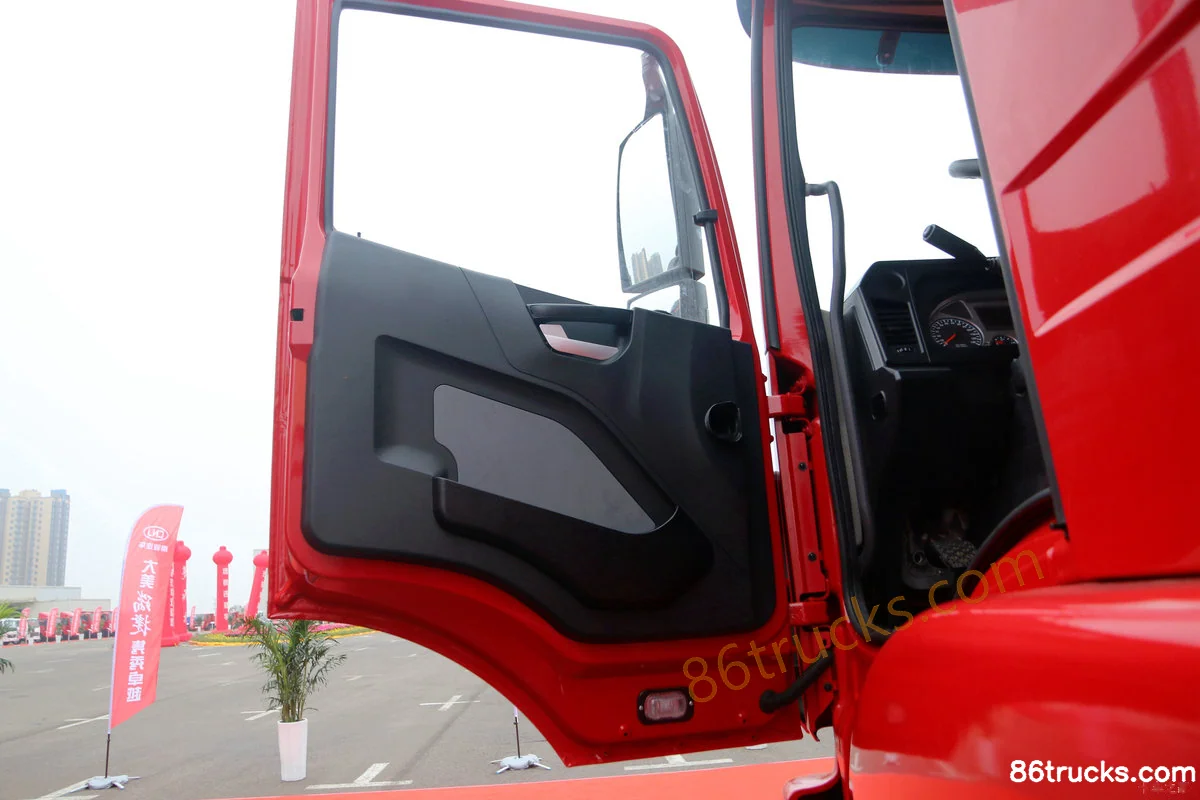

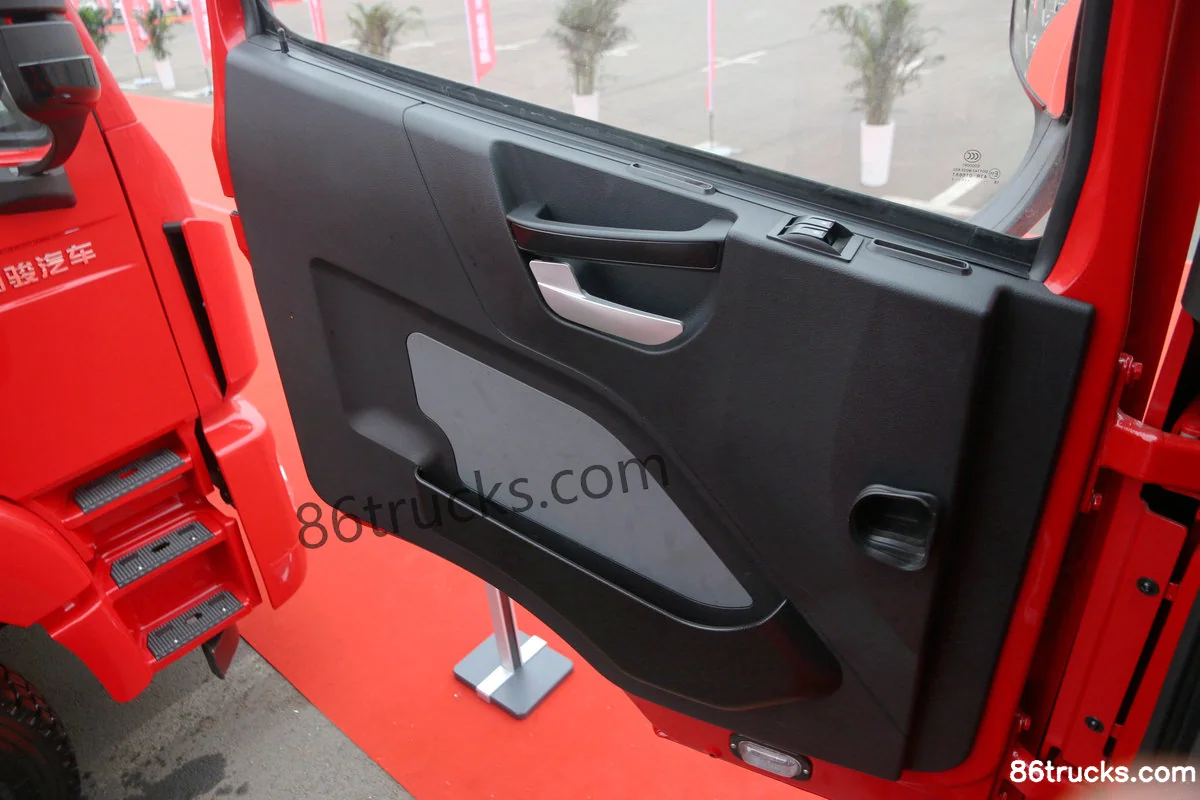

Cab3

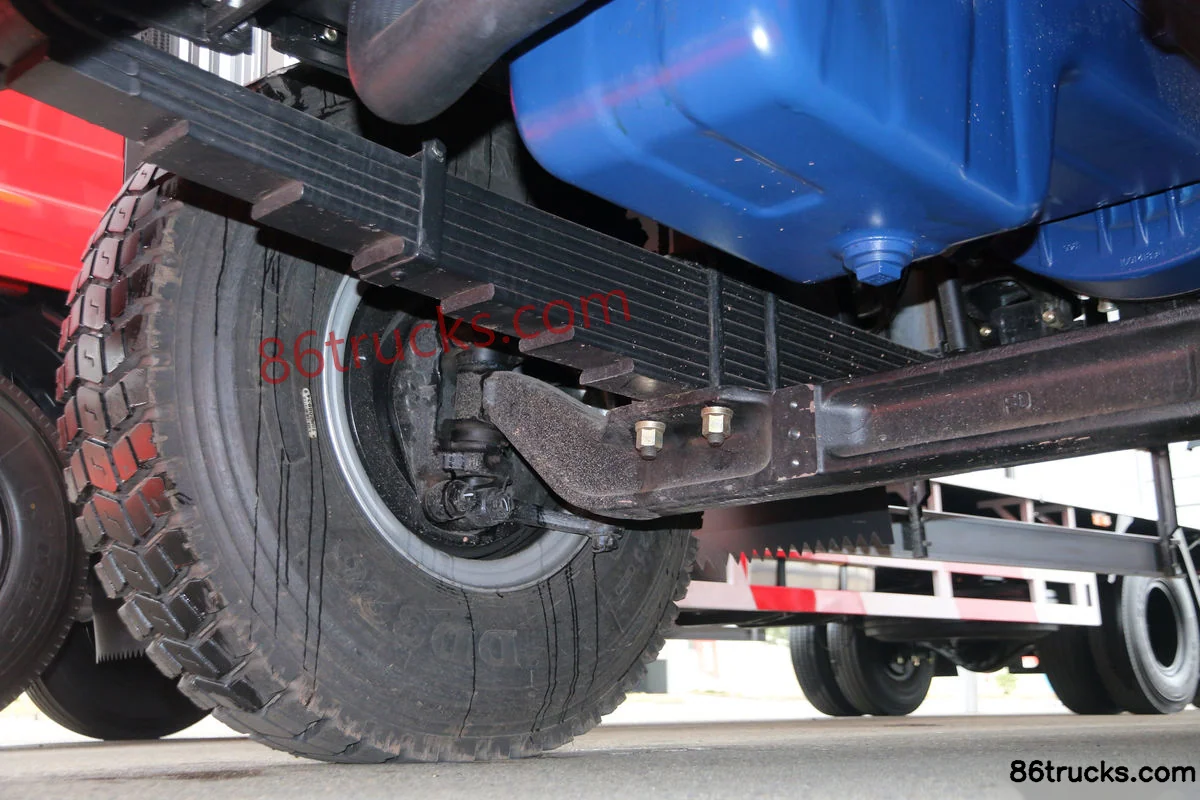

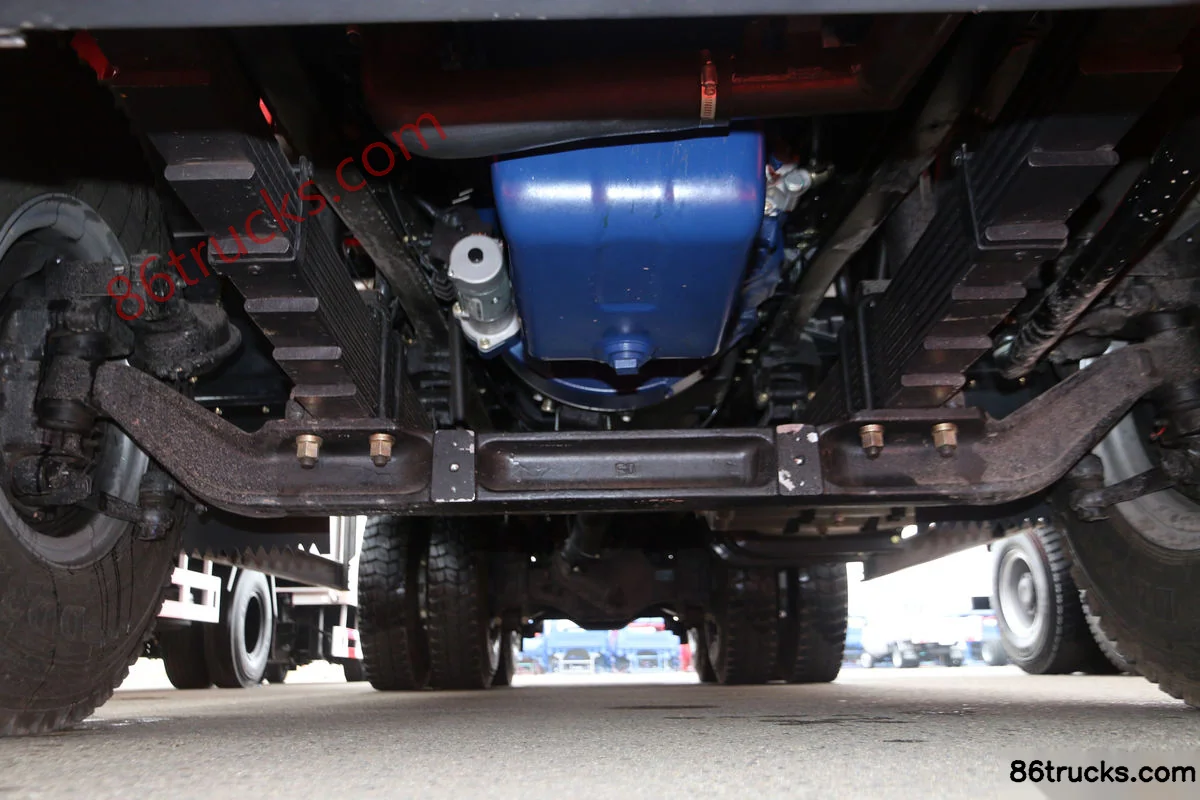

Chassis3

9 photos

FAQ

What is the export price of NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck, and what does it include?

NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck export reference is about From $27,611; MSRP is ¥19.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck?

Key specs of NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck: Drive: 6x4; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck suited for?

NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck differ from other variants in the same series?

NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck belongs to NanJun Ruiyu K-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiyu K50D 220 hp 6X4(10 wheels) 4.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
