Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck
EXW
Export quote
Shijun D260 (formerly Prince) Light Truck Dump
Main model photos
20 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck | 4x2 / 116hp / China IV | ||
| Shijun Prince II 115hp 4X2(6 wheels) 3.8m dump truck | 4x2 / 115hp / China IV | ||
| Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck | 4x2 / 102hp / China IV |

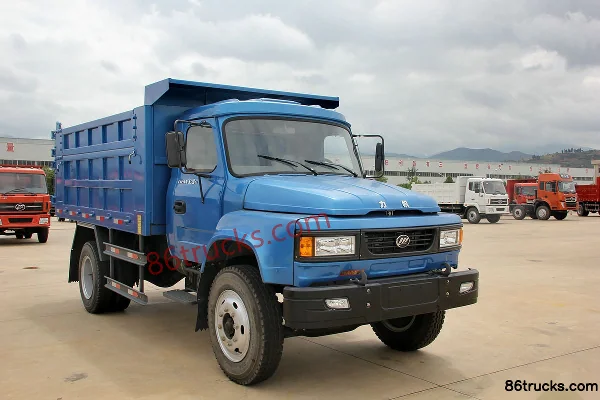

Shijun Prince II 115hp 4X2(6 wheels) 3.8m dump truck
EXW
Export quote

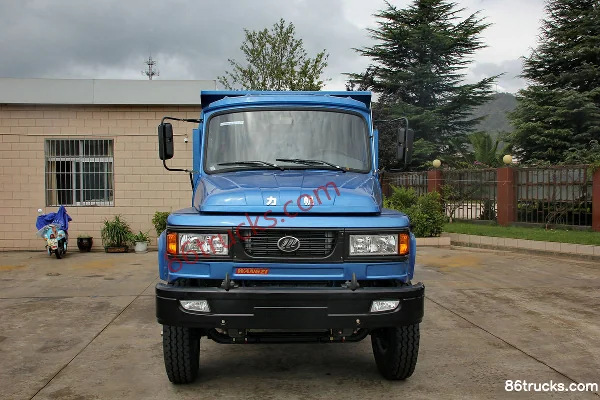

Shijun Prince II 102hp 4X2(6 wheels) 3.6m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): LFJ3045F1 / LFJ3065F4 / LFJ3055F1
Drive type: 4X2
Wheelbase: 3500 / 3830 / 3700mm
Engine Model: YuchaiYCD4M2L-115 / Yunnei PowerYN38CRD2 / Yunnei PowerYN33CRD2
Transmission Model: WLYWLY145HF
Rear Axle Ratio: 6.833
Cab length: 5.995 / 6.5 / 6.2m
Cab width: 2.11 / 2.3m
Cab height: 2.47 / 2.54m
Front track width: 1670 / 1750mm
rear track: 1650mm
Curb Weight: 2.57 / 3.36 / 3.275ton
Rated payload: 1.48 / 1.99 / 1.98ton
GVWR: 4.245 / 5.545 / 5.45ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 27°
departure angle: 31 / 30°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 3.707 / 3.76 / 3.298L
Emission standard: China IV
Max output power: 85 / 75kW
Max hp: 116 / 115 / 102Horsepower
Max torque: 325 / 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000 / 3200rpm
Engine Type: Vertical, inline, 4-stroke, water-cooled / Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC POC / Electronic high-pressure common rail diesel engine
Transmission Parameters
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.32 / 3.8 / 3.6m
Cargo box width: 1.91 / 2.1m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 155L
Chassis Specs
Front axle description: 1062
Front axle allowable load: 1850 / 1980kg
FAQ
What kind of truck is Shijun Shijun D260 (formerly Prince) Light Truck Dump Trucks?
Shijun Shijun D260 (formerly Prince) Light Truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Shijun D260 (formerly Prince) Light Truck Dump cover?
Shijun D260 (formerly Prince) Light Truck Dump mainly covers: Drive: 4x2; Horsepower: 102 hp / 115 hp / 116 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shijun D260 (formerly Prince) Light Truck Dump?
For Shijun D260 (formerly Prince) Light Truck Dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Shijun D260 (formerly Prince) Light Truck Dump include?
Shijun D260 (formerly Prince) Light Truck Dump currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shijun D260 (formerly Prince) Light Truck Dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
