Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.57ton
Wheelbase:: 3500mm
Tire Size:: 7.50-16LT(8PR)
Rated payload: 1.48ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck is a Light Truck featuring 1.48t payload, 4.245t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCD4M2L-115 engine, 116 hp, China IV emissions and WLY transmission.

China IV 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ3045F1
Drive type: 4X2
Wheelbase: 3500mm
engine: YuchaiYCD4M2L-115
transmission: WLYWLY145HF
Cab length: 5.995m
Cab width: 2.11m
Cab height: 2.47m
Front track width: 1670mm
rear track: 1650mm
Curb Weight: 2.57ton
Rated payload: 1.48ton
GVWR: 4.245ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 27°
departure angle: 31°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCD4M2L-115
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.707L
Emission standard: China IV
Max output power: 85kW
Max hp: 116Horsepower
Engine Type: Vertical, inline, 4-stroke, water-cooled
Transmission Parameters
Transmission Model: WLYWLY145HF
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.32m
Cargo box width: 1.91m
Cargo box height: 0.8m
Chassis Specs
Front axle description: 1062
Front axle allowable load: 1850kg
rear axle description: 1080 (145 Main Reducer)
rear axle allowable load: 2395kg
Leaf spring count: 9/11+8
Tire
Tire Size: 7.50-16LT(8PR)
Number of tires: 6pcs

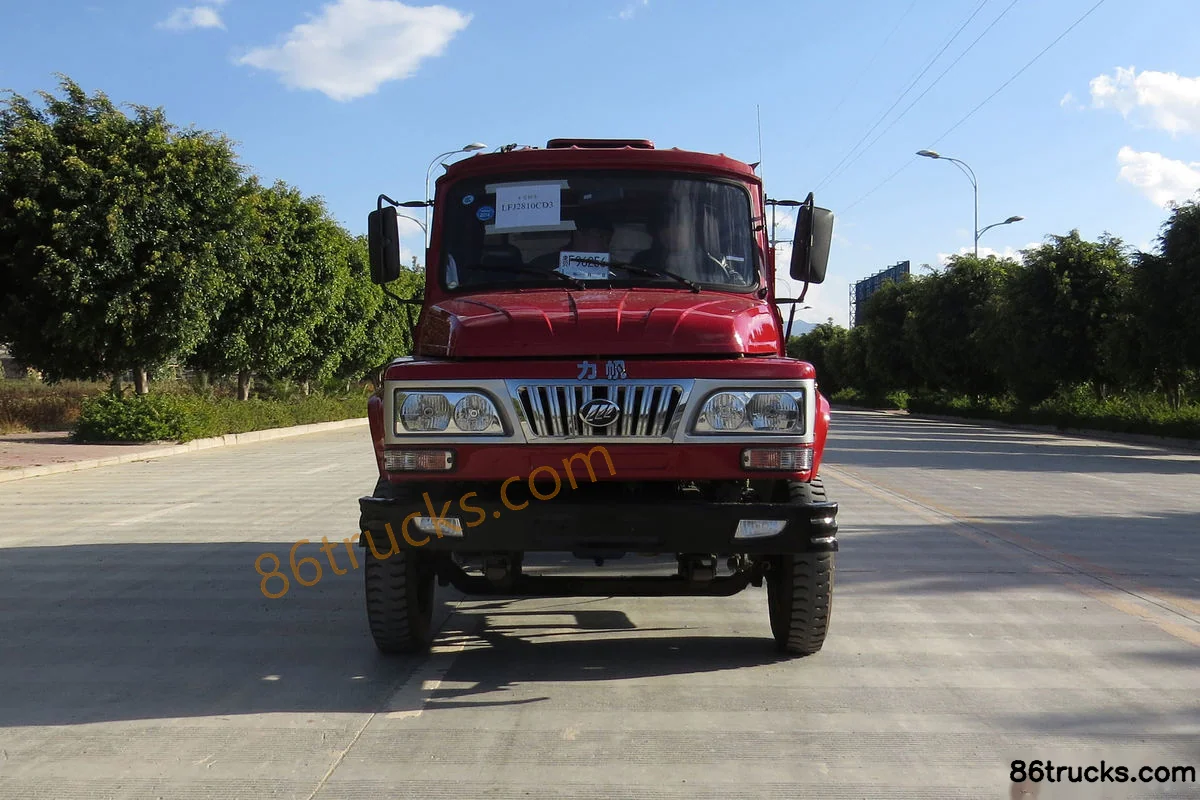

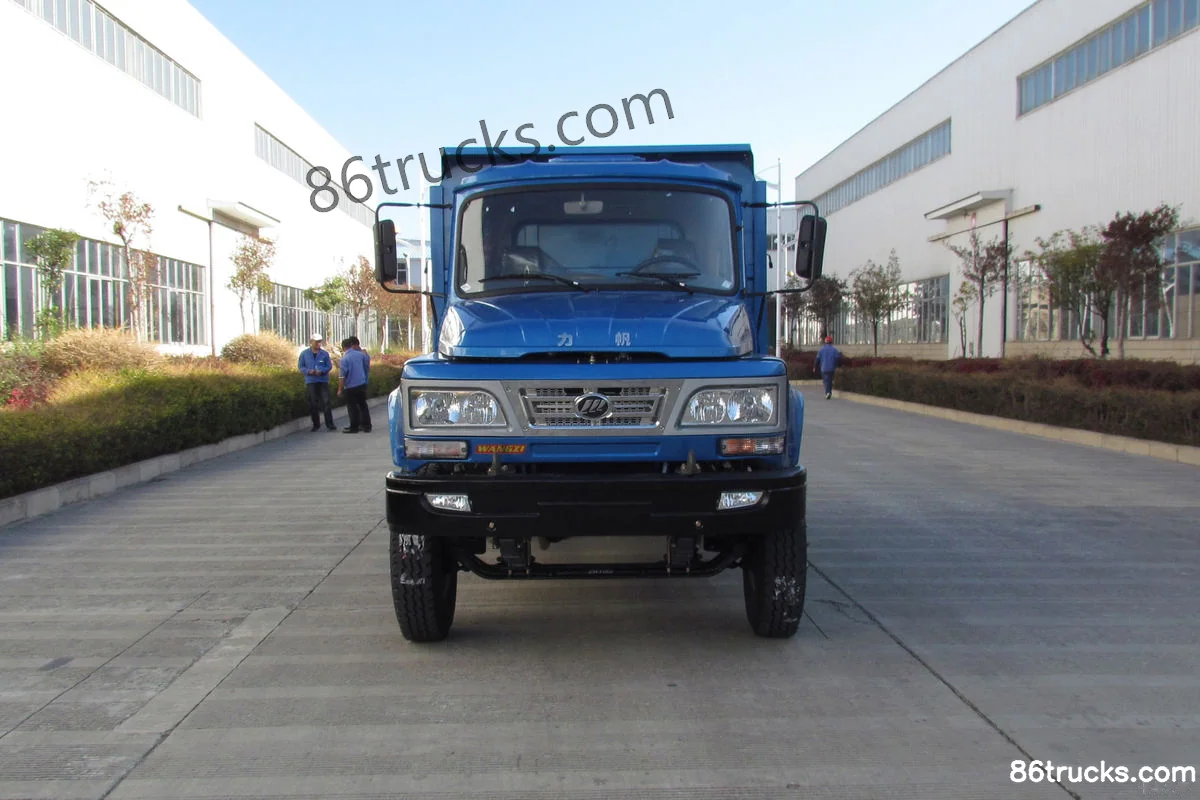

Photos

Exterior2

2 photos

FAQ

What emission standard does Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck?

Key specs of Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck suited for?

Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck differ from other variants in the same series?

Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck belongs to Shijun D260 (formerly Prince) Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun Wangzi Light Truck 116hp 4X2(6 wheels) 3.32m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
