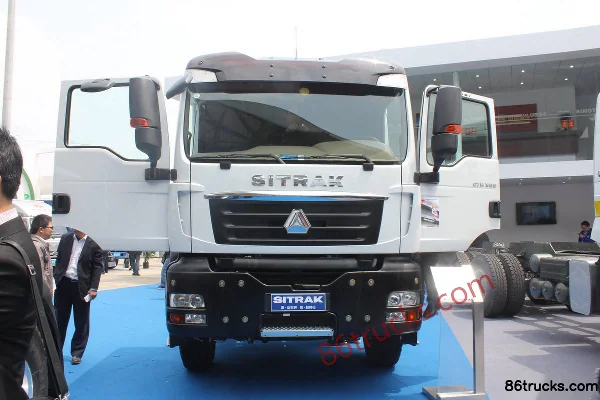

Sinotruk Sitrak SITRAK C7H Heavy Truck 440 hp 6X4(10 wheels) 6.8m Dump Truck (China VI)
EXW
From $56,944
Export quote
Sitrak SITRAK C7H heavy truck Dump Trucks
Main model photos
721 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Sitrak SITRAK C7H Heavy Truck 440 hp 6X4(10 wheels) 6.8m Dump Truck (China VI) | 6x4 / 440hp / China VI | From $56,944 | |
| Sinotruk Sitrak C7H 360 hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 360hp / China V | From $50,694 | |
| Sinotruk Sitrak C7H 440 hp 8X4(12 wheels) 8.8m dump truck | 8x4 / 440hp / China V | From $63,611 | |
| Sinotruk Sitrak G7H Heavy Truck 400hp 6X4(10 wheels) 8.3m Dump Truck (China VI) | 6x4 / 400hp / China VI | ||
| Sinotruk Sitrak C7H heavy truck 440 hp 8X4(12 wheels) 7.8 m dump truck (China VI) | 8x4 / 440hp / China VI | From $61,806 |
Sinotruk Sitrak C7H 360 hp 6X4(10 wheels) 5.6m dump truck
EXW
From $50,694
Export quote

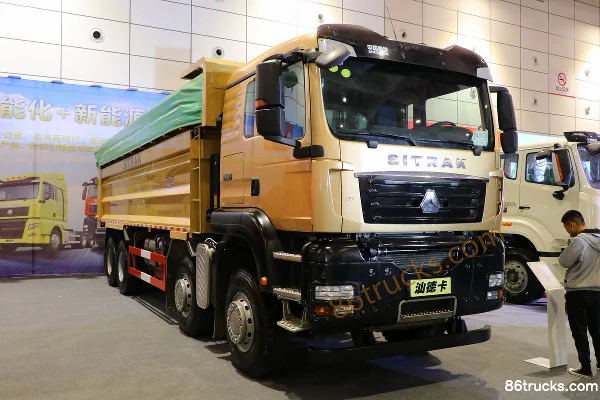

Sinotruk Sitrak C7H 440 hp 8X4(12 wheels) 8.8m dump truck
EXW
From $63,611
Export quote
Sinotruk Sitrak G7H Heavy Truck 400hp 6X4(10 wheels) 8.3m Dump Truck (China VI)
EXW
Export quote
Sinotruk Sitrak C7H heavy truck 440 hp 8X4(12 wheels) 7.8 m dump truck (China VI)
EXW
From $61,806
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3257V4647F1 / ZZ5256ZLJN384SE1 / ZZ3316N486HE1 / ZZ3316N326MF1 / ZZ3316N406MF1 / ZZ1256N404MD1
Drive type: 6X4 / 8X4
Wheelbase: 4625+1350 / 3825+1350 / 1950+4825+1350 / 1950+3225+1350 / 4025+1350mm
Engine Model: SinotrukMC11.44-60 / SinotrukMC09.36-50 / SinotrukMC11.44-50 / WeichaiWP10H400E62 / SinotrukMC11.36-40
Transmission Model: Sinotruk 12-speed transmission / SinotrukHW19712 / SinotrukHW25712XSTL / SinotrukHW25712XS / ZFZF16S1850
Rear Axle Ratio: 5.45
Cab length: 9.77 / 8.52 / 11.832 / 9.572 / 10.752 / 8.56m
Cab width: 2.52 / 2.55 / 2.496m
Cab height: 3.45 / 3.46 / 3.91 / 3.5 / 3.21m
Front track width: 2022 / 2022/2022 / 2041/2041mm
rear track: 1860/1860 / 1830/1830mm
Curb Weight: 12.5 / 15.5 / 9.23ton
Rated payload: 12.37 / 15.37ton
GVWR: 25 / 31ton
Origin: Shandong Zhangqiu / Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 17 / 15 / 19 / 22°
departure angle: 19 / 25 / 17 / 24 / 26°
Remarks: HW50 direct-connected PTO / Mid-width extended cab
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk / Weichai
Number of cylinders: 6 / 5cylinder
Displacement: 10.518 / 8.765 / 9.5L
Emission standard: China VI / China V / China IV
Max output power: 327 / 265 / 324 / 294kW
Max hp: 440 / 360 / 400Horsepower
Max torque: 2100 / 1700 / 1900 / 1800N·m
Max torque speed: 1000-1400 / 1100-1400 / 1200-1300rpm
Rated speed: 1900rpm
Engine Type: High-pressure common rail + EGR + SCR / Inline, 4-stroke, turbocharged with intercooler, Bosch high-pressure common rail CP3.4+ / Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi SCR
Transmission Parameters
Transmission Brand: Sinotruk / ZF
shift method: Manual
Forward gears: 12 / 16Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.8 / 5.6 / 8.8 / 8.3 / 7.8m
Cargo box width: 2.35 / 2.55m
Cargo box height: 1.5 / 1.2 / 3.46m
Body Parameters
Lifting type: Electric
FAQ
What kind of truck is Sitrak Sitrak SITRAK C7H heavy truck Dump Trucks?
Sitrak Sitrak SITRAK C7H heavy truck is an export-oriented Dump Trucks lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sitrak SITRAK C7H heavy truck Dump Trucks?
Sitrak SITRAK C7H heavy truck Dump Trucks export reference is about $50,694 – $63,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sitrak SITRAK C7H heavy truck Dump Trucks cover?
Sitrak SITRAK C7H heavy truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 360 hp / 400 hp / 440 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sitrak SITRAK C7H heavy truck Dump Trucks?
For Sitrak SITRAK C7H heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sitrak SITRAK C7H heavy truck Dump Trucks include?
Sitrak SITRAK C7H heavy truck Dump Trucks currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sitrak SITRAK C7H heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
