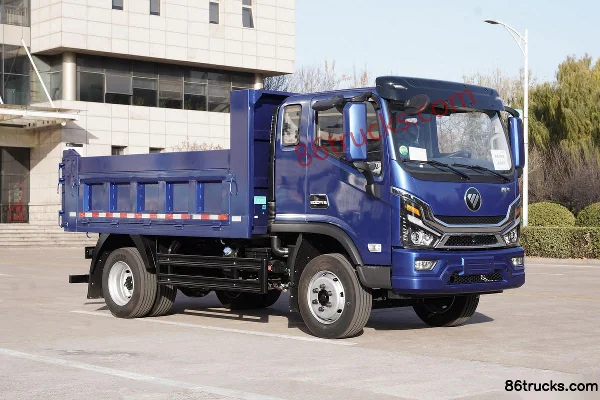

Foton Dajingang ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 8-speed 3.18m Single-row Dump Truck
EXW
From $20,833
Export quote
Foton Dajingang ES3 Pro light-duty truck Dump Trucks
Main model photos
24 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Dajingang ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 8-speed 3.18m Single-row Dump Truck | 4x2 / 172hp / China VI | From $20,833 | |
| Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.6m Single Row Dump Truck | 4x2 / 172hp / China VI | From $21,111 | |
| Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.5m Single Row Dump Truck | 4x2 / 172hp / China VI | From $21,111 | |
| Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.3m Single Row Dump Truck | 4x2 / 172hp / China VI | From $21,111 | |
| Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck | 4x2 / 172hp / China VI | From $21,111 |
Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.6m Single Row Dump Truck
EXW
From $21,111
Export quote
Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.5m Single Row Dump Truck
EXW
From $21,111
Export quote
Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.3m Single Row Dump Truck
EXW
From $21,111
Export quote
Foton Big Diamond ES3 Pro 2.5L Diesel 172 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck
EXW
From $21,111
Export quote
Series Specs
Basic Info
Model code (announced): BJ3045D9JBA-33 / BJ3114DFJDA-03 / BJ3184DLPDA-02 / BJ3124DJJBA-06 / BJ3124DGPBA-05
Drive type: 4X2
Wheelbase: 2900 / 3400 / 3360 / 3300mm
Engine Model: YuchaiYCF25175-66 / YuchaiYCY30170-61 / Yunnei PowerYN25PLUS10 / YCF25175-66 / YCY30170-61
Transmission Model: Fast Gear8JS85TE / Fast Gear10JS90A-B / Fast Gear8JS85TF / WLY 8-speed / 8JS85TE / 10JS90A-B
Rear Axle Ratio: 6.33 / 5.857 / 5.286
Cab length: 4.995 / 5.99 / 6.34 / 6.11 / 6.055 / 5.83m
Cab width: 1.96 / 2.26 / 2.42 / 2.182 / 2.31 / 1880m
Cab height: 2.56 / 2.685 / 2.41 / 2.45m
Front track width: 1670 / 1774 / 1760 / 1590 / 1620mm
rear track: 1685 / 1645 / 1725 / 1634 / 1665mm
Curb Weight: 2.72 / 5.3 / 7.81 / 7.105 / 4.15 / 4.65ton
Rated payload: 1.645 / 5.705 / 9.995 / 10.7 / 7.65 / 7.15ton
GVWR: 4.495 / 11.2 / 18 / 11.995ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20 / 19 / 21°
departure angle: 28 / 15 / 17 / 19 / 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 2.488 / 2.97 / 2.499L
Emission standard: China VI
Max output power: 127 / 125 / 111kW
Max hp: 172 / 170 / 151Horsepower
Max torque: 450N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 8 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.18 / 3.6 / 3.5 / 3.3 / 3.2 / 4 / 3.8 / 4.15m
Cargo box width: 1.8 / 2 / 2.2 / 2.1m
Cargo box height: 0.8 / 0.5 / 0.6m
Cab parameters
Cab: Single Row / Sleeper cab
seating capacity: 2 / 3Personnel
fuel tank
Fuel tank capacity: 150L
FAQ
What kind of truck is Foton Foton Dajingang ES3 Pro light-duty truck Dump Trucks?
Foton Foton Dajingang ES3 Pro light-duty truck is an export-oriented Dump Trucks lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Dajingang ES3 Pro light-duty truck Dump Trucks?
Foton Dajingang ES3 Pro light-duty truck Dump Trucks export reference is about $20,833 – $21,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Dajingang ES3 Pro light-duty truck Dump Trucks cover?
Foton Dajingang ES3 Pro light-duty truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 172 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Dajingang ES3 Pro light-duty truck Dump Trucks?
For Foton Dajingang ES3 Pro light-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Dajingang ES3 Pro light-duty truck Dump Trucks include?
Foton Dajingang ES3 Pro light-duty truck Dump Trucks currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Dajingang ES3 Pro light-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
