SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240 hp 4X2(6 wheels) Fast Gear 10-Speed 5.2m Dump Truck
EXW
From $25,958
Export quote
SHACMAN Commercial Vehicle Delong G500 Medium Truck
Main model photos
63 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240 hp 4X2(6 wheels) Fast Gear 10-Speed 5.2m Dump Truck | 4x2 / 240hp / China VI | From $25,958 | |
| SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240 hp 4X2(6 wheels) Fast Gear 10-Speed 4.2m Dump Truck | 4x2 / 240hp / China VI | From $25,708 | |
| SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-speed 4m Dump Truck | 4x2 / 240hp / China VI | From $25,667 | |
| SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-speed 3.75m Dump Truck | 4x2 / 240hp / China VI | From $25,625 | |
| SHACMAN Commercial Vehicle Delong G500 Standard Load Edition 4.3L Diesel 240hp 6X2R Fast Gear 10-speed 5.2m Dump Truck | 6x2R / 240hp / China VI | From $28,194 |
SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240 hp 4X2(6 wheels) Fast Gear 10-Speed 4.2m Dump Truck
EXW
From $25,708
Export quote

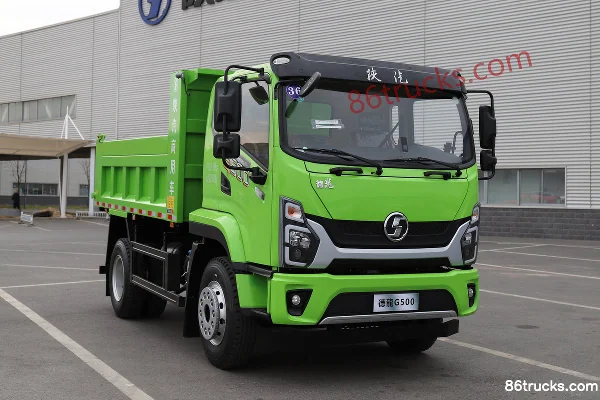

SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-speed 4m Dump Truck
EXW
From $25,667
Export quote
SHACMAN Commercial Vehicle Delong G500 Composite Edition 4.3L Diesel 240hp 4X2(6 wheels) Fast Gear 10-speed 3.75m Dump Truck
EXW
From $25,625
Export quote

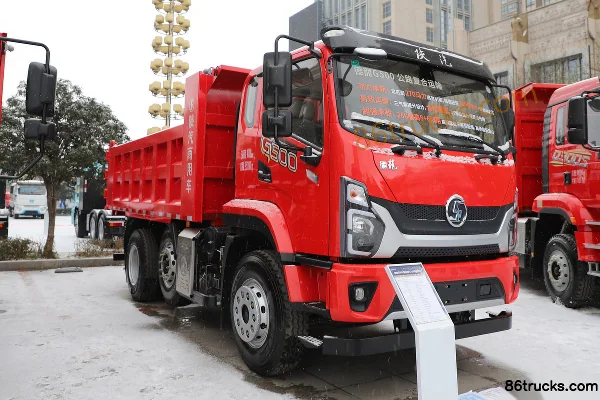

SHACMAN Commercial Vehicle Delong G500 Standard Load Edition 4.3L Diesel 240hp 6X2R Fast Gear 10-speed 5.2m Dump Truck
EXW
From $28,194
Export quote
Series Specs
Basic Info
Model code (announced): SX3160BP6341 / SX3250BP624L / SX3180BP6341 / SX3251BP624L / SX3181BP6381
Drive type: 4X2 / 6X2R
Wheelbase: 4500 / 3800 / 3600 / 3400 / 3200+1300 / 3000+1300 / 2400+1300 / 2800+1300 / 4250 / 3950 / 2600+1300 / 4050mm
Engine Model: YuchaiYCS04240-66 / YuchaiYCS04200-66 / YuchaiYCS07L245-66 / YuchaiYCS07L270-66 / YuchaiYCS04200-68 / YuchaiYCS04220-66 / YCS04240-66 / YCS04200-66 / YCS07L245-66 / YCS07L270-66 / YCS04220-66
Transmission Model: Fast GearS10MO / Fast Gear8JS85E-C / Fast GearS8MO / Fast Gear 10-Speed / S10MO / S8MO / 10-speed
Rear Axle Ratio: 5.73 / 6.33 / 5.571 / 5.83 / 6.72
Cab length: 7.8 / 6.45 / 6.2 / 6 / 7.85 / 7.95 / 7.45 / 7.3 / 7.2 / 6.825 / 6.725 / 6.95 / 6.75 / 7.15 / 7 / 7.5 / 6.65m
Cab width: 2.55 / 2.5 / 2.4 / 2120m
Cab height: 3.05 / 3.15 / 3.3 / 3.1 / 2.8m
Front track width: 1810 / 1937 / 1970mm
rear track: 1750 / 1890/1800 / 1890/1780 / 1800 / 1725mm
Curb Weight: 7.815 / 7.45 / 7.15 / 8.9 / 8.5 / 7.9 / 10 / 9.5 / 8.2 / 7.2 / 8.1 / 7.5ton
Rated payload: 8.055 / 8.355 / 8.655 / 15.905 / 16.37 / 9.97 / 14.87 / 15.305 / 9.37 / 9.67 / 8.905 / 10.605 / 16.705 / 10.305 / 10.67ton
GVWR: 16 / 25 / 18ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 23 / 21°
departure angle: 20 / 17 / 22°
Version: composite version / Standard Load Edition / reinforced version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4 / 6cylinder
Displacement: 4.295 / 6.442 / 4.16L
Emission standard: China VI
Max output power: 173 / 147 / 180 / 199 / 162kW
Max hp: 240 / 200 / 245 / 270 / 220Horsepower
Max torque: 900 / 1100 / 720 / 850N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel / Iron
Cargo box parameters
Unloading Type: Rear dump / Dump type
Cargo box length: 5.2 / 4.2 / 4 / 3.75 / 5.3 / 4.9 / 4.7 / 4.3 / 4.5 / 4.4m
Cargo box width: 2.3 / 2.35 / 2.4m
Cargo box height: 0.8 / 1.5 / 1.2m
Cab parameters
Cab: G500
FAQ
What kind of truck is SHACMAN Commercial Vehicle SHACMAN Commercial Vehicle Delong G500 Medium Truck Dump Trucks?
SHACMAN Commercial Vehicle SHACMAN Commercial Vehicle Delong G500 Medium Truck is an export-oriented Dump Trucks lineup with about 41 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Commercial Vehicle Delong G500 Medium Truck?
SHACMAN Commercial Vehicle Delong G500 Medium Truck export reference is about $20,625 – $31,639. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Commercial Vehicle Delong G500 Medium Truck cover?
SHACMAN Commercial Vehicle Delong G500 Medium Truck mainly covers: Drive: 4x2 / 6x2R; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Commercial Vehicle Delong G500 Medium Truck?
For SHACMAN Commercial Vehicle Delong G500 Medium Truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Commercial Vehicle Delong G500 Medium Truck include?
SHACMAN Commercial Vehicle Delong G500 Medium Truck currently lists about 41 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Commercial Vehicle Delong G500 Medium Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
