Sinotruk HOWO TX7 PRO Wozun Edition 12.4L Diesel 540 hp 8X4(12 wheels) Sinotruk 12-speed 8.5m Day Cab Dump Truck
EXW
Export quote
Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks
Main model photos
78 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TX7 PRO Wozun Edition 12.4L Diesel 540 hp 8X4(12 wheels) Sinotruk 12-speed 8.5m Day Cab Dump Truck | 8x4 / 540hp / China VI | ||
| Sinotruk HOWO TX7 PRO 540 hp 8X4(12 wheels) Sinotruk 12-speed 8.5m dump truck | 8x4 / 540hp / China VI | From $68,056 | |
| Sinotruk HOWO TX7 PRO 540 hp 6X4(10 wheels) Sinotruk 12-speed 6.2m dump truck | 6x4 / 540hp / China VI | From $62,500 | |
| Sinotruk HOWO TX7 PRO 350 hp 8X4(12 wheels) Sinotruk 13-speed 7.6m dump truck | 8x4 / 350hp / China VI | From $46,944 |
Sinotruk HOWO TX7 PRO 540 hp 8X4(12 wheels) Sinotruk 12-speed 8.5m dump truck
EXW
From $68,056
Export quote
Sinotruk HOWO TX7 PRO 540 hp 6X4(10 wheels) Sinotruk 12-speed 6.2m dump truck
EXW
From $62,500
Export quote

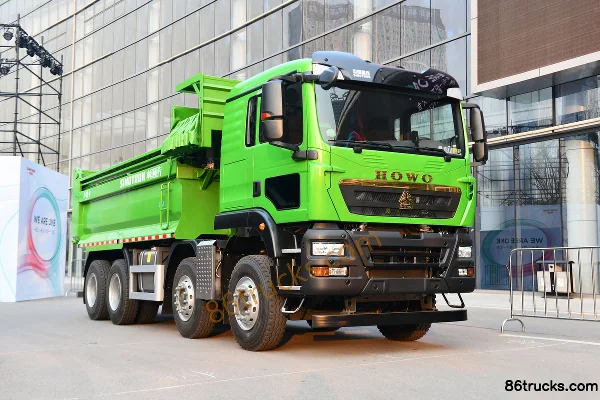

Sinotruk HOWO TX7 PRO 350 hp 8X4(12 wheels) Sinotruk 13-speed 7.6m dump truck
EXW
From $46,944
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3317V486HF1 / ZZ3257V464HF1 / ZZ3317V386GF1
Drive type: 8X4 / 6X4
Wheelbase: 1800+4825+1350 / 4600+1400 / 1800+3825+1350mm
Engine Model: SinotrukMC13.54-61 / WeichaiWP8.350E62 / MC13.54-61 / WP8.350E62
Transmission Model: Sinotruk 12-speed / Sinotruk / SinotrukHW28712XSJ / SinotrukHW23713C / HW25713C / HW28712XSJ / HW23713C
Rear Axle Ratio: 5.26 / 4.8
Cab length: 11.61 / 9.485 / 10.58m
Cab width: 2.55m
Cab height: 3.85 / 3.8m
Front track width: 2022/2022 / 2022mm
rear track: 1860/1860mm
Curb Weight: 15.5 / 12.5ton
Rated payload: 15.37 / 12.37ton
GVWR: 31 / 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 16 / 17°
departure angle: 19 / 21°
Version: Wozun Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk / Weichai
Number of cylinders: 6cylinder
Displacement: 12.419 / 7.8L
Emission standard: China VI
Max output power: 400 / 257kW
Max hp: 540 / 350Horsepower
Max torque: 2500 / 1400N·m
Max torque speed: 1000-1400 / 1200-1600rpm
Rated speed: 1900 / 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12 / 13Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 8.5 / 6.2 / 7.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: TH7-P / TH7-W cab / TX-F Flagship
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500 / 7000kg
FAQ
What kind of truck is Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks?
Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks?
Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks export reference is about $46,944 – $68,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks cover?
Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 350 hp / 540 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks?
For Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks include?
Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO SinotrukHOWOHOWO TX7 PRO Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
