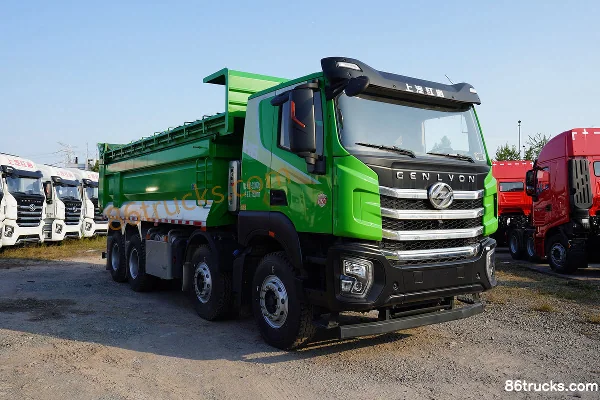

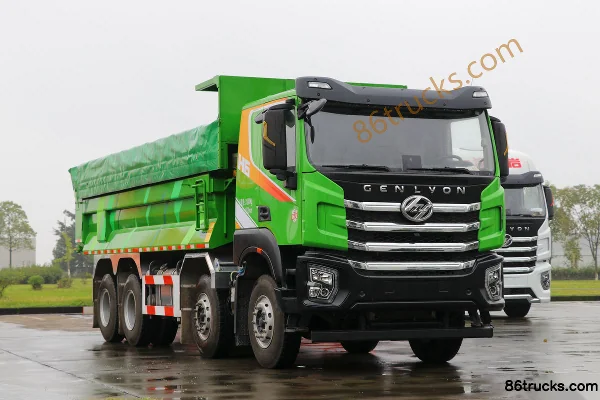

SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 6.5m dump truck (China VI)
EXW
From $66,667
Export quote
SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks
Main model photos
256 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 6.5m dump truck (China VI) | 8x4 / 460hp / China VI | From $66,667 | |
| SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460 hp 8X4(12 wheels) 7m Dump Truck (China VI) | 8x4 / 460hp | From $58,597 | |
| SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460 hp 8X4(12 wheels) 6.8m Dump Truck (China VI) | 8x4 / 460hp / China VI | From $58,597 | |
| SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460hp 8X4(12 wheels) 6.7m Dump Truck (China VI) | 8x4 / 460hp / China VI | From $58,597 | |
| SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460hp 8X4(12 wheels) 6.6m Dump Truck (China VI) | 8x4 / 460hp / China VI | From $53,292 |
SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460 hp 8X4(12 wheels) 7m Dump Truck (China VI)
EXW
From $58,597
Export quote
SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460 hp 8X4(12 wheels) 6.8m Dump Truck (China VI)
EXW
From $58,597
Export quote
SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460hp 8X4(12 wheels) 6.7m Dump Truck (China VI)
EXW
From $58,597
Export quote
SAIC Hongyan Genlyon H6 Composite Reinforced Edition 460hp 8X4(12 wheels) 6.6m Dump Truck (China VI)
EXW
From $53,292
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Genlyon H6 Heavy-duty 480hp 8X4(12 wheels) 8.2m Dump Truck (China VI) | 8x4 / 480hp / China VI | ||
| SAIC Hongyan Genlyon H6 Heavy-Duty Edition 460hp 8X4(12 wheels) 8.2m Dump Truck (China VI) | 8x4 / 460hp / China VI | ||
| SAIC Hongyan Genlyon H6 Heavy-duty 440hp 8X4(12 wheels) 8.2m Dump Truck (China VI) | 8x4 / 440hp / China VI | ||
| SAIC Hongyan Genlyon H6 Heavy-duty 420hp 8X4(12 wheels) 8.2m Dump Truck (China VI) | 8x4 / 420hp / China VI | ||
| SAIC Hongyan Genlyon H6 Heavy-duty 480hp 8X4(12 wheels) 8m Dump Truck (China VI) | 8x4 / 480hp / China VI |
SAIC Hongyan Genlyon H6 Heavy-duty 480hp 8X4(12 wheels) 8.2m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Genlyon H6 Heavy-Duty Edition 460hp 8X4(12 wheels) 8.2m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Genlyon H6 Heavy-duty 440hp 8X4(12 wheels) 8.2m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Genlyon H6 Heavy-duty 420hp 8X4(12 wheels) 8.2m Dump Truck (China VI)
EXW
Export quote
SAIC Hongyan Genlyon H6 Heavy-duty 480hp 8X4(12 wheels) 8m Dump Truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CQ3317SV11306 / CQ3317SD12406 / CQ5317ZLJSV11466 / CQ3317SV11466 / CQ5317ZLJSV11446 / CQ3317SV11446 / CQ3317SV11426 / CQ3317SV11406 / CQ5317ZLJSV11406 / CQ3317SV11386 / CQ3317SV11366
Drive type: 8X4
Wheelbase: 2000+3800+1400 / 2000+4000+1400 / 2000+4600+1400 / 2000+4400+1400 / 2000+4200+1400 / 2000+3600+1400mm
Engine Model: SDECSC12E460Q6 / SDECSC12E480Q6 / SDECSC12E440Q6 / SDECSC12E420Q6 / SAIC Fiat Powertrain HongyanF3GCE611D*M / SAIC Fiat Powertrain HongyanF3GCE611E*M
Transmission Model: Fast Gear12JSDX220T-B / Fast Gear12JSD200T-B
Rear Axle Ratio: 5.214
Cab length: 9.61 / 11.11 / 11.06 / 11.01 / 11.76 / 11.66 / 11.51 / 11.31 / 11.16 / 10.91 / 10.71 / 10.61 / 10.51 / 10.46 / 10.16m
Cab width: 2.55 / 2500m
Cab height: 3.46m
Front track width: 2020/2020 / 2060/2060mm
rear track: 1858/1858 / 1870/1870mm
Curb Weight: 15.5 / 14.1ton
Rated payload: 16.77 / 15.37ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 22 / 14 / 15 / 16 / 17 / 20°
Remarks: Cab configuration: with curtains, standard lower bunk, 220V power supply; other configurations: Henglong steering gear, intercooler guard, 180Ah battery, metal front bumper, electronic fuel pump, urea heating system, gearbox with power assist; options: high-roof long/flat-roof short cab, front stabilizer bar, HDZ300 drive axle, BOSCH steering gear, driver air seat (damping adjustable, ventilated & heated), plastic bumper, oil-bath air filter, 350L fuel tank (for wheelbase 3800mm and above), 10-inch center console (internet, Bluetooth, entertainment, phone mirroring)/12-inch center console (internet, Bluetooth, entertainment, phone mirroring, navigation), coastal version wiring harness.
Version: Heavy-duty version
Energy Type: Diesel
Engine parameters
Engine Brand: SDEC / SAIC Fiat Powertrain Hongyan
Number of cylinders: 6cylinder
Displacement: 11.81 / 11.8 / 11.12L
Emission standard: China VI
Max output power: 338 / 353 / 323 / 309 / 317 / 337kW
Max hp: 460 / 480 / 440 / 420 / 430Horsepower
Max torque: 2200 / 2100 / 2000N·m
Max torque speed: 1100-1400 / 1100-1500rpm
Rated speed: 1900 / 220rpm
Engine Type: EGR+DOC+DPF+SCR+ASC / Inline 6-cylinder, turbocharged, high-pressure common rail
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5 / 8.2 / 8 / 7.6 / 8.8 / 8.6 / 8.5 / 7.8 / 7.2 / 6.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks?
SAIC Hongyan SAIC Hongyan Genlyon H6 Heavy Truck is an export-oriented Dump Trucks lineup with about 285 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks?
SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks export reference is about $53,222 – $66,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks cover?
SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 420 hp / 440 hp / 460 hp / 480 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks?
For SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks include?
SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks currently lists about 285 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Genlyon H6 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
