Fuda 220 hp 6X2(8 wheels) 5m Dump Truck
EXW
Export quote
Fuda Dump Trucks
Main model photos
23 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Fuda 220 hp 6X2(8 wheels) 5m Dump Truck | 6x2 / 220hp / China V | ||
| Fuda M3 220 hp 6X2(8 wheels) 5m Dump Truck (Middle Axle Lift) | 6x2 / 220hp / China V | From $29,861 | |
| Fuda M3 220 hp 6X2(8 wheels) 4.5m Dump Truck (Middle Axle Lift) | 6x2 / 220hp / China V | From $26,389 | |
| Fuda 160 hp 6X2(8 wheels) Dump Truck (two-axle lift) | 6x2 / 160hp / China V |

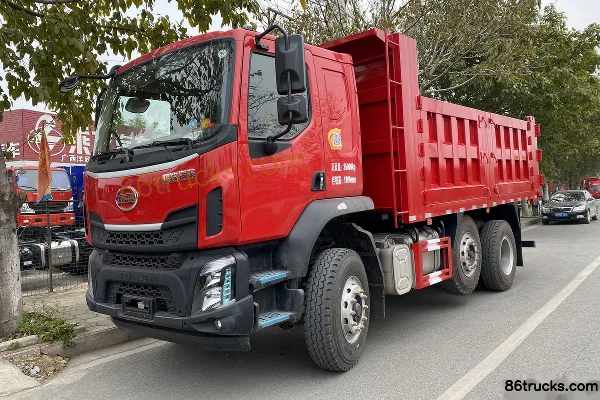

Fuda M3 220 hp 6X2(8 wheels) 5m Dump Truck (Middle Axle Lift)
EXW
From $29,861
Export quote

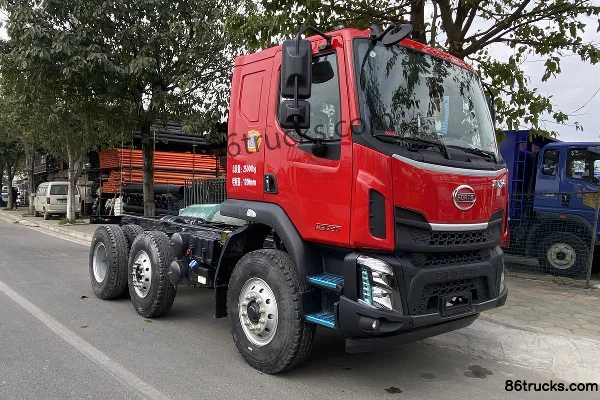

Fuda M3 220 hp 6X2(8 wheels) 4.5m Dump Truck (Middle Axle Lift)
EXW
From $26,389
Export quote
Fuda 160 hp 6X2(8 wheels) Dump Truck (two-axle lift)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): FZ3250-E51
Drive type: 6X2
Wheelbase: 2450+1350mm
Engine Model: YuchaiYC4EG220-50 / Yuchai160
Transmission Model: Fast Gear10JS90A-B
Cab length: 7.9 / 7.5m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1940/1940mm
rear track: 1860mm
Curb Weight: 9.81 / 8ton
Rated payload: 14.995ton
GVWR: 25ton
Origin: Fuzhou, Fujian
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 18°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220 / 160Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5 / 4.5m
Cargo box width: 2.45 / 2.25m
Cargo box height: 1.2m
Cab parameters
Cab: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6500kg
FAQ
What kind of truck is Fuda Fuda Dump Trucks?
Fuda Fuda is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Fuda Dump Trucks?
Fuda Dump Trucks export reference is about $26,389 – $29,861. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Fuda Dump Trucks cover?
Fuda Dump Trucks mainly covers: Drive: 6x2; Horsepower: 160 hp / 220 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Fuda Dump Trucks?
For Fuda Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Fuda Dump Trucks include?
Fuda Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Fuda Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
