Fuda 220 hp 6X2(8 wheels) 5m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.81ton
Wheelbase:: 2450+1350mm
Tire Size:: 10.00R20 18PR
Rated payload: 14.995ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Fuda 220 hp 6X2(8 wheels) 5m Dump Truck is a Heavy truck featuring 14.995t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FZ3250-E51
Drive type: 6X2
Wheelbase: 2450+1350mm
engine: YuchaiYC4EG220-50
transmission: Fast Gear10JS90A-B
Cab length: 7.9m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1940/1940mm
rear track: 1860mm
Curb Weight: 9.81ton
Rated payload: 14.995ton
GVWR: 25ton
Origin: Fuzhou, Fujian
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5m
Cargo box width: 2.45m
Cargo box height: 1.2m
Cab parameters
Cab: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 10/10
Tire
Tire Size: 10.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

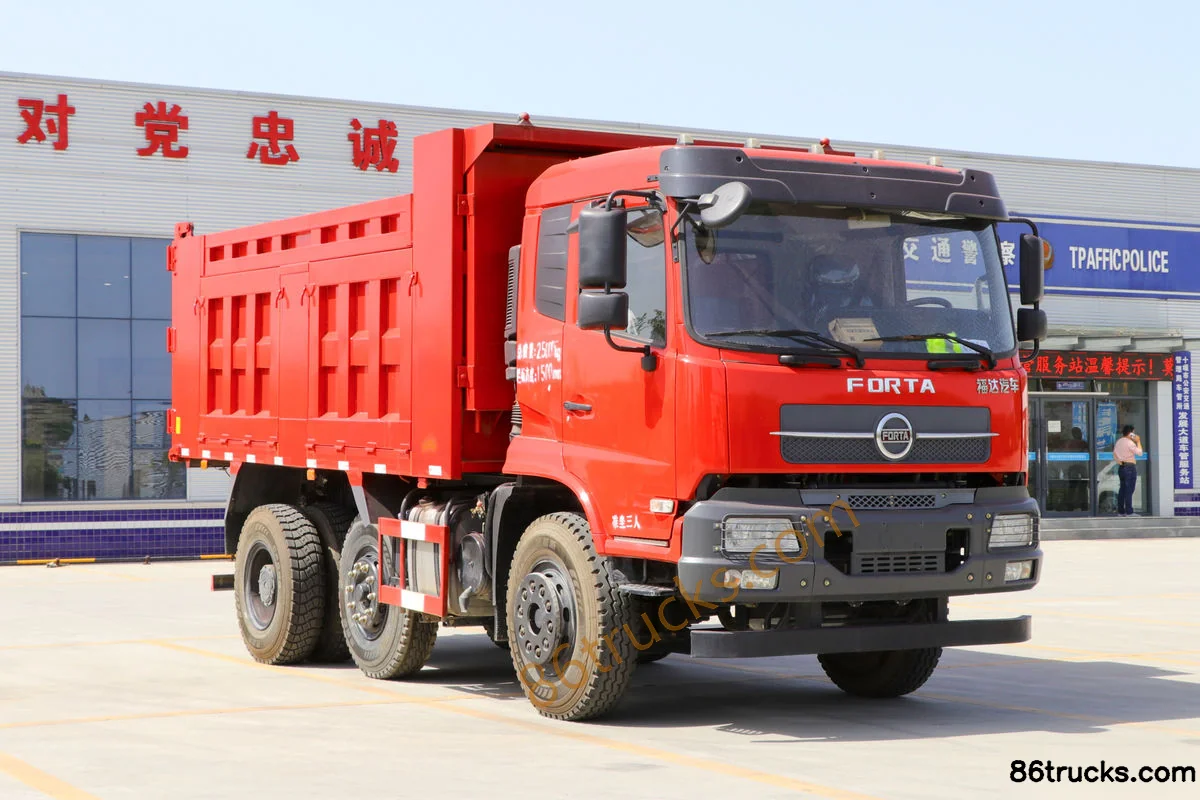

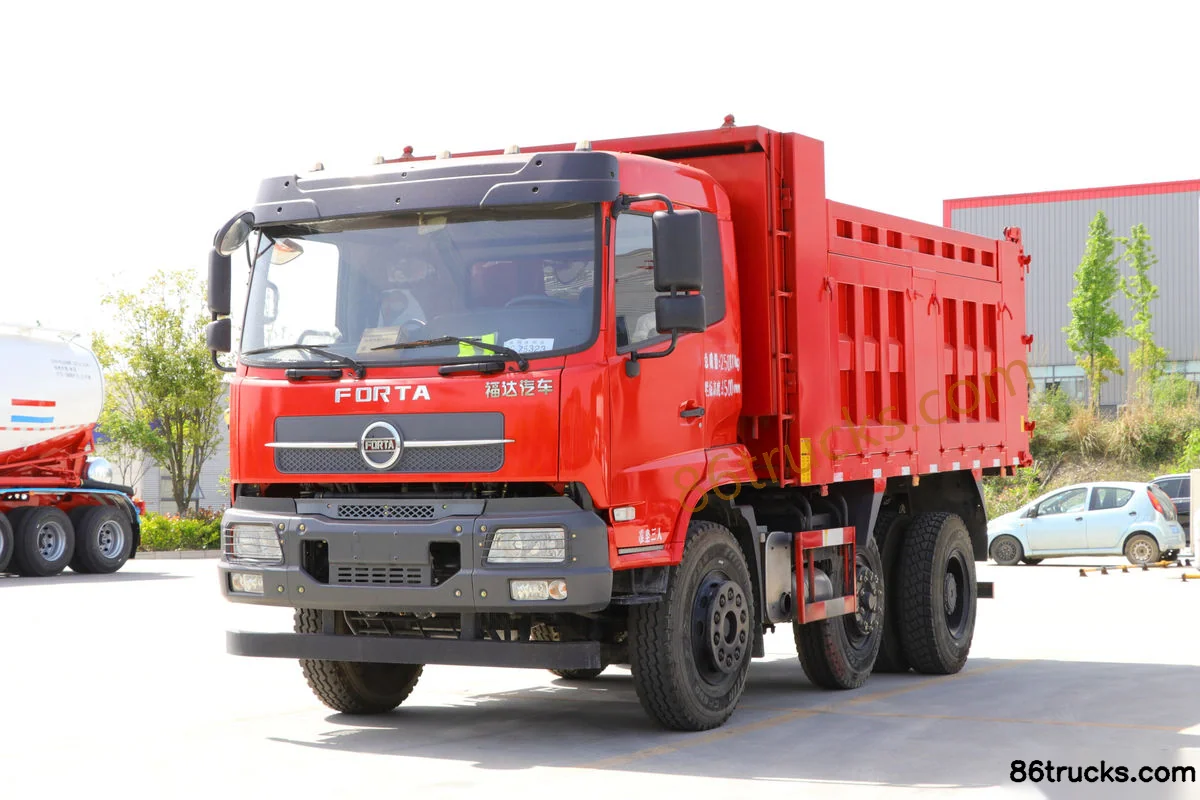

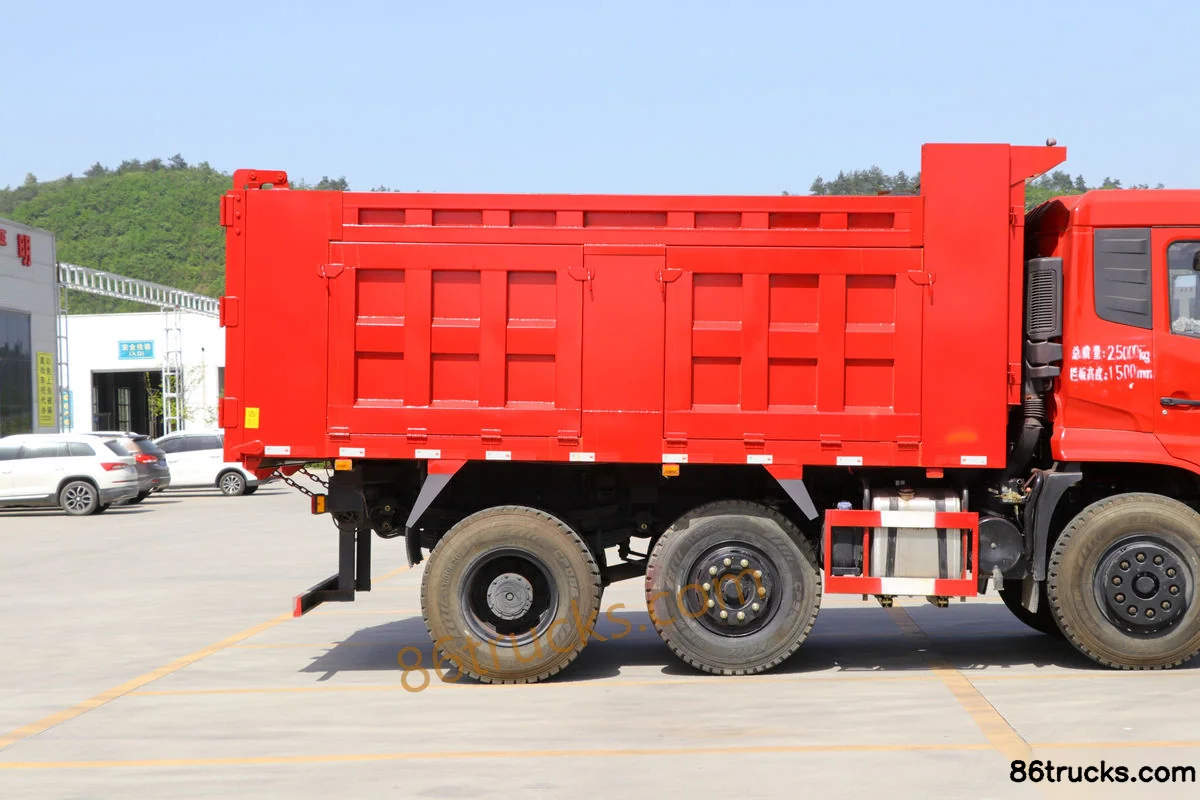

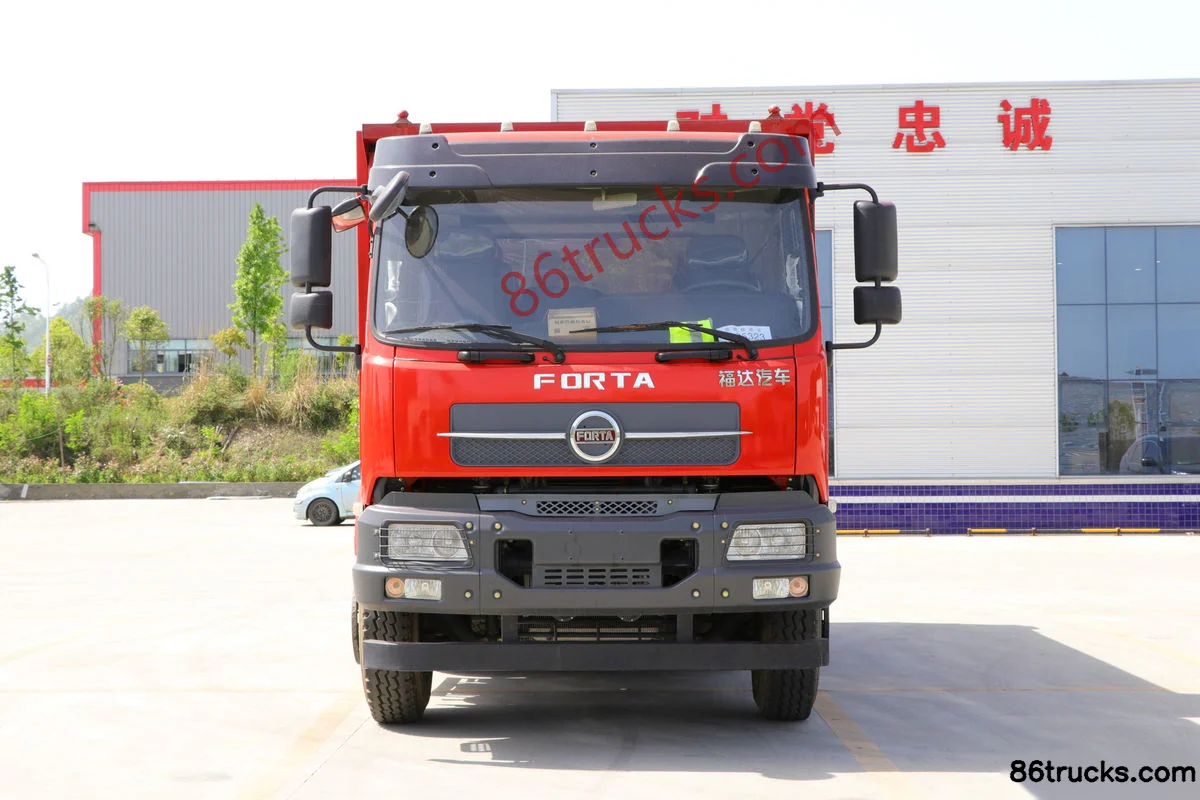

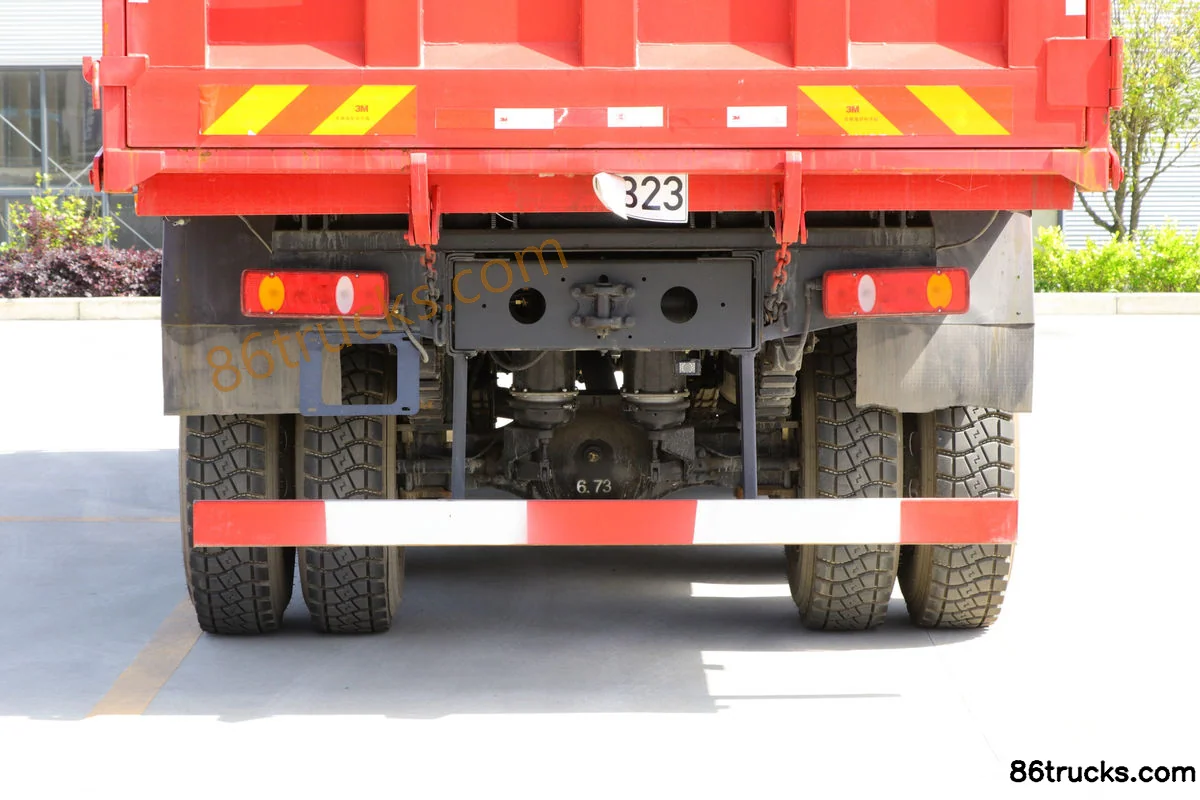

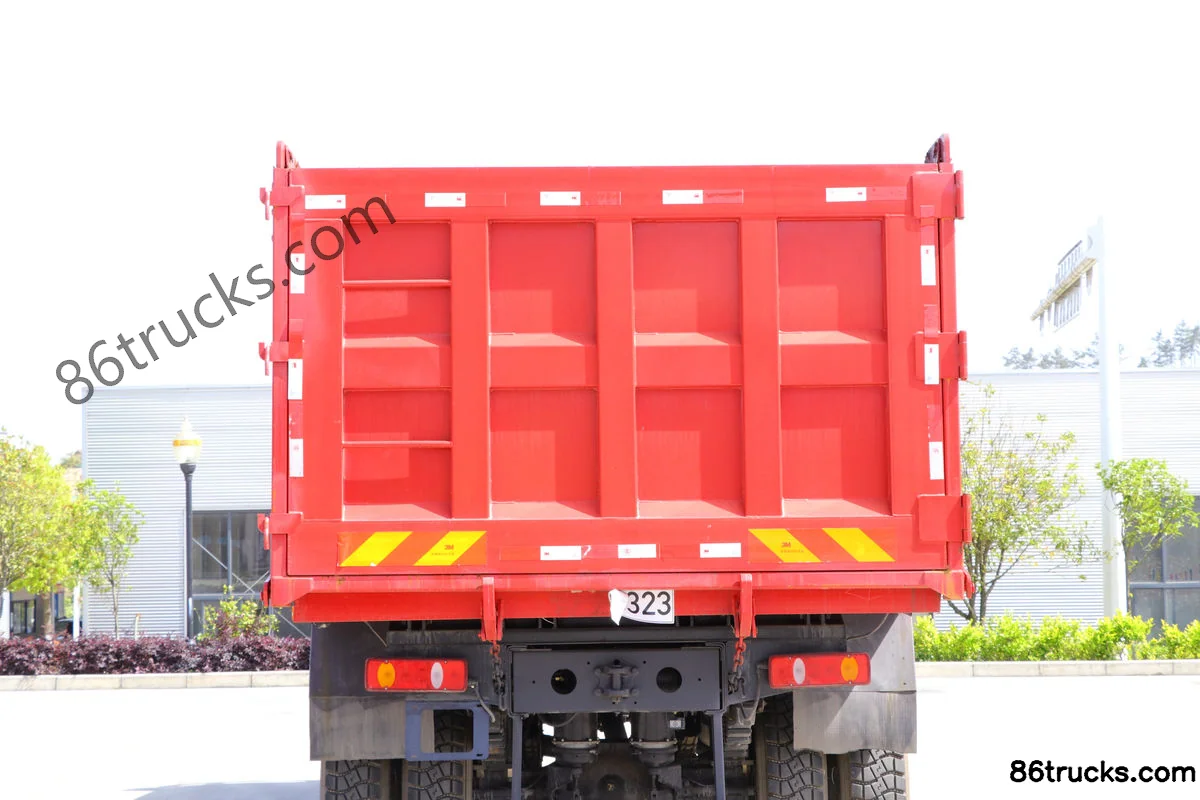

Exterior3

Cab3

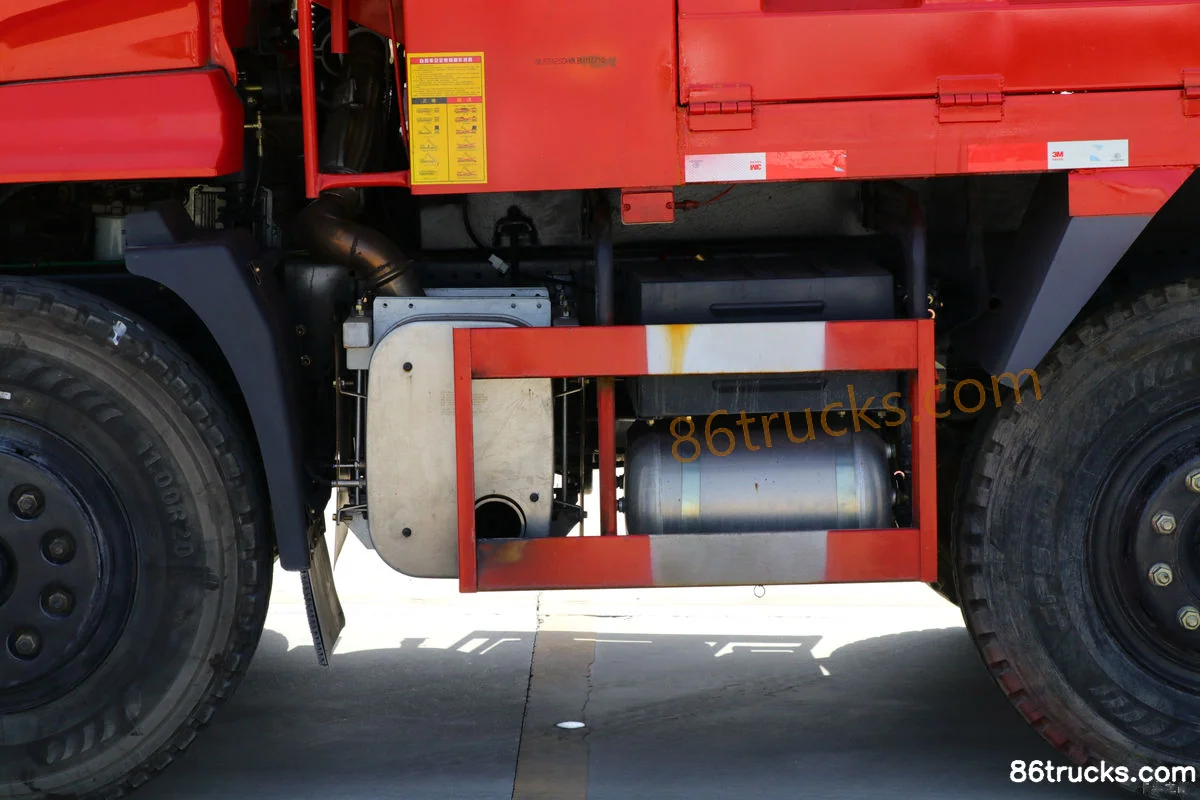

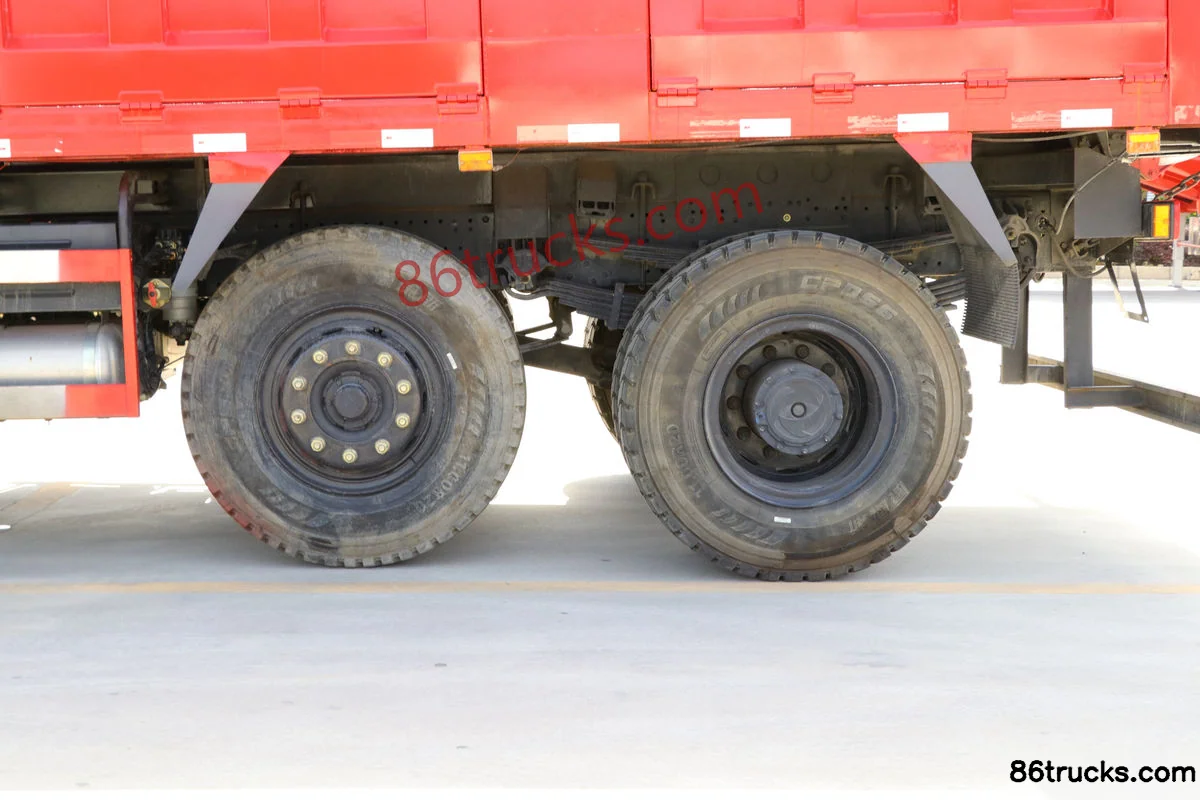

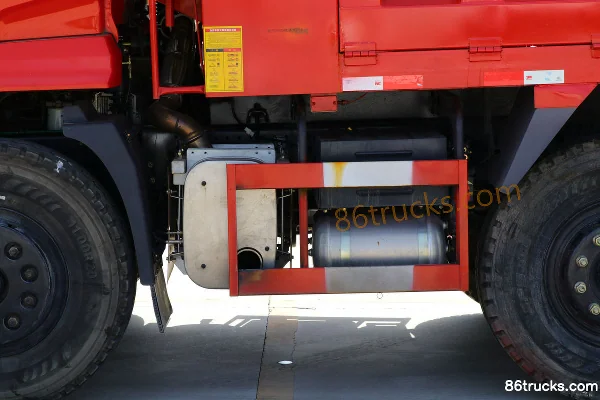

Chassis2

8 photos

FAQ

What emission standard does Fuda 220 hp 6X2(8 wheels) 5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Fuda 220 hp 6X2(8 wheels) 5m Dump Truck?

Key specs of Fuda 220 hp 6X2(8 wheels) 5m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Fuda 220 hp 6X2(8 wheels) 5m Dump Truck suited for?

Fuda 220 hp 6X2(8 wheels) 5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Fuda 220 hp 6X2(8 wheels) 5m Dump Truck differ from other variants in the same series?

Fuda 220 hp 6X2(8 wheels) 5m Dump Truck belongs to Fuda (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Fuda 220 hp 6X2(8 wheels) 5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Fuda 220 hp 6X2(8 wheels) 5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
