Foton Big Diamond ES7 270 hp 8X4(12 wheels) 7.2m dump truck
EXW
From $45,139
Export quote
Foton Dajingang ES7 medium-duty truck Dump Trucks
Main model photos
139 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Big Diamond ES7 270 hp 8X4(12 wheels) 7.2m dump truck | 8x4 / 270hp / China VI | From $45,139 | |
| Foton Big Diamond ES7 245 hp 6X2(8 wheels) 4.8m dump truck | 6x2 / 245hp / China VI | From $35,208 | |
| Foton Big Diamond ES7 270 hp 8X2(10 wheels) 7.2m dump truck | 8x2 / 270hp / China VI | From $40,472 | |
| Foton Big Diamond ES7 270 hp 8X4(12 wheels) 7.2m dump truck | 8x4 / 270hp / China VI | From $45,139 | |
| Foton Big King Kong ES7 245hp 6X2(8 wheels) 5.6m Dump Truck | 6x2 / 245hp / China VI | From $37,403 |

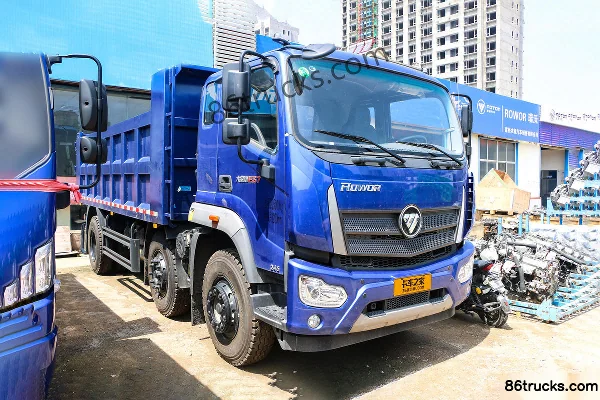

Foton Big Diamond ES7 245 hp 6X2(8 wheels) 4.8m dump truck
EXW
From $35,208
Export quote

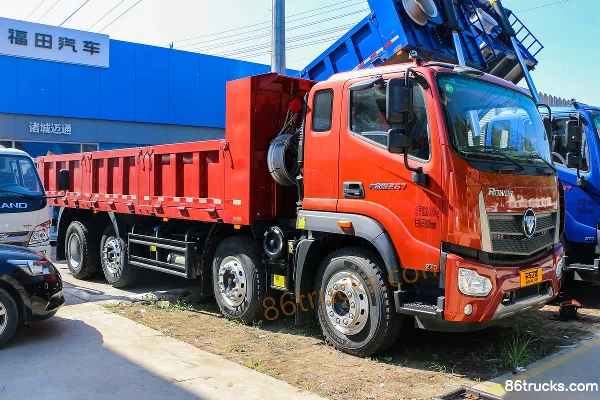

Foton Big Diamond ES7 270 hp 8X2(10 wheels) 7.2m dump truck
EXW
From $40,472
Export quote
Foton Big Diamond ES7 270 hp 8X4(12 wheels) 7.2m dump truck
EXW
From $45,139
Export quote
Foton Big King Kong ES7 245hp 6X2(8 wheels) 5.6m Dump Truck
EXW
From $37,403
Export quote
Series Specs
Basic Info
Model code (announced): BJ3314DPPHB-04 / BJ3244DMPHB-74 / BJ3314DPPHB-01 / BJ3314DPPHB-03 / BJ3254DMPHB-75 / BJ3314DNPHR-05 / BJ3314DPPHB-02 / BJ3254DMPFH-71
Drive type: 8X4 / 6X2 / 8X2
Wheelbase: 1800+3100+1300 / 1800+2600 / 1800+3450+1300 / 1800+3400 / 2000+3150+1350 / 2000+2850+1350 / 2000+2650+1350 / 1800+2800+1300 / 1800+3650+1300 / 1800+3250+1300 / 1800+4700mm
Engine Model: YuchaiYCS06270-60 / YuchaiYCS06245-60 / YuchaiYCK08350-60 / Yuchai
Transmission Model: Fast Gear 10-Speed / Fast Gear10JS90A-B / Fast Gear10JSD120B / Fast Gear10JSD120A / Fast Gear8JS110A / Fast Gear9JS119A
Rear Axle Ratio: 5.571 / 5.833 / 5.286
Cab length: 9.635 / 7.5 / 10.148 / 10.185 / 8.3 / 9.725 / 9.425 / 9.125 / 8.925 / 8.725 / 9.17 / 10.298 / 10.098 / 9.898 / 9.498 / 8.91 / 8.71 / 8.61 / 10.11m
Cab width: 2.55 / 2.41 / 2.515 / 2.348 / 2.468 / 2.53 / 2.44 / 2.25 / 2.5 / 2200m
Cab height: 3.05 / 2.93 / 3.15 / 3.1 / 3.25 / 3 / 2.75 / 2.95 / 2.85 / 2.94m
Front track width: 1940/1940 / 1920/1920 / 1945/1945 / 1930/1930 / 2040/2040 / 1790/1790 / 1916/1916 / 1760/1760mm
rear track: 1750/1750 / 1740 / 1810/1700 / 1865 / 1865/1865 / 1810/1734 / 1934/1860 / 1780mm
Curb Weight: 10.95 / 9.2 / 10.7 / 11.54 / 12.8 / 9.8 / 11.1 / 10.1 / 10.6ton
Rated payload: 19.855 / 15.105 / 20.105 / 13.265 / 18.07 / 21.005 / 20.705 / 19.705 / 14.97 / 14.905ton
GVWR: 31 / 24.5 / 25ton
Origin: Shandong Zhucheng
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 19 / 20°
departure angle: 14 / 12 / 16 / 17 / 15 / 13°
Remarks: Standard: power steering, clutch booster; optional: metallic paint, electric tilt, multimedia. / Standard: power steering, clutch booster; optional: electric tilt, multimedia, metallic paint. / Power steering, clutch booster, metallic paint, optional electric cab tilt / Power steering, clutch booster
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6cylinder
Displacement: 6.23 / 7.7L
Emission standard: China VI
Max output power: 199 / 180 / 257kW
Max hp: 270 / 245 / 350Horsepower
Max torque: 1050 / 850 / 1450N·m
Max torque speed: 1200-1700 / 1300-1500rpm
Rated speed: 2300 / 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Side-dump tipper. / Dump type
Cargo box length: 7.2 / 4.8 / 5.6 / 6.8 / 6.5 / 6.2 / 6 / 5.8 / 7.6 / 7.4m
Cargo box width: 2.2 / 2.35 / 2.3 / 2.4m
Cargo box height: 0.9 / 1 / 1.5 / 1.2 / 0.8 / 0.6/0.8 / 1.3m
Cab parameters
Cab: Sleeper cab
seating capacity: 3Personnel
FAQ
What kind of truck is Foton Foton Dajingang ES7 medium-duty truck Dump Trucks?
Foton Foton Dajingang ES7 medium-duty truck is an export-oriented Dump Trucks lineup with about 23 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Dajingang ES7 medium-duty truck Dump Trucks?
Foton Dajingang ES7 medium-duty truck Dump Trucks export reference is about $34,750 – $62,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Dajingang ES7 medium-duty truck Dump Trucks cover?
Foton Dajingang ES7 medium-duty truck Dump Trucks mainly covers: Drive: 6x2 / 8x2 / 8x4; Horsepower: 245 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Dajingang ES7 medium-duty truck Dump Trucks?
For Foton Dajingang ES7 medium-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Dajingang ES7 medium-duty truck Dump Trucks include?
Foton Dajingang ES7 medium-duty truck Dump Trucks currently lists about 23 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Dajingang ES7 medium-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
