Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI)
EXW
From $18,056
Export quote

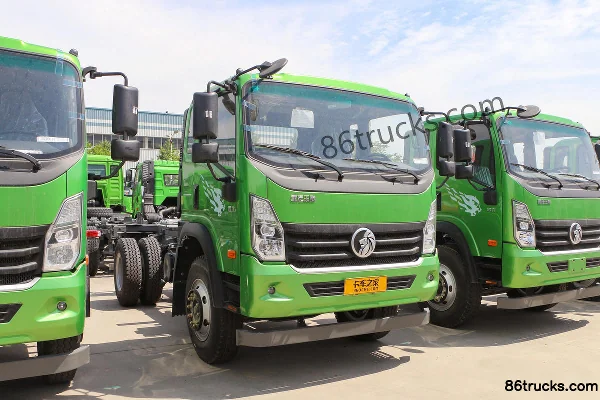

Sinotruk Wangpai 7 series light truck Dump Trucks
Main model photos
618 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Wangpai 7 Series 143 hp 4X2(6 wheels) 3.15m dump truck (China VI) | 4x2 / 143hp / China VI | From $18,056 | |
| Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) | 4x2 / 143hp / China VI | ||
| Sinotruk Wangpai 7 Series 160 hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 190hp / China VI | ||
| Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) | 4x2 / 220hp / China VI | ||
| Sinotruk Wangpai 7 Series 95 hp 4X2(6 wheels) 3m dump truck | 4x2 / 95hp / China V | From $12,431 |
Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI)
EXW
Export quote
Sinotruk Wangpai 7 Series 160 hp 4X2(6 wheels) 3.8m Dump Truck
EXW
Export quote

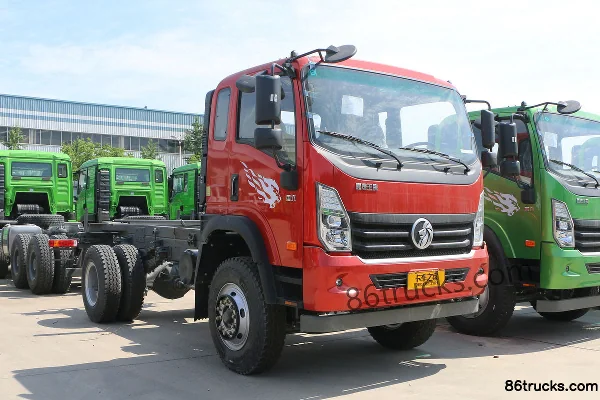

Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI)
EXW
Export quote
Sinotruk Wangpai 7 Series 95 hp 4X2(6 wheels) 3m dump truck
EXW
From $12,431
Export quote
Series Specs
Basic Info
Model code (announced): CDW3044C281CFH / CDW3180A2Q6 / CDW3181A2Q6 / CDW3040HA2P5 / CDW3040A1P5 / CDW3120A1Q5 / CDW3110A1Q5 / CDW3121A1Q5 / CDW3113A1Q5 / CDW2041H1A5 / CDW3040A1Q5 / CDW3040H1P5 / CDW3160A2Q5 / CDW3180A3R5 / CDW3110HA2Q5 / CDW3091A1Q5 / CDW3090A1Q5 / CDW3040H2A5 / CDW3041H2A5 / CDW3040A2Q5 / CDW3240A1R5 / CDW3180A2R5 / CDW3041A2R5 / CDW3250A1R5 / CDW3040HA1R5 / CDW2040HA2Q5
Drive type: 4X2 / 6X2
Wheelbase: 2800 / 3350 / 3500 / 3200 / 3650 / 1800+3000 / 1800+2500 / 3360mm
Engine Model: Yunnei Power490PLUS1 / WeichaiWP4.1NQ190E61 / WeichaiWP4.6NQ220E61A / Yunnei PowerYN27CRE1 / YuchaiYC4D140-50 / XichaiCA4DB1-13E5 / Yunnei PowerYN33CRE1 / Yunnei PowerYNF40E2 / Yunnei PowerD45TCIE3 / Yunnei PowerYNF40E3 / Yunnei PowerYN38CRE1 / XichaiCA4DB1-11E5 / Xichai4DX23-140E5 / Yunnei PowerD45TCIE1 / YuchaiYC4E160-56 / YuchaiYC4EG185-50
Transmission Model: Fast Gear 8-speed / WLYWLY8G45 / 10-speed transmission / WLYWLY10H30 / Fast Gear8JS85F / WLYWLY10H46 / WLY5-speed / WLY653H / WLYWLY653H / Fast Gear8JS55E / Changtai SC985 / Fast Gear 10JS90A overdrive / Fast Gear 10-Speed / WLY 6-speed / Changtai 8-speed
Rear Axle Ratio: 4.875 / 5.571 / 5.833 / 6.833 / 5.286 / 6.5 / 6.333 / 6.33
Cab length: 4.495 / 5.595 / 6.135 / 5.995 / 5.31 / 5.55 / 6.08 / 6.15 / 5.41 / 5.88 / 5.27 / 6.74 / 6.405 / 5.835 / 5.82 / 5.06 / 8.02 / 5.955 / 7.235 / 7.435m
Cab width: 1.9 / 2.1 / 2.36 / 2.11 / 2.21 / 2.025 / 2.26 / 2.02 / 2.46 / 2.16 / 2.25 / 1760 / 1880 / 2080 / 1730 / 2025m
Cab height: 2.115 / 2.07 / 2.74 / 2.78 / 2.61 / 2.55 / 2.75 / 2.645 / 2.65 / 2.72 / 2.25 / 2.6 / 2.57 / 2.85 / 2.655 / 2.155 / 2.7 / 3.05 / 2.95 / 2.73 / 2.745 / 2.59 / 2.79m
Front track width: 1605 / 1810 / 1740 / 1580 / 1770 / 1790 / 1590 / 1750 / 1570 / 1800/1800 / 1790,1785,1770 / 1800 / 1765mm
rear track: 1570 / 1750 / 1640 / 1545 / 1600 / 1725 / 1635 / 1540 / 1645 / 1635,1725,1600 / 1860mm
Curb Weight: 4.495 / 6.65 / 7.81 / 2.72 / 2.5 / 5.45 / 5.8 / 5.9 / 6.3 / 3.12 / 2.6 / 6.7 / 7 / 6.4 / 6.75 / 5.2 / 6.2 / 4.85 / 4.5 / 4.3 / 8.675 / 2.975ton
Rated payload: 1.645 / 11.155 / 9.995 / 1.495 / 6.31 / 4.995 / 5.86 / 1.12 / 9.305 / 9.005 / 9.605 / 11.055 / 6.56 / 4.805 / 4.45 / 4.775 / 4.975 / 15.625 / 16.125 / 0.995ton
GVWR: 2.72 / 2.8 / 18 / 4.495 / 4.125 / 11.955 / 10.99 / 11.49 / 4.37 / 4.29 / 16.2 / 11.2 / 9.495 / 9.47 / 24.495 / 24.995 / 4.165ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck / Medium-duty truck
Approach angle: 17 / 24 / 19 / 21 / 42°
departure angle: 17 / 15 / 23 / 19 / 24 / 18°
Remarks: Rear dump; optional cargo box appearance, optional front lights, bumper and rearview mirrors, optional rear lower guard and side guard, satellite positioning function driving recorder / Cab full-wrap interior, widened seat, anti-corrosion plate, laminated glass, semi-floating rear support, 105Ah maintenance-free battery, clutch booster, air dryer, antifreeze, anti-splash mudguard, onboard satellite positioning terminal, desert air filter, right-turn voice alarm
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Weichai / Yuchai / Xichai
Number of cylinders: 4cylinder
Displacement: 2.499 / 4.088 / 4.58 / 2.672 / 4.214 / 2.21 / 3.298 / 3.92 / 4.46 / 3.76 / 3.857 / 4.26 / 4.73L
Emission standard: China VI / China V
Max output power: 105 / 140 / 162 / 70 / 103 / 95 / 85 / 115 / 80 / 118 / 136kW
Max hp: 143 / 190 / 220 / 95 / 140 / 130 / 116 / 156 / 129 / 110 / 160 / 185Horsepower
Max torque: 400 / 680 / 850 / 250 / 450 / 350 / 315 / 500 / 700 / 365 / 280 / 820 / 600N·m
Max torque speed: 1300-2400 / 1300-1900 / 1300-1600 / 1600-2600 / 1400-1800 / 1600-2400 / 1200-2000 / 1200-2800 / 1200-2200 / 1500-2400 / 1600-2000 / 1300-1800rpm
Rated speed: 3000 / 2600 / 2300 / 3200 / 2800 / 2400 / 2500rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR / Common Rail+EGR+DOC+DPF+SCR / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / Vertical, inline, water-cooled, four-stroke / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged intercooled, BOSCH 1800BAR common rail system, EGR DOC DPF / 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train / SCR / Inline 4-cylinder, four-stroke, water-cooled, turbocharged intercooled / 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail / Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Changtai / Fast Gear overdrive
shift method: Manual
Forward gears: 8 / 10 / 5 / 6 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
hydraulic cylinder brand & model: dual cylinder 90×70
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.15 / 3.1 / 3.8 / 3 / 3.4 / 3.94 / 3.45 / 3.6 / 4.14 / 3.34 / 4 / 5.3 / 4.7 / 4.5 / 3.85m
Cargo box width: 1.8 / 2.2 / 1.9 / 2.1 / 2 / 2.2/2.3 / 2.1/2.2 / 2.2/2.1 / 2.3 / 2.15m
Body Parameters
Lifting type: Front lift
FAQ
What kind of truck is Sinotruk Sinotruk Wangpai 7 series light truck Dump Trucks?
Sinotruk Sinotruk Wangpai 7 series light truck is an export-oriented Dump Trucks lineup with about 148 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Wangpai 7 series light truck Dump Trucks?
Sinotruk Wangpai 7 series light truck Dump Trucks export reference is about $7,611 – $28,583. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Wangpai 7 series light truck Dump Trucks cover?
Sinotruk Wangpai 7 series light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 95 hp / 143 hp / 190 hp / 220 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Wangpai 7 series light truck Dump Trucks?
For Sinotruk Wangpai 7 series light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Wangpai 7 series light truck Dump Trucks include?
Sinotruk Wangpai 7 series light truck Dump Trucks currently lists about 148 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Wangpai 7 series light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
