Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 7.81ton
Wheelbase:: 3500mm
Tire Size:: 10.00R20 18PR
Model code (announced):: CDW3181A2Q6
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) is a Medium-duty truck featuring 9.995t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ220E61A engine, 220 hp, China VI emissions and 10-speed transmission transmission.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3181A2Q6
Drive type: 4X2
Wheelbase: 3500mm
engine: WeichaiWP4.6NQ220E61A
transmission: 10-speed transmission
Rear Axle Ratio: 5.833
Cab length: 5.995m
Cab width: 2.36m
Cab height: 2.78m
Front track width: 1740mm
rear track: 1640mm
Curb Weight: 7.81ton
Rated payload: 9.995ton
GVWR: 18ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Engine Type: Common Rail+EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: 10-speed transmission
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 5.833
Leaf spring count: 11/11+9
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:

Photos

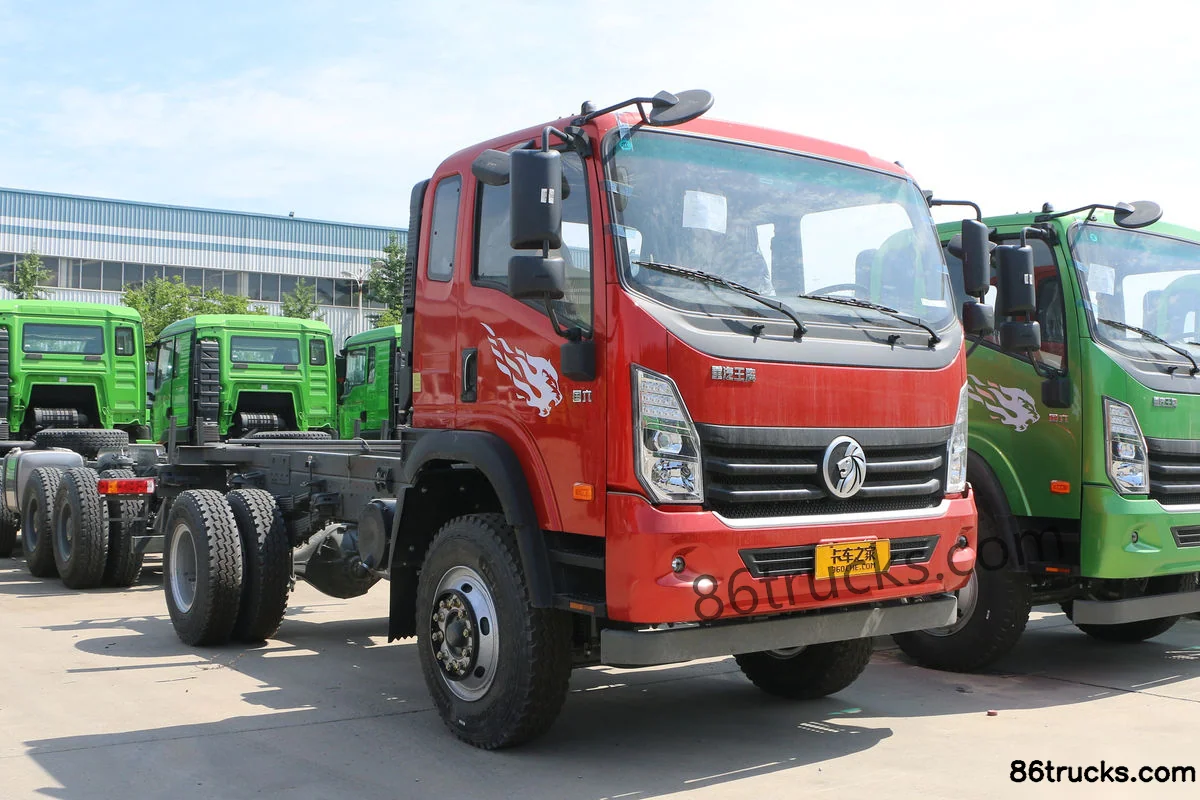

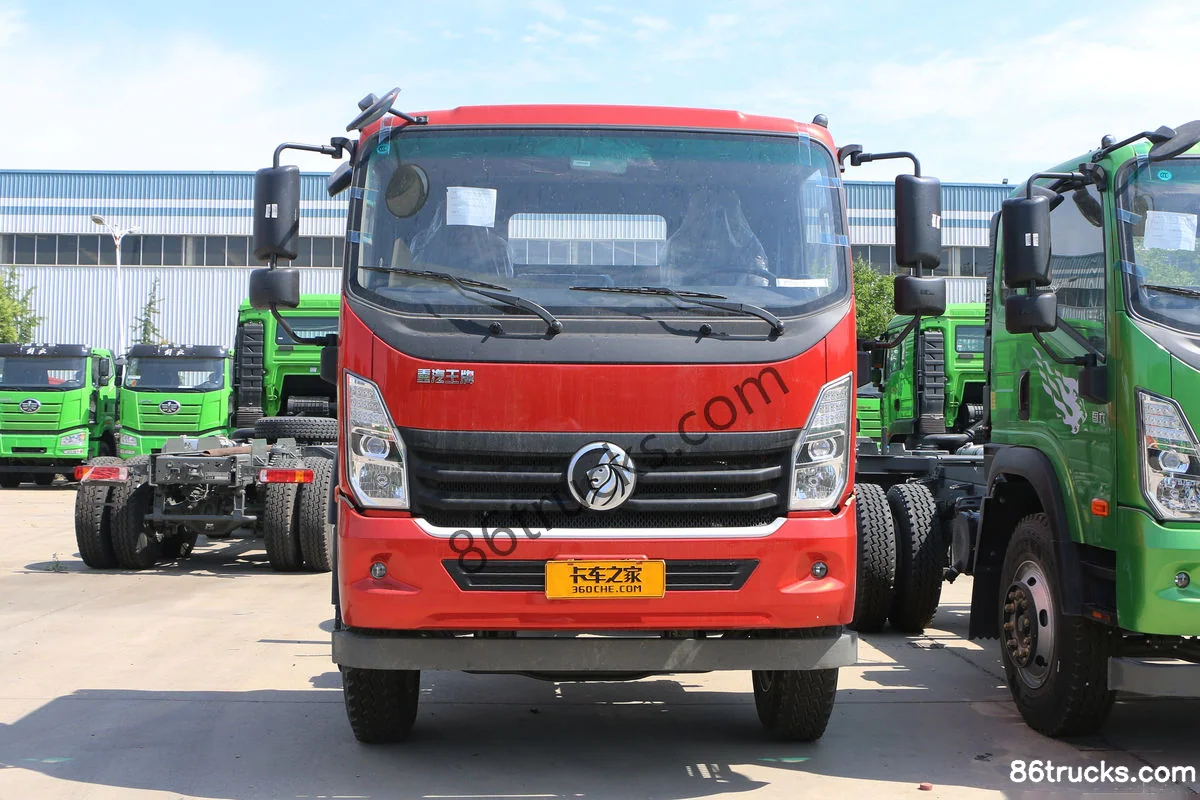

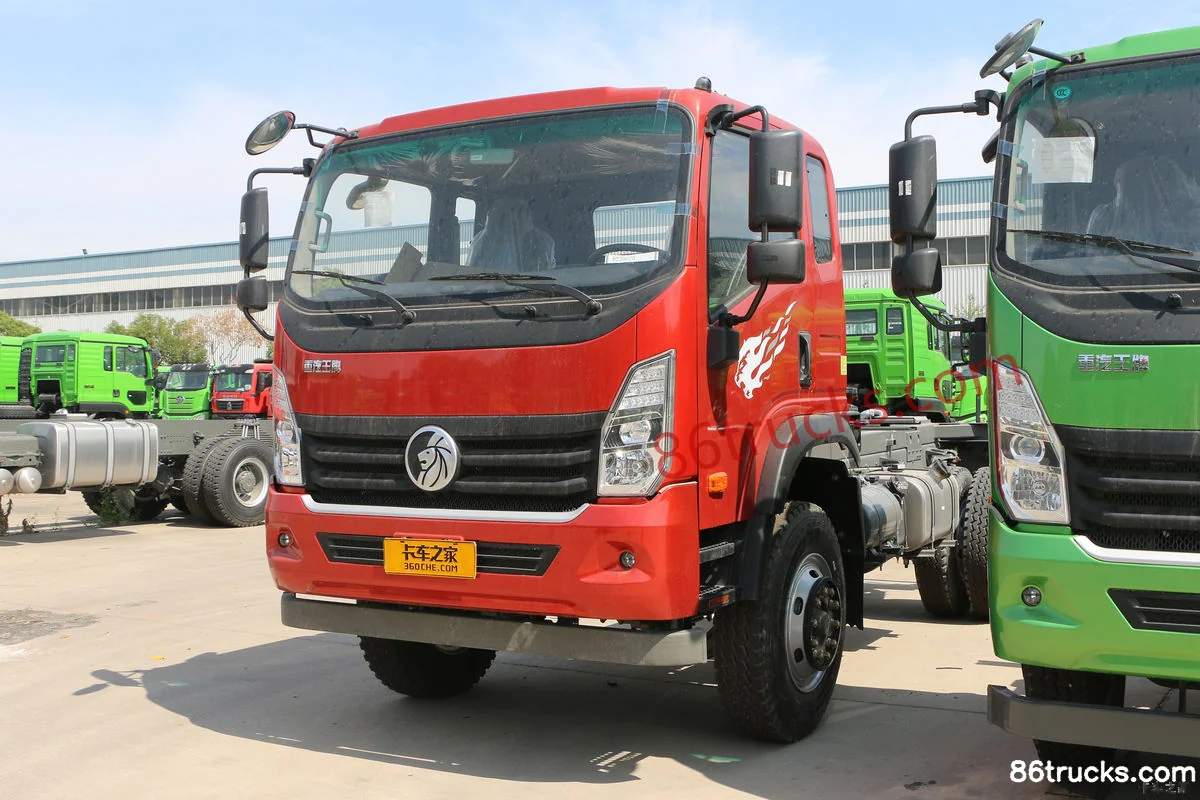

Exterior3

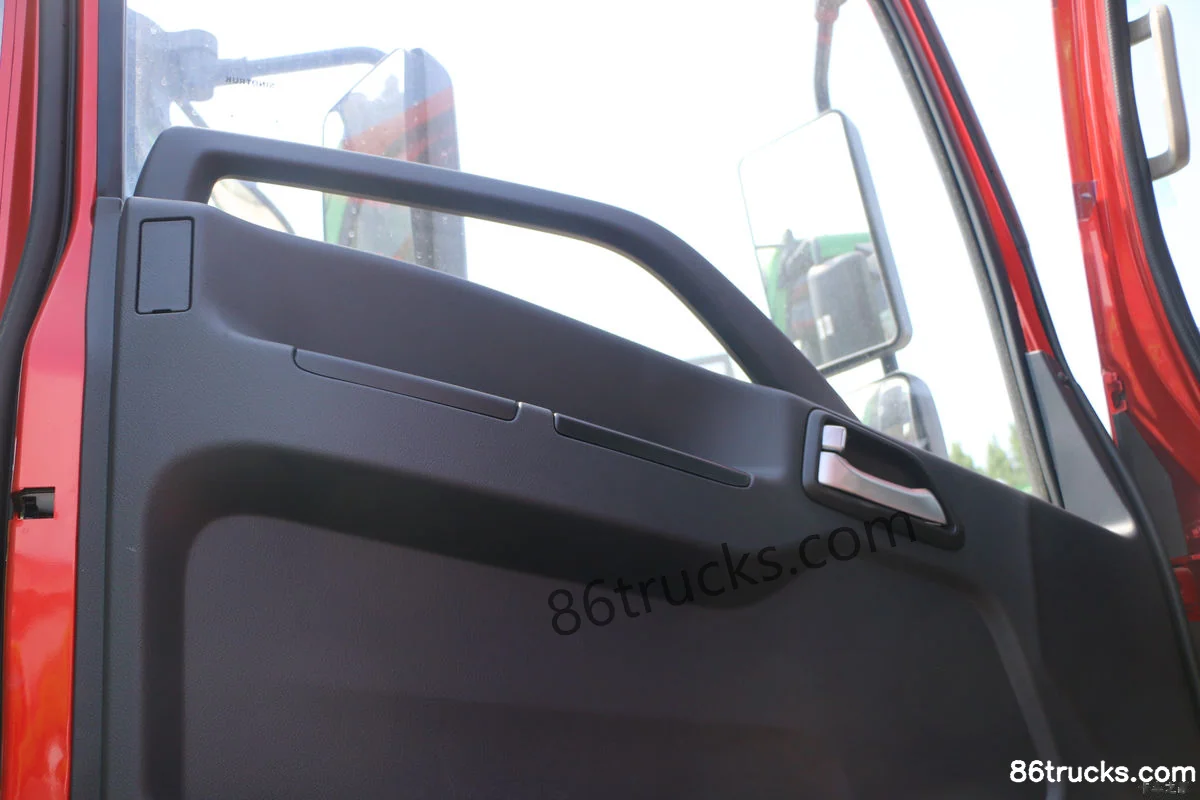

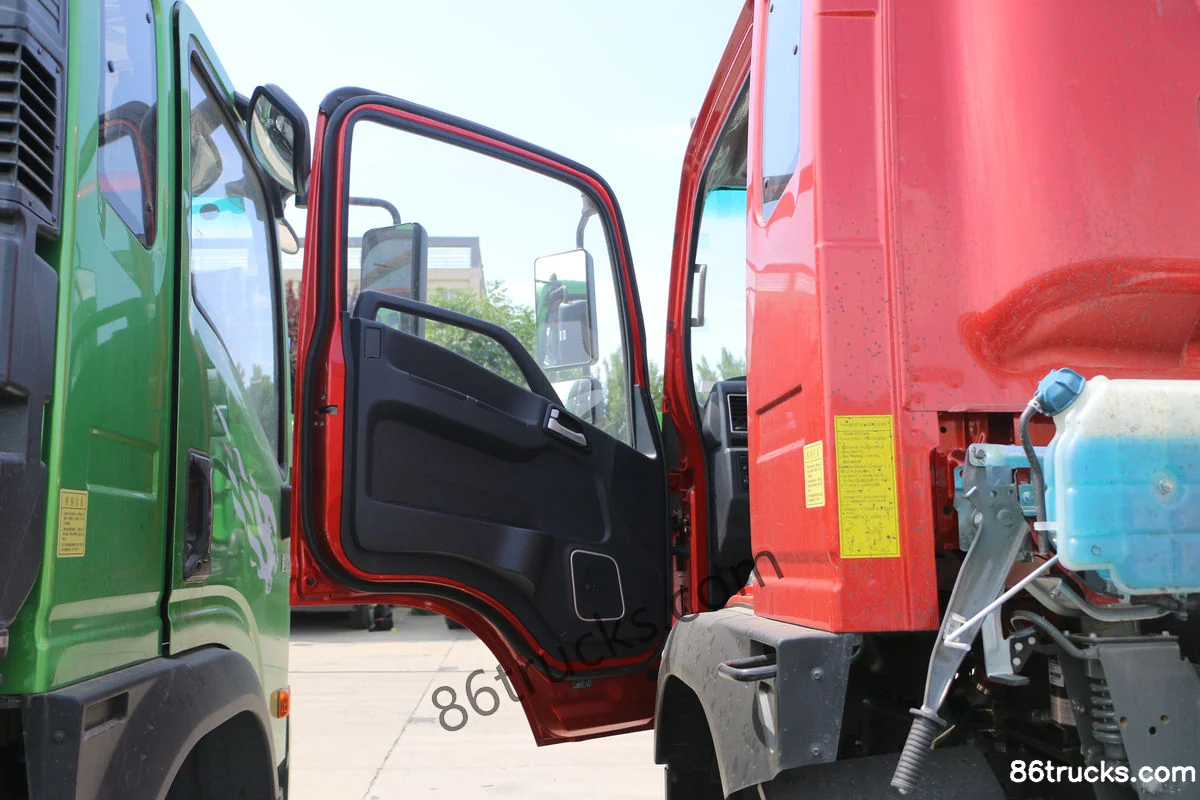

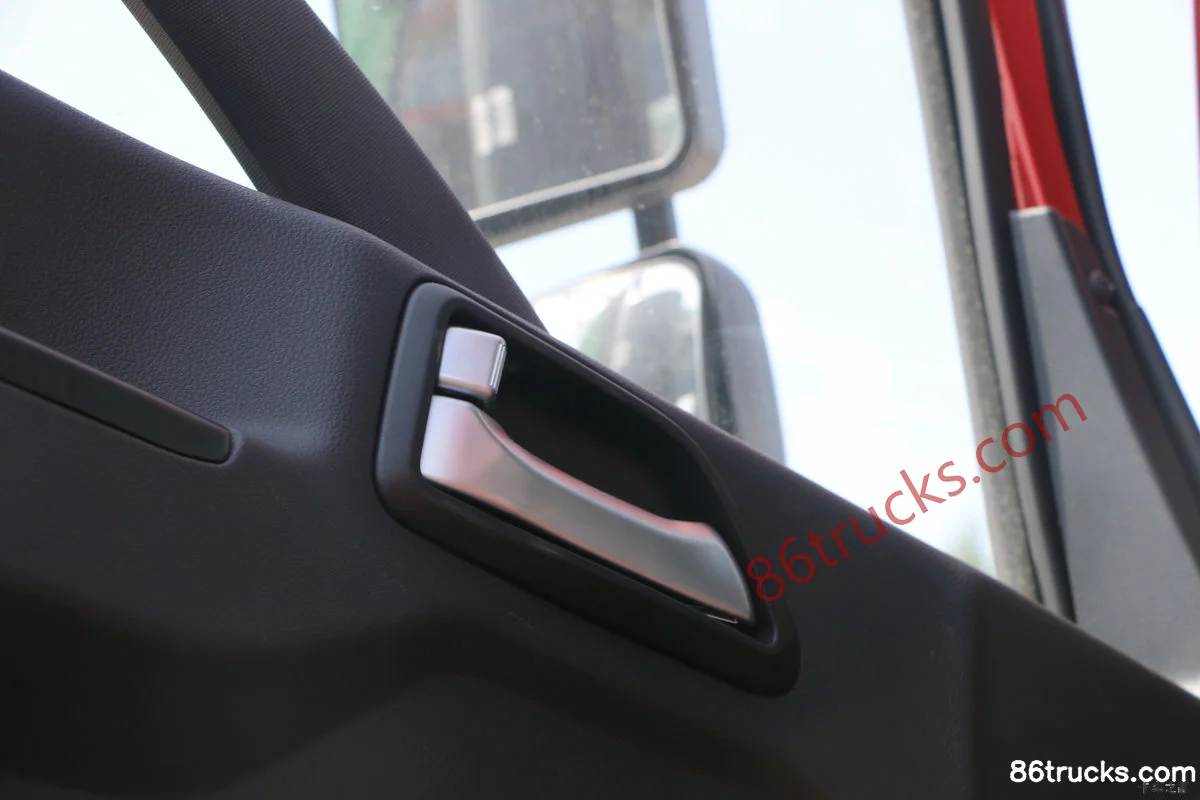

Cab3

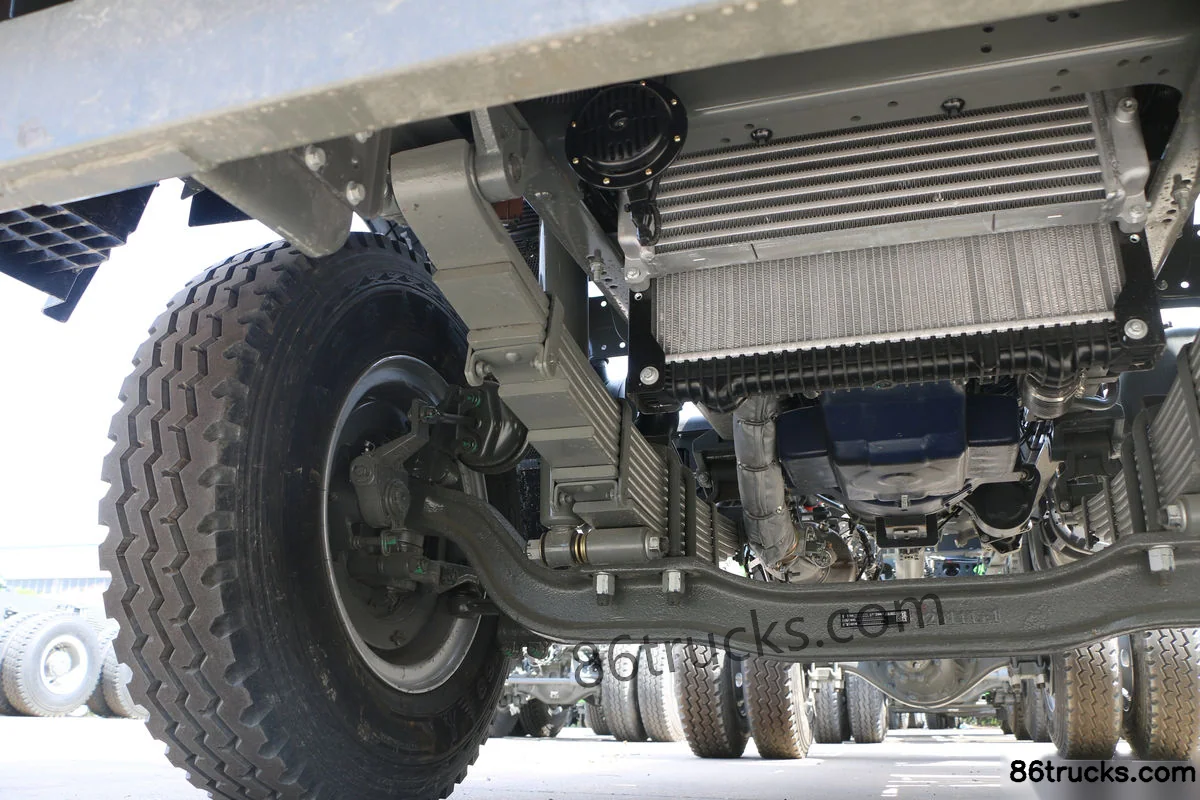

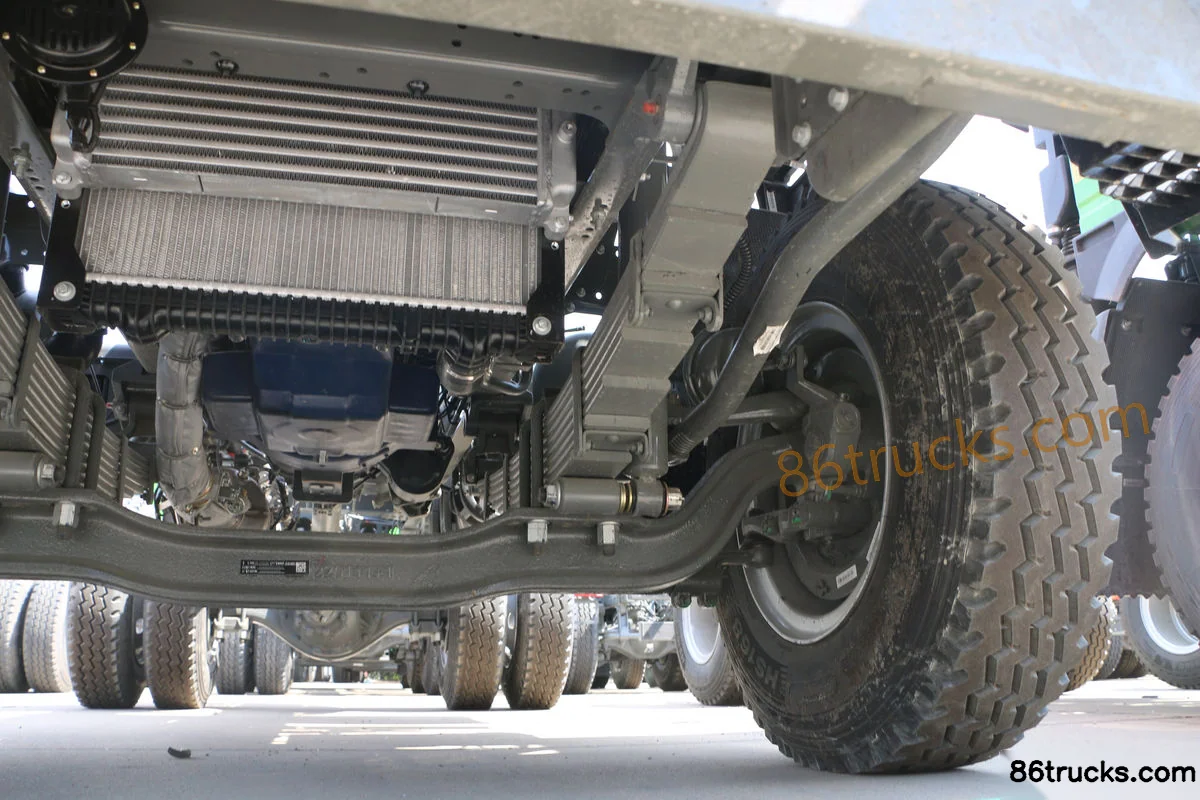

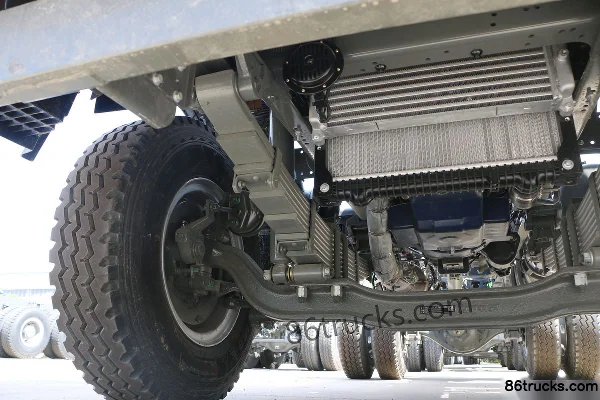

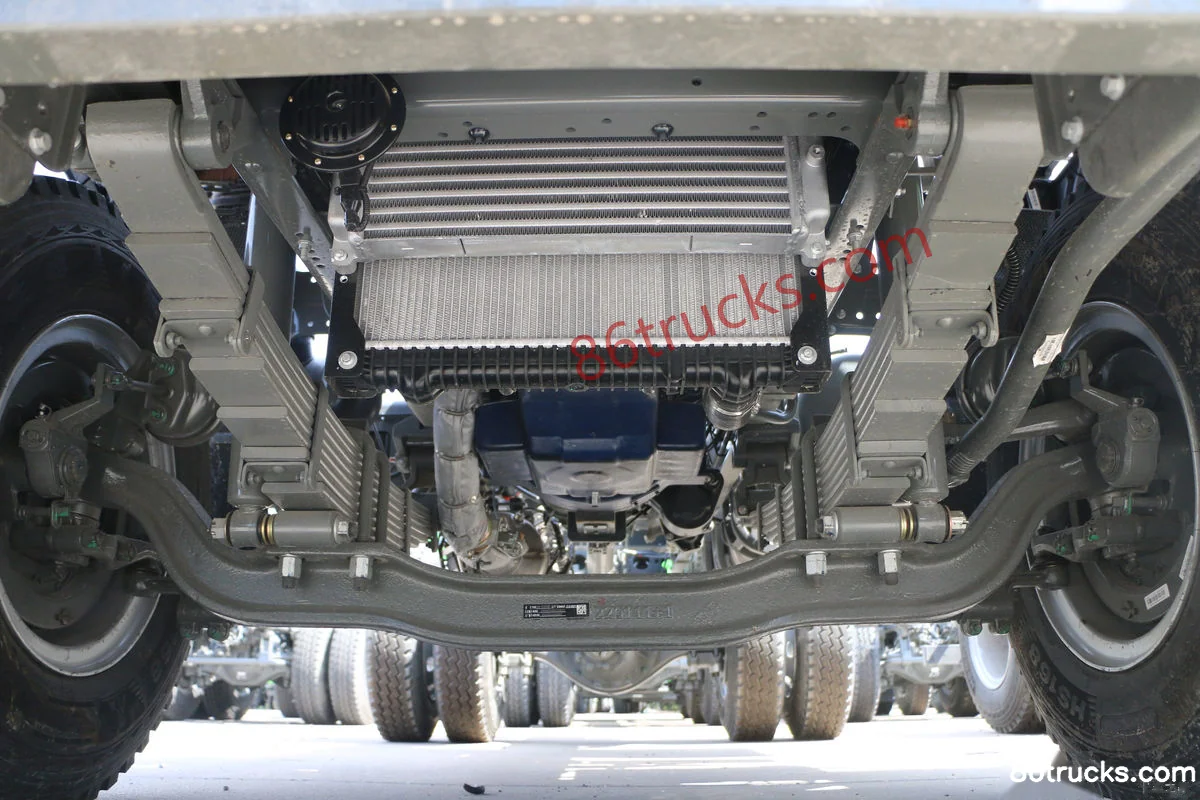

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI)?

Key specs of Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) suited for?

Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) differ from other variants in the same series?

Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI) belongs to Sinotruk Wangpai 7 series light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 220 hp 4X2(6 wheels) 3.8m Crew Cab Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
